Description

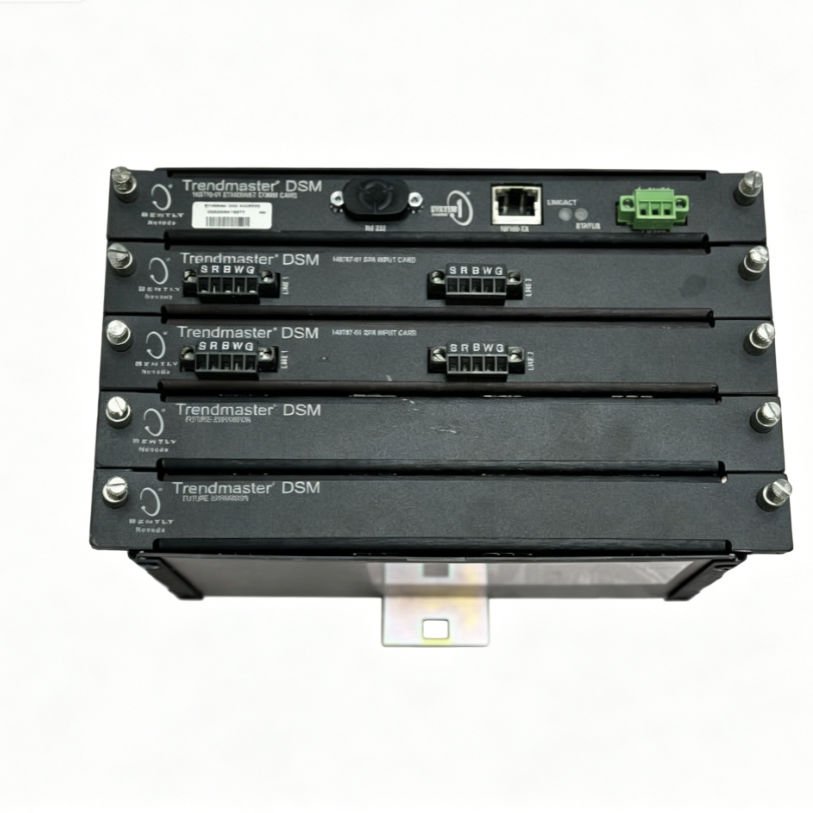

The Bently Nevada 149744, also cataloged as the 149744 Trendmaster Dynamic Scanning Module (DSM), operates as a dedicated hardware component for high-speed dynamic data acquisition within Trendmaster Machinery Condition Monitoring Systems. Specifically, the module serves as a compact 5-slot rack system that pools, conditions, and digits physical sensor variables before transmitting processed machinery health markers to host computers running System 1 software. Consequently, the unit executes local, real-time data computations directly at the device layer to preserve network backplane bandwidth.

Hardware Specifications

Rotor Dynamics & Eddy-Current Probe Scaling

The 149744 DSM reads high-frequency rotor dynamics by interfacing directly with field-mounted Transducer Interface Modules (TIMs). Concurrently, the internal input circuitry accepts multiplexed raw data from eddy-current proximity probe systems, establishing rigid gap voltage validation with standard -10 VDC targets to confirm proper sensor positioning. Because industrial environments generate electromagnetic noise, the internal hardware executes active cross-talk suppression and synchronizes asynchronous waveform sampling. As a result, the module isolates exact phase markers and peak-to-peak displacement trends, which enables the diagnostic host to evaluate structural resonances and fluid-film bearing deviations without signal degradation.

Frequently Asked Questions

Q: How many individual sensor channels can the 149744 support when using a fully populated TIM Input Card configuration?

A: Each compatible TIM Input Card handles 2 separate physical TIM lines. Because each line accepts up to 254 active transducer channels, a single card routes up to 508 channels, maximizing total density across the remaining hardware slots.

Q: Can the 149744 stream diagnostic data directly to a third-party DCS without using Bently Nevada System 1 software?

A: Yes. The module features an integrated Ethernet Modbus server that maps processed registers directly over Modbus TCP/IP. Therefore, process automation networks can poll basic trending variables and alarm status matrices directly through up to 6 simultaneous client connections.

Field Installation Guidelines

• Chassis Insertion and Mounting: Position the module chassis horizontally onto a standard 35 mm DIN rail or bolt the frame directly to a solid surface using 4 number 8 bulkhead screws. Ensure the mounting configuration remains rigid to counter local machinery vibration profiles.
• Shield Termination: Technicians must route all sensor and network lines using continuous shielded twisted-pair cabling. Connect the outer braided shielding directly to the designated instrumentation ground bus bar at the panel entry point; do not create grounding loop pathways by grounding both ends.
• Power and Fuse Protection: Connect the external 24 VDC power source exclusively through the dedicated power plug terminal located on the primary communication card. To ensure electrical line protection, verify that the circuit contains a 1 A slow-blow fuse.
