Description

Brief Product Description

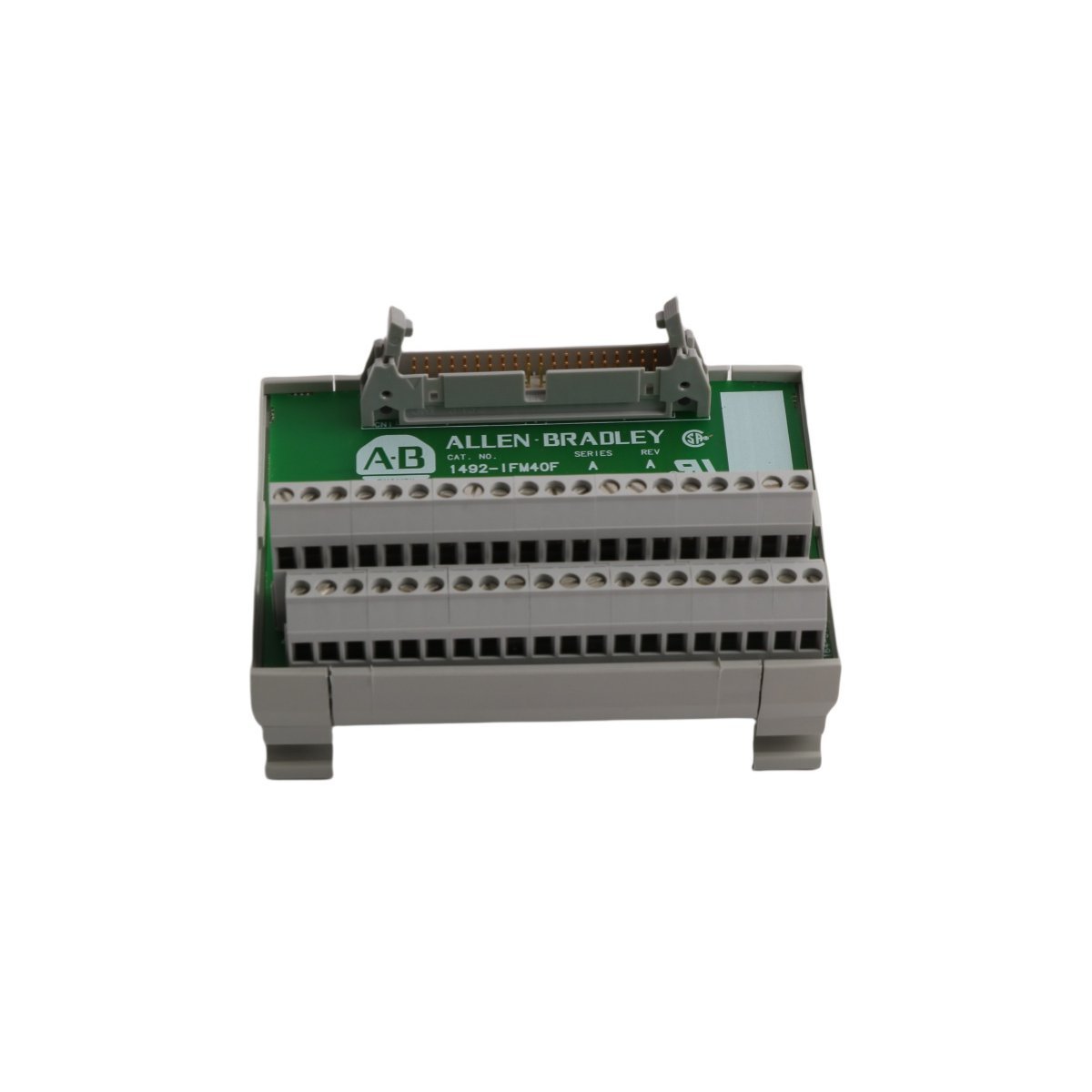

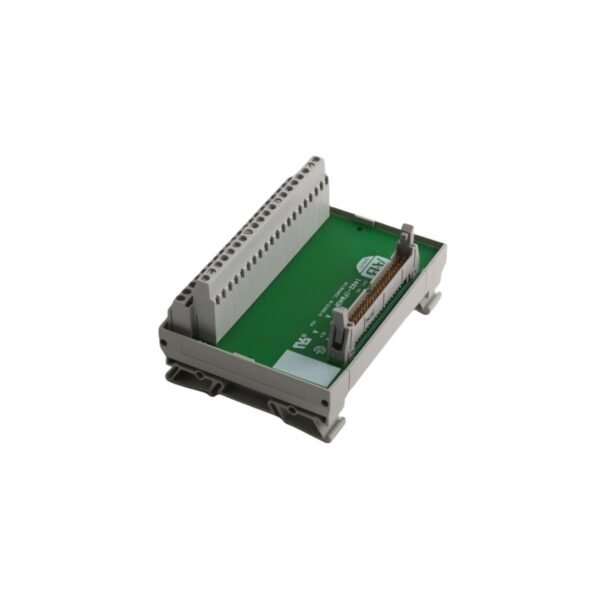

The Allen Bradley 1492-IFM40F-FS-2 is a high-density 40-contact digital interface module designed to simplify field wiring for PLC I/O systems. It features integrated fuse protection and LED status indicators to enhance circuit safety and streamline troubleshooting in industrial control environments.

Product Description

Integrated Protection and Diagnostics

The Allen Bradley 1492-IFM40F-FS-2 serves as a specialized Interface Module (IFM) within the Bulletin 1492 wiring system. This module replaces traditional point-to-point wiring between 1746 series I/O modules and field devices, significantly reducing the risk of installation errors. Because the unit includes integrated fuse clips and LED status indicators, operators can quickly identify blown fuses and monitor circuit health at a glance. The circuitry supports a broad operating voltage of 10–30V AC/DC, making it a versatile choice for various discrete control applications.

High-Density Distribution and Safety

This module utilizes a 40-contact architecture to manage complex I/O density while maintaining a compact footprint in the control cabinet. Each individual circuit handles up to 2 Amps, with the entire module supporting a total current load of 12 Amps. To ensure safety in rigorous environments, Allen Bradley engineered this unit to meet Class 1, Division 2 standards for hazardous locations. Additionally, the T3C temperature rating allows the module to operate reliably in ambient conditions up to 60°C. By consolidating wiring into a single, pre-labeled terminal block, the 1492-IFM40F-FS-2 maximizes cabinet organization and improves system scannability.

Installation and Hardware Compatibility

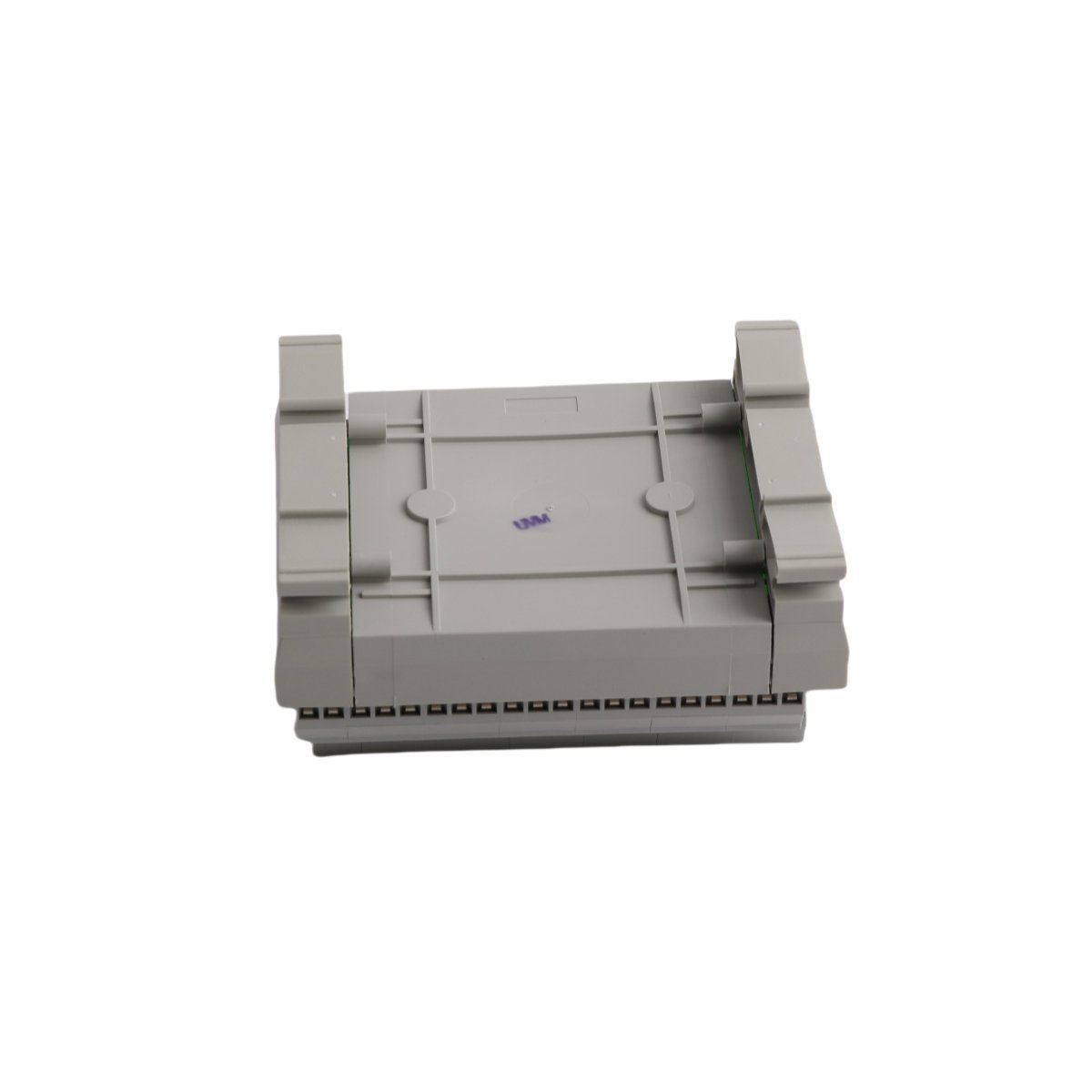

Efficiency defines the mechanical design of the 1492-IFM40F-FS-2. The module snaps directly onto standard #3 DIN rails, facilitating rapid deployment across new or existing automation racks. It features one field-side terminal per I/O point, which proves particularly beneficial for installations where I/O device commons require remote termination. Furthermore, the use of a fixed terminal block ensures rigid and secure connections that withstand industrial vibrations. This module complies with global CE, cULus, and UL standards, providing a globally recognized solution for distributed digital signal management.

Technical Specifications
