Description

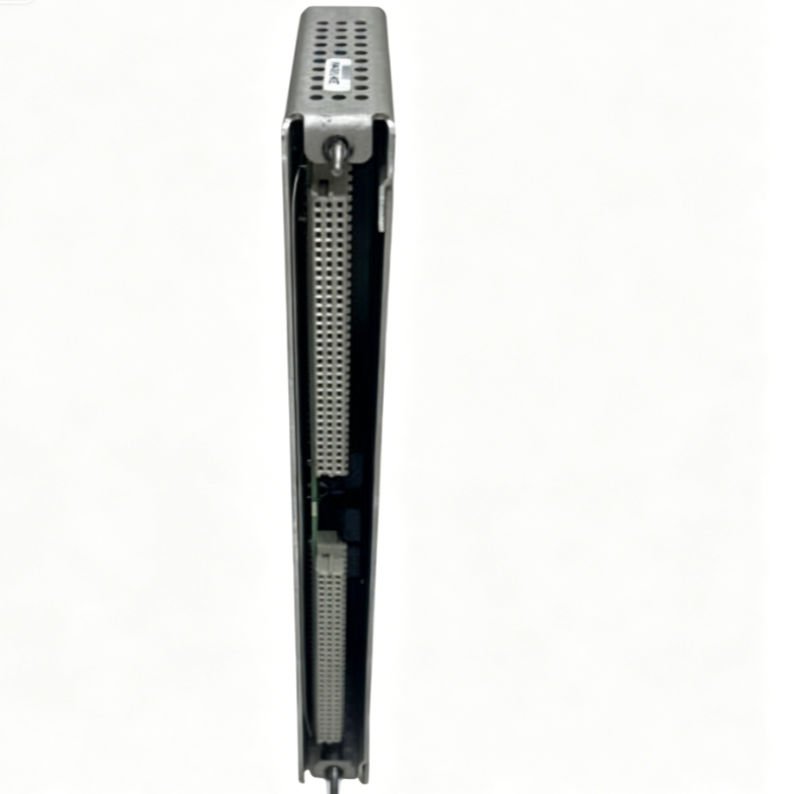

The Bently Nevada 133396-01, also cataloged as the Bently Nevada 133396-01 Overspeed Detection I/O Module, operates as a dedicated hardware component for high-speed rotational tracking and machinery protection within Bently Nevada 3500 Series Machinery Protection System networks.

Hardware Specifications

Transducer Calibration and Gap Voltage Validation

The module executes real-time eddy-current probe scaling and speed transducer signal processing across three independent channels. Simultaneously, the internal hardware continuously monitors the incoming DC gap voltage when using proximity sensors to verify precise transducer alignment. It enforces strict gap voltage validation targeting -10 VDC to confirm that the transducer operates within its linear measurement range. Furthermore, deviations from the optimal voltage window trigger immediate system status updates. Consequently, this functionality prevents inaccurate rotor dynamics tracking and reinforces cross-talk suppression between high-frequency speed sensor cables.

Frequently Asked Questions

Q: What specific sensor types connect to the 133396-01 overspeed I/O module?

A: The hardware interface accepts direct inputs from either passive magnetic pickups (MPUs) or active proximity transducer systems to evaluate shaft rotational speed.

Q: Can this I/O module operate independently without the front control monitor?

A: No. The 133396-01 I/O module mounts at the rear of the rack and must interface directly with its corresponding front-slot 3500/53 overspeed monitoring module via the backplane.

Field Installation Guidelines

• Rear Chassis Positioning: Install the I/O module in the rear slot directly opposing the front 3500/53 overspeed monitor. First, line up the module edges with the upper and lower metal guides, and then tighten the rear securing screws completely.
• Shield Grounding Framework: Terminate all speed sensor coaxial shields exclusively at the designated internal termination bulkhead grounding strip. However, do not ground the shield at the sensor housing to eliminate localized ground loop noise.
• Terminal Wiring Torque Specification: Secure all terminal block connection screws on the interface module using a precise torque range between 0.56 and 0.79 N-m. As a result, this continuous clamping force prevents loose wire contacts caused by steady machinery vibration.
