Description

Brief Product Description

The Emerson KJ3201X1-BK1 is a specialized 8-channel NAMUR digital input module designed for the DeltaV SIS (Safety Instrumented System) platform. It provides high-integrity signal monitoring for energy-limited nodes and critical process safety loops in hazardous industrial environments.

Product Description

Advanced Safety and Signal Monitoring

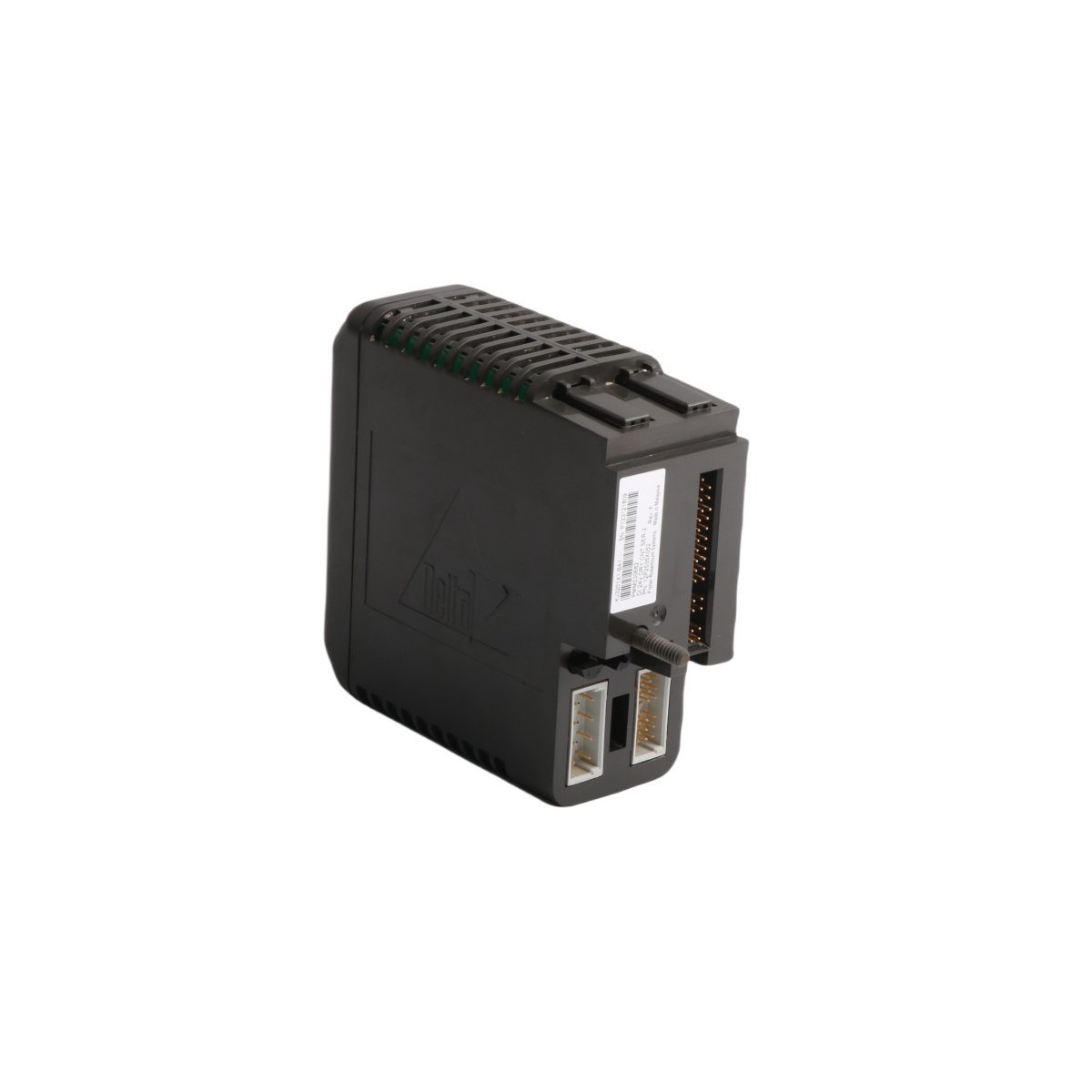

The Emerson KJ3201X1-BK1 (Part Number 12P4692X042) serves as a high-performance NAMUR digital input card within the DeltaV S-Series ecosystem. This module specifically monitors 8 channels of digital signals, ensuring precise state detection for proximity switches and other NAMUR-compliant field devices. By integrating directly into the DeltaV SIS architecture, the module facilitates the rapid transmission of process data to the logic solver. This seamless communication proves vital for maintaining safety integrity levels (SIL) in mission-critical applications such as oil and gas refining, chemical processing, and power generation.

Hardware Security and Installation Integrity

Emerson prioritized equipment protection and personnel safety during the design of the SE4001S2T1B1 module. The hardware features a unique mechanical rotary keying system, which prevents the accidental insertion of the wrong I/O card into a terminal block. This physical safeguard eliminates the risk of electrical mismatch and hardware damage. Furthermore, the module operates efficiently on 12V DC localbus power, drawing only 150 mA. This low power consumption profile reduces the heat load within the DCS cabinet, thereby extending the lifespan of adjacent electronic components and improving overall system reliability.

Optimized Maintenance and Safety Compliance

Operating the KJ3201X1-BK1 requires minimal manual intervention because the unit is factory-calibrated and contains no user-serviceable components. This design philosophy significantly reduces life-cycle costs and eliminates downtime associated with routine maintenance. However, technicians must strictly follow safety protocols during installation; all field power and non-sparking circuits must remain de-energized before module insertion or removal. Additionally, performing a comprehensive I/O loop assessment on all energy-limited nodes ensures that the system meets the stringent requirements of intrinsically safe industrial environments.
