Description

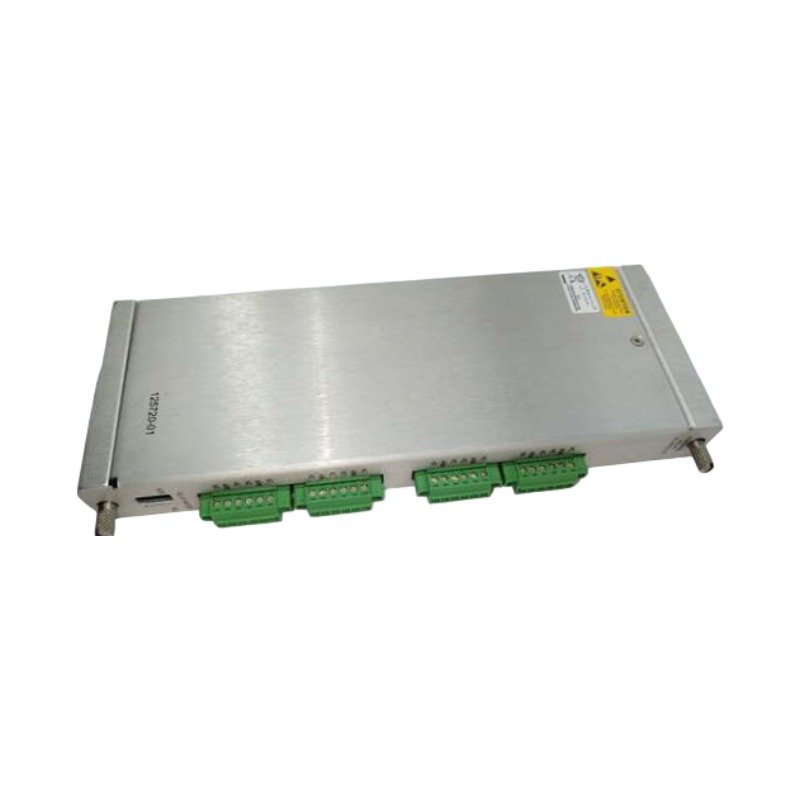

The Bently Nevada 125768-01, also cataloged as the 125768-01 Proximitor Seismic I/O Module, operates as a dedicated hardware component for physical transducer signal termination and relay interface within 3500 Machinery Protection System platforms. This full-height rear component connects directly to the front-facing 3500/42M monitor card through the passive rack backplane. Consequently, by providing dedicated terminal blocks for internal sensor power and raw signal extraction, the module routes proximity, acceleration, and velocity waveforms directly to the central processing architecture.

Hardware Specifications

Rotor Dynamics and Eddy-Current Probe Scaling

The Bently Nevada 125768-01 receives high-frequency analog signals to map complex rotor dynamics during critical machine transitions. Specifically, the internal analog paths maintain baseline voltage parameters to permit accurate eddy-current probe scaling across all four monitoring channels. To eliminate data corruption from adjacent high-vibration tracks, the module utilizes hardwired cross-talk suppression barriers between terminal clusters. Meanwhile, the device executes continuous gap voltage validation across the sensor loops, verifying that active proximity signals hover near designated -10 VDC targets. This constant verification prevents faulty transducer readings from triggering false alarms or misleading diagnostic software suites.

Frequently Asked Questions

Q: Can technicians remove or replace the 125768-01 rear I/O module while the 3500 rack remains powered?

A: No, technicians must completely power down the 3500 system rack or isolate power from that specific slot segment prior to removing the rear 125768-01 module. Removing a rear I/O card while energized risks shorting adjacent contacts on the backplane, which can damage the front monitor card.

Q: How does the 125768-01 handle shield terminations for field transducer wiring?

A: The module provides specific instrument ground terminals directly on each channel block. Therefore, technicians must land the outer braided shield of the transducer extension cable at these points to isolate high-frequency electromagnetic noise from the measurement circuit.

Field Installation Guidelines

• Slide the full-height I/O card into the rear of the 3500 chassis slot that aligns precisely with the front 3500/42M monitor module.
• Secure the card in place by tightening the top and bottom retention screws to a maximum torque setting of 0.6 N m to maintain grounding continuity.
• Strip field transducer wires back 6 mm, insert them into the Euro-style terminal block clamps, and tighten the terminal screws firmly.
• Separate all proximity probe extension cables from high-power AC lines or motor control circuitry to prevent induced electrical interference from corrupting the raw dynamic signals.
