Description

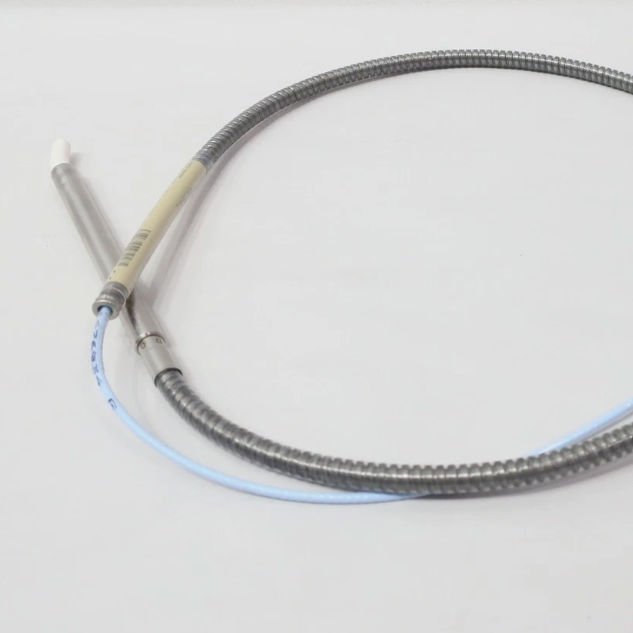

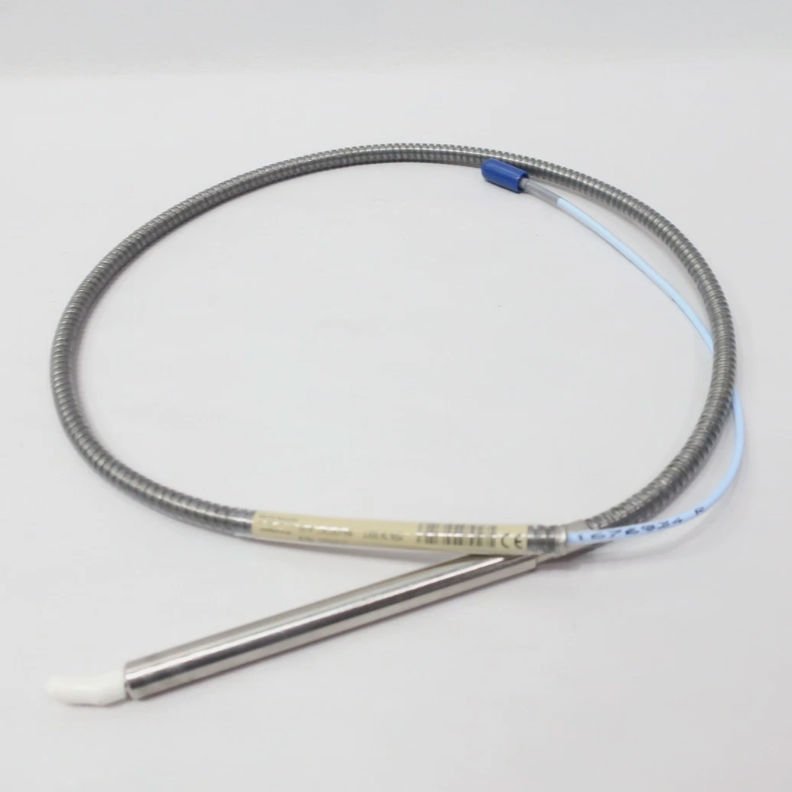

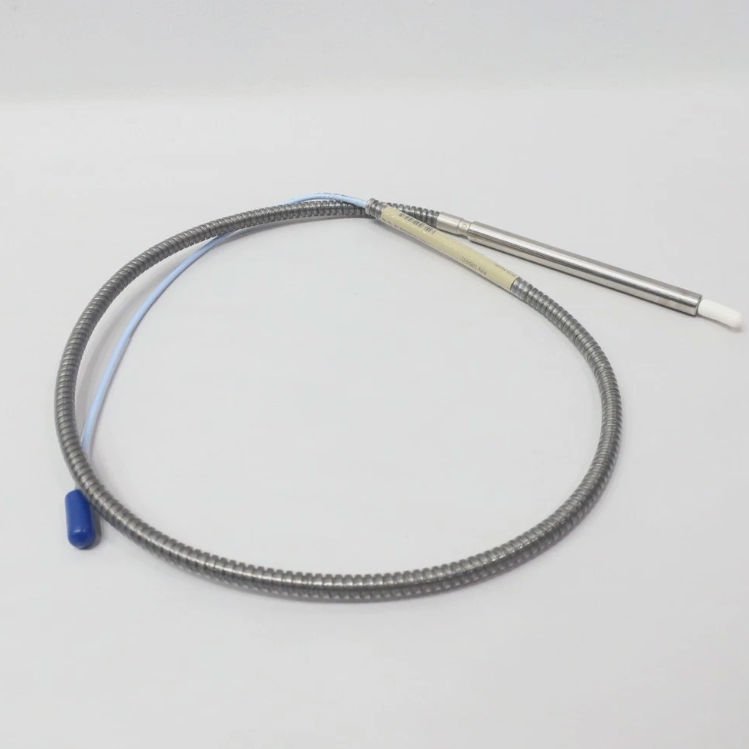

The Bently Nevada 109549-01 serves as the primary 109549-01 3300 XL NSv Photoelectric Probe utilized to execute non-contacting displacement and speed measurements across 3300 Series Machinery Protection System platforms.

Hardware Specifications

Machinery Monitoring and TSI Characteristics

The 109549-01 tracks critical rotor dynamics in areas with tight installation restrictions such as counterbores or restricted side-views. Consequently, field engineers must match the eddy-current probe scaling configurations inside the associated Proximitor sensor parameters to manage small-target constraints. Furthermore, technicians execute gap voltage validation to ensure that the static baseline DC voltage remains near the -10 VDC targets; as a result, the probe tracks fast-moving targets inside its defined linear measurement range. Additionally, the mechanical installation design integrates isolation components that provide high cross-talk suppression, which prevents adjacent multi-probe signals from creating mutual interference inside confined machine casings.

Frequently Asked Questions

Q: Does the 109549-01 probe permit active hot-swapping or field replacement while the monitoring loop is live?

A: No. Field technicians must disconnect or bypass the associated 3300 XL NSv Proximitor channel before disconnecting the probe cable. Swapping the probe under live field power can cause electrical transient spikes that trigger false overspeed or high vibration trips on connected logic cards.

Q: What defines the physical limits when using this probe on small diameter turbine or compressor shafts?

A: This model targets specialized fluid-film bearing machines. Consequently, the sensor monitors radial vibration on shafts down to 51 mm (2 in) and tracks axial position on flat surfaces down to 15 mm (0.6 in) without experiencing significant edge-effect distortion.

Field Installation Guidelines

• Thread the probe housing into the mounting bracket or casing portal smoothly, thereby ensuring proper alignment relative to the target surface without scoring the sensor face.
• Apply correct shielding methods to the extension cable terminal run. Specifically, ground the coaxial outer shield at the monitor rack panel only, while maintaining a floating state at the sensor head to eliminate ground loops.
• Avoid routing the probe extension lines alongside high-voltage AC motor feed conduits, which reduces inductive electrical noise and maintains clean signal transmission to the receiver.
