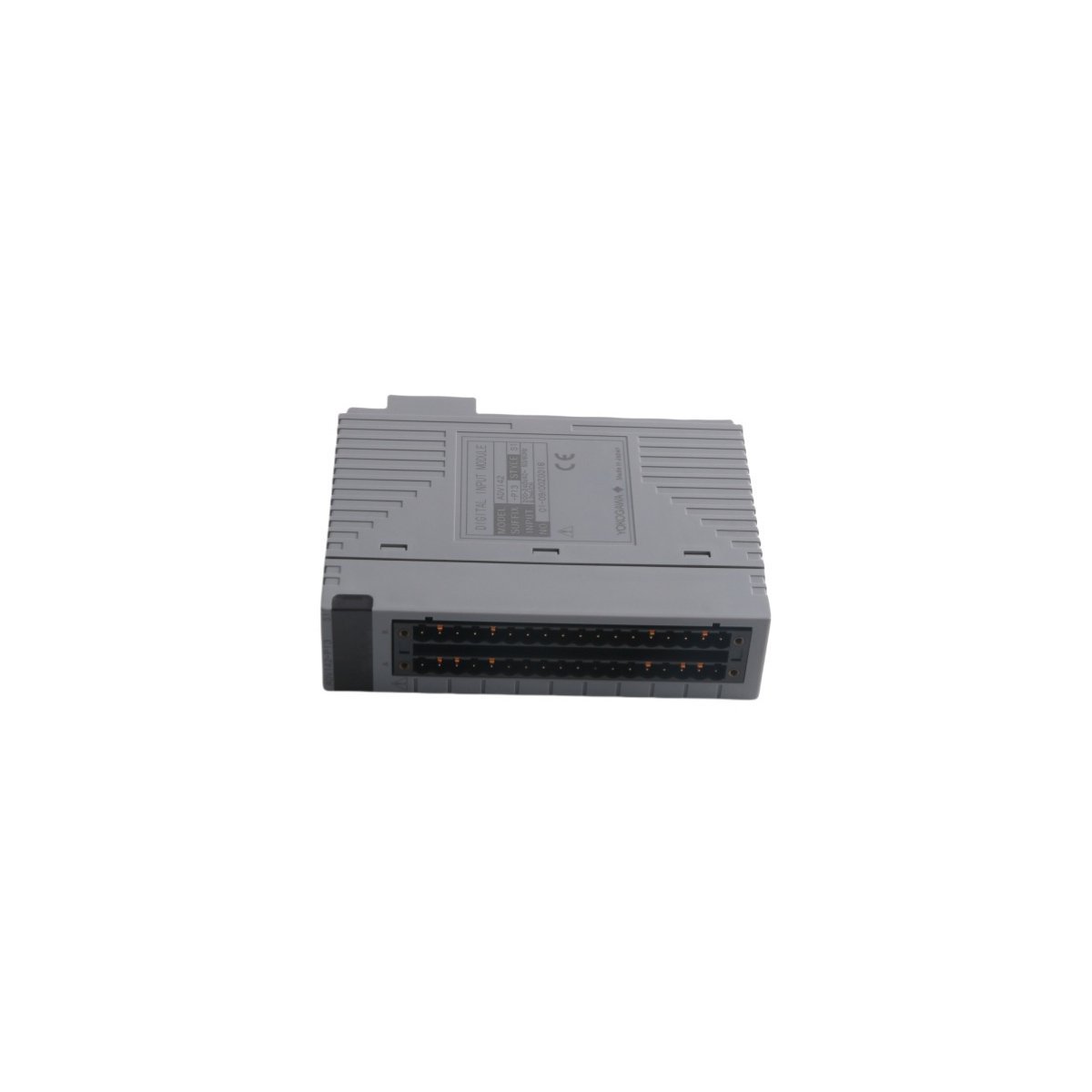

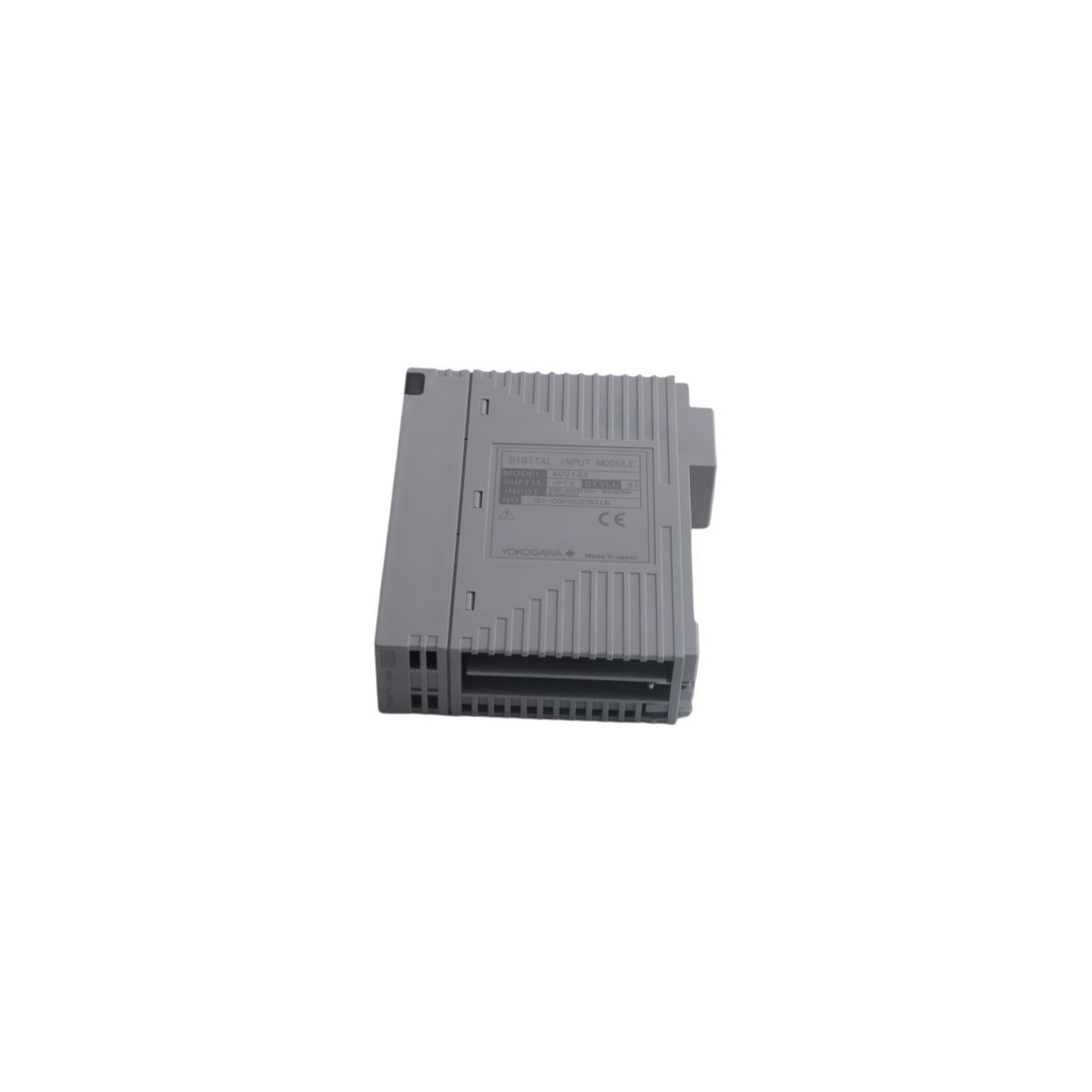

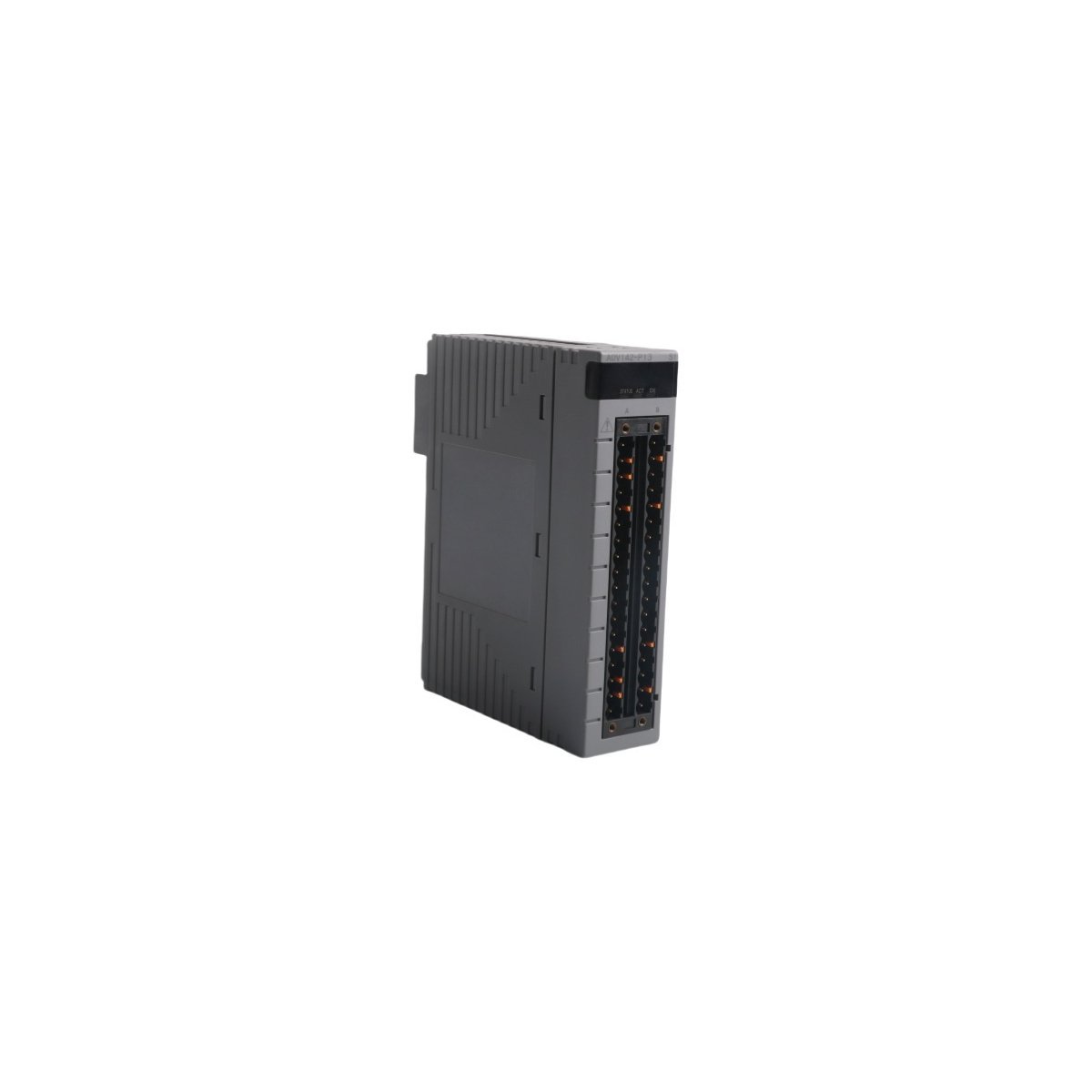

• Yokogawa ADV142-P13 S1 16-Channel 100-120V AC Digital Input Module¹
• ADV142-P13 S1 Yokogawa CENTUM VP Isolated Discrete Input Card
• Yokogawa ADV142-P13 S1 High-Voltage Digital Interface Module for FIO

Brief Product Description

The Yokogawa ADV142-P13 S1 is a high-voltage 16-channel digital input module designed for the CENTUM VP architecture, specifically built to interface 100-120V AC discrete signals with the DCS. This module provides individual channel isolation and robust signal filtering to ensure precise data acquisition in electrically noisy industrial environments.

Reliable High-Voltage Signal Acquisition

The Yokogawa ADV142-P13 S1 serves as a critical interface for high-voltage discrete signals within the Field Interface I/O (FIO) system. This module incorporates 16 isolated channels, which allow the DCS to monitor 100V to 120V AC field contacts directly without additional interposing hardware. By employing individual channel isolation, the module effectively prevents ground loops and contains electrical faults, thereby safeguarding the central control unit. Furthermore, the internal circuitry utilizes advanced opto-couplers to translate high-voltage field states into low-voltage logic, maintaining a high signal-to-noise ratio even in areas with significant electromagnetic interference.

Robust Engineering for Process Stability

Yokogawa prioritizes hardware longevity and operational stability in the construction of the ADV142-P13 S1. The module features a durable design that handles the thermal and electrical stresses common in power distribution and chemical processing plants. Because it supports a wide input voltage tolerance, the unit adapts easily to fluctuating industrial power conditions, ensuring consistent binary state detection. Additionally, the P13 suffix indicates specific internal configurations tailored for high-density rack mounting, which reduces the overall footprint within the control cabinet while maximizing I/O capacity.

Seamless System Maintenance and Deployment

Integrating the ADV142-P13 S1 into a CENTUM VP or CS 3000 system streamlines the commissioning process. The module supports hot-swapping, allowing maintenance teams to replace units without disrupting the power to the rest of the I/O nest or stopping the controller. Moreover, the unit includes comprehensive self-diagnostics that monitor the health of the internal logic and input status. Transitioning to this high-density AC input solution simplifies wiring schemes and reduces the number of required terminal components, which ultimately lowers the total cost of ownership for large-scale automation projects.

Key Technical Characteristics

• 16-Channel High-Voltage Input: Processes standard 100-120V AC discrete signals across 16 points.
• Superior Galvanic Isolation: Protects internal DCS logic from field-side voltage spikes and noise.
• FIO System Compatibility: Integrates natively with Yokogawa CENTUM VP and CS 3000 architectures.
• Compact Design Profile: Efficient 3.2 cm width allows for maximum rack density.
• Enhanced Diagnostic Coverage: Detects internal hardware failures to ensure high system availability.
• Japanese Precision Manufacturing: Built to rigorous quality standards for mission-critical reliability.
