Description

Brief Product Description

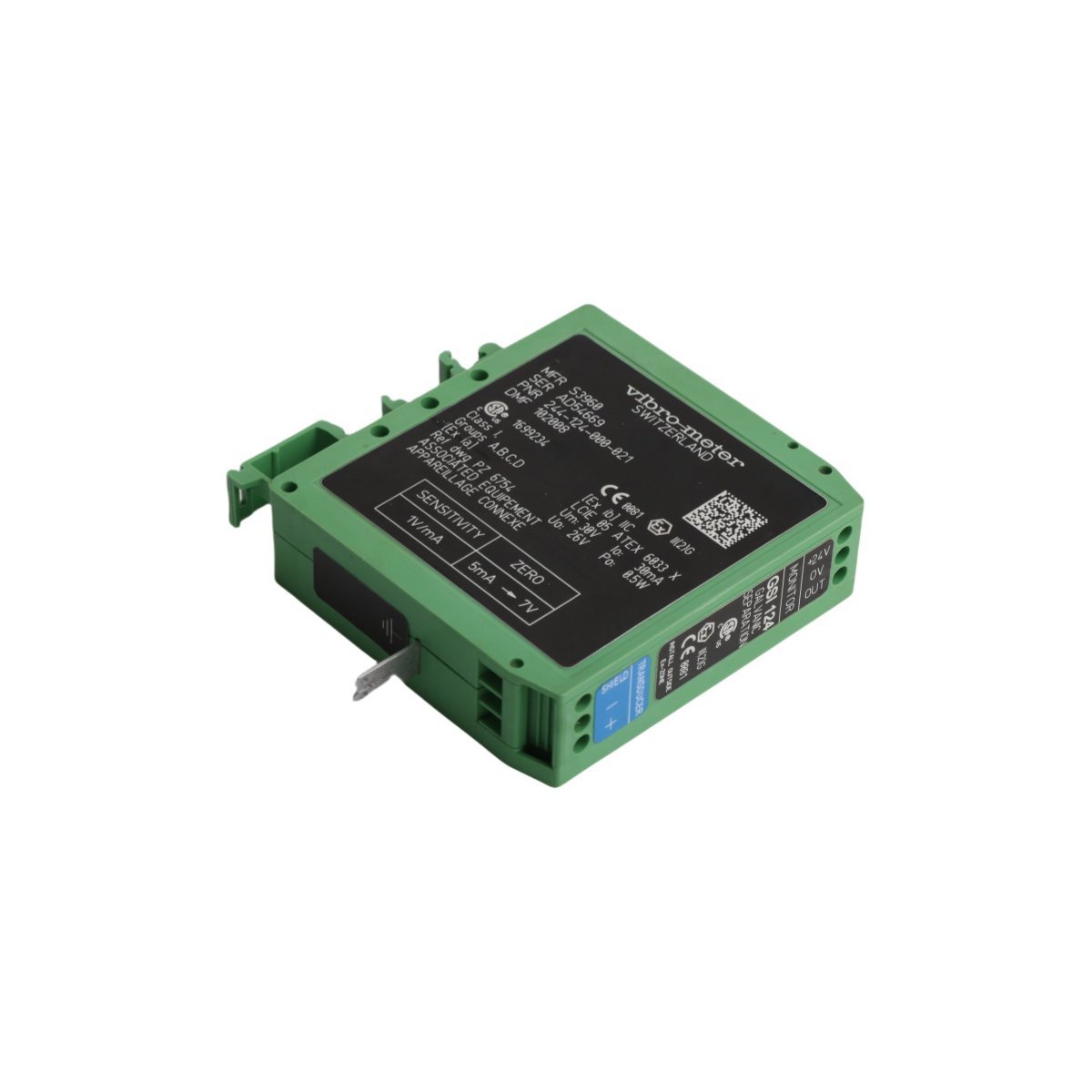

The Vibro-Meter GSI127 (244-127-000-017) is an advanced galvanic isolation module designed to provide intrinsic safety and signal conditioning for vibration monitoring sensors. It effectively eliminates ground loops and suppresses interference to ensure high-fidelity data transmission in hazardous industrial environments.

Signal Integrity and Interference Suppression

Shutterstock

The Vibro-Meter GSI127 A2-B02 serves as a foundational interface for high-precision machinery protection systems. By utilizing sophisticated galvanic separation technology, this unit creates an electrical barrier that prevents ground loop currents from corrupting sensitive vibration data. The module achieves a remarkable noise rejection ratio of over 60 dB within the critical 10 to 400 Hz frequency band. Furthermore, the GSI127 maintains signal stability even under fluctuating thermal conditions, limiting temperature drift to a negligible ≤2 mV/°C. These characteristics ensure that the central monitoring system receives an accurate representation of the mechanical health of turbines and compressors, even in electrically noisy industrial settings.

Intrinsic Safety for Hazardous Zone Deployment

Safety compliance remains a core feature of the 244-127-000-017 architecture. This module functions as an associated apparatus, providing intrinsic safety for sensors located in Zone 0 or Zone 2 environments without the need for additional Zener barriers. The floating output design supports a dynamic range of 2 to 20 VDC, while the sensor-side supply manages currents up to 22 mA. Consequently, the GSI127 reduces installation complexity and saves valuable cabinet space. Because it integrates a redesigned power supply, it eliminates the requirement for external APF19x filtering modules, streamlining the overall system architecture for petrochemical and power generation facilities.

Comprehensive System Compatibility and Installation

The GSI127 A2-B02 offers extensive compatibility across the entire Meggitt Vibro-Meter® product ecosystem. It interfaces seamlessly with IPC707 signal conditioners, TQ-series proximity probes, and CExxx piezoelectric sensors. Transitioning to this unit allows operators to upgrade legacy isolation solutions while significantly improving the power supply rejection ratio (PSRR) across a wide frequency spectrum from 10 Hz to 100 kHz. The hardware features a rugged, DIN-rail mountable housing equipped with quick-disconnect terminals, which accelerates the commissioning process. By providing short-circuit protected 20Ω impedance outputs, the GSI127 ensures reliable signal delivery over long-distance cable runs to remote control rooms.

Key Technical Characteristics

• Advanced Galvanic Isolation: Eliminates ground loops and protects the signal chain from common-mode interference.
• High PSRR Performance: Delivers 30–60 dB improvement in power supply rejection across a 100 kHz bandwidth.
• Integrated Intrinsic Safety: Facilitates secure connection to sensors in hazardous areas (ATEX/IECEx certified).
• Simplified System Design: Internal power conditioning removes the need for external filtering modules.
• Rugged Industrial Build: Operates within an 18–30 VDC input range and features high thermal stability.
• Broad Probe Support: Optimized for use with eddy-current proximity systems and piezoelectric accelerometers.
