Description

Brief Product Description

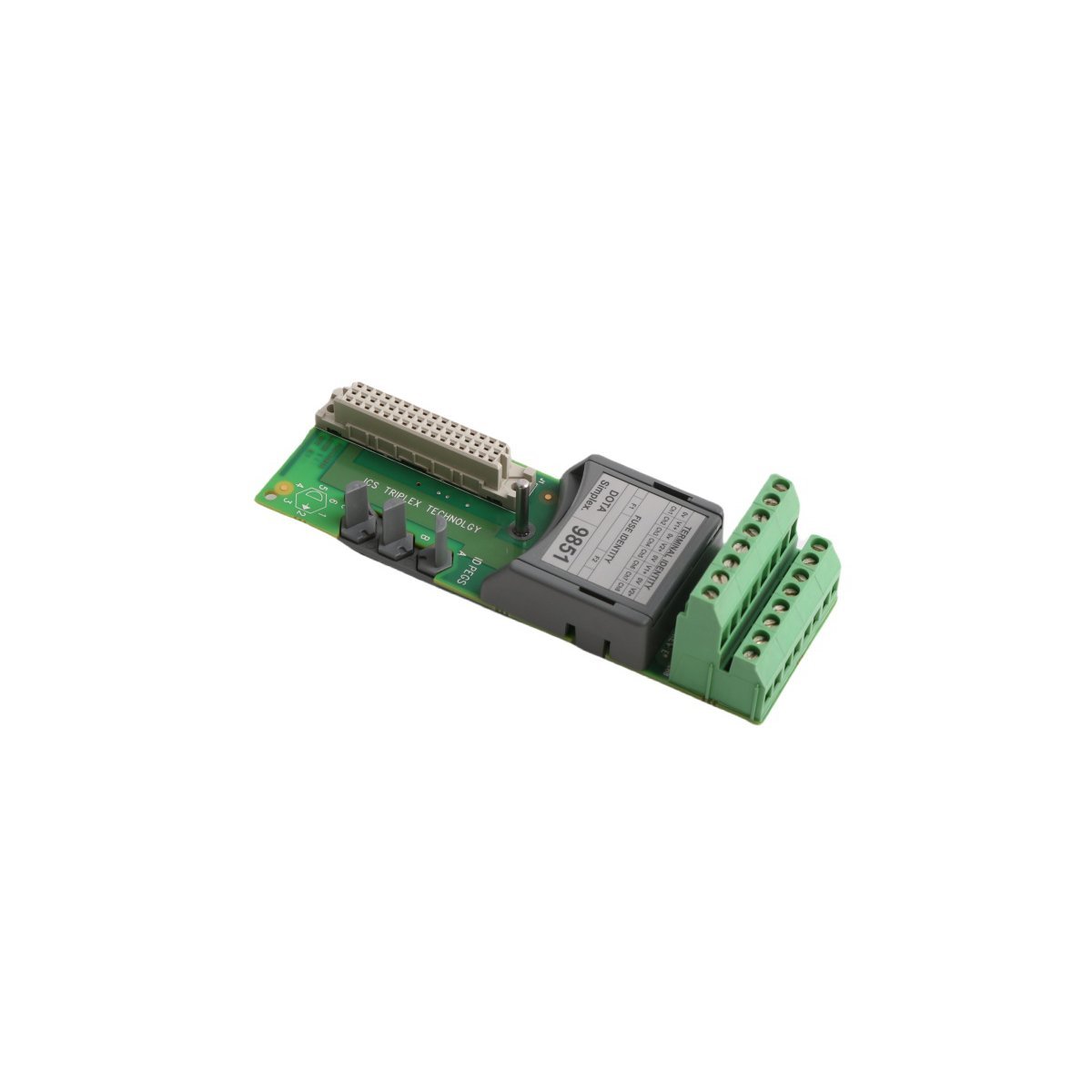

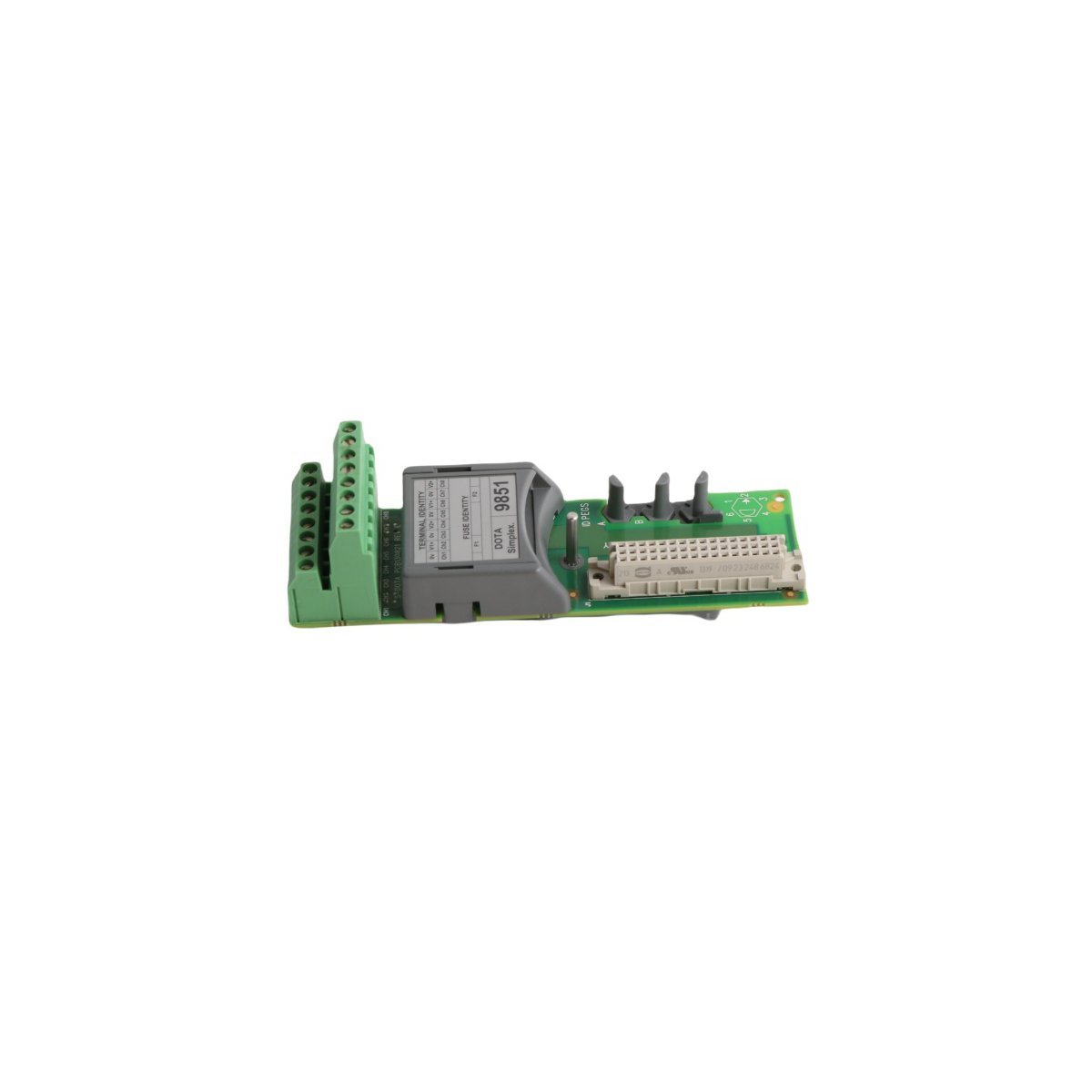

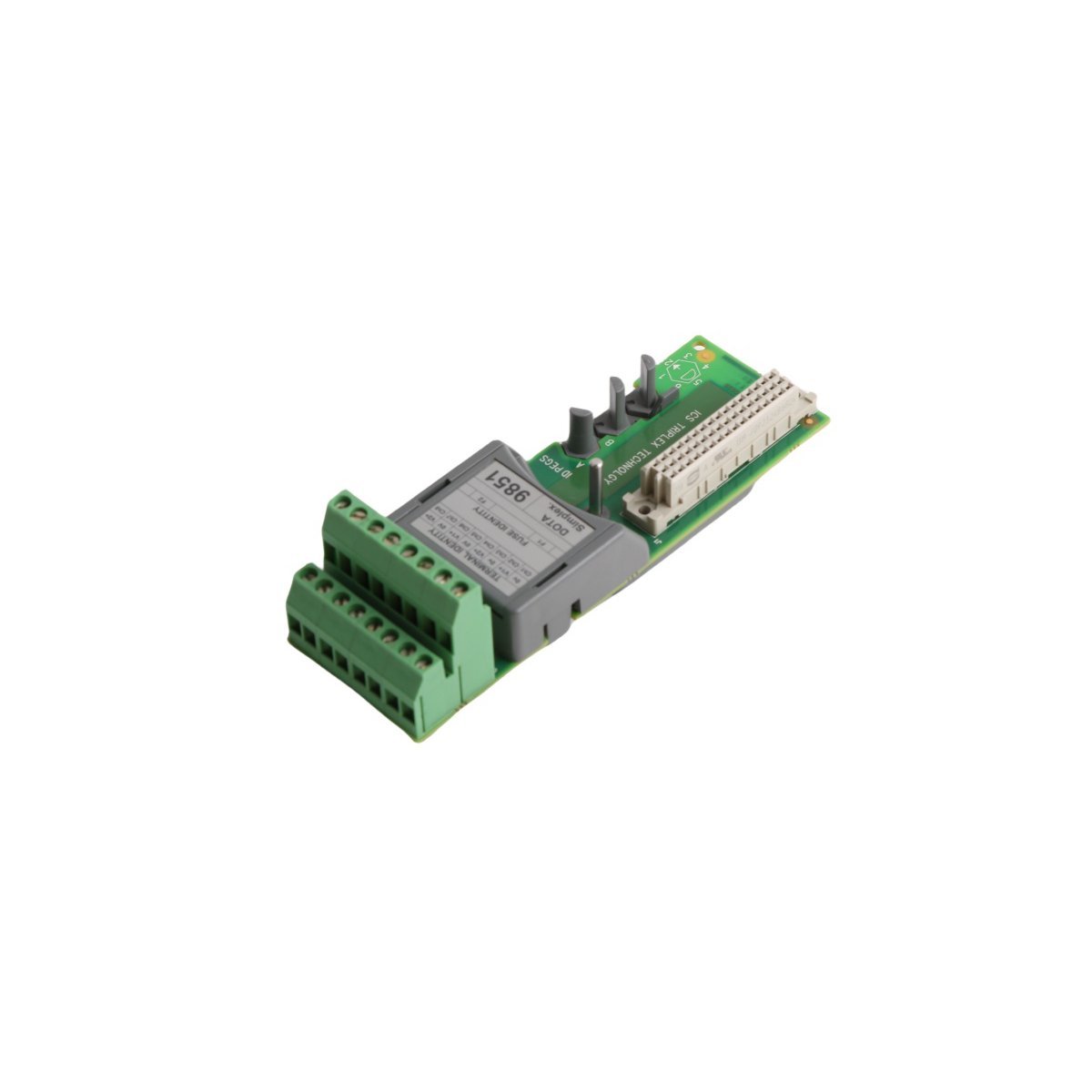

The ICS Triplex T9851 is a high-integrity Digital Output Module designed for the Regent and Trusted safety platforms, providing reliable control of discrete field actuators. It features advanced fault-tolerant architecture to ensure process uptime and safety in critical industrial applications.

Fault-Tolerant Control in Safety Systems

The ICS Triplex T9851 serves as a cornerstone of the Regent Control System, delivering precise discrete control for industrial actuators, solenoids, and motor starters. This digital output module utilizes a sophisticated Triple Modular Redundant (TMR) architecture to eliminate single points of failure. By comparing output states across three independent processing paths, the module ensures that only validated commands reach the field devices. This level of integrity is mandatory for emergency shutdown (ESD) systems and fire and gas (F&G) applications where a failure to act could lead to severe consequences.

Engineered for Rigorous Field Performance

Industrial operations in the oil, gas, and power sectors often subject hardware to extreme environmental stressors. Consequently, the T9851 features a hardened design capable of maintaining peak performance in temperatures ranging from high-ambient heat to dusty, unconditioned enclosures. The module’s robust internal circuitry shunts electrical noise and electromagnetic interference, preventing false trips or signal degradation. This reliability ensures that the steady flow of data remains uninterrupted, allowing for real-time responsiveness to shifting operational parameters.

Modular Architecture and Simplified Maintenance

Maintenance efficiency is a primary design goal for the T9851 module. Its compact, modular form factor allows for rapid “hot-swapping,” meaning technicians can replace a module without powering down the entire controller rack. This capability significantly reduces the Mean Time to Repair (MTTR) and prevents costly process interruptions. Furthermore, the module includes extensive onboard diagnostics that continuously monitor the health of each output channel. These diagnostics identify potential field faults, such as open circuits or short circuits, before they escalate into major system failures, thereby supporting a proactive maintenance strategy.

Key Technical Characteristics

• TMR Integrity: Employs Triple Modular Redundancy for maximum fault tolerance and safety.
• High-Density Output: Provides multiple discrete channels for extensive field device control.
• Comprehensive Diagnostics: Active monitoring of output load integrity and internal hardware status.
• Ruggedized Chassis: Optimized for performance in harsh, high-vibration industrial environments.
• Hot-Swap Capability: Supports module replacement during active system operation to eliminate downtime.

Technical Specifications
