Description

Brief Product Description

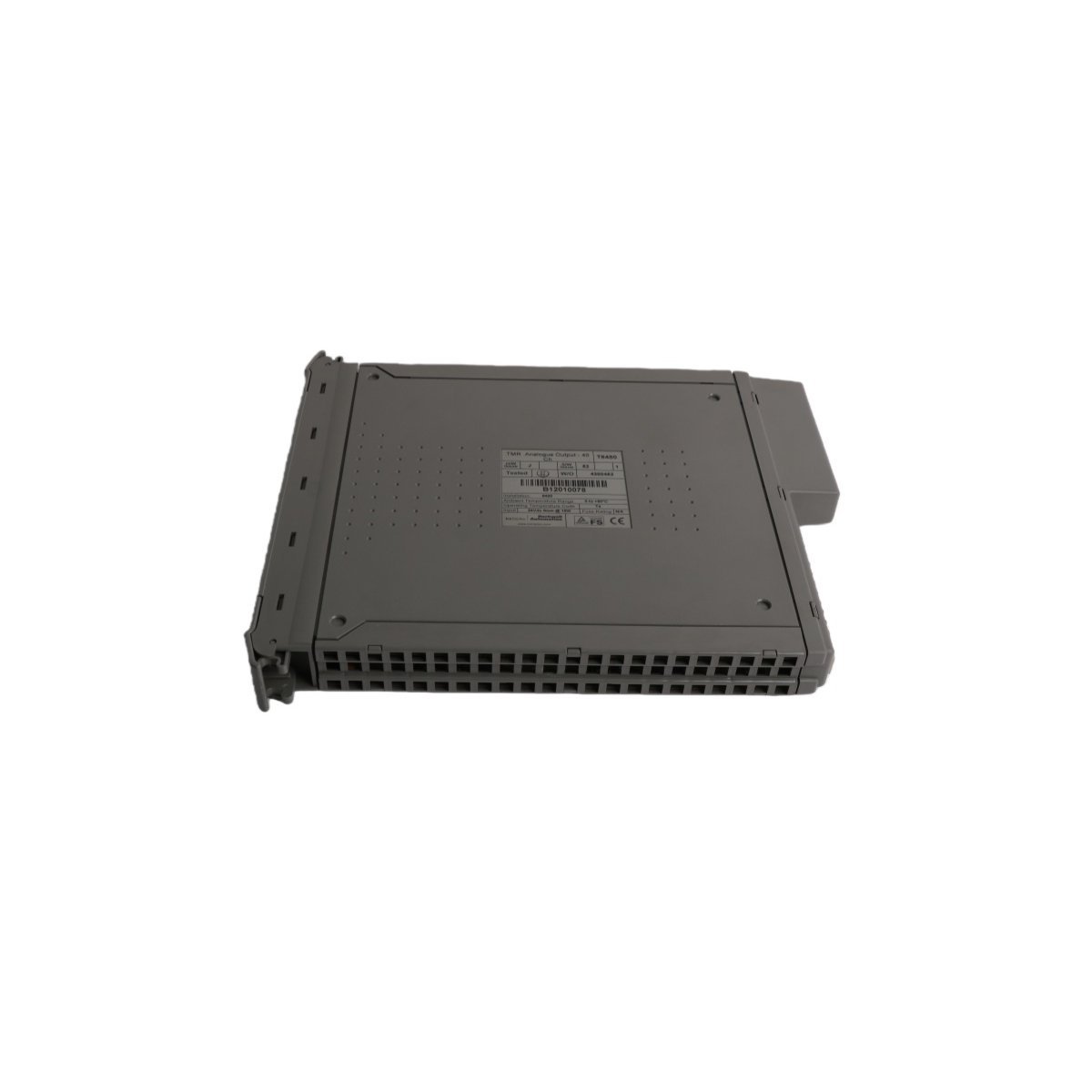

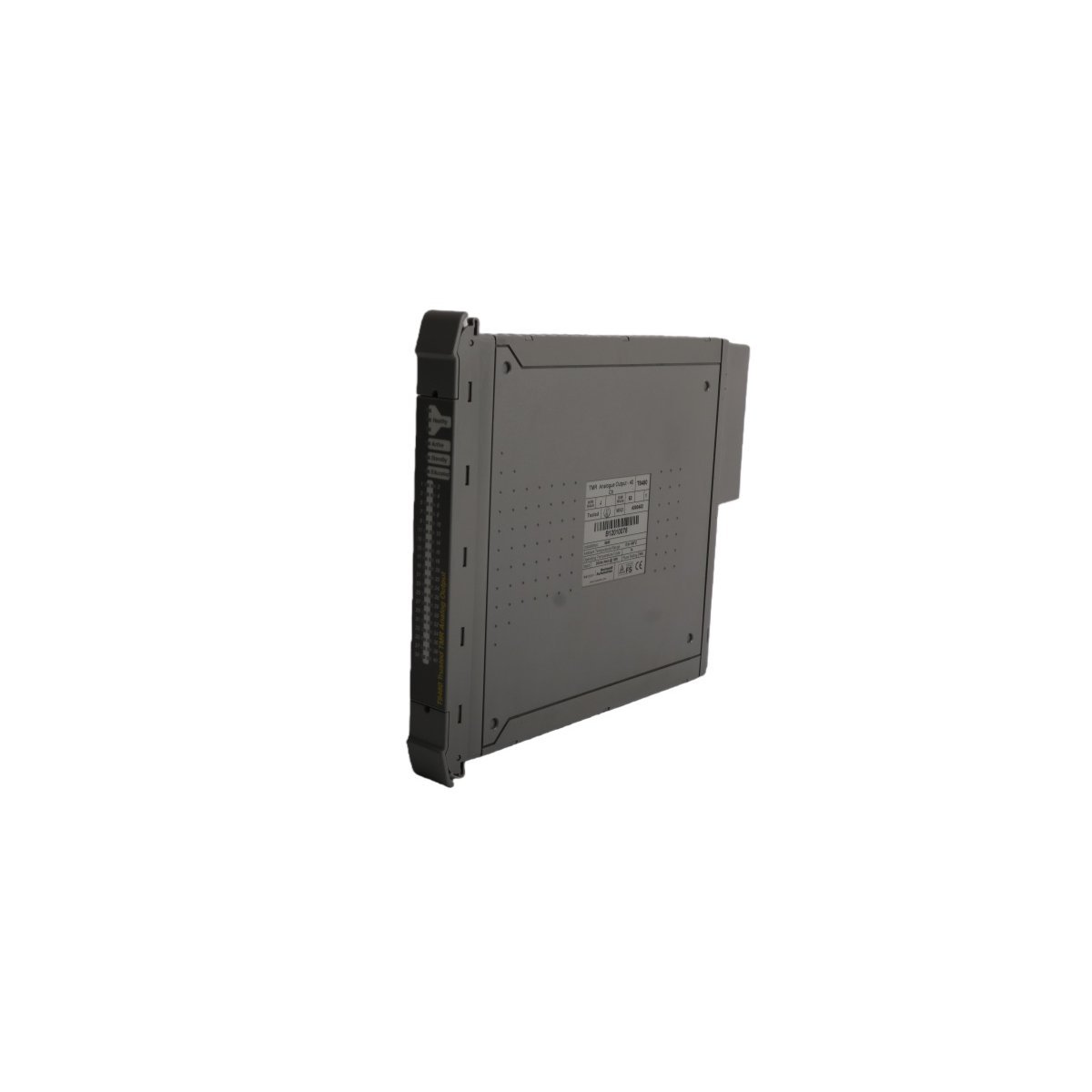

The ICS Triplex T8901 is a high-integrity 40-channel digital output module designed for the Trusted TMR (Triple Modular Redundant) safety system. It provides fault-tolerant AC voltage detection and discrete output control for critical industrial safety and emergency shutdown applications.

​Product Description

The T8901 serves as a foundational component within the ICS Triplex Trusted TMR (Triple Modular Redundant) architecture. This module facilitates high-availability control by managing 40 independent output channels, each engineered to operate within safety-critical environments. By utilizing a TMR voting structure, the module effectively eliminates single points of failure, ensuring that the system remains operational and safe even if an internal component malfunction occurs. Consequently, industrial plants rely on the T8901 for Emergency Shutdown (ESD) and Fire and Gas (F&G) protection systems where reliability is non-negotiable.

Advanced Signal Detection and Voltage Compatibility

The technical design of the T8901 allows for precise digital AC voltage detection and output management. The module supports diverse power requirements, operating efficiently at both 24V DC and 48V DC nominal levels. Furthermore, the unit features advanced internal diagnostics that continuously monitor the health of each channel. This proactive monitoring detects field wiring issues, such as open circuits or short circuits, before they impact process safety. Because the module maintains high signal integrity, it ensures that field devices receive accurate commands regardless of electromagnetic interference or cable distance.

Robust Construction for Safety Systems

Built to withstand the rigors of heavy industrial use, the T8901 features a high-density form factor that fits seamlessly into Trusted System chassis. The module weighs 1.26kg and employs a rugged mechanical housing that facilitates efficient heat dissipation and protection against environmental stressors. Integration is straightforward through the standard Trusted communication backbone, which enables transparent data exchange with the main controller. By implementing this module, operators can significantly lower the Total Cost of Ownership (TCO) through reduced false trips and simplified maintenance procedures.

Technical Specification Table
