Description

Brief Product Description

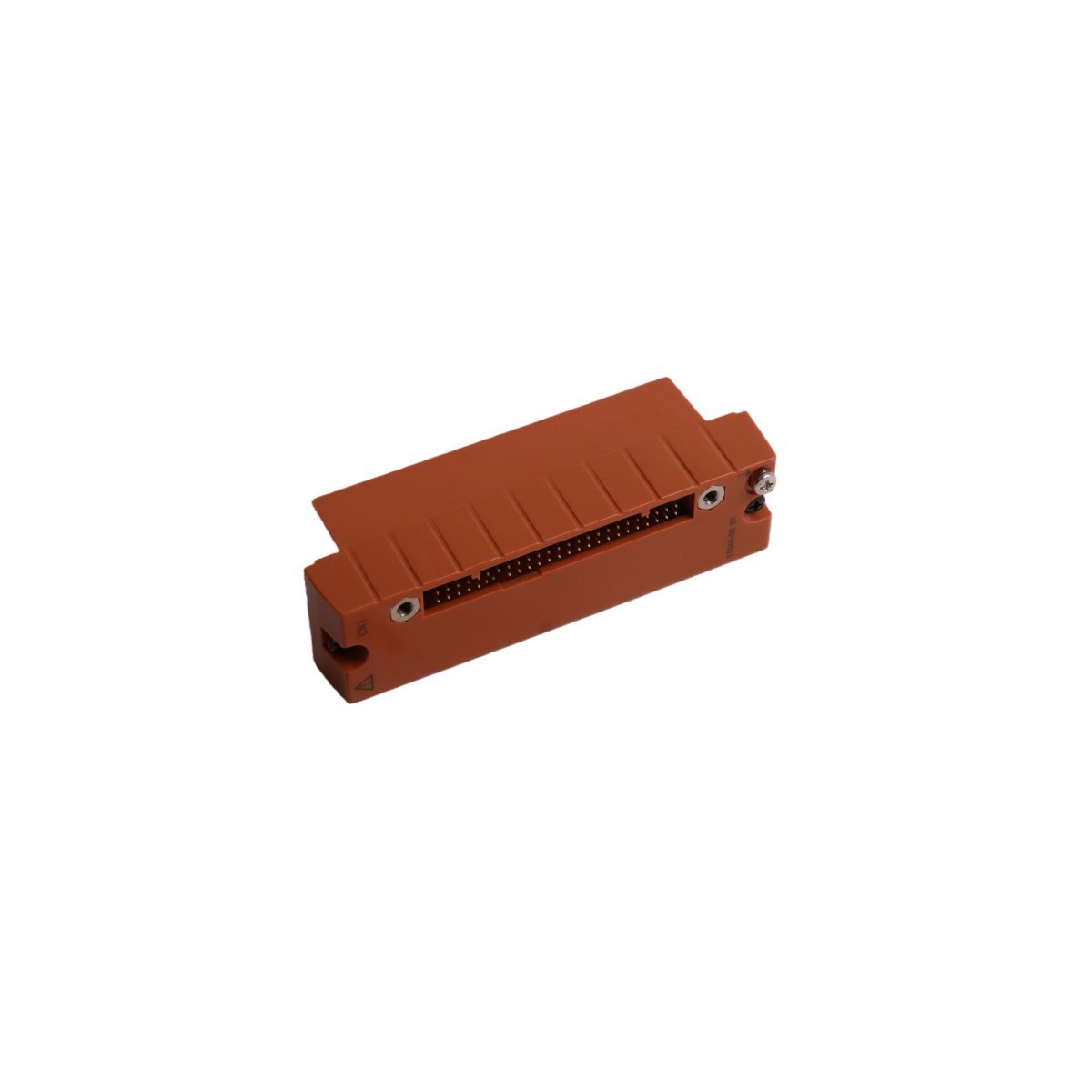

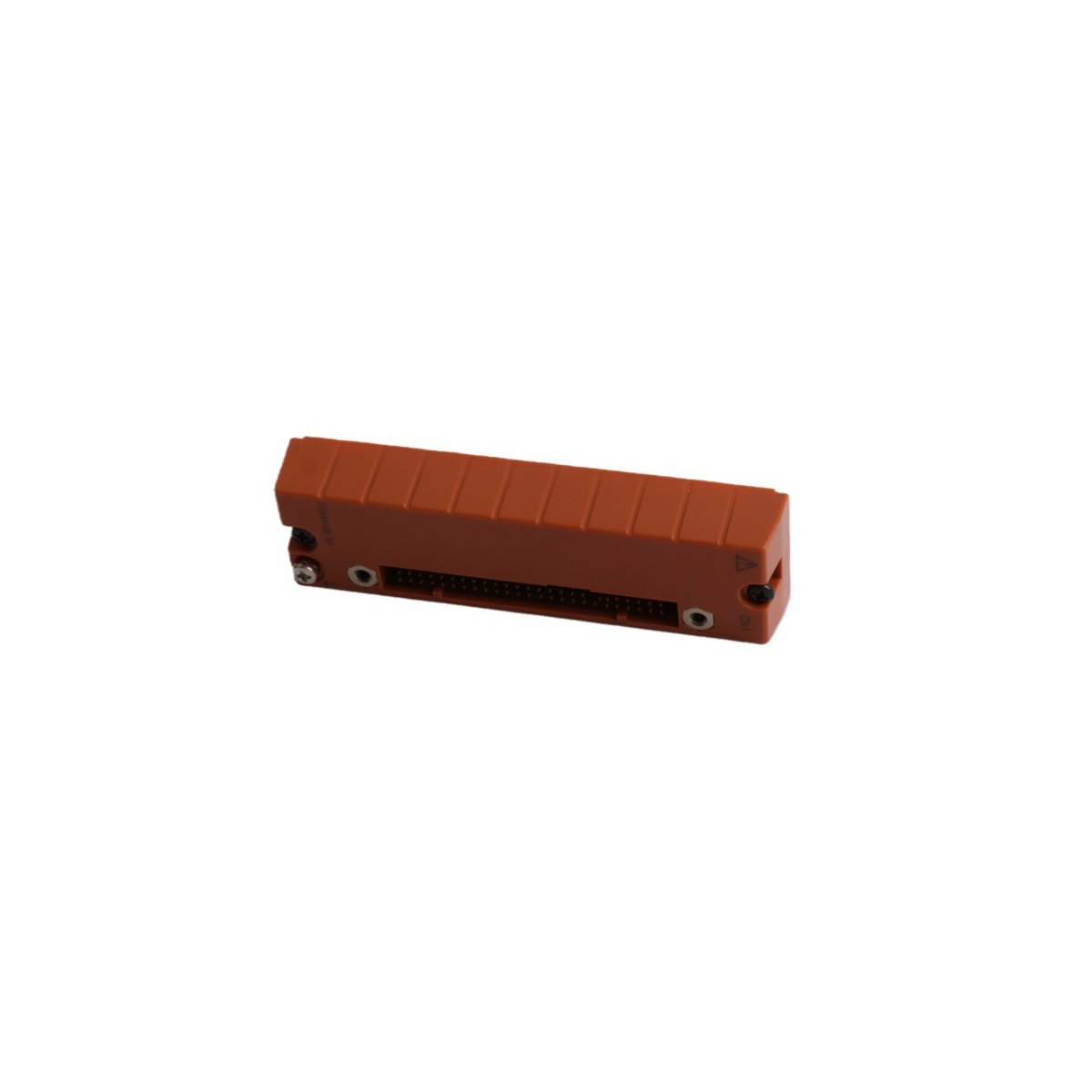

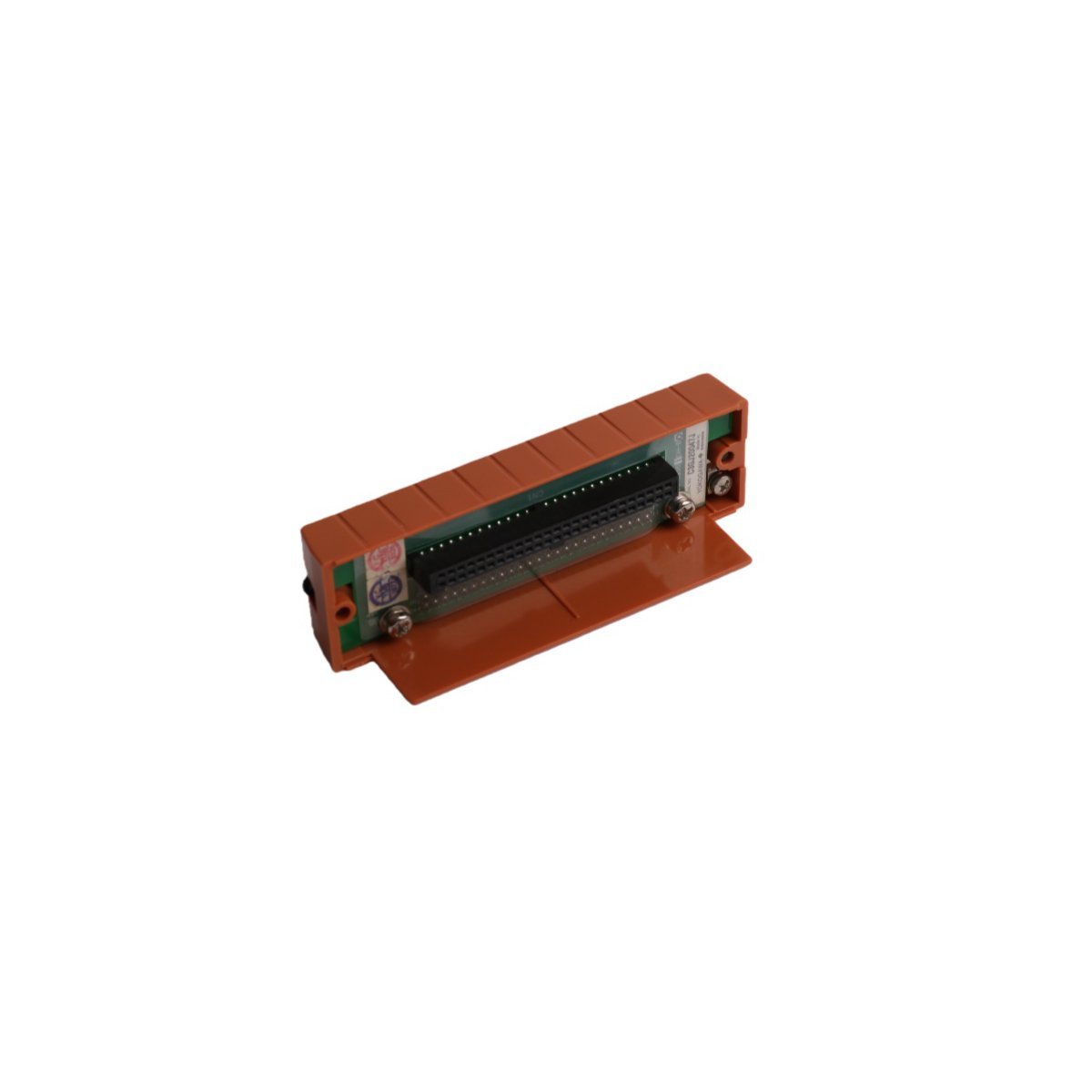

The Yokogawa STD4A-00 S1 is a high-integrity pressure clamp terminal block designed to facilitate secure electrical connections for digital input signals. This compact interface module ensures low-resistance signal paths and extreme environmental resilience for distributed control systems.

Precision Signal Termination and Electrical Integrity

The Yokogawa STD4A-00 S1 functions as a high-performance connectivity hub for industrial digital input modules. By utilizing advanced pressure clamp technology, this terminal block provides a gastight connection that minimizes contact resistance to less than 10 mΩ. This level of precision prevents signal degradation and ensures that the Distributed Control System (DCS) receives accurate data from field instrumentation. The module supports an operational voltage range of 24 to 60 V DC and can safely manage currents up to 4 A, making it a versatile choice for a wide array of discrete sensing applications.

Industrial Hardening and Safety Standards

Engineers prioritize the STD4A-00 S1 for installations in demanding environments due to its superior insulation and thermal capabilities. The module offers electrical isolation up to 500 V AC, which effectively shields sensitive control logic from external electrical noise and surges. Furthermore, the unit is rated for an expansive operating temperature range from -40°C to +85°C. This ensures that the terminal block maintains mechanical and electrical stability even in unconditioned field enclosures or high-temperature processing zones. Manufactured in Japan, the module adheres to the highest global quality standards, providing long-term reliability for mission-critical infrastructure.

Efficient Installation and System Redundancy

The mechanical design of the STD4A-00 S1 emphasizes ease of maintenance and rapid system deployment. Its pressure clamp mechanism allows technicians to perform wire terminations quickly and securely without the need for specialized crimping tools, which significantly reduces labor time during cabinet assembly. To further bolster system uptime, the terminal block features dual-redundant connection points, allowing for secondary signal paths that prevent system failure in the event of a single wiring fault. The compact 3.3 cm width facilitates high-density mounting on standard rails, optimizing the use of limited space within industrial control panels.

Key Technical Characteristics

• Advanced Pressure Clamping: Ensures reliable, low-resistance connections without the need for periodic re-tightening.
• Wide Voltage Tolerance: Supports standard 24V DC up to 60V DC digital input signal ranges.
• High Isolation Protection: Provides 500 V AC isolation to protect the DCS backplane from field-side interference.
• Extreme Temperature Resilience: Sustains full performance in environments ranging from -40°C to +85°C.
• Redundant Connection Design: Enhances system availability through multiple signal termination points.
• Compact Footprint: Designed for high-density cabinet layouts with a slim profile and lightweight build.

Technical Specifications
