Description

Brief Product Description

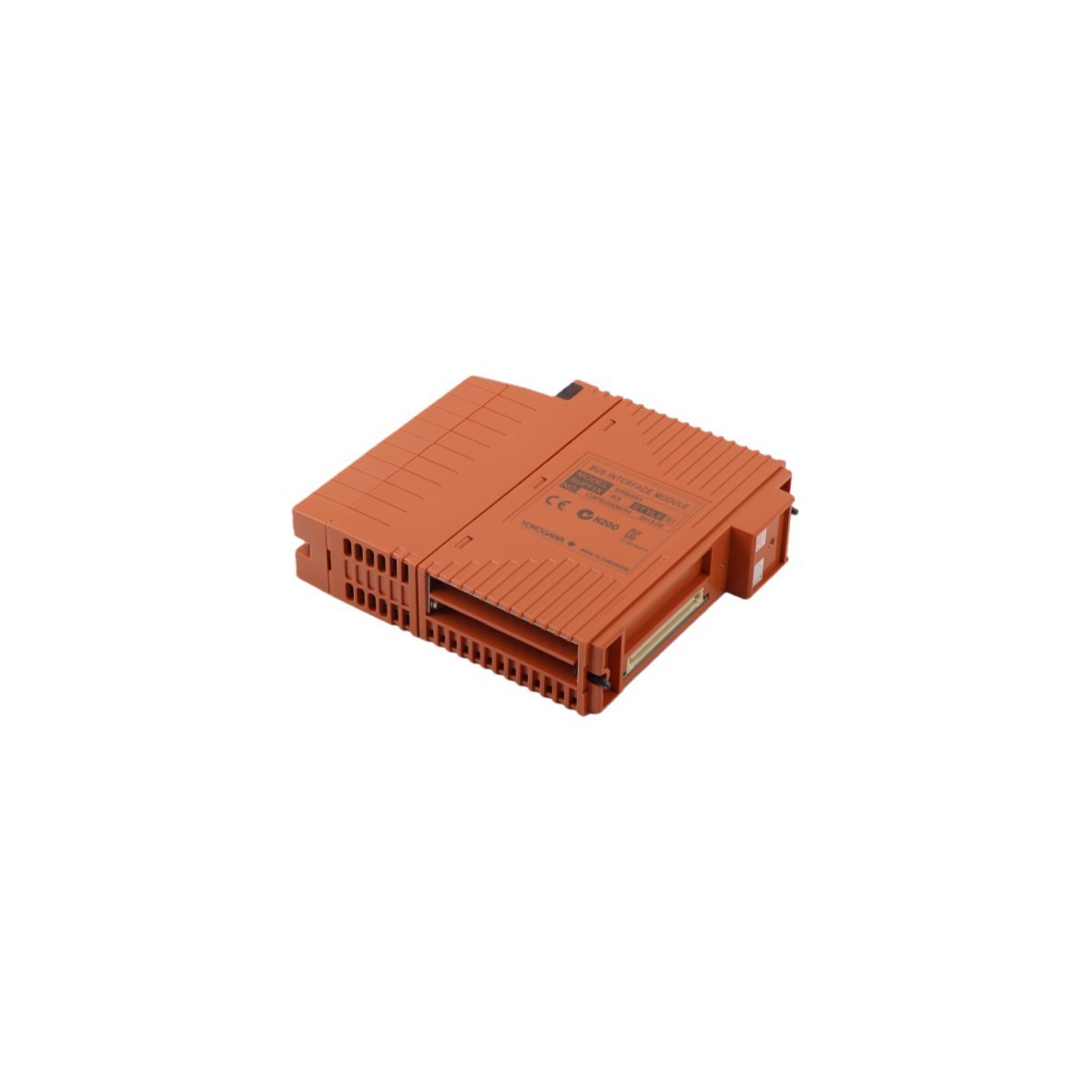

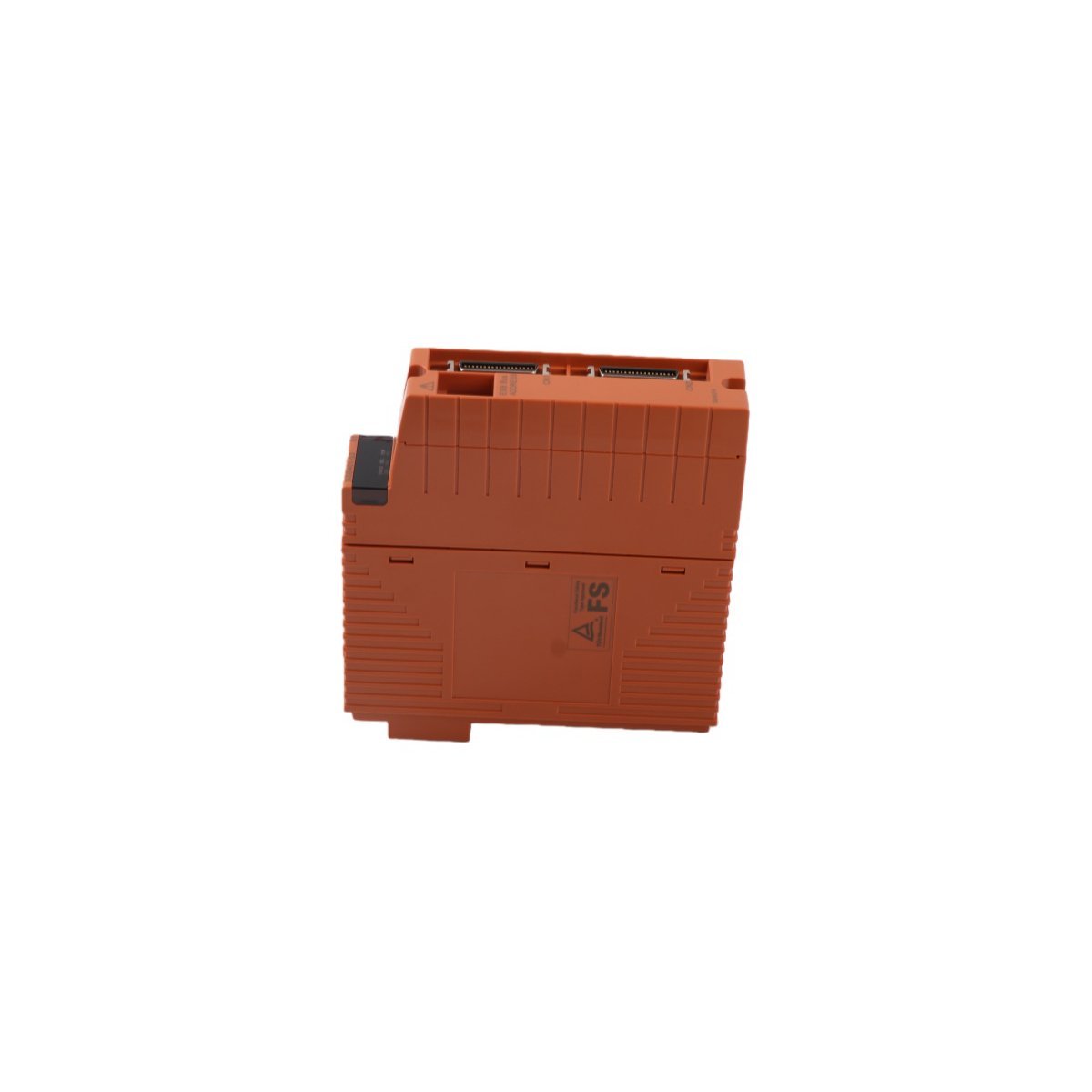

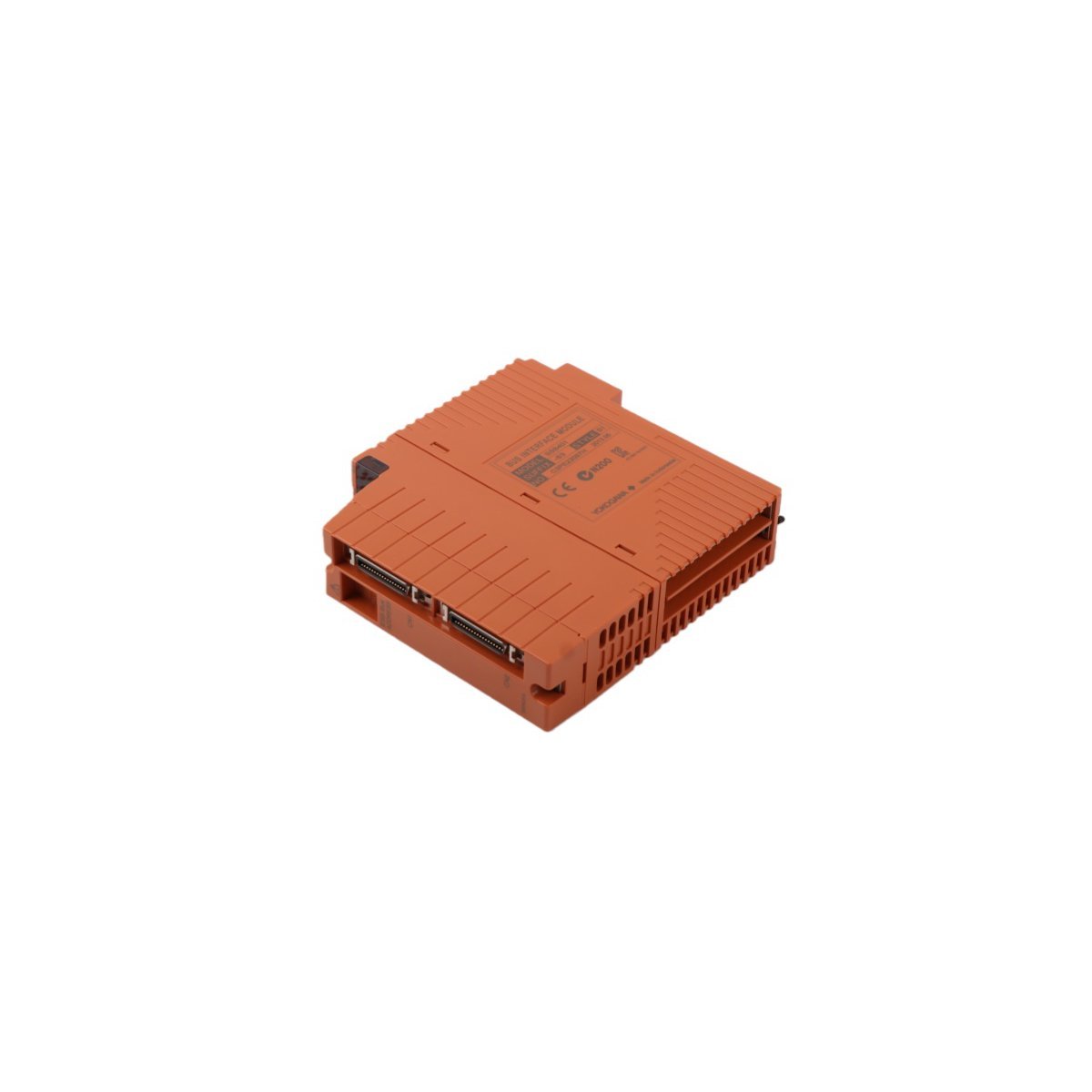

The Yokogawa SSB401-53 S1 is a high-performance master repeater module designed to extend the ESB bus network through fiber optic communication. It enables reliable, long-distance data transmission between distributed control system components while maintaining high signal integrity.

Long-Distance Fiber Optic Communication and Network Expansion

The Yokogawa SSB401-53 S1 serves as the master-side interface for Optical ESB Bus extension within a distributed control system (DCS). This module converts electrical signals into optical data, allowing the system to bridge the gap between local control units and remote I/O stations. By utilizing a 1300 nm optical wavelength, the repeater achieves stable transmission distances of up to 2 kilometers. This capability proves essential for large-scale industrial facilities where field enclosures reside far from the central processing cabinet. The module maintains a consistent 128 Mbps data rate (often cited as 10 Mbps for older ESB iterations, but updated for modern FIO/ESB bus standards), ensuring that real-time process data flows without latency across the extended network.

Versatile Topology and Network Reliability

Designers value the SSB401-53 S1 for its adaptability to complex plant layouts. The module facilitates multiple network architectures, supporting both star and chain (daisy-chain) topologies. This flexibility allows engineers to customize the cabling infrastructure based on the physical constraints of the facility, whether that involves radiating connections from a central hub or linking remote racks in a series. Furthermore, the transition to fiber optics provides inherent immunity to electromagnetic interference (EMI) and radio frequency interference (RFI). Consequently, the SSB401-53 S1 ensures mission-critical communication remains uninterrupted even when routed through electrically noisy environments or alongside high-voltage equipment.

Operational Integration and Hardware Efficiency

The mechanical and electrical profile of the SSB401-53 S1 emphasizes ease of integration and low thermal impact. The unit operates on a standard 5 V DC internal supply with a power consumption range of 5 to 12 W, which minimizes the load on the system power supply modules. Its compact 3.3 cm width allows for high-density mounting within standard Yokogawa racks, optimizing cabinet real estate. Because the module supports an operating temperature range of 0°C to +55°C, it remains stable in standard industrial control room environments. This module stands as a cornerstone for system scalability, providing the reliable backbone necessary for expanding control capabilities in process automation and manufacturing sectors.

Key Technical Characteristics

• Extended Transmission Range: Facilitates bus communication up to 2 kilometers via fiber optic cable.
• EMI/RFI Immunity: Fiber optic medium protects data from industrial electrical noise and surges.
• Dual Topology Support: Enables both star and chain configurations for flexible network design.
• Optical Precision: Operates at a 1300 nm wavelength for high-integrity signal regeneration.
• System-Wide Scalability: Simplifies the addition of remote I/O nodes to the primary DCS network.
• Low Power Consumption: Efficient 5V DC operation with minimal heat dissipation.

Technical Specifications
