Description

Brief Product Description

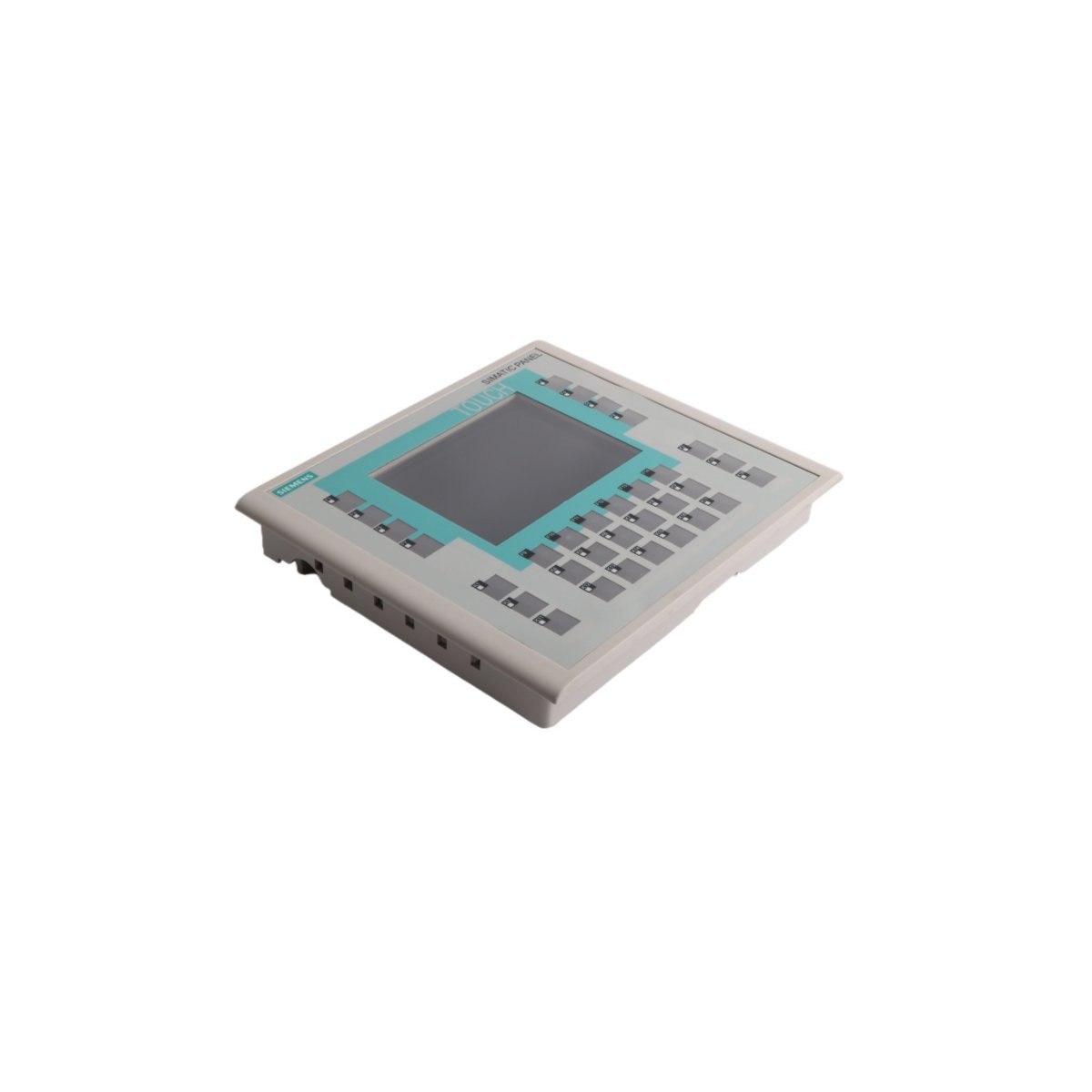

The Siemens 6AV6642-0DA01-1AX1 is a high-performance SIMATIC OP 177B operator panel featuring a 6-inch STN display with 256 colors. This versatile HMI supports both touch and tactile key inputs, providing robust control and visualization for PROFIBUS and Ethernet-based automation systems.

Product Description

Versatile Industrial Human-Machine Interface

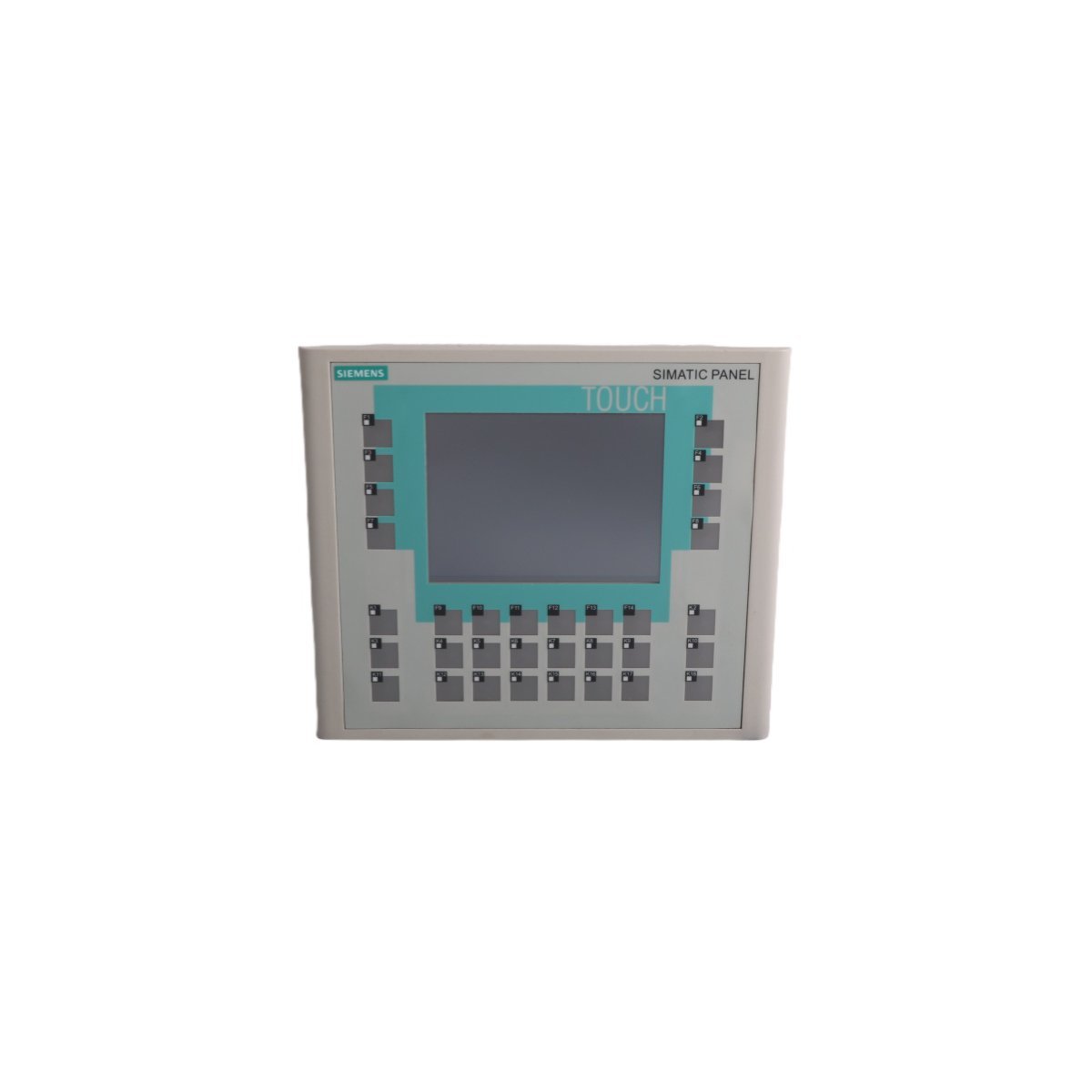

The Siemens 6AV6642-0DA01-1AX1 represents a cornerstone of the SIMATIC OP 177B series, engineered to deliver reliable monitoring and control in factory automation environments. This operator panel features a 5.7-inch STN display that utilizes 256 colors to provide clear graphical representations of machine states. Operators interact with the system through a combination of a resistive touchscreen and 34 system keys, including 24 programmable function keys. This hybrid input approach ensures that personnel can execute commands efficiently, even when wearing industrial gloves or operating in low-visibility conditions.

Advanced Connectivity and Integration

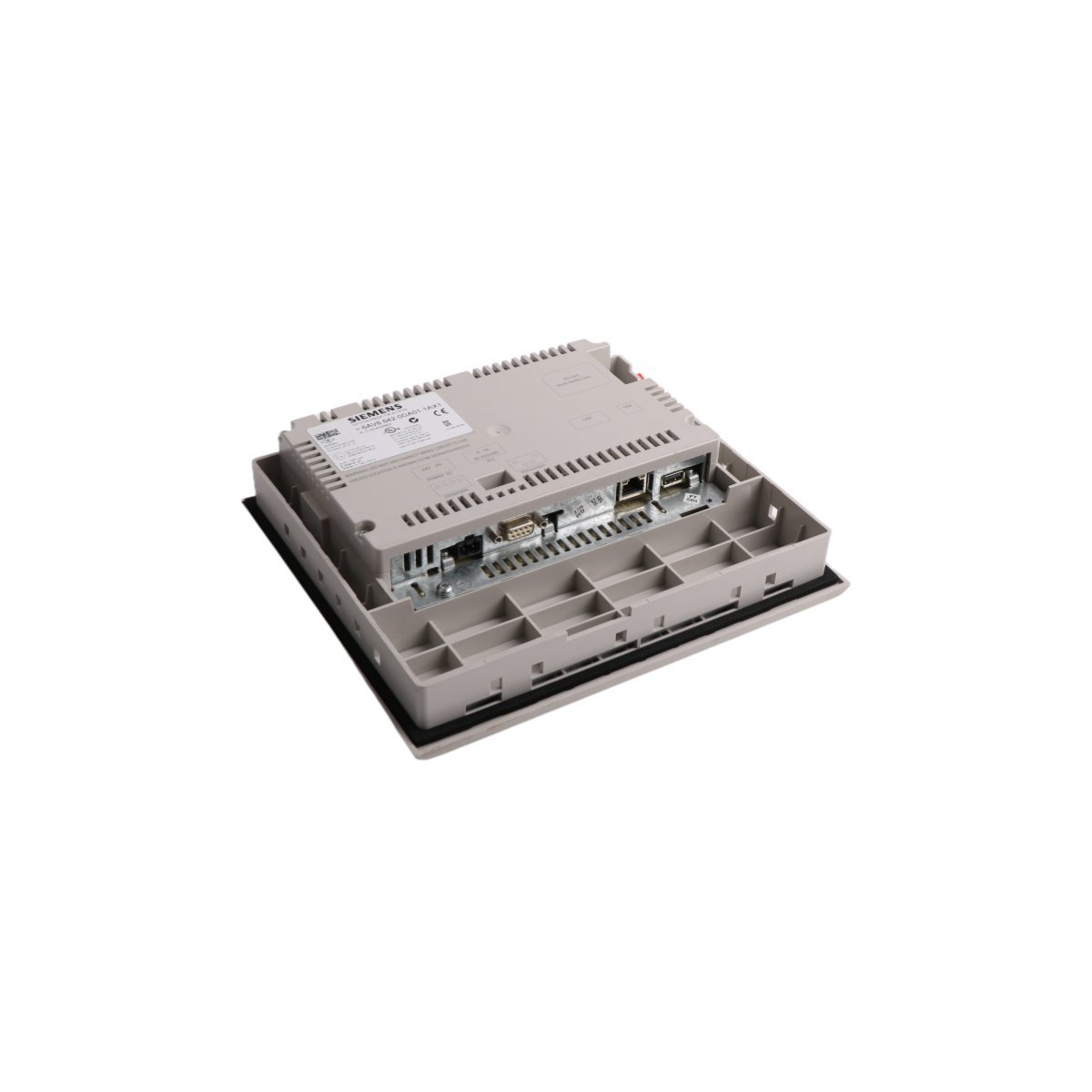

Siemens integrated comprehensive networking capabilities into the 6AV6642-0DA01-1AX1 HMI to support diverse industrial architectures. The unit features an RS485/RS422 combined interface that facilitates high-speed communication via MPI and PROFIBUS-DP protocols at speeds up to 12 Mbit/s. Additionally, an onboard 10/100 Mbit/s Ethernet port allows the panel to bridge the gap between field-level control and plant-wide management networks. This dual-path connectivity enables the device to handle complex data exchanges, such as recipe management and alarm logging, across multiple controllers simultaneously.

Engineering and Maintenance Efficiency

System integrators utilize the WinCC Flexible 2005 or TIA Portal software to configure the 6AV6642-0DA01-1AX1 Siemens panel, allowing for the creation of sophisticated user interfaces and automated reporting. The hardware includes a dedicated MultiMedia Card (MMC) slot, which serves as a secure medium for backing up project data and storing historical alarm trends. Furthermore, a USB port supports the connection of external printers or HID devices, enhancing the panel’s utility for documentation and traceability. While currently categorized as a legacy part, this operator panel remains an essential spare for maintaining the longevity of existing PLC systems.
