Description

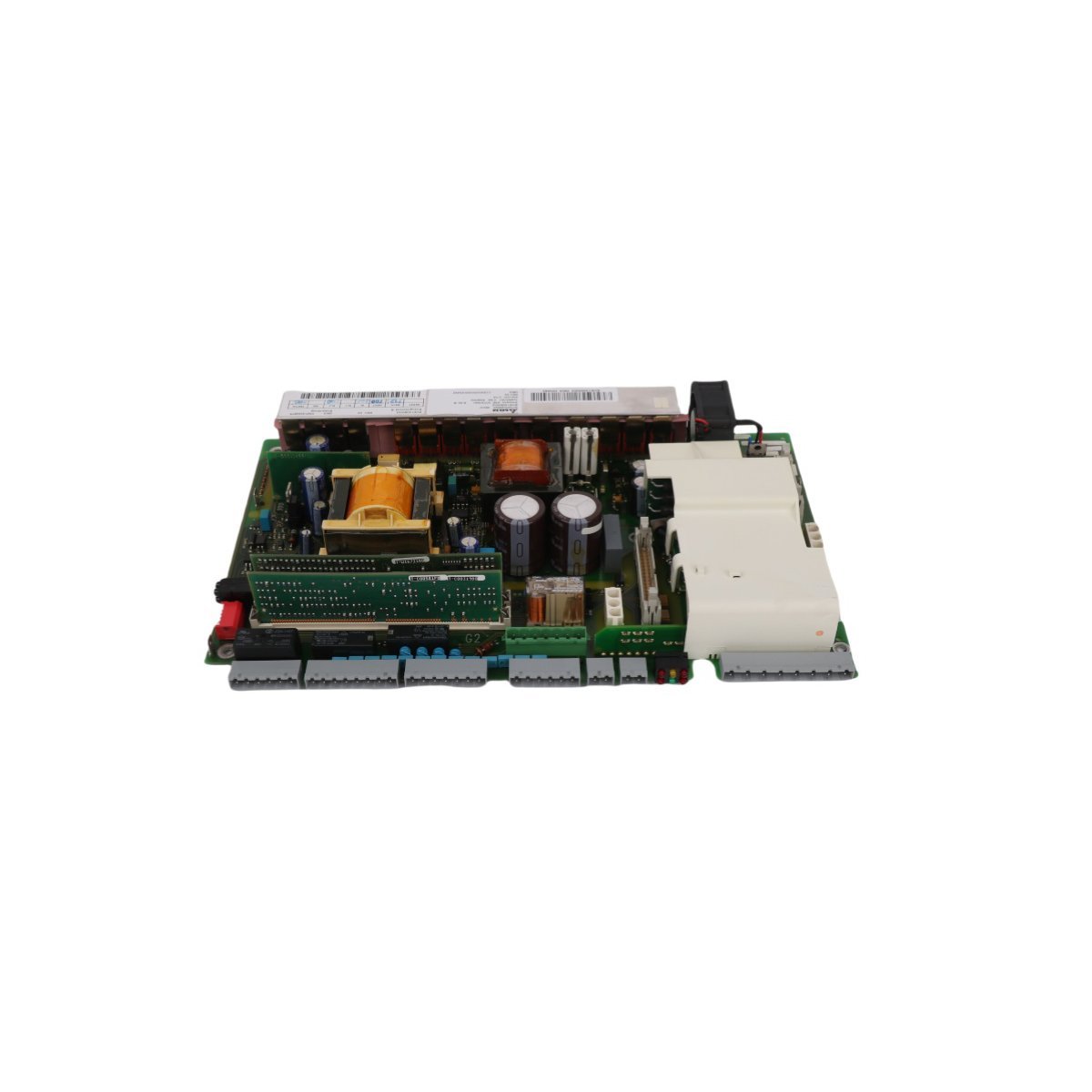

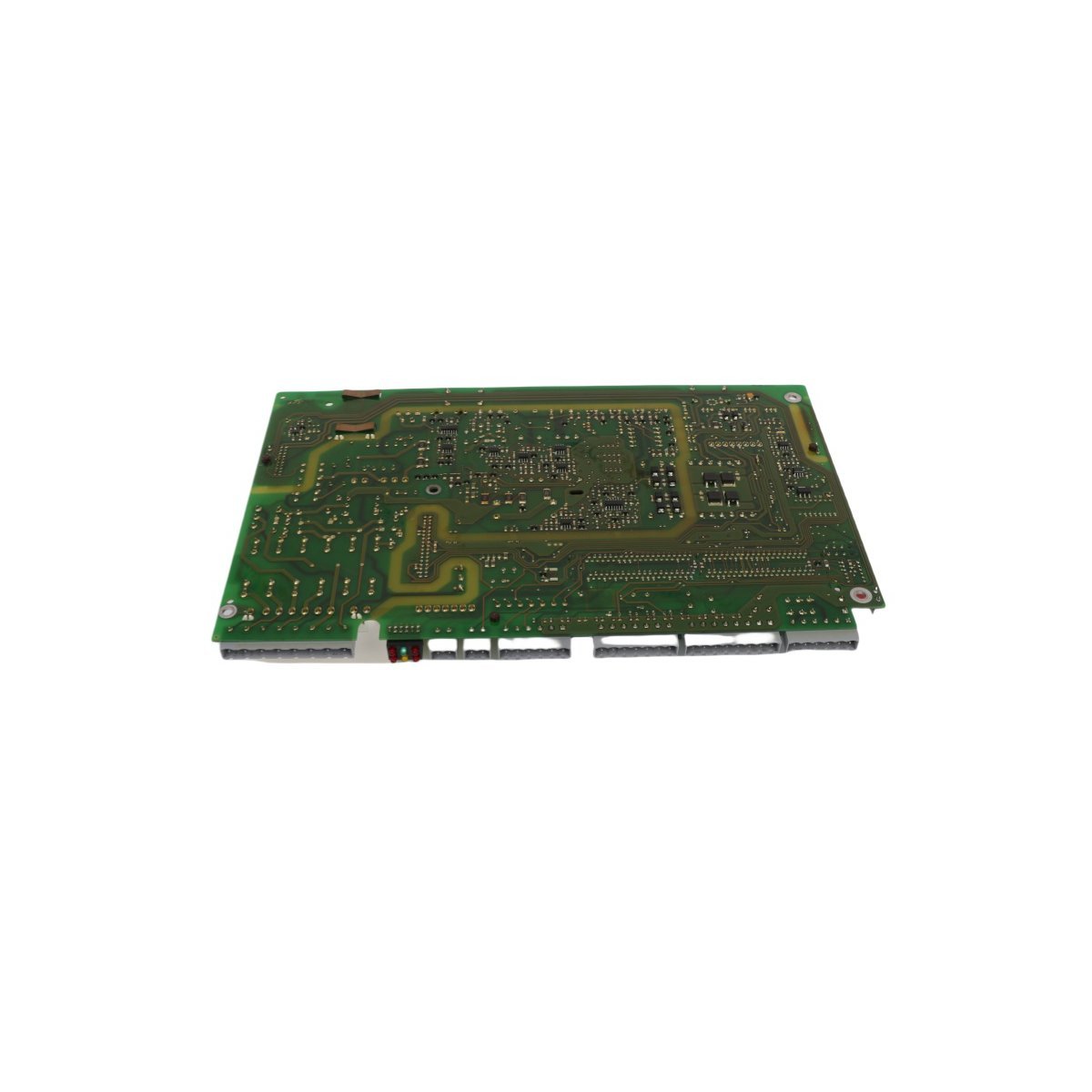

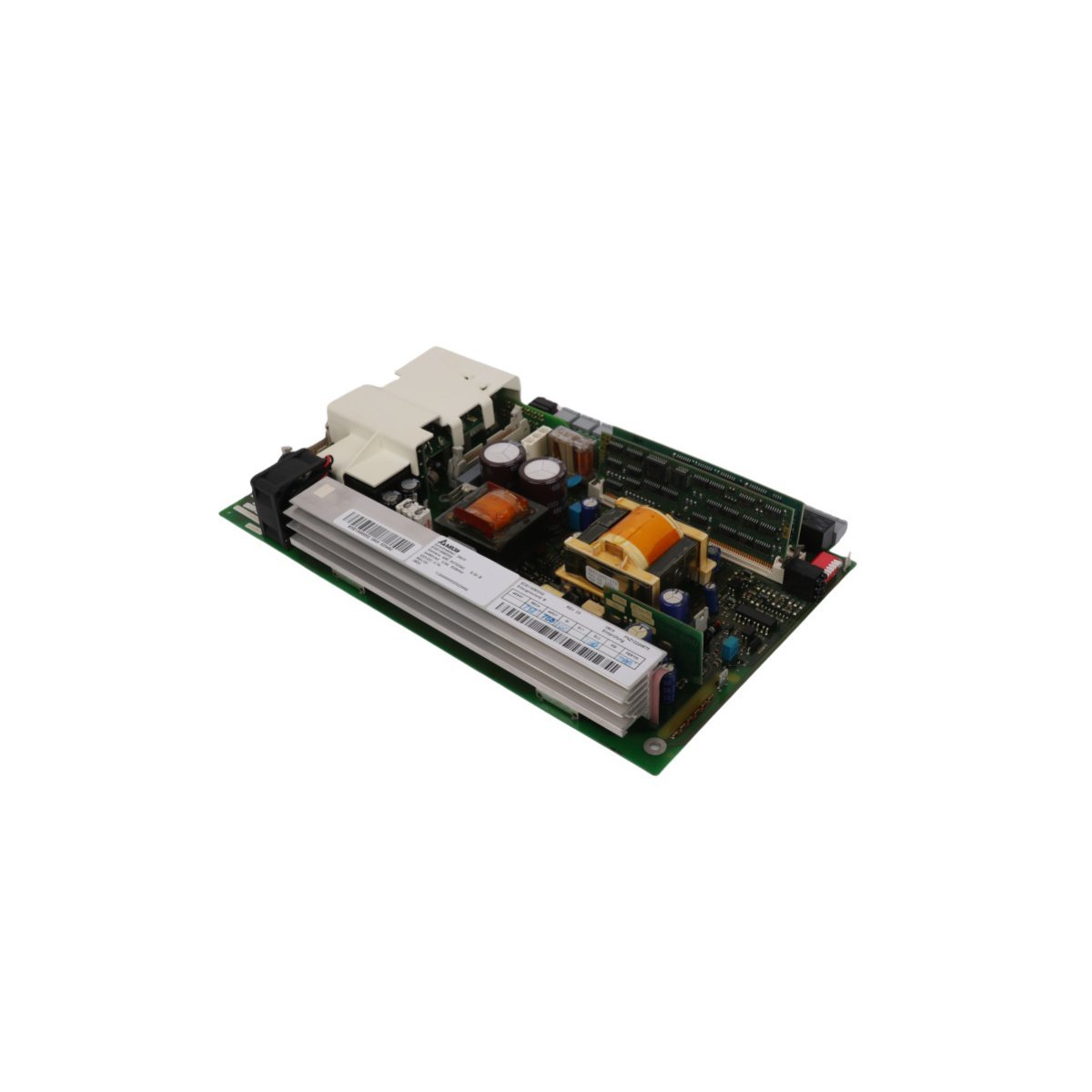

The Siemens EOE13080002 (A5E00730540) serves as a specialized power supply module for industrial control environments. This high-performance board converts standard AC input into stable 24V DC voltage for sensitive electronics. It supports a wide range of input voltages, specifically 120V and 230V AC configurations. Consequently, it provides consistent energy delivery for PLC CPUs and associated I/O modules. This stability prevents logic errors and hardware damage caused by power fluctuations.

Furthermore, the design emphasizes compact integration within standard industrial control cabinets. The module features a lightweight footprint of only 0.05 kg. This allows engineers to optimize panel space for other critical automation components. The board maintains a high efficiency rating during continuous operation in manufacturing facilities.

Technical Specifications and Operational Data

Advanced Safety and System Compatibility

Safety remains a primary focus for the A5E00730540 power mother board. It includes integrated protection circuits to handle overcurrent and short-circuit events. These features safeguard the entire PLC rack from electrical faults. Additionally, the unit complies with global CE and UL industrial standards. This ensures legal and technical compliance for international machine exports.

Moreover, this power board offers excellent backward compatibility with legacy Siemens systems. It functions perfectly alongside various S7-series components and Ethernet routers. The terminal layout allows for quick wiring and straightforward maintenance. Clear diagnostic indicators help technicians identify power status at a glance. Therefore, it reduces system downtime during routine inspections or troubleshooting.

Primary Application Fields

• Powering Siemens SIMATIC S7 series programmable logic controllers.
• Providing stable DC voltage for industrial communication routers.
• Supporting centralized control cabinets in automotive assembly lines.
• Supplying power to process control instruments in water treatment.
• Integration into general machine tool electronics and automation racks.
