Description

Brief Product Description

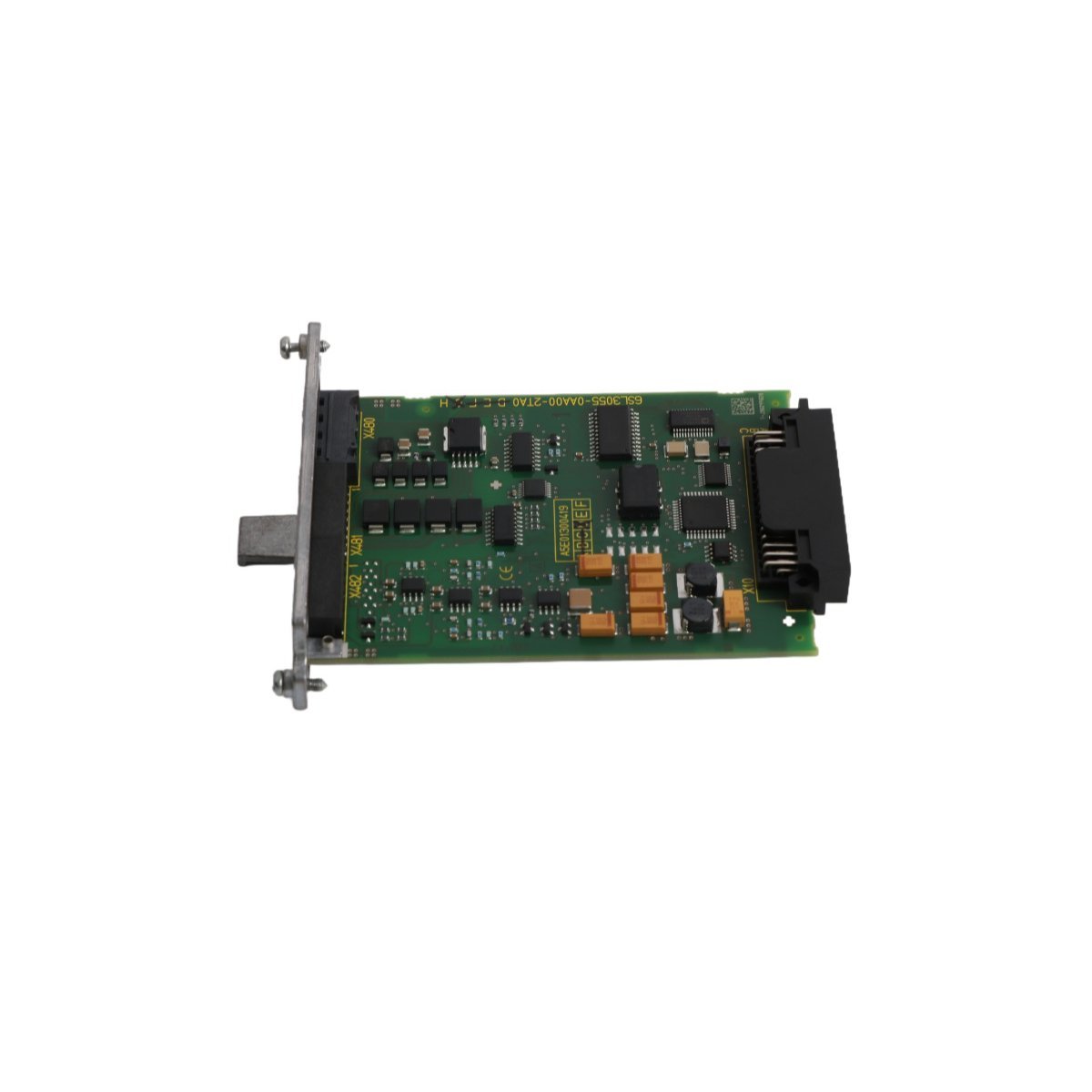

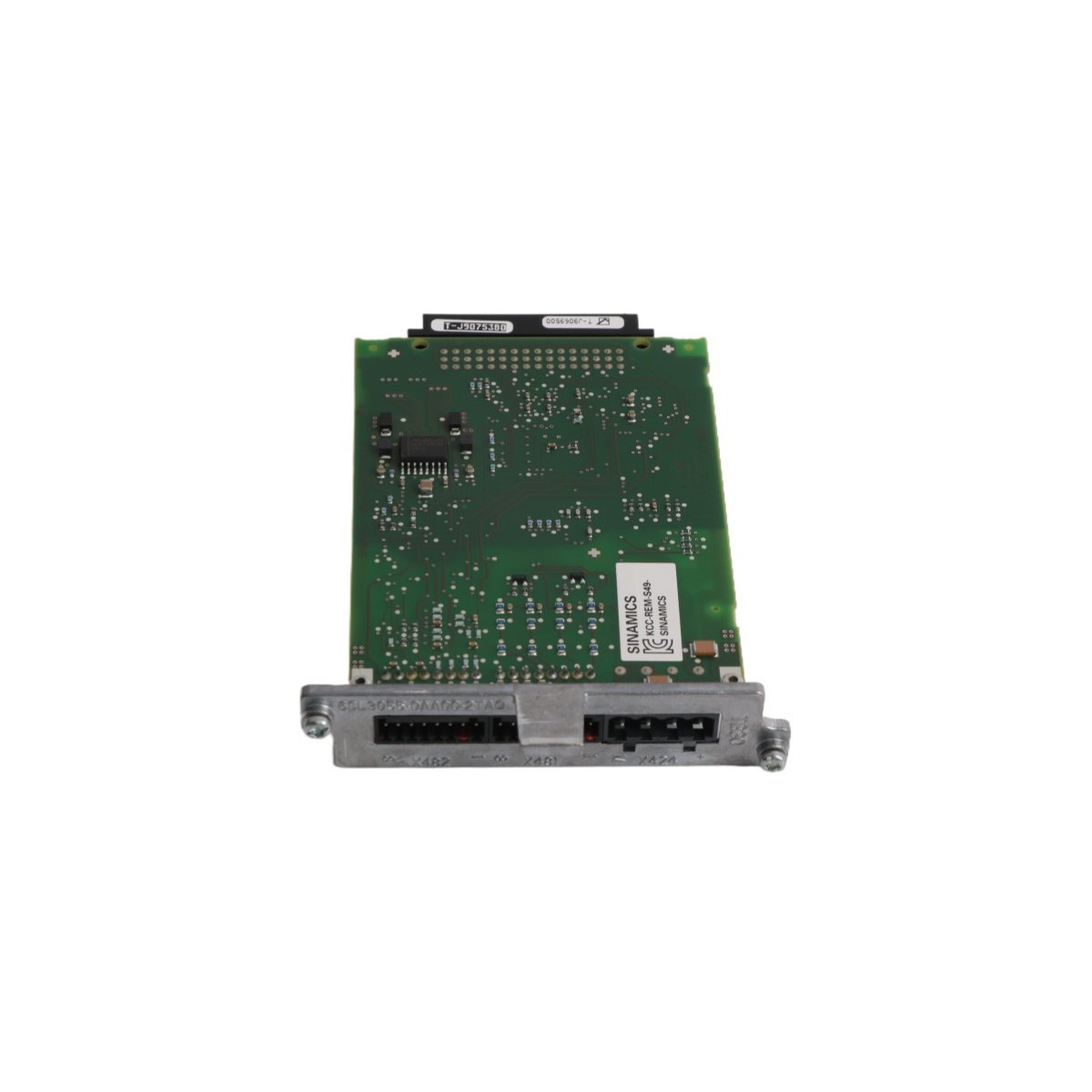

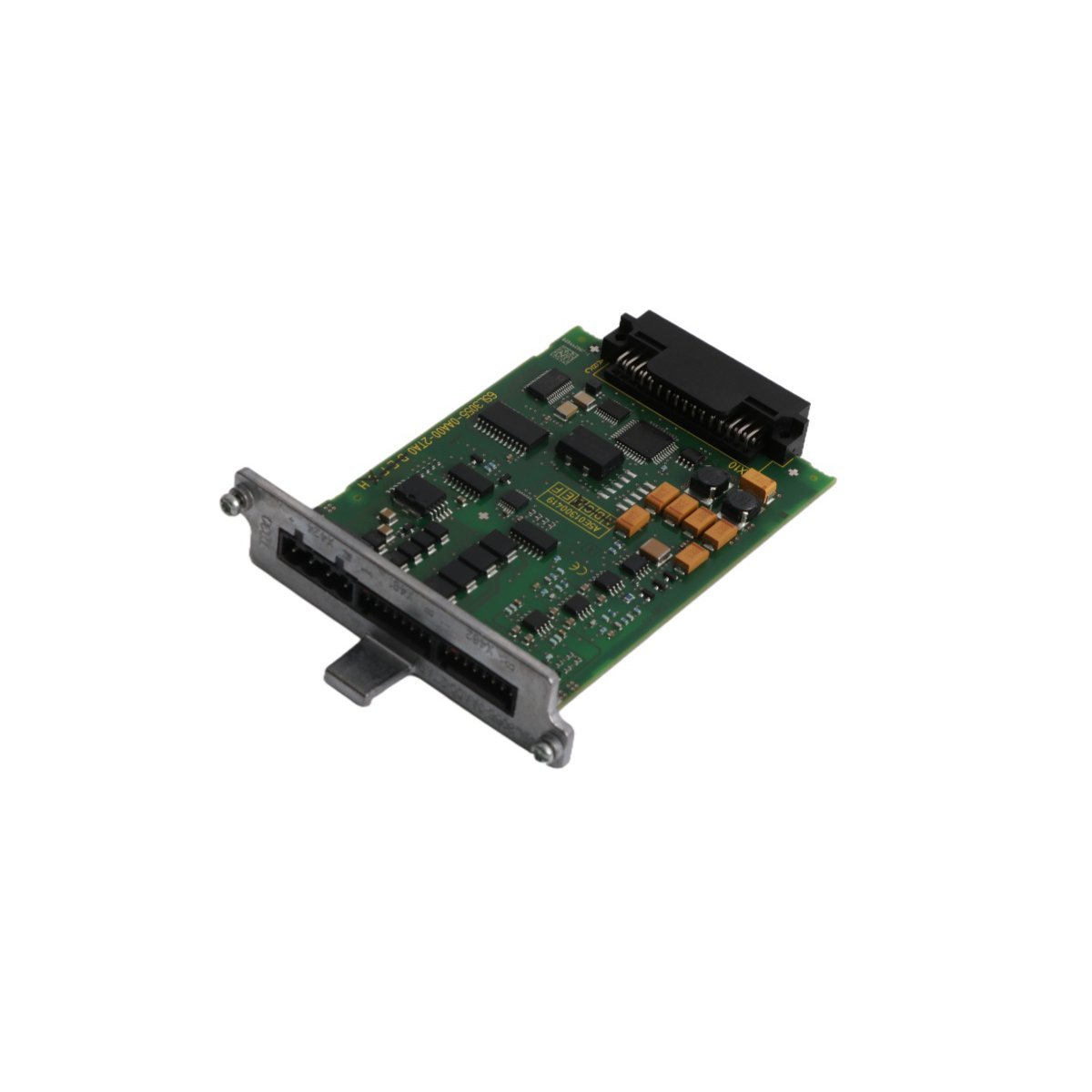

The Siemens 6SL3055-0AA00-2TA0 is a TB30 terminal board expansion module designed to provide additional I/O capacity for SINAMICS S120 CU320-2 Control Units. It integrates directly into the control unit’s option slot to expand digital and analog interface capabilities in complex motion control systems.

Product Description

Expanded I/O Interface for SINAMICS S120

The Siemens 6SL3055-0AA00-2TA0 serves as a vital expansion interface for the SINAMICS S120 drive system. By plugging directly into the option slot of a CU320-2 Control Unit, this TB30 Terminal Board increases the available local I/O without requiring additional cabinet space. Engineers typically utilize this module to bridge the gap between the drive’s internal logic and external field devices, providing a structured and reliable termination point for signal wiring.

Technical Versatility and Signal Handling

This terminal board significantly enhances the connectivity of the control unit by offering a diverse array of signal types. The TB30 module features four digital inputs, four digital outputs, two analog inputs, and two analog outputs. This comprehensive mix allows the control system to process complex feedback loops and execute precise commands for auxiliary equipment. Furthermore, the terminal board operates with high signal integrity, ensuring that critical motion control data remains accurate even in environments with significant electromagnetic interference.

Compliance and Industrial Standards

Siemens manufactures the 6SL3055-0AA00-2TA0 in Germany under rigorous quality control standards to ensure long-term industrial reliability. The unit weighs approximately 0.07 kg, emphasizing a lightweight yet durable construction suitable for high-vibration environments. Moreover, the product maintains full compliance with global environmental regulations, including RoHS and REACH (SCIP) directives. This commitment to transparency and safety makes it a preferred choice for international projects requiring strict adherence to ecological and technical documentation.

Technical Specifications
