Description

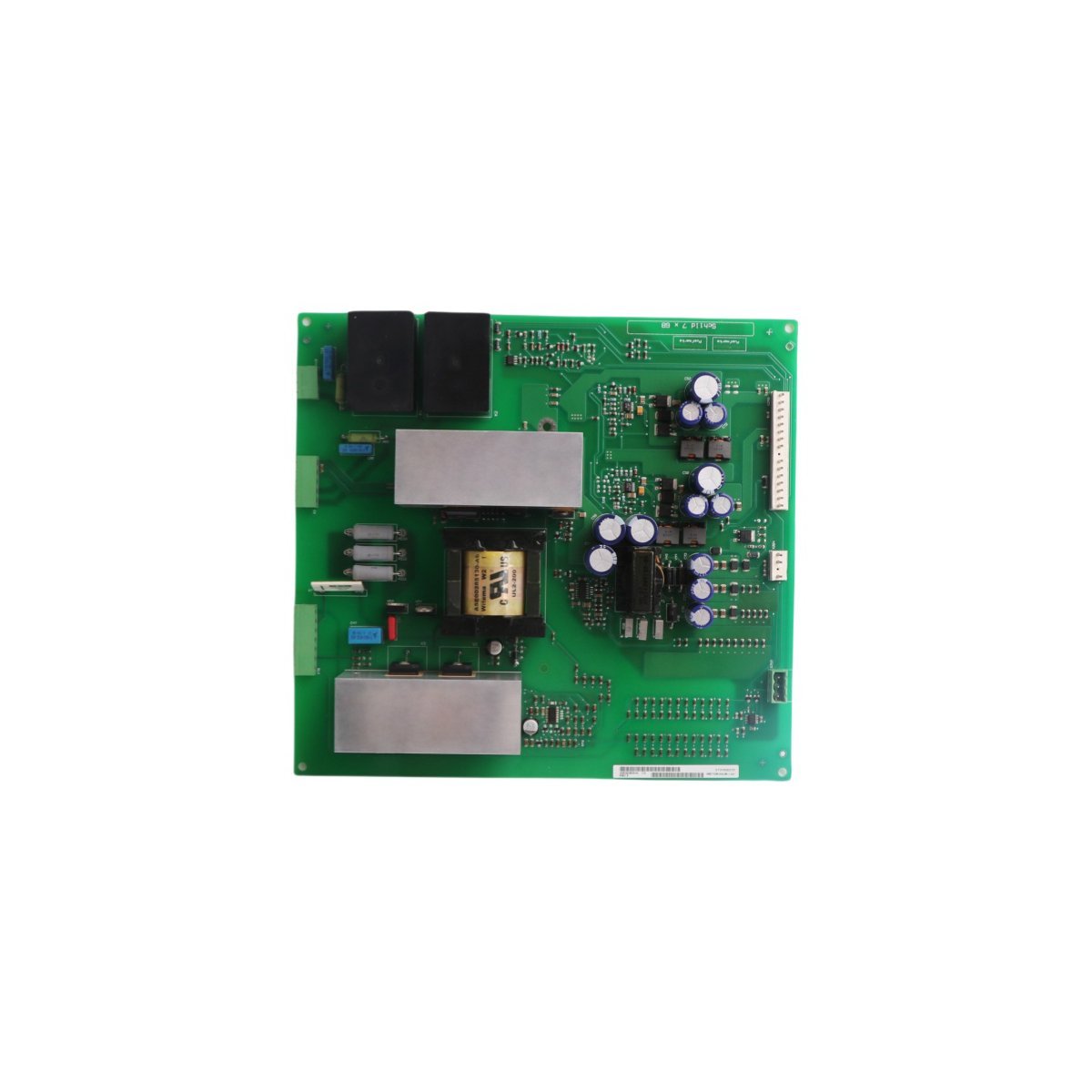

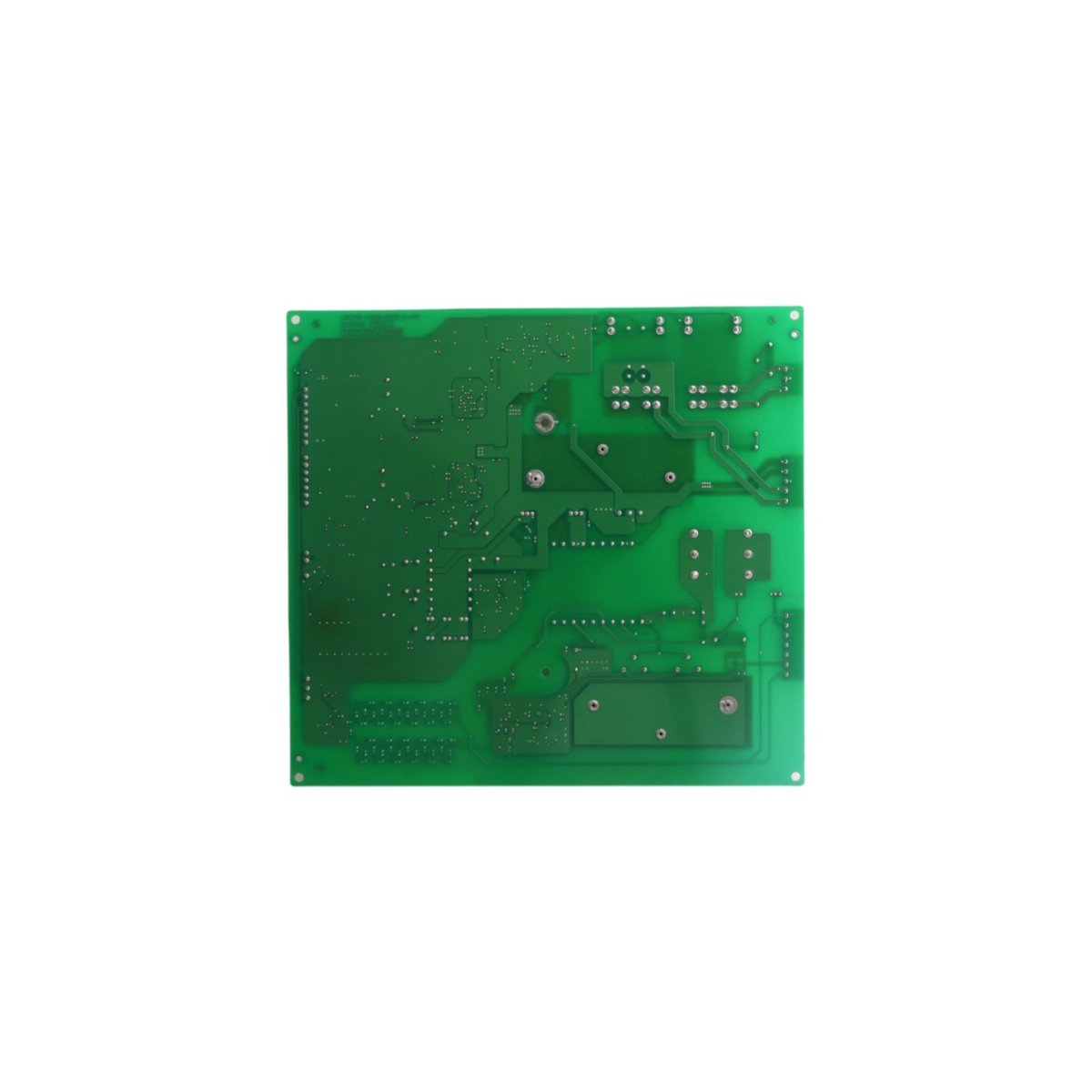

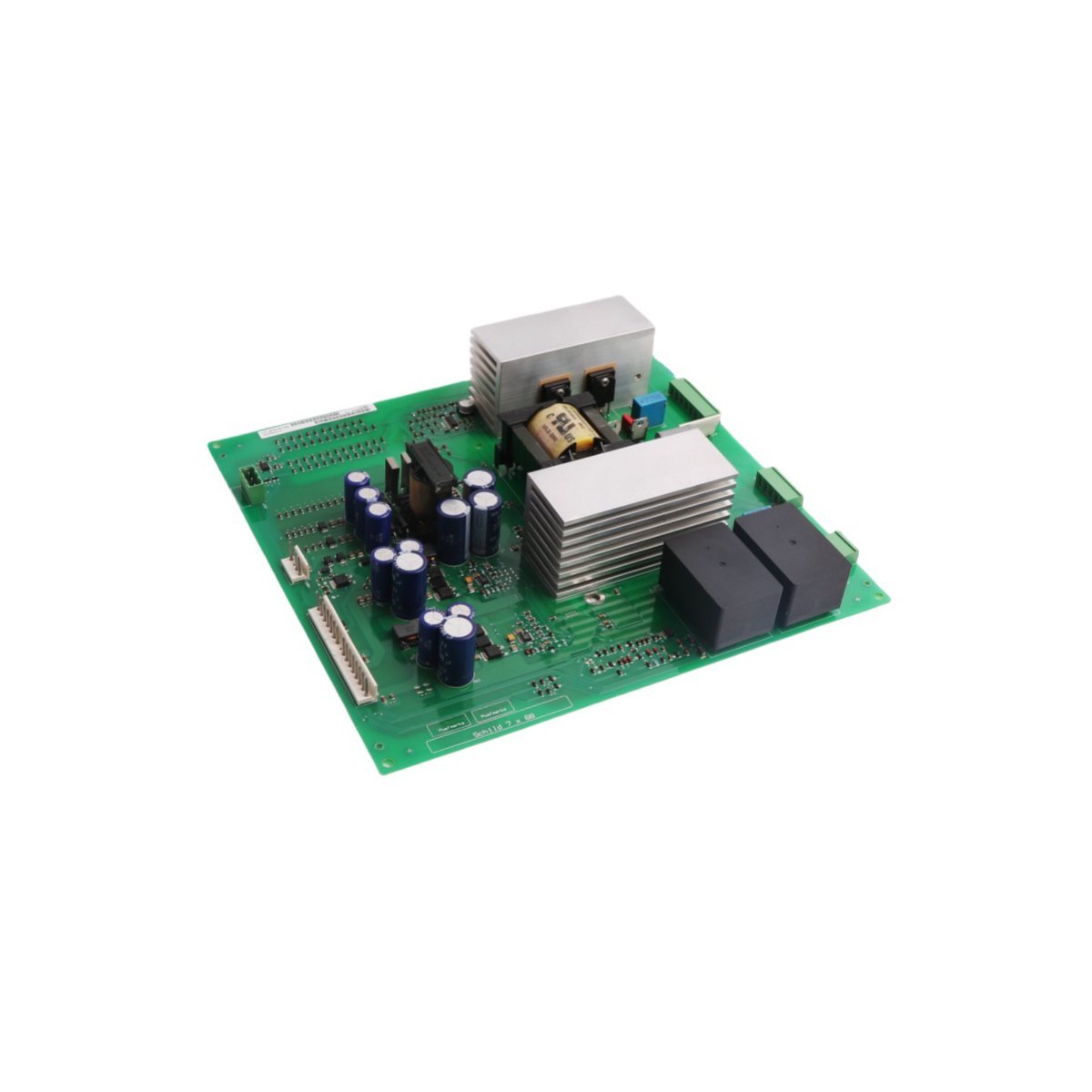

The Siemens 6SE7038-6GL84-1JA1 is a specialized PSU2 power supply unit designed for the SIMOVERT MASTERDRIVES series. This internal component provides essential power distribution for high-power drive assemblies within Frame Sizes J through M. Because it occupies a critical role in the drive’s internal architecture, it ensures stable voltage regulation for control electronics. The module facilitates seamless communication between the drive converter and the power section. Consequently, it maintains operational consistency in large-scale industrial motor control systems.

Technical Specifications

Advanced Power Management and Reliability

This power supply module utilizes high-grade electronic components to withstand the electrical rigors of heavy industry. It converts the intermediate DC link voltage into regulated levels for internal gate firing and logic circuits. Furthermore, the 6SE7038-6GL84-1JA1 features integrated protective circuits to prevent damage from transient voltage spikes. The robust design supports continuous operation in environments with high vibration and thermal fluctuation. Its precise engineering helps minimize heat dissipation within the drive cabinet. As a result, the module contributes significantly to the overall service life of the MASTERDRIVES system.

Industrial Applications and Legacy Support

The 6SE7038-6GL84-1JA1 PSU2 board primarily serves in heavy-duty sectors like steel milling and paper production. These industries rely on the MASTERDRIVES platform for high-torque applications and complex motion control. Although Siemens moved this specific product line to legacy status, it remains vital for maintaining existing infrastructure. Facilities can utilize this board to avoid the high costs of complete system overhauls. Standardized mounting points allow for straightforward replacement during scheduled maintenance intervals. Additionally, the module’s diagnostic capabilities help technicians identify power-related faults quickly.

Key Technical Characteristics

• Specifically engineered for MASTERDRIVES Frame Sizes J, K, L, and M.
• Provides high-stability voltage outputs for internal drive control components.
• Integrates directly into the drive chassis for space-saving power distribution.
• Features a rugged PCB layout designed for long-term industrial durability.
• Includes specialized connectors for secure electrical contact in high-vibration areas.
• Supports legacy hardware maintenance to reduce total cost of ownership.
• Maintains high conversion efficiency to reduce internal cabinet temperatures.
