Description

Brief Product Description

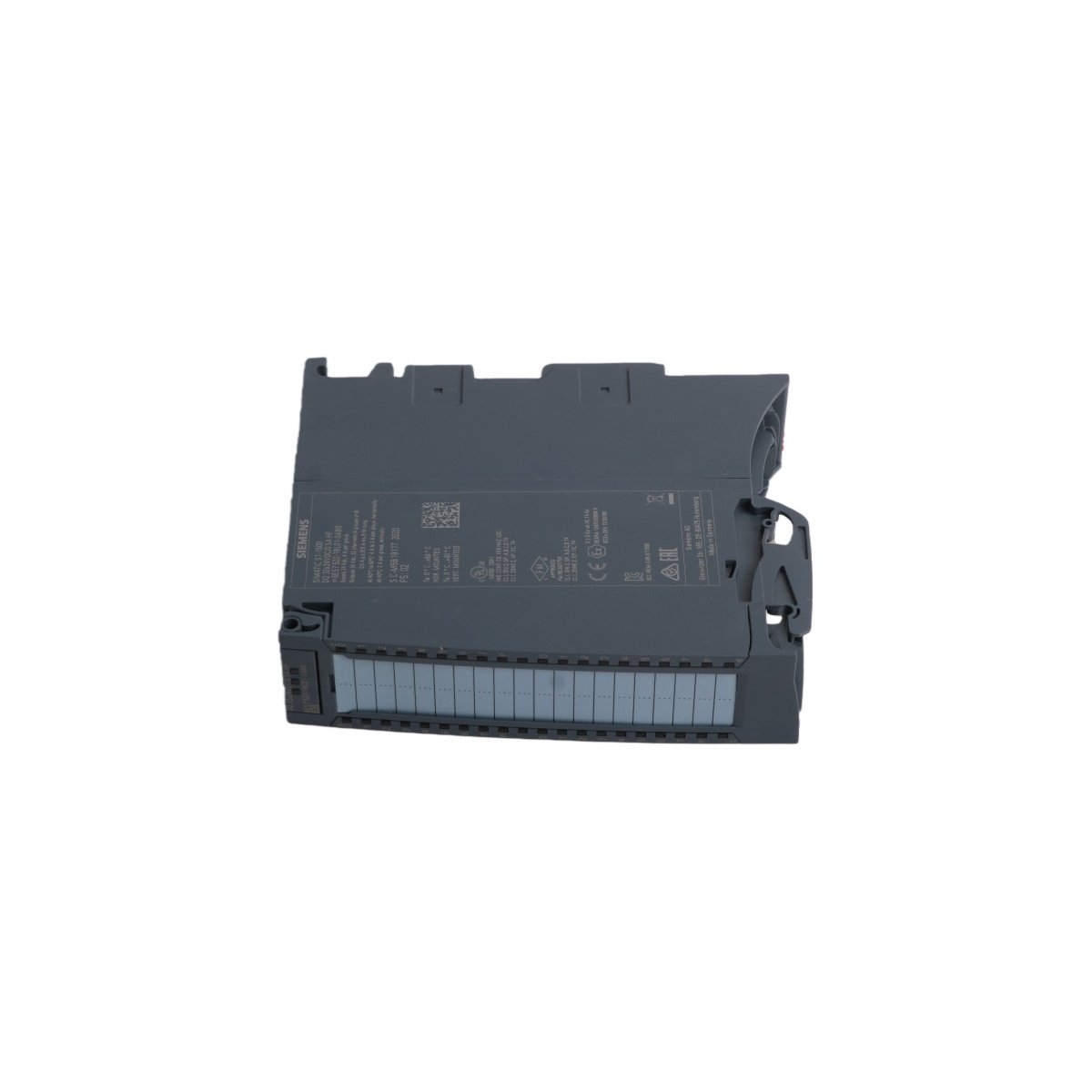

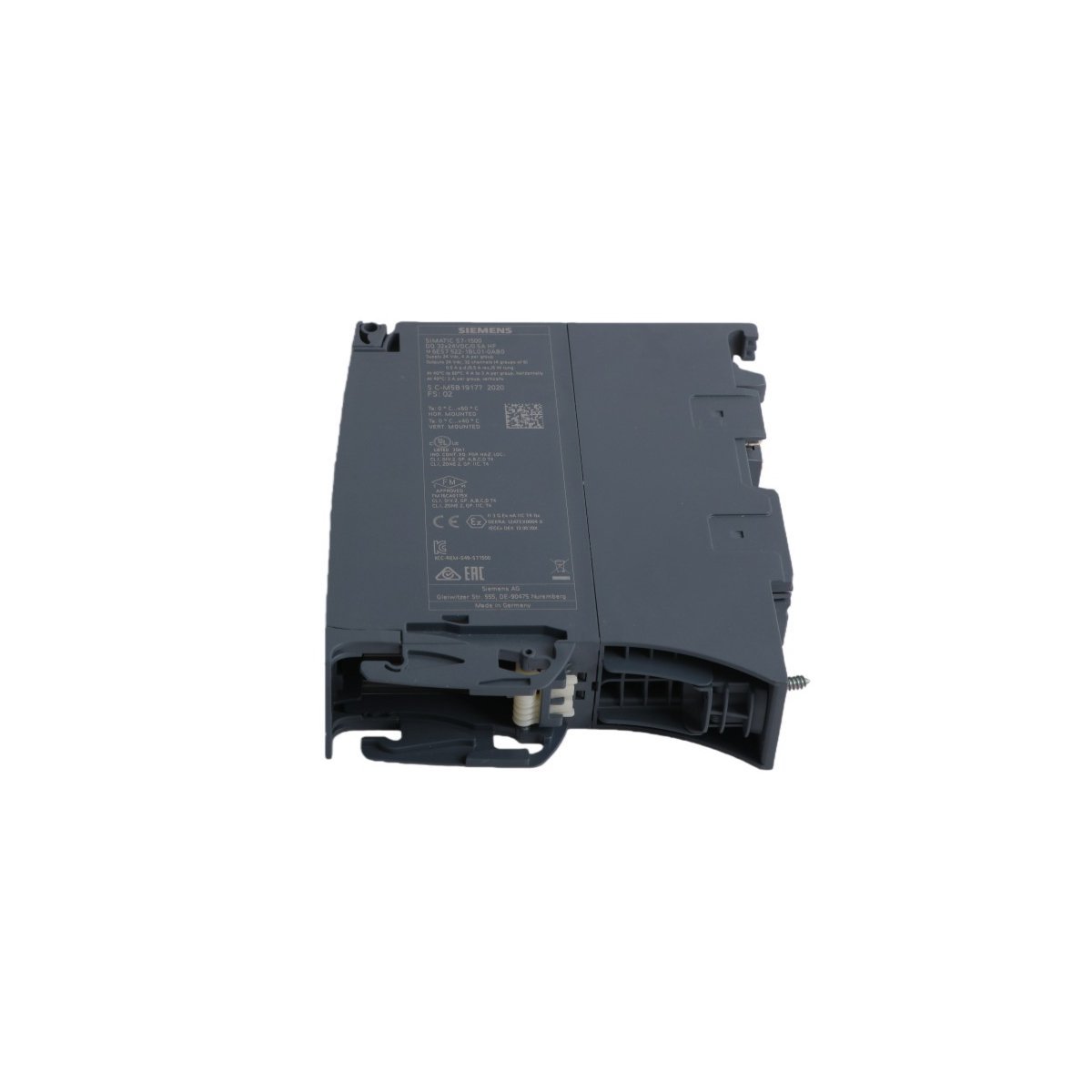

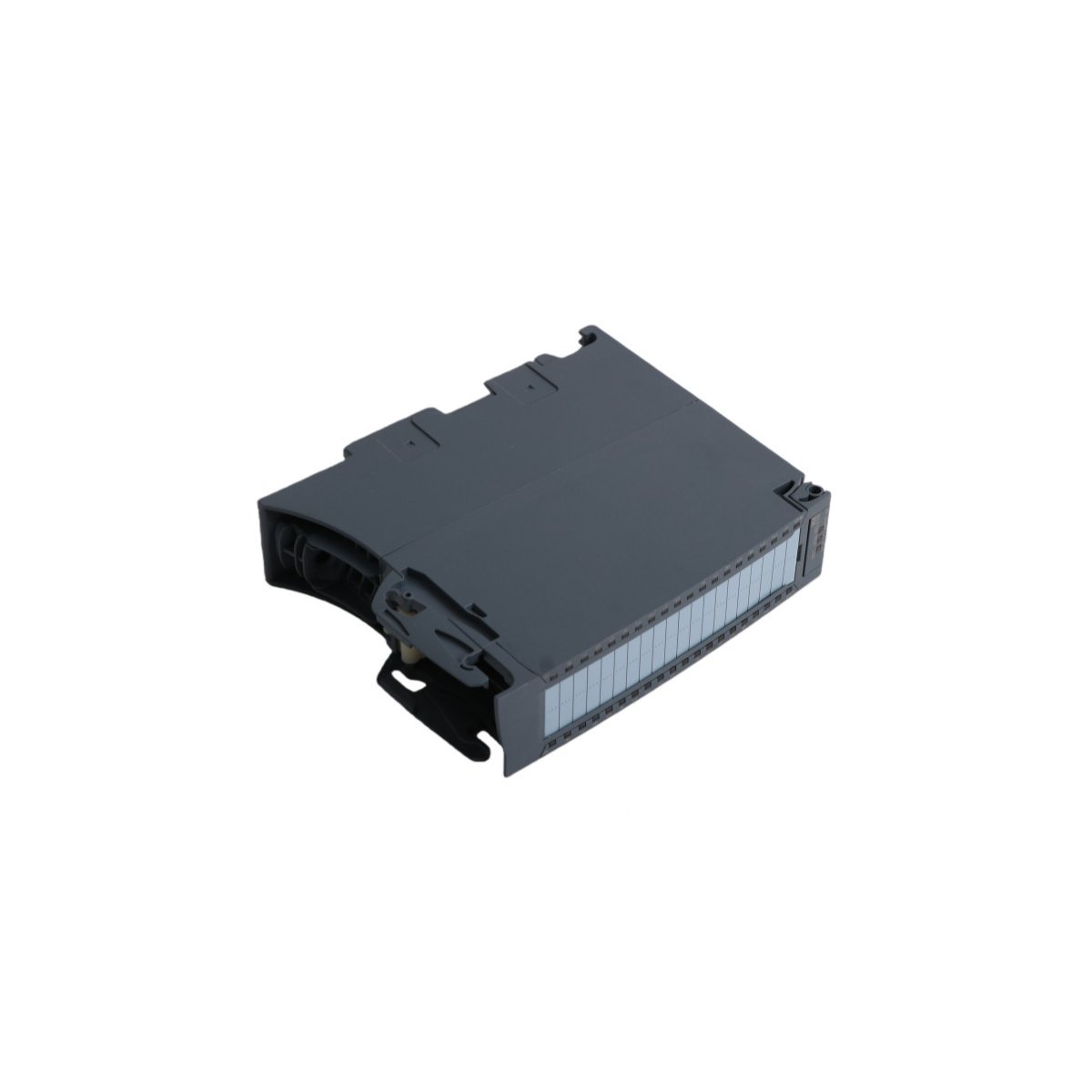

The Siemens 6ES7522-1BL01-0AB0 is a High Feature (HF) digital output module for the SIMATIC S7-1500 system, featuring 32 channels rated at 0.5A each. This advanced module supports safety-related shutdowns and comprehensive diagnostics, making it ideal for high-density, critical automation tasks.

Advanced High-Feature Output Control

The Siemens 6ES7522-1BL01-0AB0 serves as a premium High Feature (HF) component within the SIMATIC S7-1500 automation environment. This module provides 32 discrete digital outputs, which engineers can leverage to manage high-density actuator arrays. Each channel handles a rated load of 0.5A at 24V DC, and the module organizes these channels into four groups of eight. Because this unit belongs to the High Feature class, it offers superior synchronization and faster response times compared to standard modules. Consequently, it excels in complex machinery and rapid processing lines where precise timing is non-negotiable.

Integrated Diagnostics and Predictive Maintenance

Operational transparency defines the 6ES7522-1BL01-0AB0, as it incorporates sophisticated diagnostic monitoring at the individual channel level. The module identifies common faults such as wire breaks, short circuits to L+, and missing supply voltages, immediately transmitting these alerts to the CPU. Furthermore, an integrated switching cycle counter tracks the activity of connected actuators. This data allows maintenance teams to perform predictive servicing on mechanical components like solenoid valves before a failure occurs. Transitioning to this intelligent monitoring approach significantly reduces unplanned downtime and extends the lifecycle of the entire automation system.

Safety Integration and Mechanical Versatility

System designers often select the 6ES7522-1BL01-0AB0 for its safety-oriented capabilities. The module supports safety-related power shutdowns of the output groups, reaching SIL 2 (IEC 62061) and PL d (ISO 13849-1) compliance. This functionality allows the module to play a central role in emergency stop architectures without requiring excessive external hardware. Physically, the 35mm wide module supports both screw-type and push-in front connectors, which streamlines the wiring process during cabinet assembly. Its lightweight, robust housing ensures reliable performance even in industrial settings prone to high vibration or electromagnetic interference.

Key Technical Characteristics

• 32 Digital Outputs: High-density 24V DC channels designed for space-saving cabinet layouts.
• 0.5A Rated Current: Each channel supports standard industrial loads with a total group current of 4A.
• High Feature (HF) Functionality: Includes advanced diagnostics, clock-synchronized mode, and MSO (Module-internal Shared Output).
• Safety Compliance: Facilitates safety-related shutdowns up to SIL 2 and PL d.
• Maintenance Analytics: Features an integrated counter for switching cycles to support predictive maintenance.
• Flexible Wiring: Compatible with various S7-1500 front connector systems for rapid installation.
