Description

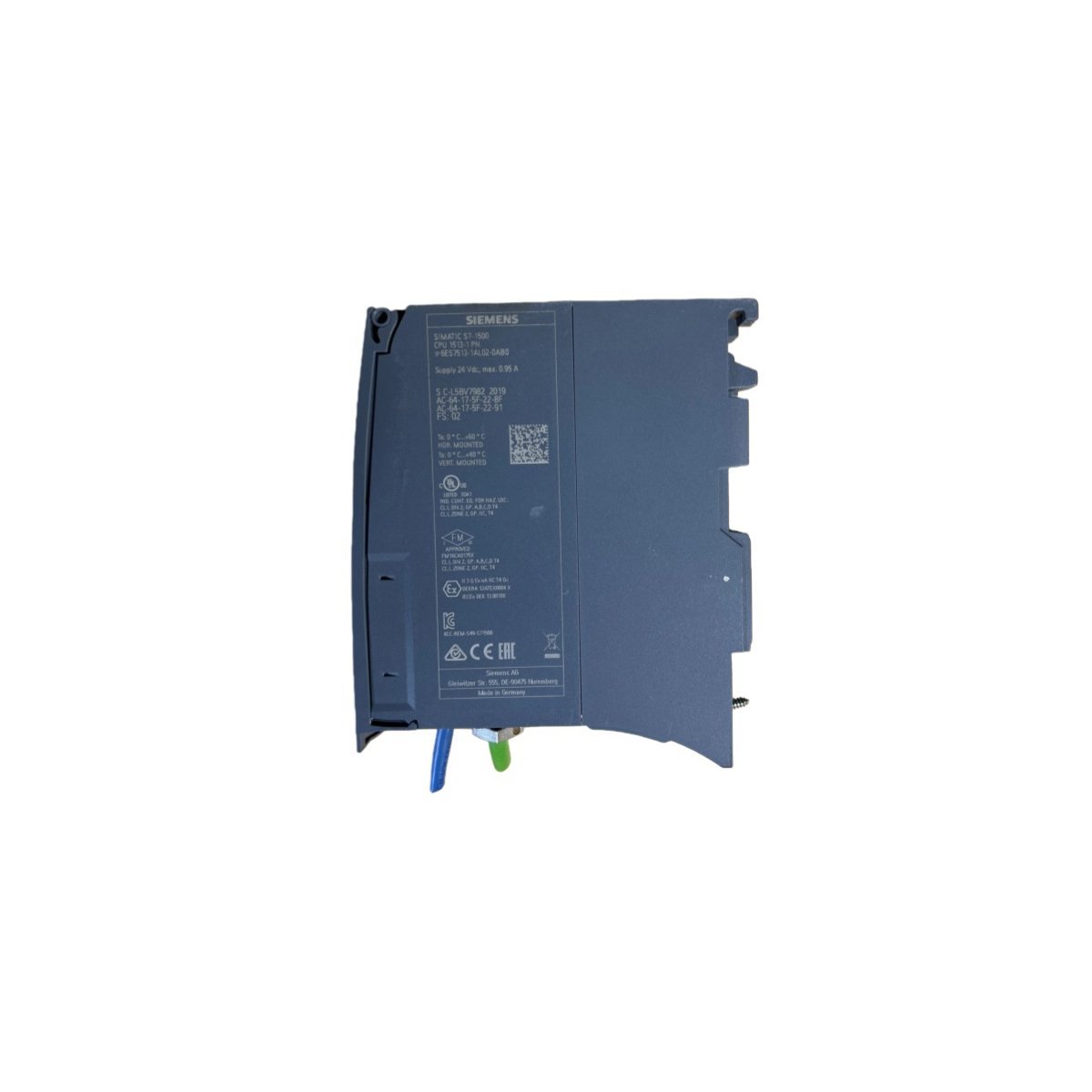

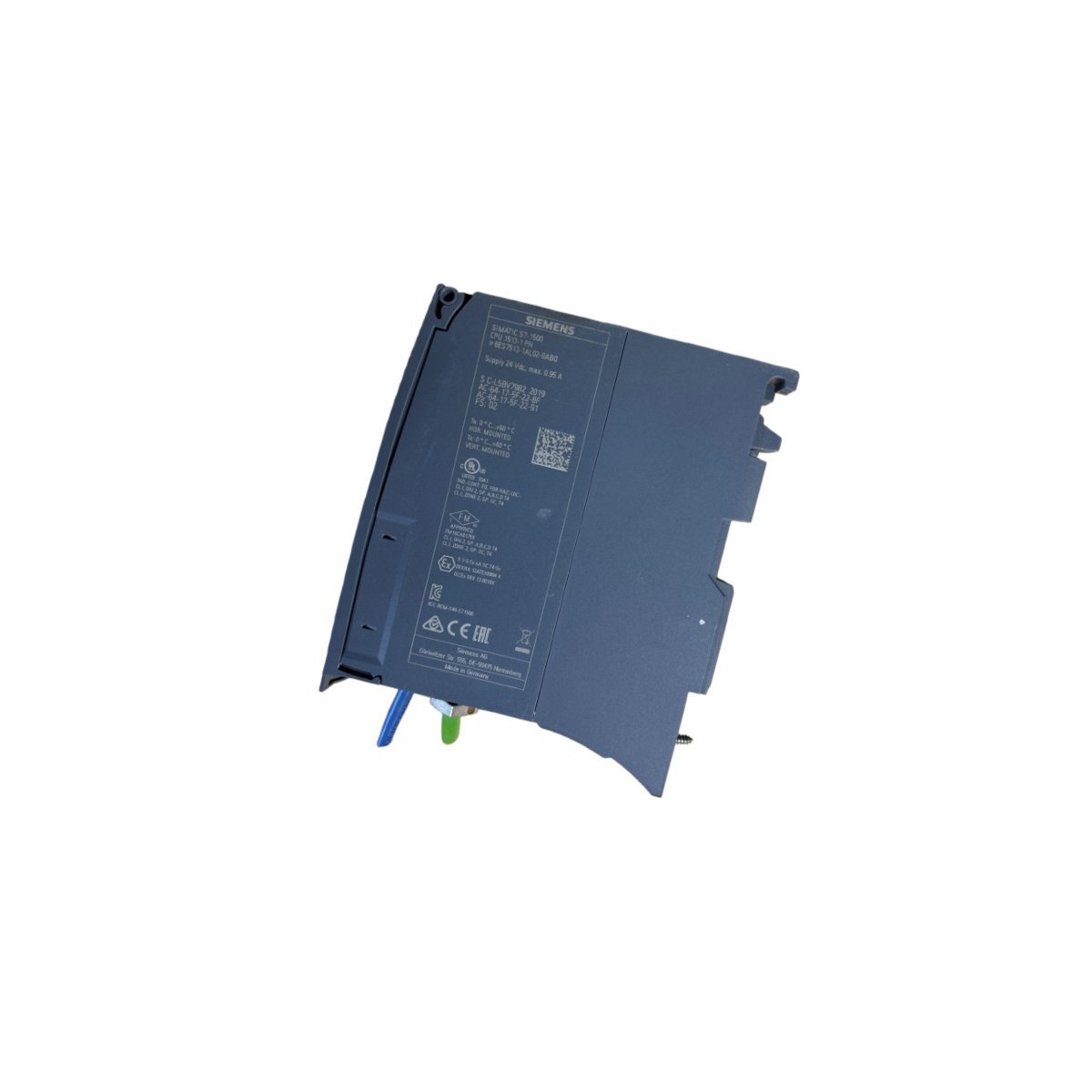

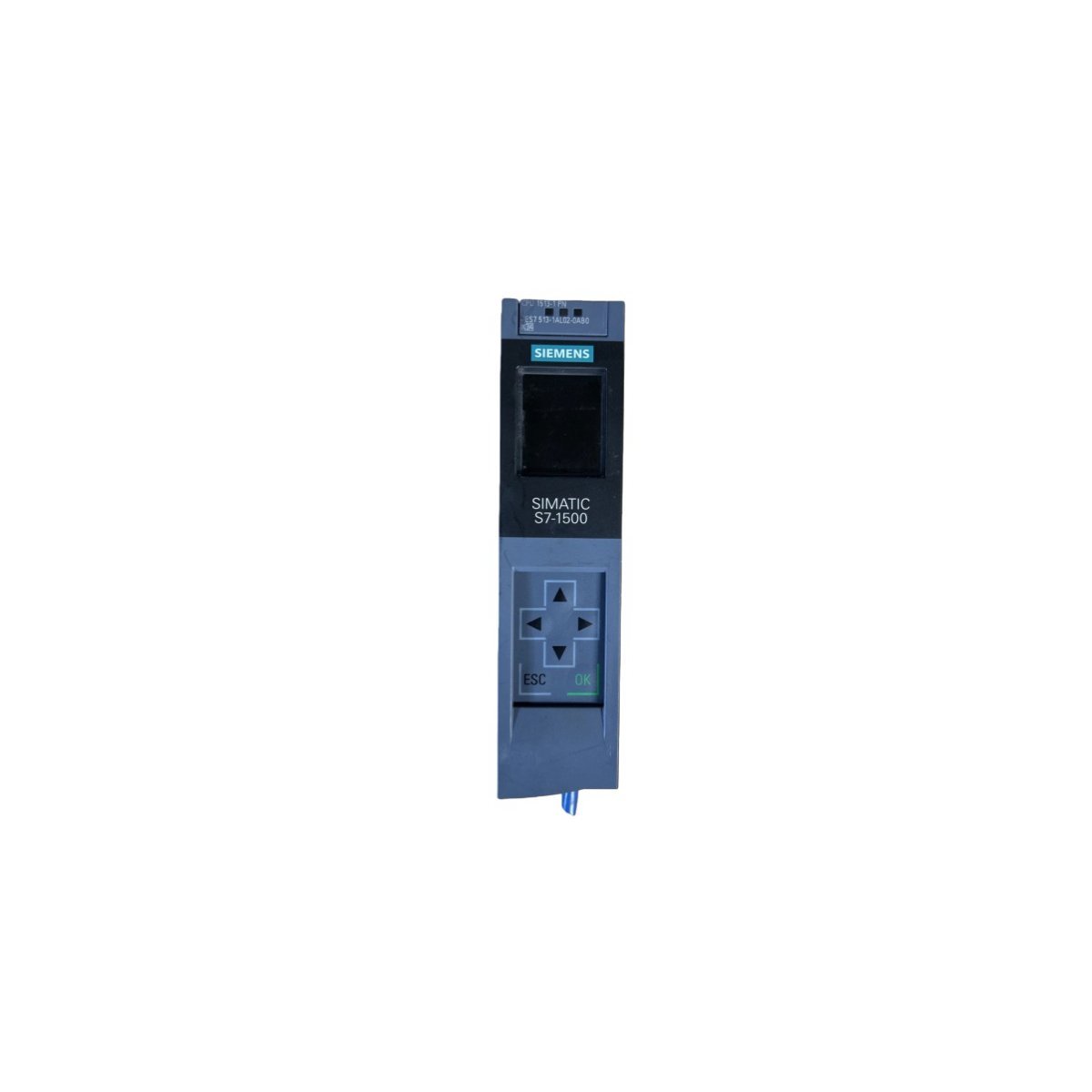

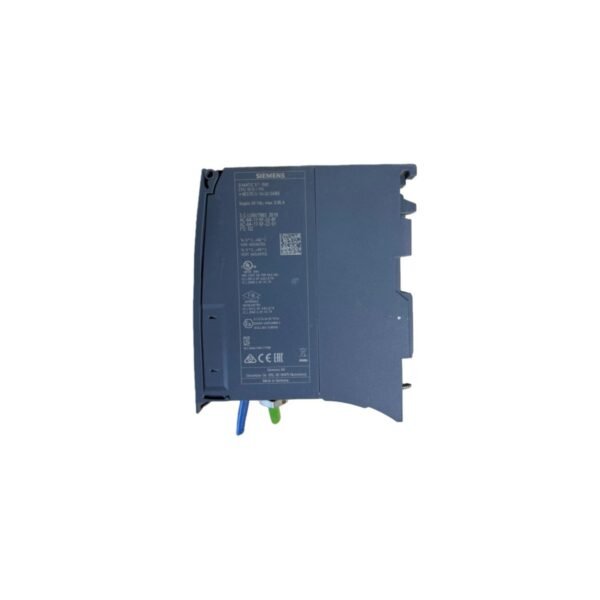

The Siemens 6ES7513-1AL02-0AB0 functions as a versatile central processing unit for the SIMATIC S7-1500 controller family. This CPU excels in medium-scale applications requiring high processing speeds and deterministic response times. It executes bit instructions in just 40 nanoseconds. Consequently, the hardware manages complex logic operations with extreme precision. The unit includes a 300 KB program memory and a 1.5 MB data memory. These specifications provide ample space for sophisticated user programs and large data blocks.

Core Technical Specifications

• Brand Name: Siemens
• Order Number: 6ES7513-1AL02-0AB0
• Processor Type: CPU 1513-1 PN
• Bit Performance: 40 ns
• Work Memory: 300 KB (Program), 1.5 MB (Data)
• Communication: Integrated PROFINET IRT with 2-port switch
• Software Requirement: TIA Portal V17 or higher
• Firmware: Version V2.9
• Operating Temp: -30°C to +60°C (Horizontal mounting)
• Weight: 0.95 kg

Advanced Network Integration

This processor features an integrated PROFINET IO interface for seamless industrial connectivity. The dual-port switch supports IRT (Isochronous Real-Time) communication for synchronized motion control. Additionally, the CPU supports OPC UA as both client and server. This capability simplifies data exchange between the factory floor and IT systems. It also allows for isochronous mode with minimum cycle times of 500 microseconds. Thus, the module ensures high performance in distributed I/O configurations.

Diagnostic and Security Features

The 6ES7513-1AL02-0AB0 provides an integrated display for rapid onsite diagnostics. Users can view status information and error messages without a programming device. Furthermore, the CPU includes multi-level security protection to prevent unauthorized access. This includes know-how protection and copy protection for proprietary algorithms. The hardware also supports full system diagnostics with clear text information. Such features reduce machine downtime and simplify maintenance procedures during critical operations.

Industrial Environment Suitability

Siemens designed this CPU for reliable operation in demanding industrial settings. It features a robust housing that resists mechanical stress and vibration. Moreover, the processor manages wide temperature fluctuations during continuous operation. The module supports configuration control for flexible machine options. It also maintains full I&M (Identification and Maintenance) data for asset management. This makes the 1513-1 PN a dependable choice for modern manufacturing and process industries.
