Description

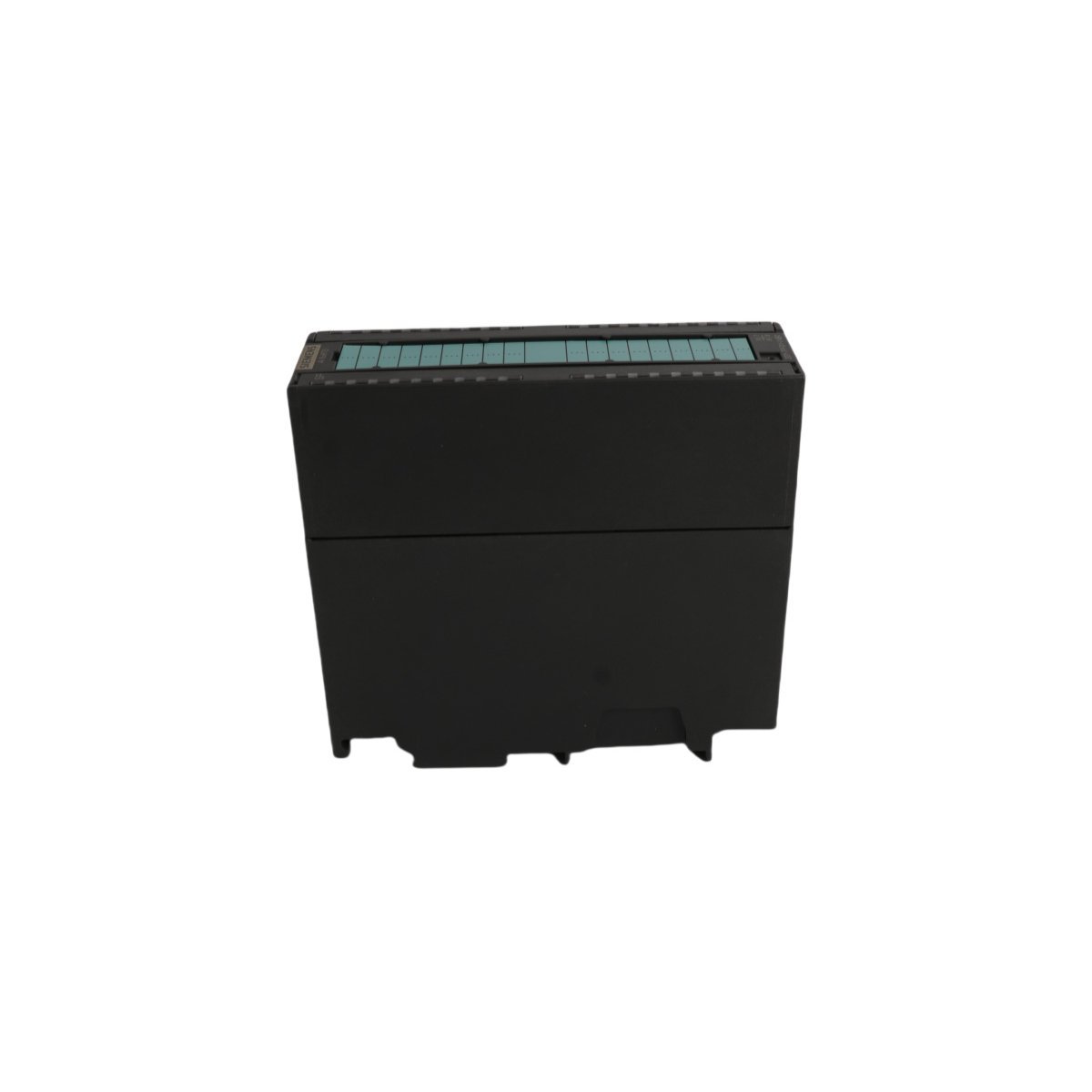

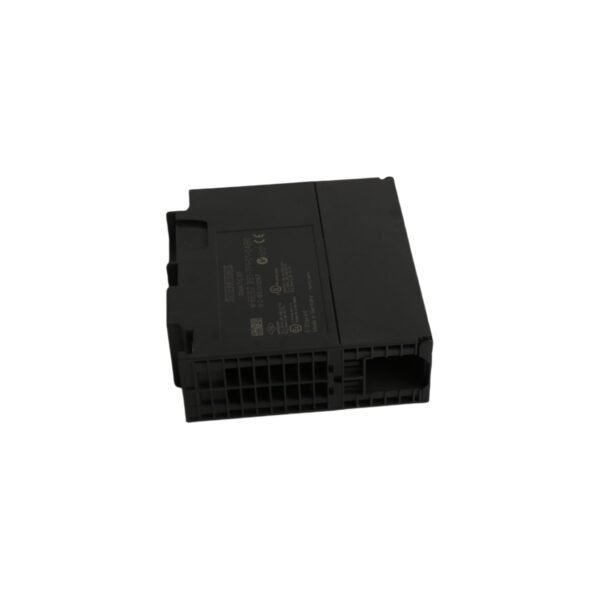

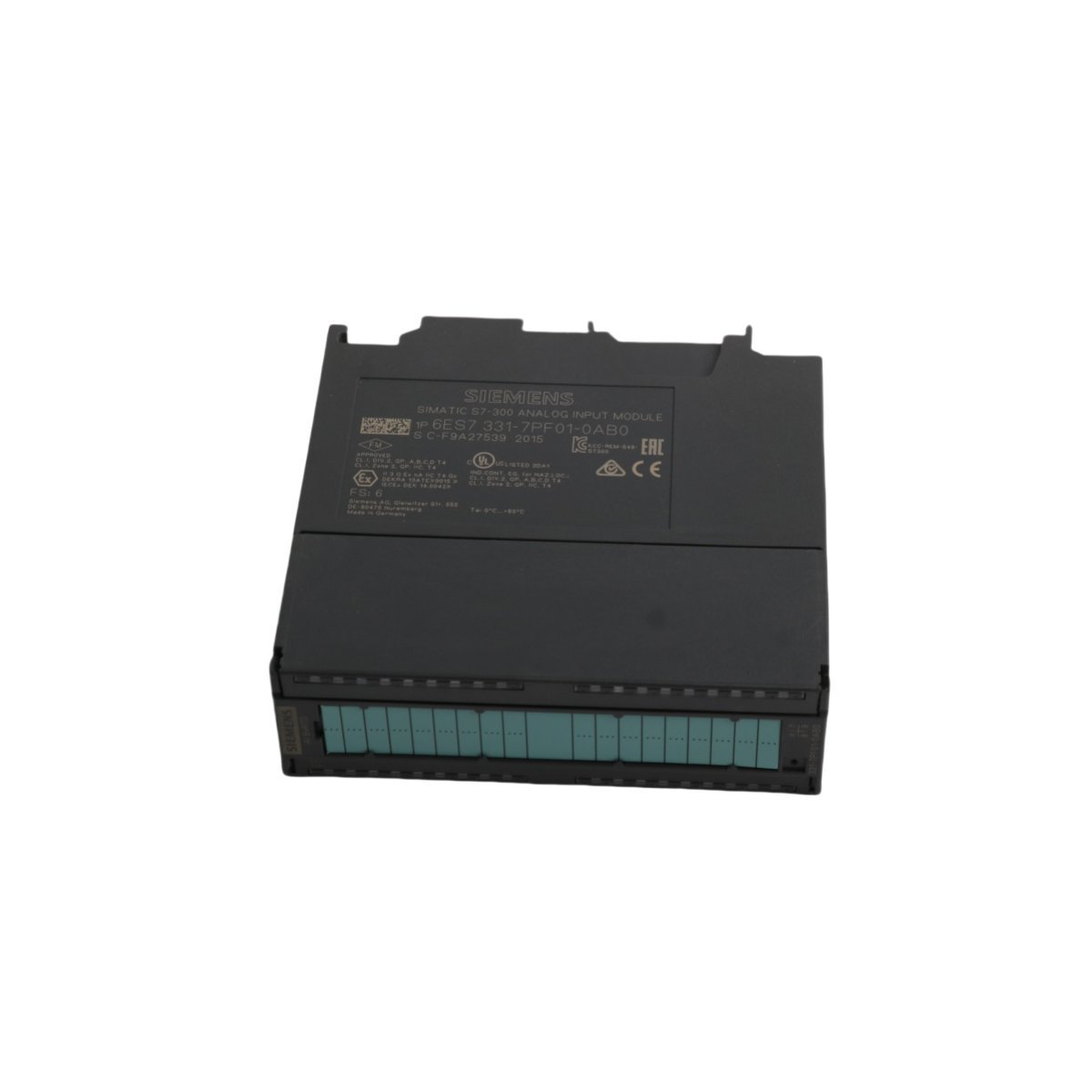

The Siemens 6ES7331-7PF01-0AB0 is a high-performance analog expansion module for the SIMATIC S7-300 series. This 8-channel unit provides 16-bit resolution for precise signal acquisition. It supports various measurement types including resistance temperature detectors (RTD) and thermocouples. Consequently, it serves as a critical interface for temperature-sensitive industrial processes.

This module features high-speed conversion and excellent noise suppression capabilities. Because it includes galvanic isolation, it protects the internal PLC electronics from field interference. The compact design allows for easy integration into standard S7-300 rail systems. Furthermore, it ensures reliable data transmission for complex automation tasks.

Technical Specifications

Key Performance Attributes

Superior Measurement Precision

The 16-bit resolution allows the module to detect extremely small changes in sensor signals. This accuracy is essential for chemical processing and thermal management systems. The module also features high linearity and low temperature drift. Therefore, it maintains stable readings across various operating conditions.

Advanced Diagnostic Functionality

Integrated diagnostics provide real-time status updates for every channel. The system immediately detects open circuits and shorted sensors in the field. This capability reduces troubleshooting time and prevents extended system downtime. As a result, maintenance teams can maintain high production efficiency.

Robust Hardware Protection

The module uses a triple-isolation architecture to prevent ground loop issues. This design separates the field signals, backplane bus, and internal power circuits. It safeguards the CPU against high-voltage surges from external sensors. Consequently, the hardware remains durable in harsh industrial environments.
