Description

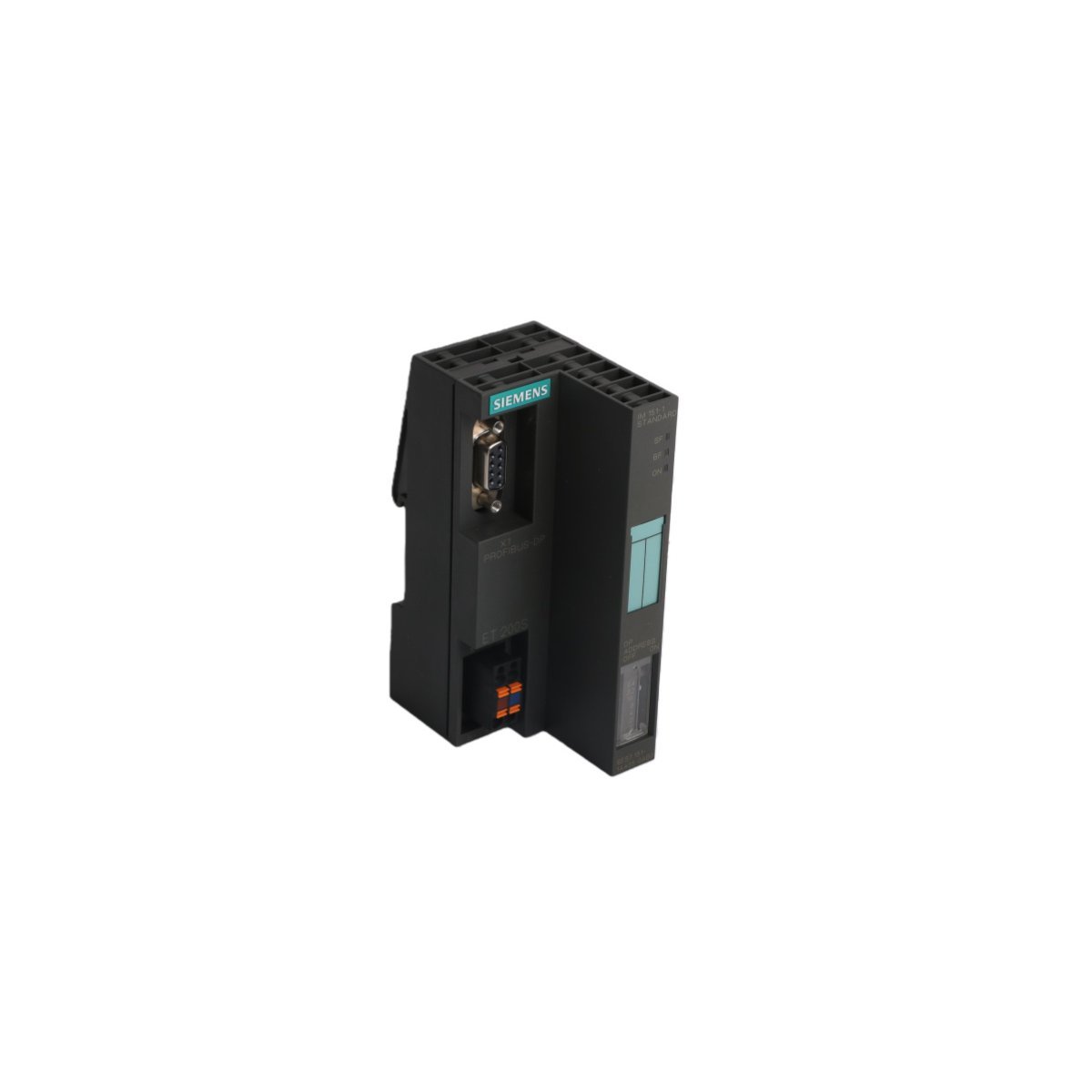

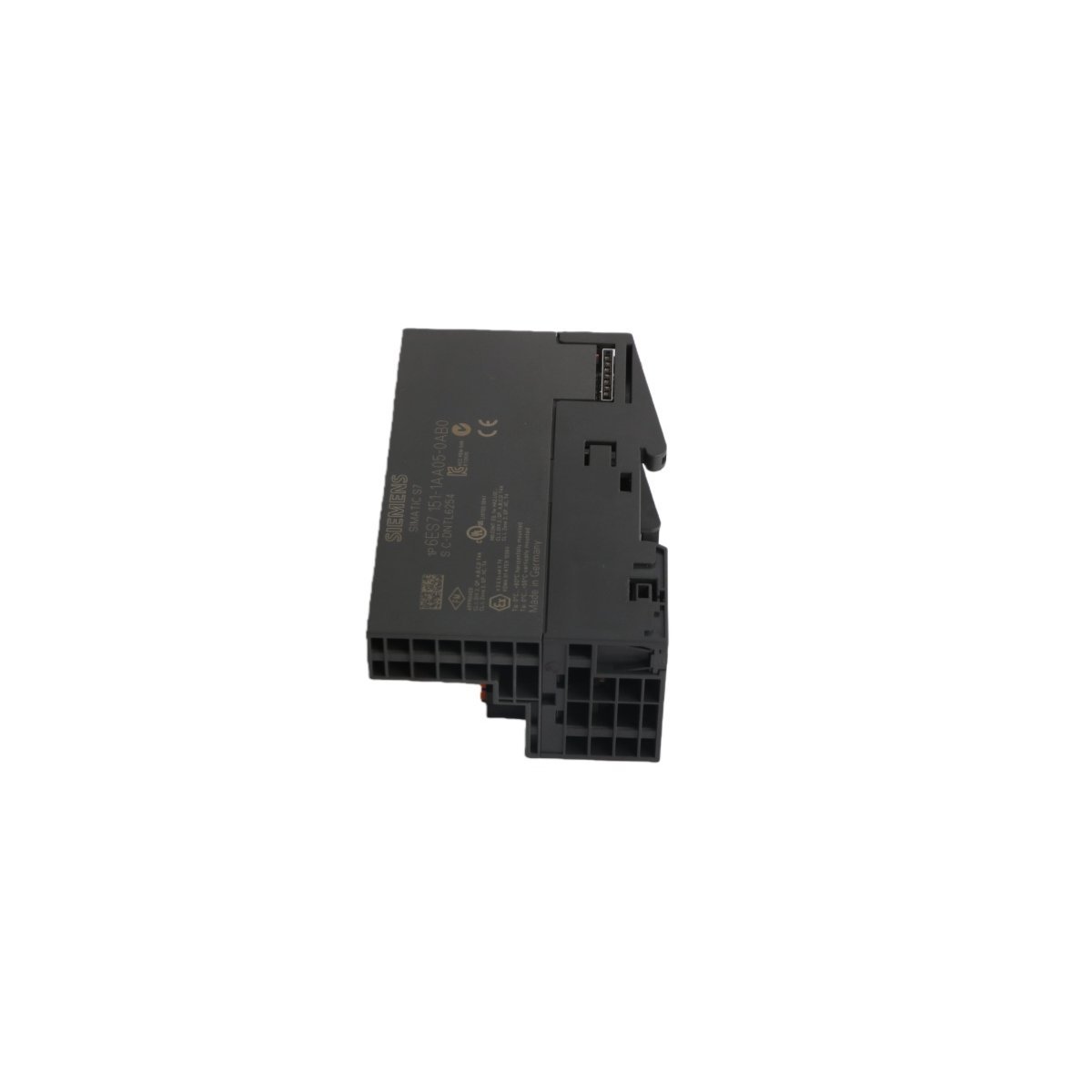

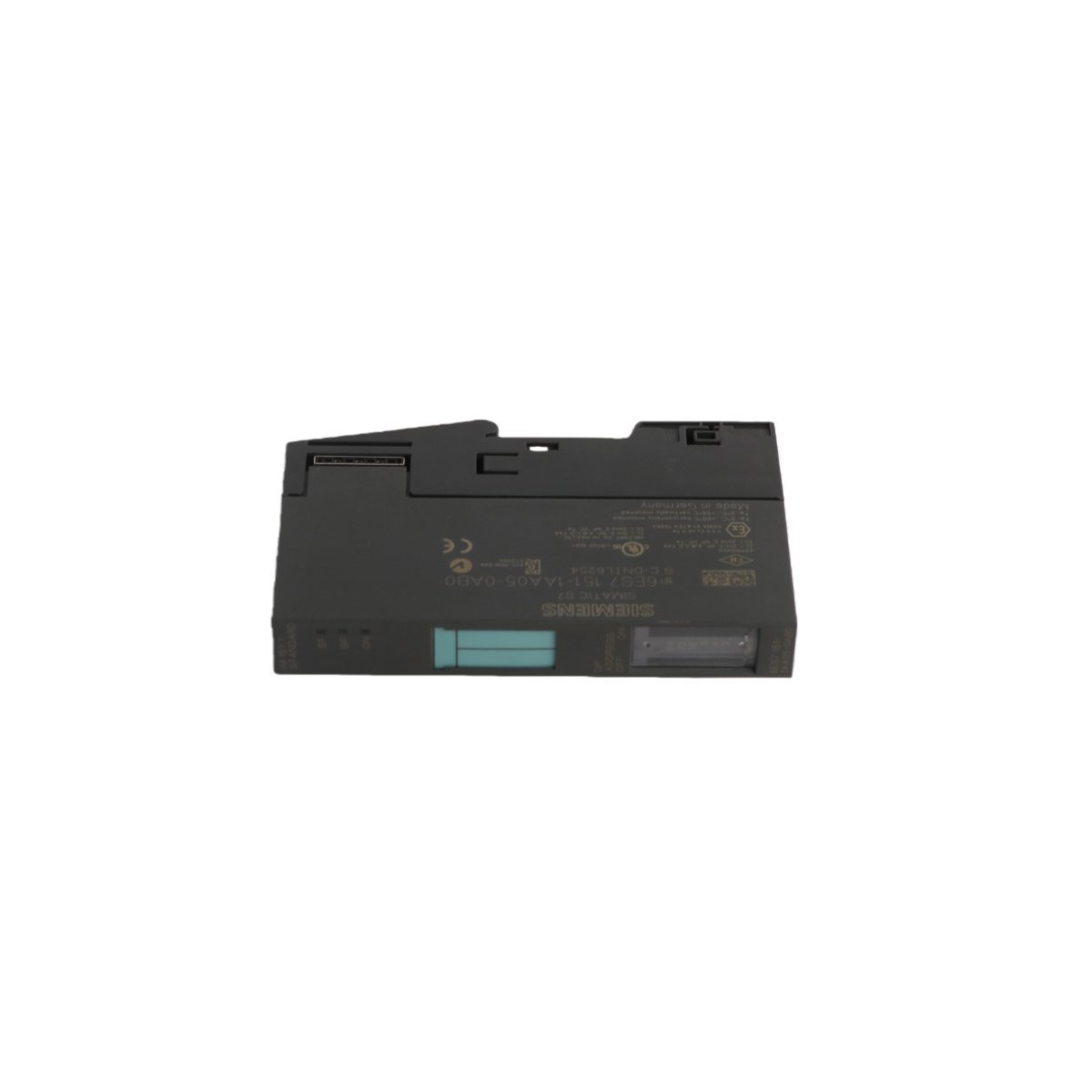

The Siemens 6ES7151-1AA05-0AB0 functions as the primary IM 151-1 standard interface for ET 200S stations. This module connects the modular station components directly to a PROFIBUS DP network. It handles all data traffic between the field-level I/O units and the central controller. Consequently, it enables the creation of highly flexible and distributed automation architectures. This approach reduces overall wiring costs by placing control logic closer to the physical machinery.

Expanded Data Handling and Scalability

This interface module manages significant data volumes for complex industrial applications. It supports a maximum capacity of 244 bytes for both input and output signals. Furthermore, users can connect up to 63 individual I/O modules to a single interface head. This scalability allows the system to grow alongside evolving production requirements. The hardware ensures high-speed synchronization between the central CPU and distributed peripherals.

Performance Reliability and Connectivity

The 6ES7151-1AA05-0AB0 utilizes a standard 9-pin D-sub connector for secure bus communication. It operates on a 24V DC power supply to maintain consistent field-side performance. Integrated diagnostic features allow for rapid identification of bus faults or module errors. This proactive monitoring capability significantly improves system uptime and maintenance efficiency. Additionally, the compact housing design conserves valuable space within industrial control cabinets.

Technical Specifications
