Description

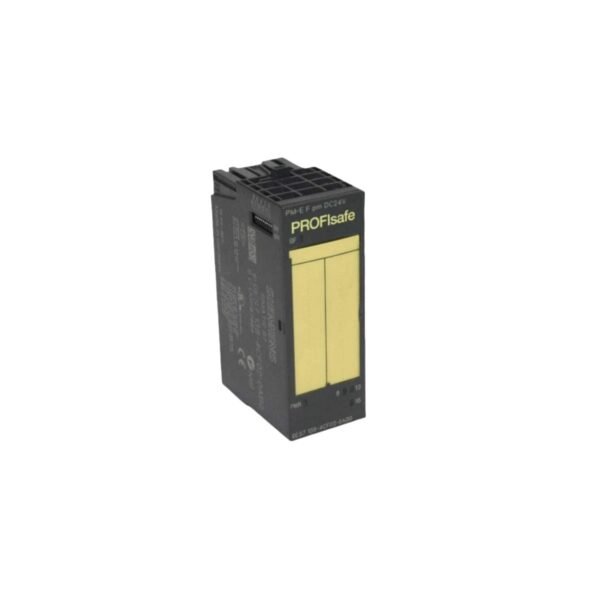

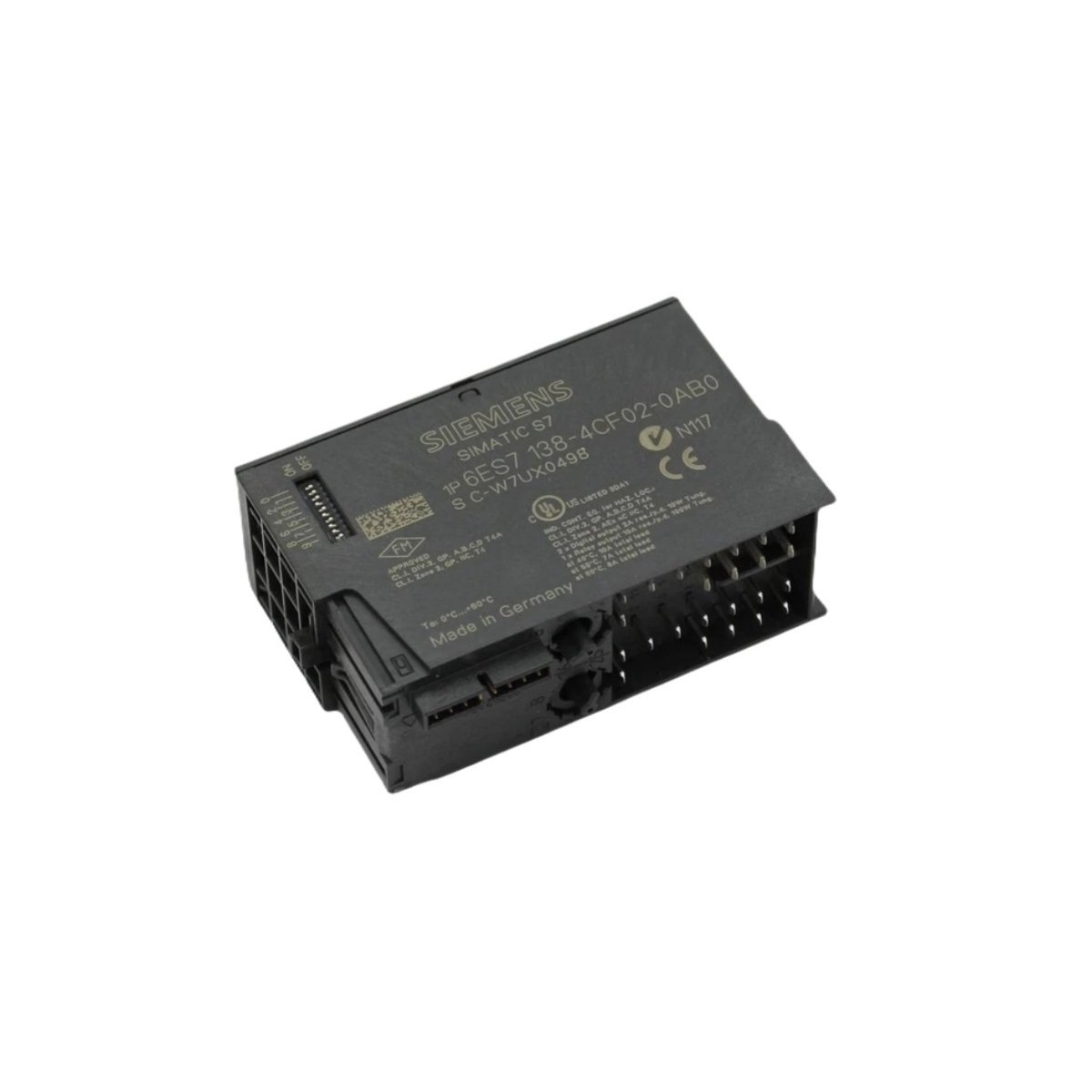

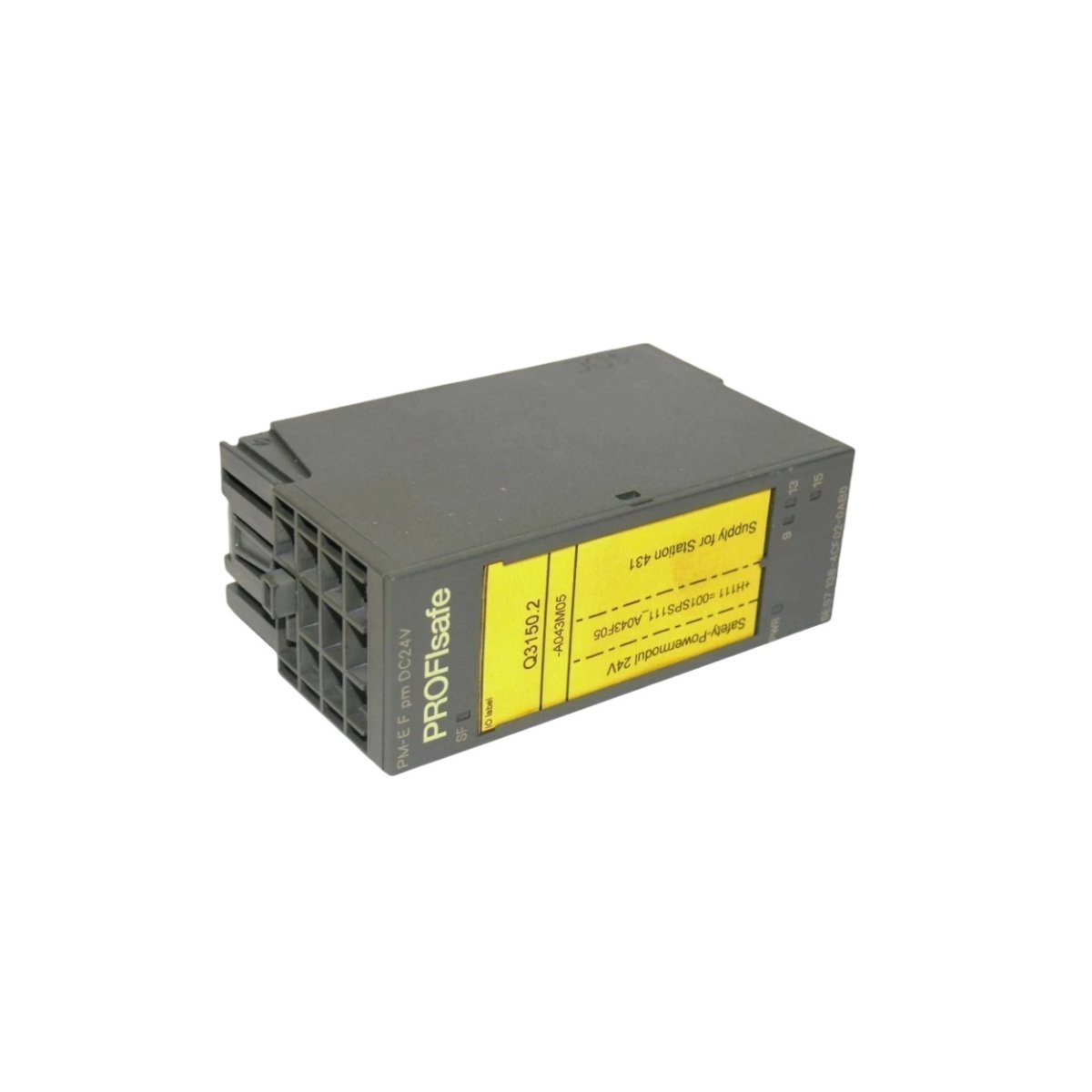

Engineers deploy the Siemens 6ES7138-4CF03-0AB0 as a fail-safe power module within SIMATIC ET 200S systems. This unit supplies regulated 24 V DC voltage to electronic modules safely. The device features two independent voltage buses, P1 and P2, for redundant power distribution. Internal relays switch these buses to ensure continuous operation during fault conditions. Operators utilize this module in safety-critical applications requiring SIL 3 or Category 4 compliance. The design supports ungrounded reference potentials, making it suitable for complex industrial networks. Technicians integrate the unit seamlessly with IM 151-3 HF interface modules for PROFINET connectivity. Robust isolation testing up to 500 V DC guarantees personnel and equipment protection. Compact dimensions allow dense installation in space-constrained control cabinets globally.

Technical Specifications

Application and Integration

Facilities install this module in machinery demanding high safety standards and reliable power. The dual-bus architecture prevents single points of failure in critical automation processes. Users connect the device to standard ET 200S base units without additional adapters. Fail-safe outputs immediately shut down connected loads upon detecting internal errors automatically. This rapid response protects operators from hazardous movements in emergency situations. The module maintains compliance with international safety norms including EN 954-1 and IEC 61508. Maintenance teams benefit from clear diagnostic indicators that simplify troubleshooting tasks. PROFINET integration enables real-time monitoring of power status via central controllers. This active product serves as an essential component for modern safety instrumented systems.
