Description

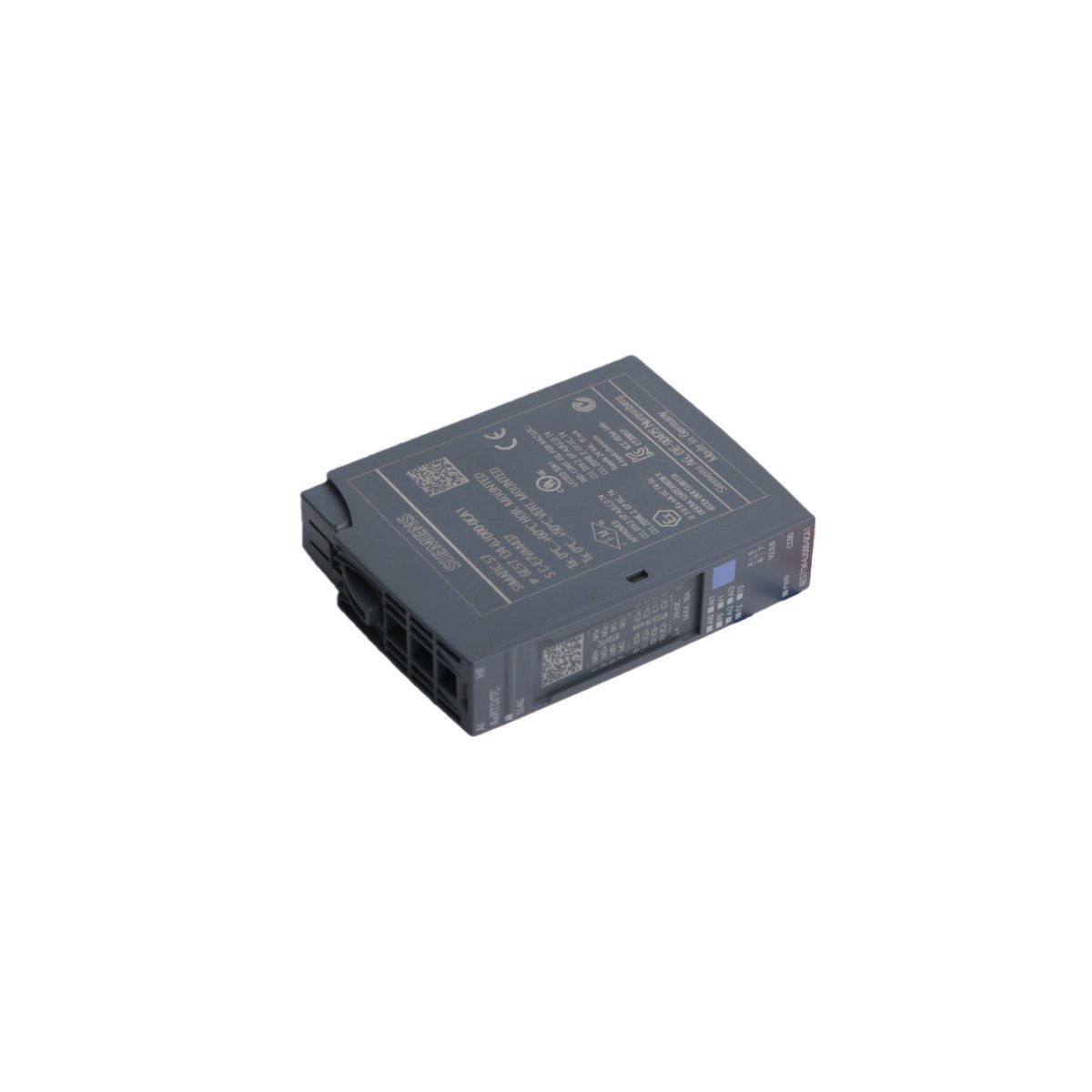

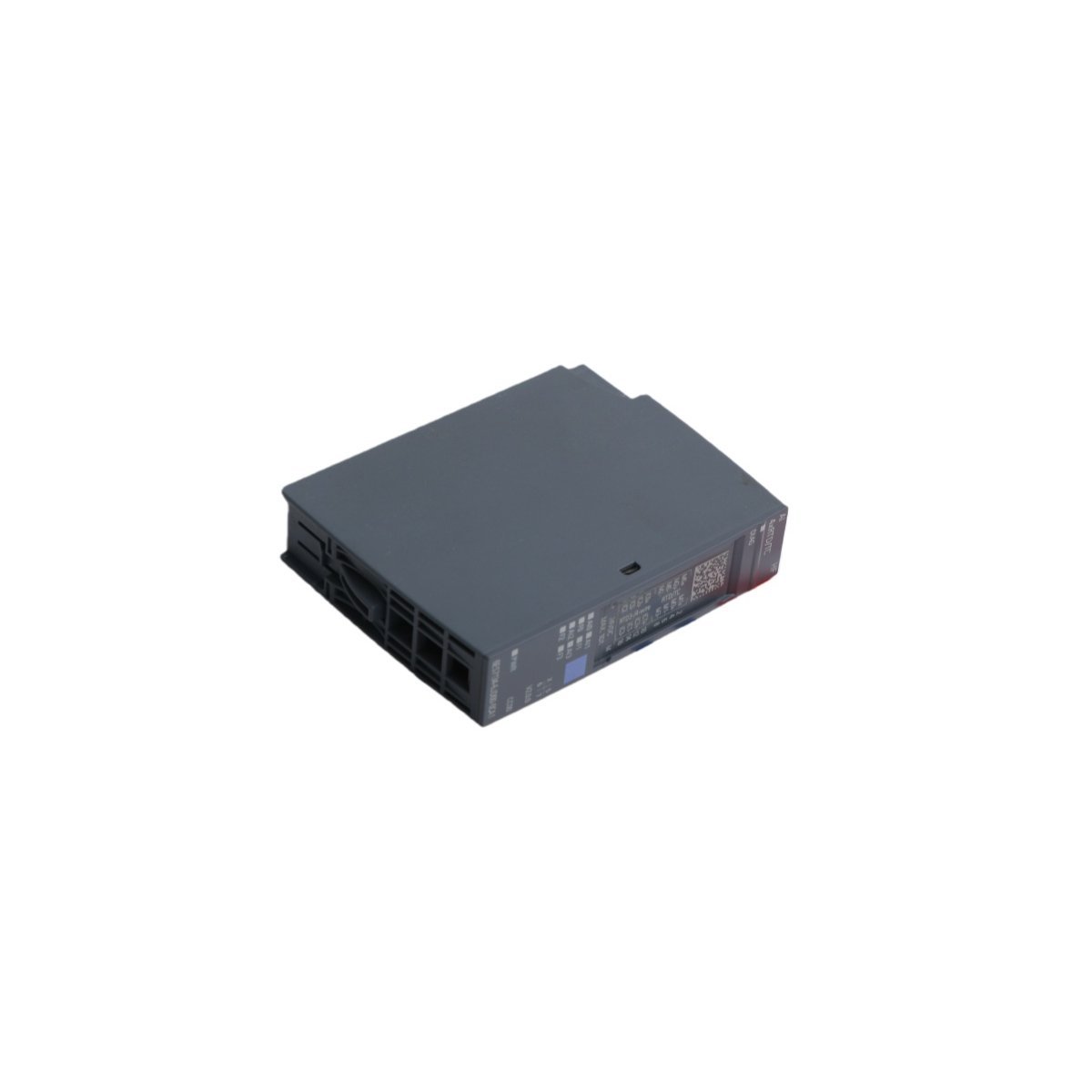

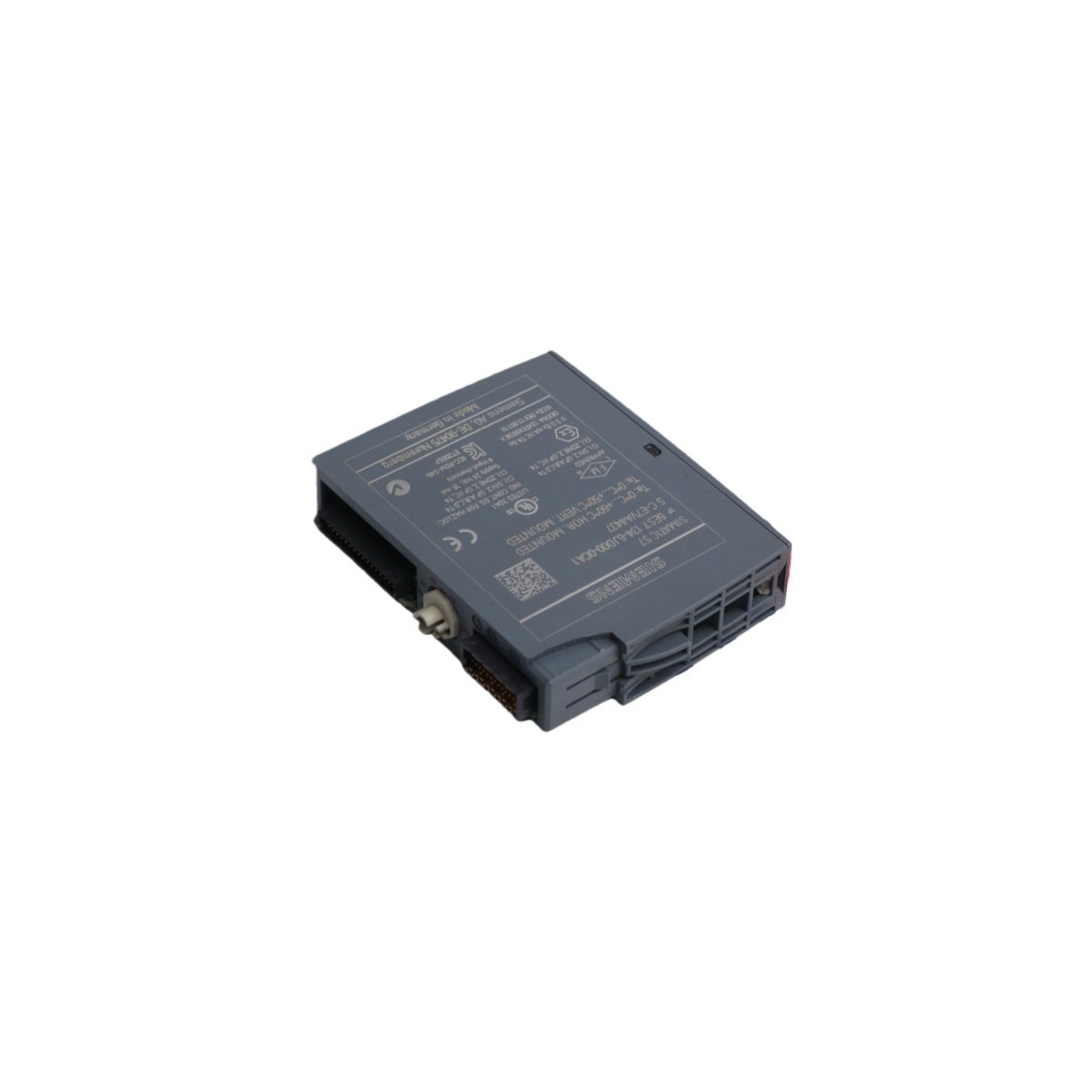

The Siemens 6ES7134-6JD00-0CA1 is a specialized High Feature (HF) analog input module. It belongs to the scalable SIMATIC ET 200SP distributed I/O family. This module specifically targets precise temperature acquisition tasks in industrial environments. It supports four independent channels for connecting various thermal sensors. Consequently, it provides high-resolution data for critical process control systems.

Engineers utilize this unit to interface with Resistance Temperature Detectors (RTD) and Thermocouples (TC). The module handles a wide range of sensor types, including Pt100 and various standard thermocouples. Its High Feature designation ensures superior measurement performance compared to standard modules. Moreover, the compact 15mm design saves valuable space within the control cabinet.

Technical Specifications

Functional Capabilities and Features

Precision Temperature Measurement

This module delivers exceptional data quality with its 16-bit resolution. It maintains a high measurement accuracy of $\pm$ 0.1% across its operating range. Therefore, it is ideal for industries requiring strict thermal regulation. Internal compensation for cold junction temperatures enhances thermocouple accuracy significantly. Additionally, it effectively filters out 50/60 Hz line frequency interference.

Flexible Sensor Wiring

The hardware supports multiple wiring configurations for Resistance Temperature Detectors. Users can implement 2-wire, 3-wire, or 4-wire connection schemes. The 4-wire method provides the highest precision by eliminating lead resistance errors. This flexibility allows the module to adapt to various field sensor requirements. Meanwhile, thermocouple inputs support many standard types for diverse industrial applications.

Advanced System Diagnostics

Comprehensive monitoring tools enhance overall system reliability and uptime. The module detects hardware faults like wire breaks or sensor short circuits. It also identifies values that exceed or fall below the parameterized limits. Furthermore, the system transmits these diagnostic interrupts to the central controller immediately. This allows maintenance teams to react quickly to field device failures.

Seamless Cabinet Integration
