Description

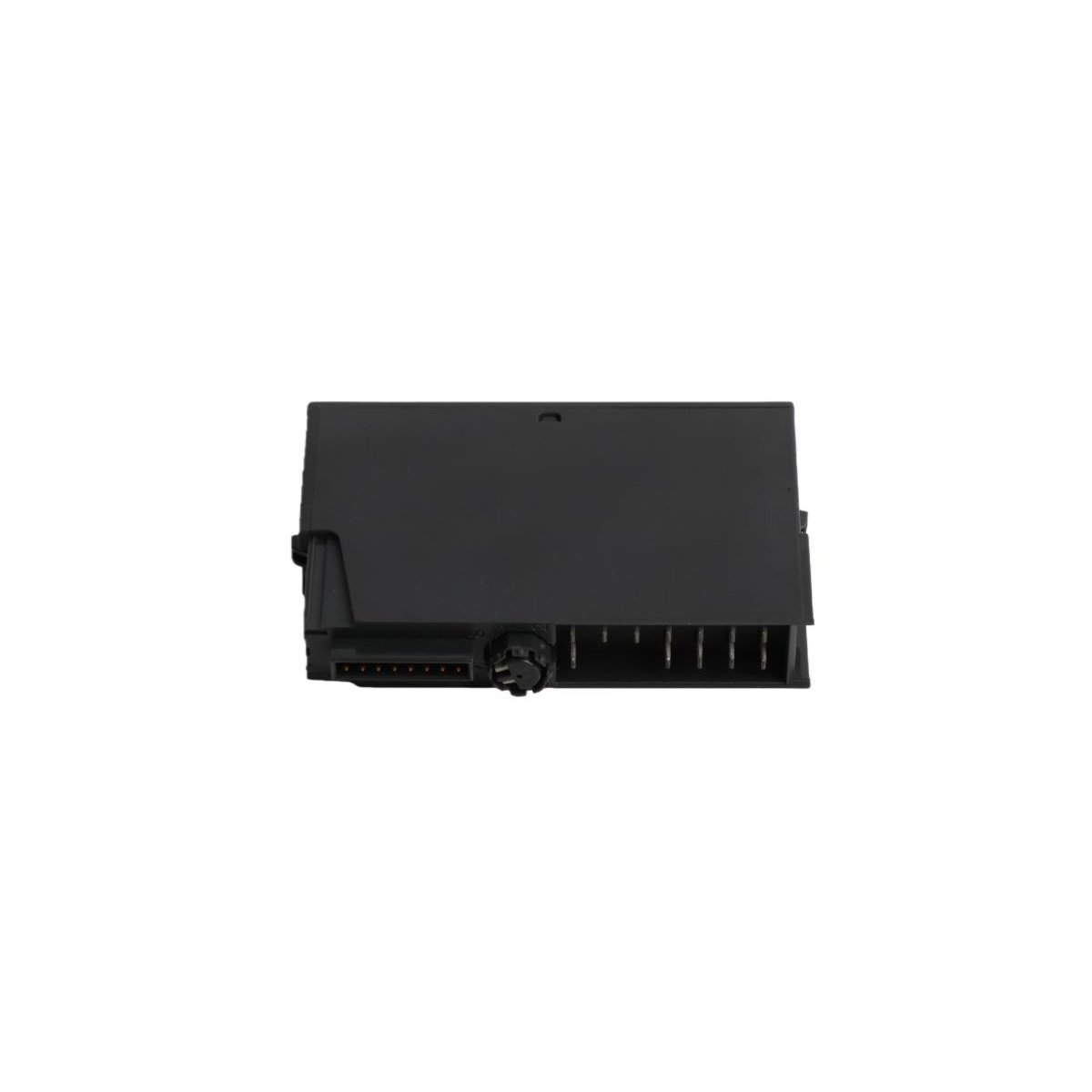

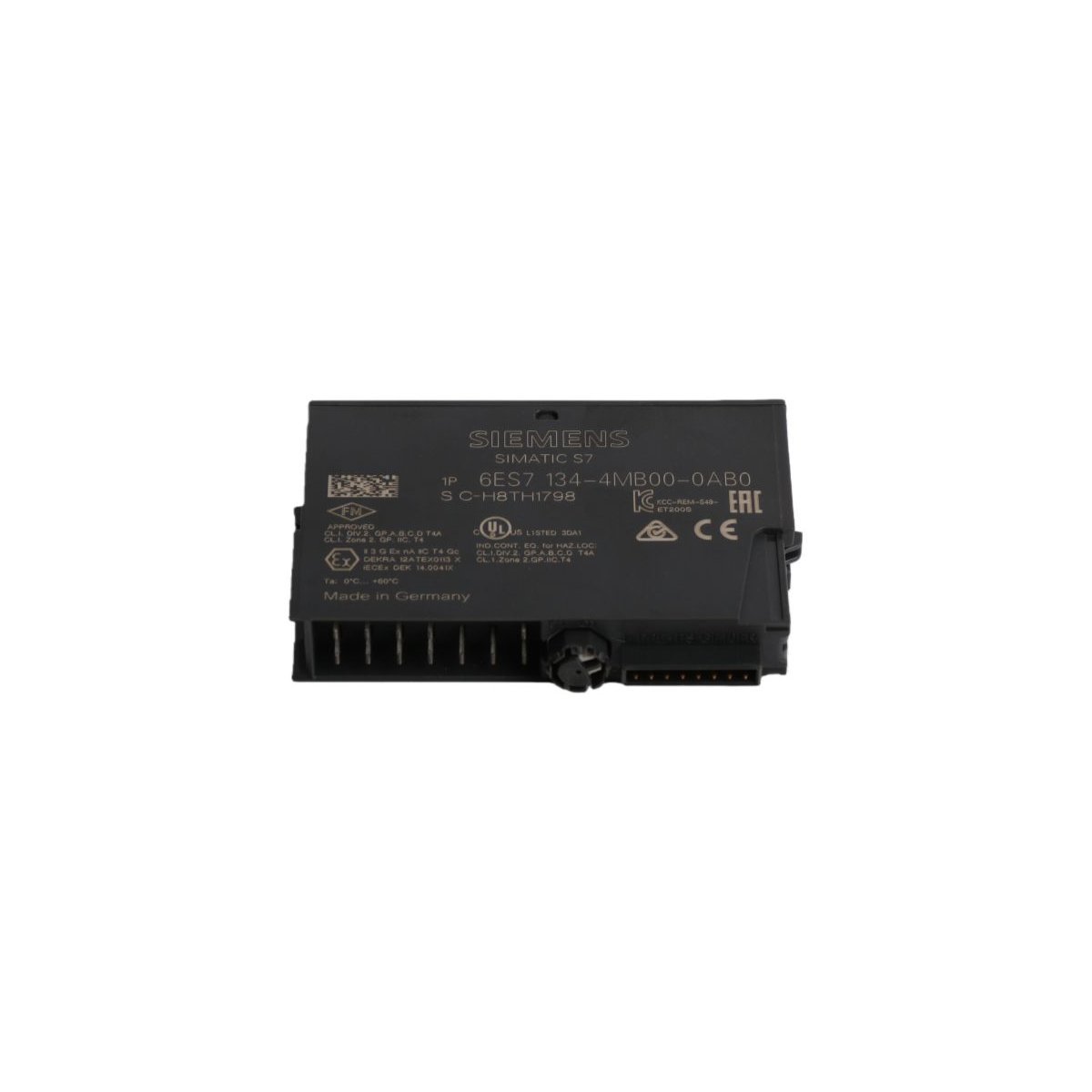

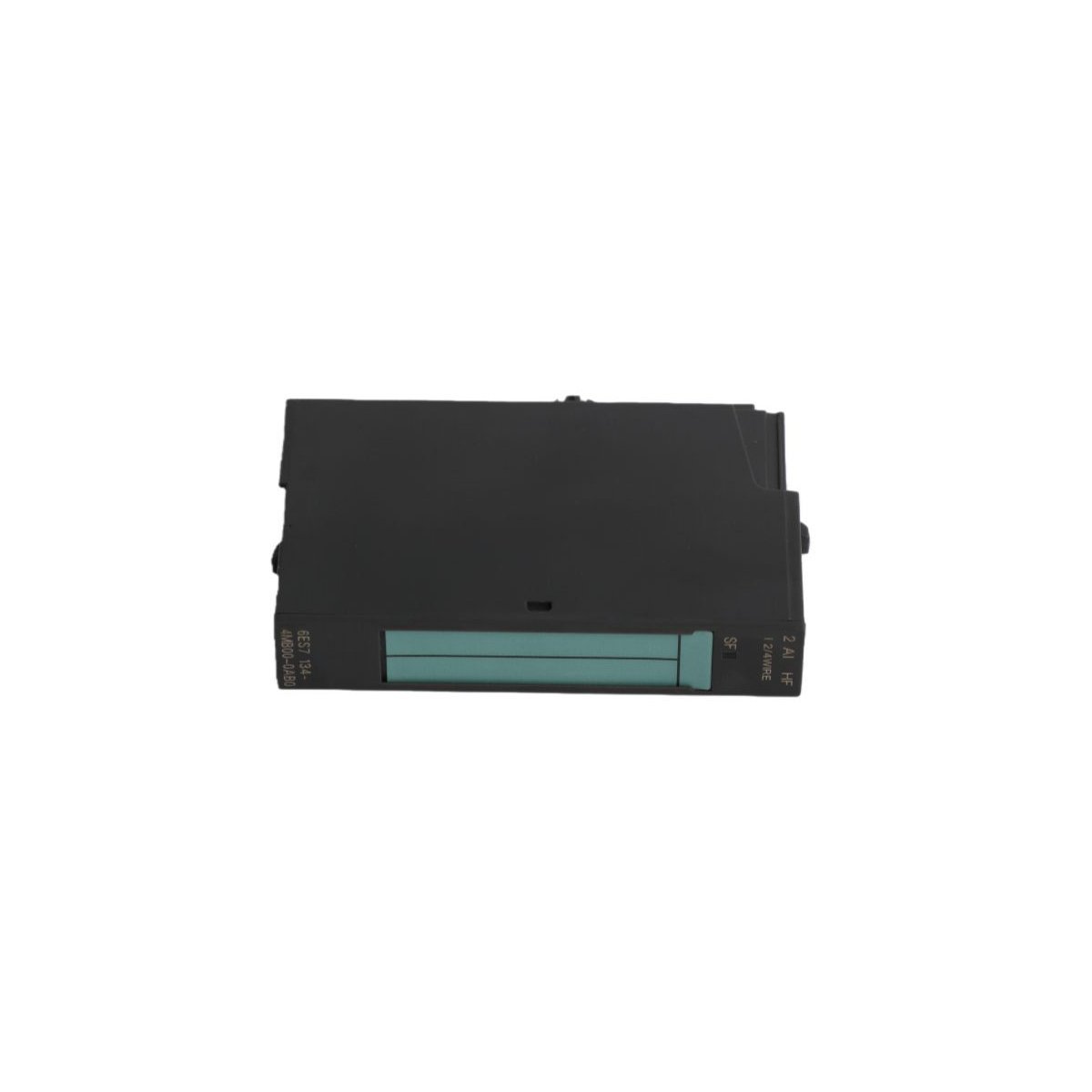

The Siemens 6ES7134-4MB00-0AB0 functions as a High Feature (HF) analog input component for the SIMATIC ET 200S series. This electronic module specializes in high-precision current measurement within distributed automation networks. It features a ultra-slim 15mm design to maximize available space inside compact control cabinets. Consequently, users can implement complex monitoring systems without requiring large physical footprints.

This High Feature version offers superior signal resolution compared to standard modules. It supports critical process variables by converting analog currents into precise digital values for the PLC. Furthermore, the unit integrates seamlessly into various industrial sectors, including water treatment and automotive manufacturing. It provides the reliability necessary for continuous 24/7 operation in harsh factory environments.

Technical Specifications

Key Technical Characteristics

Precision Signal Acquisition

The 6ES7134-4MB00-0AB0 provides two independent channels with 15-bit plus sign resolution. This high bit depth allows the controller to detect even the smallest fluctuations in current. Because the module maintains ±0.1% accuracy, it serves well in laboratories and chemical dosing applications. This level of precision ensures consistent product quality throughout the manufacturing lifecycle.

Advanced Electrical Isolation

Industrial environments often generate significant electrical noise and interference. This module incorporates complete galvanic isolation between the input channels and the internal logic. It handles a permitted common-mode voltage of up to 100 VAC effectively. Therefore, the system remains stable even when connected to sensors with different ground potentials.

Flexible Terminal Interoperability

The module connects to the backplane via a variety of compatible terminal units. It works with spring-loaded, screw-type, and Fast Connect (N) terminal modules. This compatibility allows maintenance teams to choose the most efficient wiring method for their specific site. Furthermore, the hot-swapping capability enables module replacement without shutting down the entire I/O station.
