Description

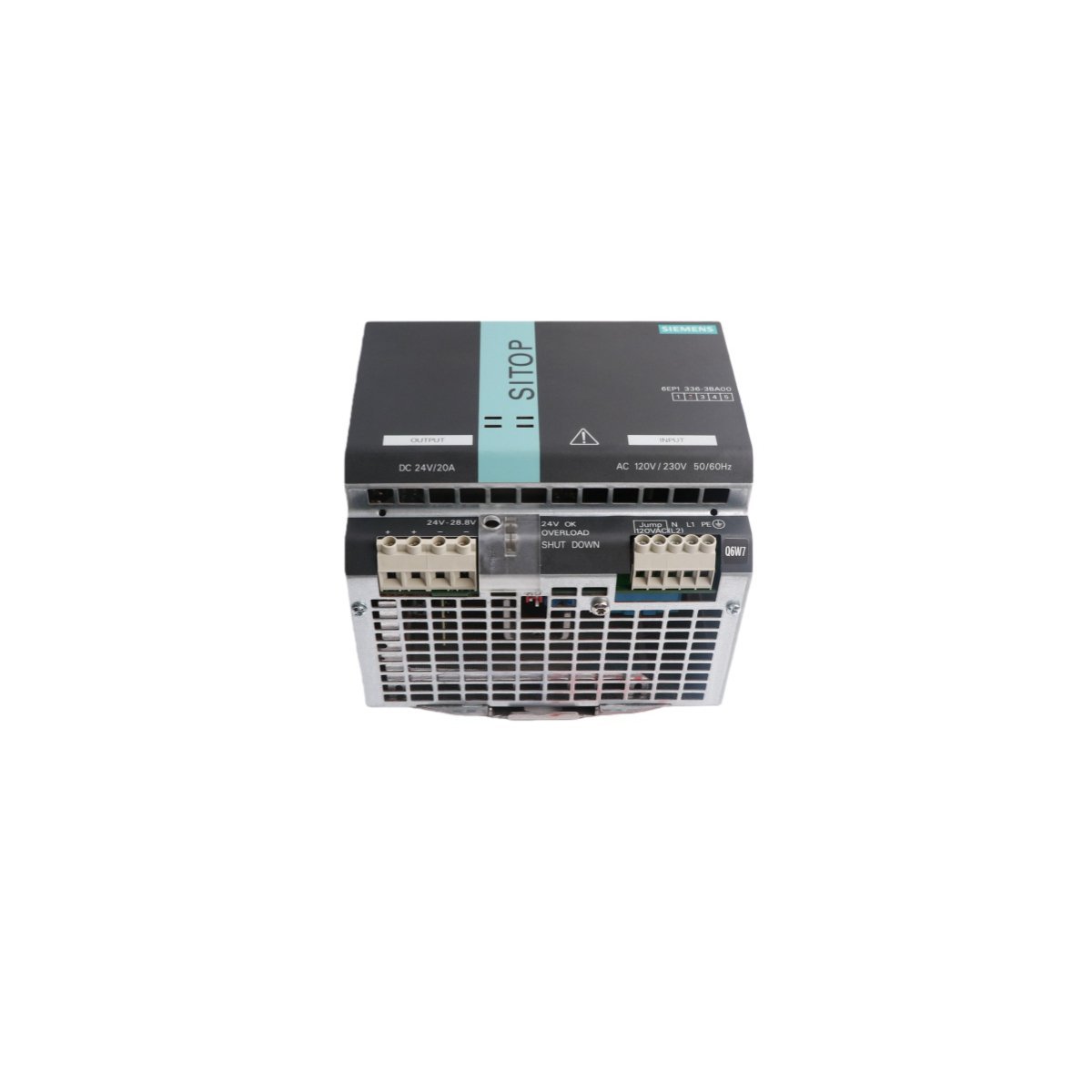

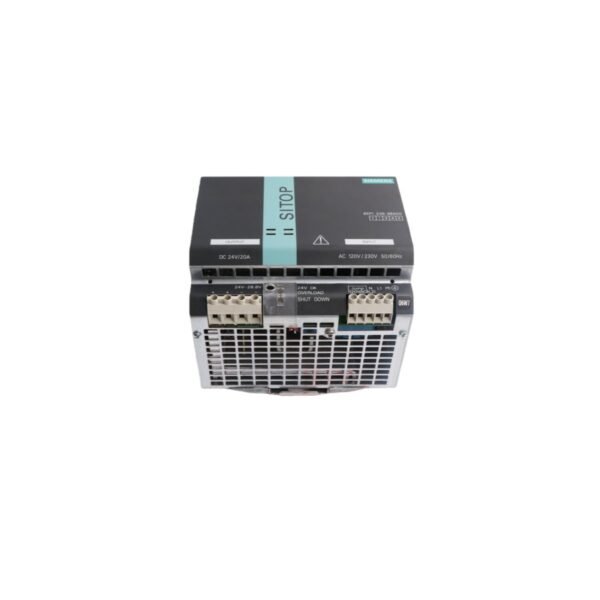

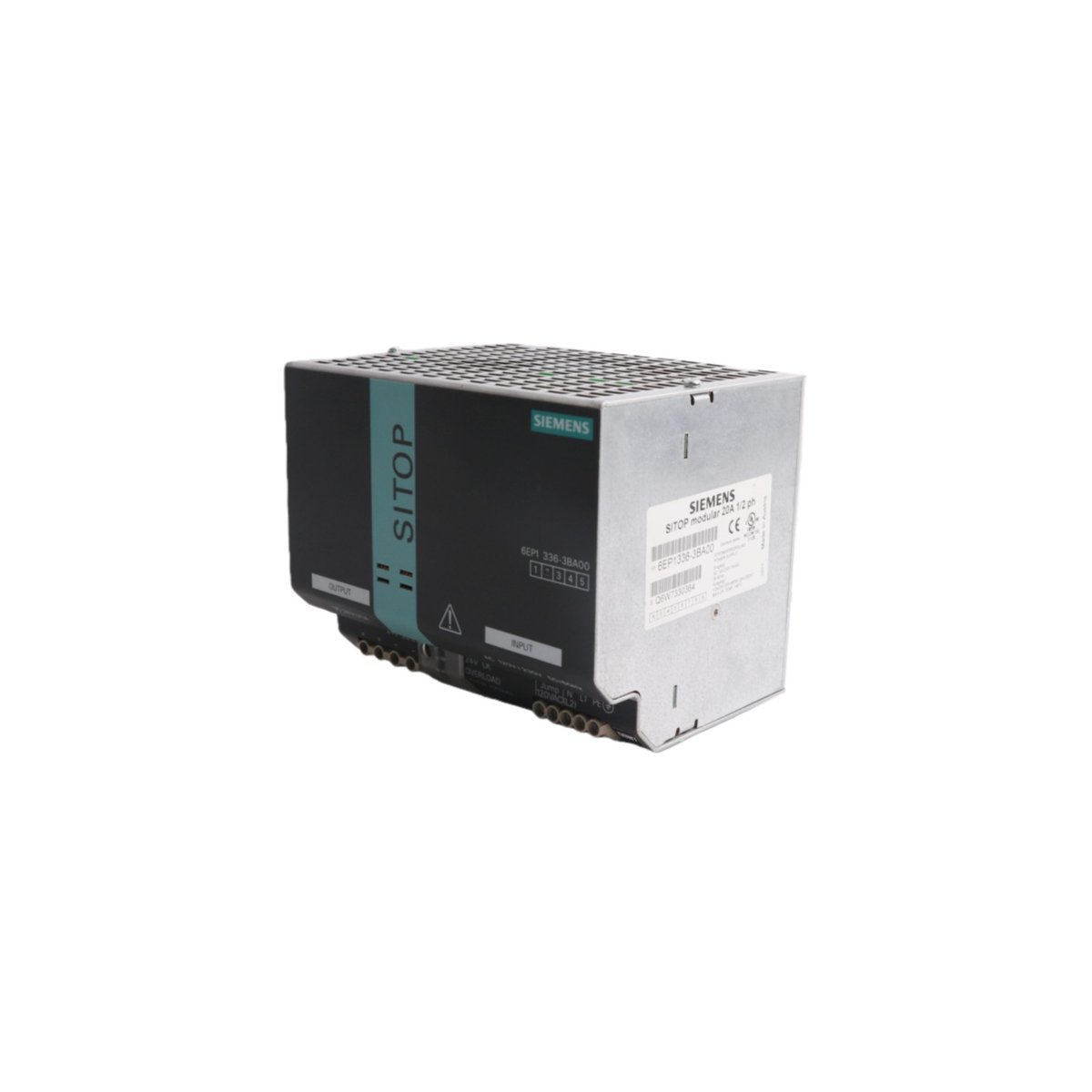

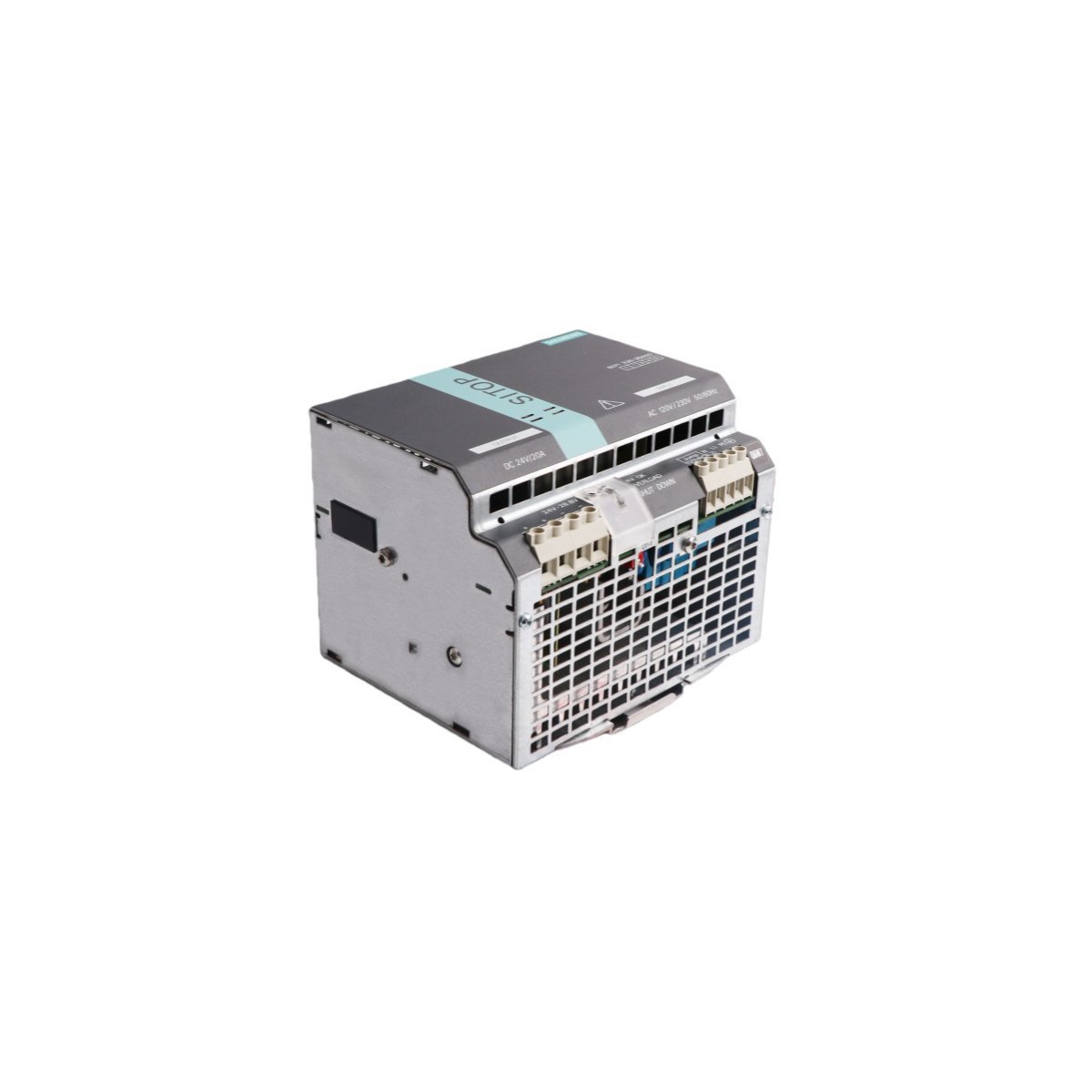

The Siemens 6EP1336-3BA00 is a high-performance stabilized power supply belonging to the modular SITOP series. This single-phase unit converts variable AC input into a precise 24V DC output for industrial automation components. Because it supports a wide input range, the module operates reliably on both 120V and 230V AC networks. Its rugged construction ensures consistent power delivery even during significant voltage swings. This versatility makes it an essential component for global machinery manufacturing and complex plant engineering.

Technical Specifications

Enhanced Power Performance and Overload Protection

A primary advantage of this module is the integrated Power Boost functionality. This feature provides three times the rated current for brief intervals to overcome high startup loads. Consequently, the power supply handles heavy inrush currents without triggering immediate system shutdowns. Users can also customize the overload behavior to match specific safety protocols. Options include maintaining a constant current or implementing a latching shutdown for maximum protection. These smart management features significantly improve the stability of connected PLC and sensor networks.

Integration and System Availability

The compact metal housing optimizes heat dissipation while saving valuable space on the DIN rail. Furthermore, the 6EP1336-3BA00 integrates seamlessly with supplementary SITOP modules to enhance system availability. Engineers can add redundancy, selectivity, or DC UPS modules to create a fault-tolerant power architecture. This modularity ensures the 24V supply remains active even during individual component failures. The high energy efficiency reduces the thermal load inside control cabinets. As a result, the service life of adjacent electronic components increases.

Key Technical Characteristics

• Features a wide-range input for flexible use on international power grids.
• Delivers 20A continuous output current with a high efficiency rating.
• Provides a massive power reserve to start motors with high inrush currents.
• Includes selectable short-circuit behavior for tailored equipment protection.
• Occupies minimal rail space due to its optimized industrial design.
• Supports expansion with SITOP redundancy and buffering modules.
• Ensures long-term durability in environments with high vibration and temperature.
