Description

Brief Product Description

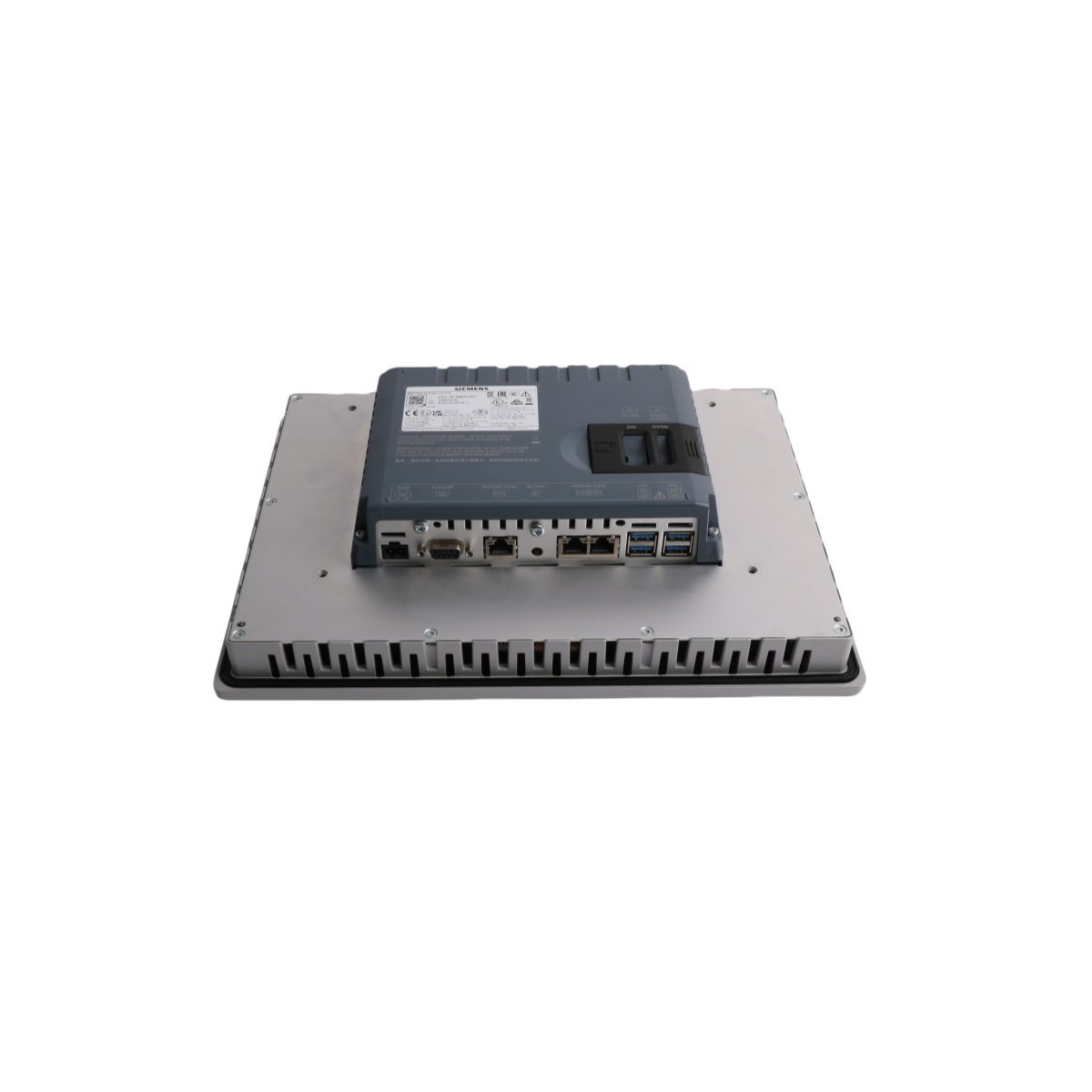

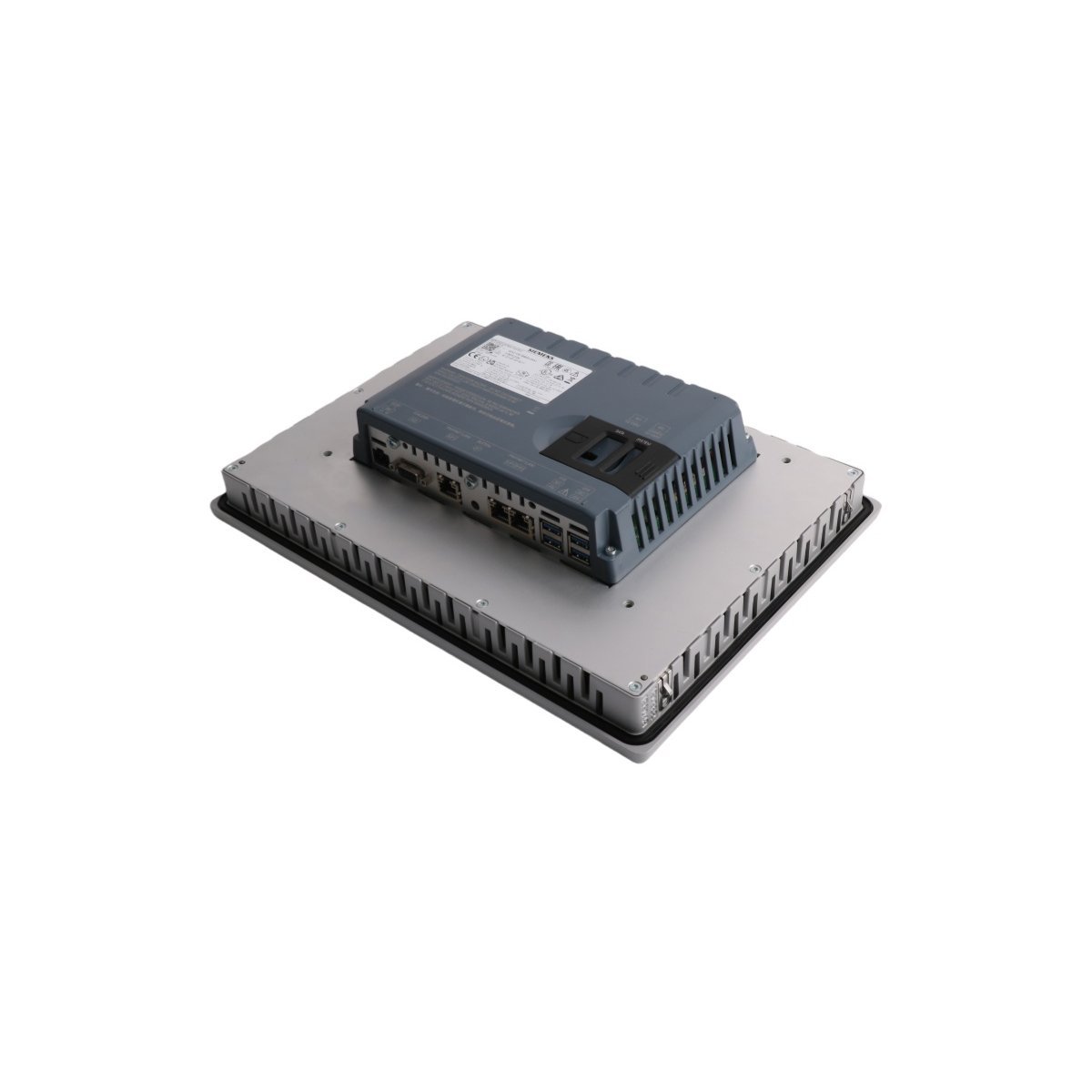

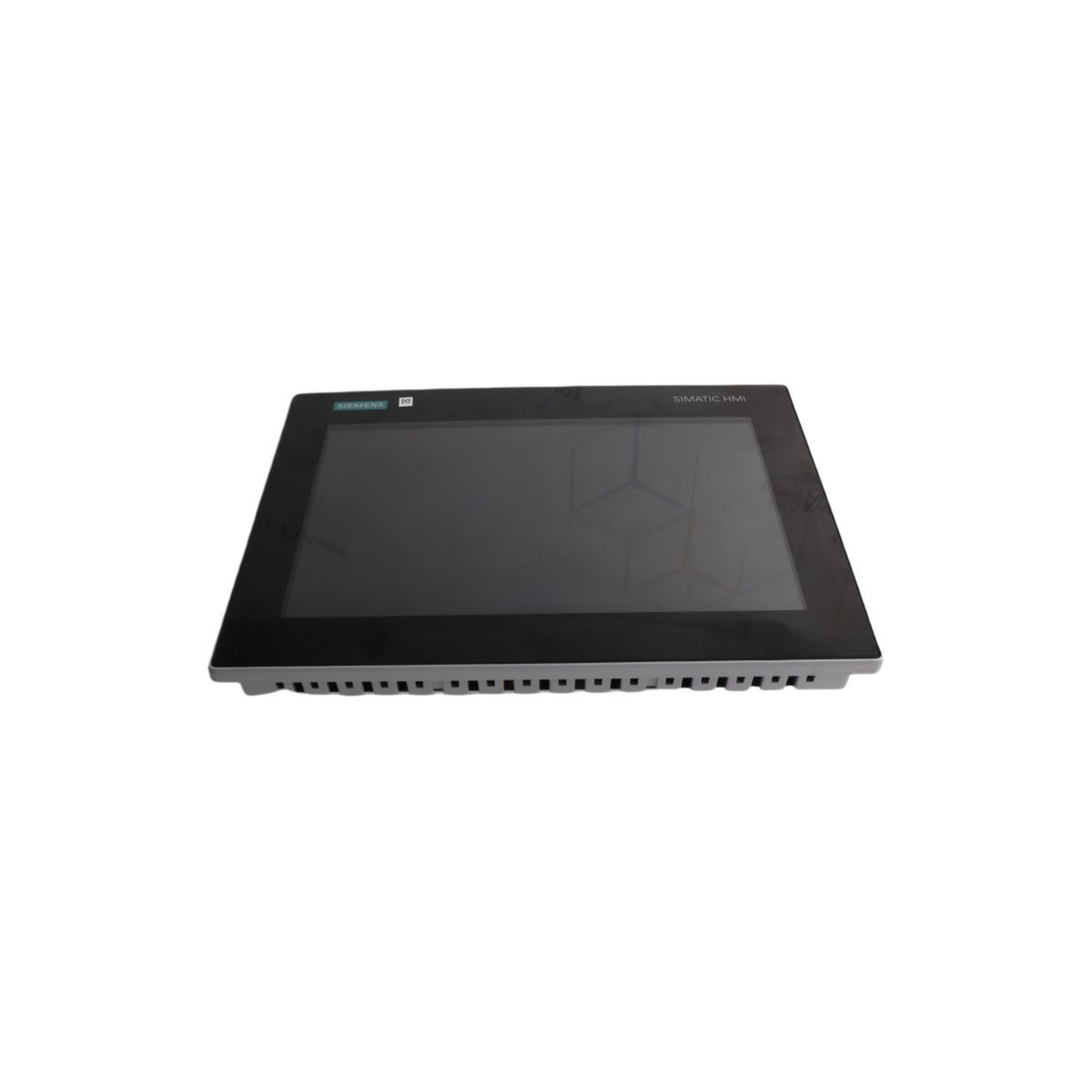

The Siemens 6AV2128-3QB06-0AX1 is a high-end 15.6-inch MTP1500 Unified Comfort Panel designed for complex visualization and edge-based industrial automation. Featuring a capacitive multi-touch widescreen display and 16 million colors, it offers a future-ready HMI solution within the Siemens WinCC Unified ecosystem.

Advanced Visualization with WinCC Unified Technology

The Siemens 6AV2128-3QB06-0AX1 represents the next generation of industrial interface technology through the SIMATIC Unified Comfort Panel series. This MTP1500 model features a high-resolution 15.6-inch TFT widescreen display that utilizes capacitive multi-touch technology for intuitive, smartphone-like operation. By supporting 16 million colors and a sharp 1366 x 768 pixel resolution, the panel delivers superior clarity for complex process diagrams and data analytics. Furthermore, the hardware integrates seamlessly with the WinCC Unified software framework, allowing engineers to deploy scalable web-based visualizations that remain consistent across both local panels and remote mobile devices.

Industrial Connectivity and Edge Integration

Connectivity serves as a cornerstone of the 6AV2128-3QB06-0AX1 design, featuring integrated PROFINET and Ethernet interfaces to facilitate high-speed data exchange across industrial networks. Beyond standard HMI functions, this Unified Comfort Panel supports Siemens Industrial Edge functionality. This capability enables users to run edge applications directly on the hardware, providing advanced data processing and local analysis without overloading the primary PLC. To ensure long-term operational reliability, the display includes dimmable backlighting and an impressive MTBF of 50,000 hours, making it suitable for continuous 24/7 industrial production environments.

Rugged Hardware for Demanding Environments

Siemens engineered the 6AV2128-3QB06-0AX1 to withstand rigorous factory conditions while maintaining a slim, space-saving profile. The unit operates on a standard 24V DC power supply and maintains stable performance even during voltage fluctuations within the 19.2V to 28.8V range. Because the front panel carries a high IP rating, it effectively resists dust and moisture ingress, making it ideal for the food and beverage, automotive, and pharmaceutical industries. Transitioning to this modern hardware platform allows manufacturers to benefit from enhanced security features, including encrypted communication and sophisticated user management, ensuring that critical process data remains protected against unauthorized access.

Key Technical Characteristics

• High-Resolution Display: 15.6-inch TFT widescreen with 1366 x 768 pixels and 16M colors.
• Capacitive Multi-Touch: Supports modern gesture control and highly responsive user interaction.
• Unified Architecture: Fully compatible with TIA Portal WinCC Unified Comfort V16 or higher.
• Edge-Ready: Capable of running industrial edge apps for local data processing and IoT tasks.
• Flexible Installation: Compact depth allows for mounting in shallow control cabinets and consoles.
• Dimmable Backlight: Adjustable brightness from 10% to 100% to suit varying ambient light levels.
