Description

Brief Product Description

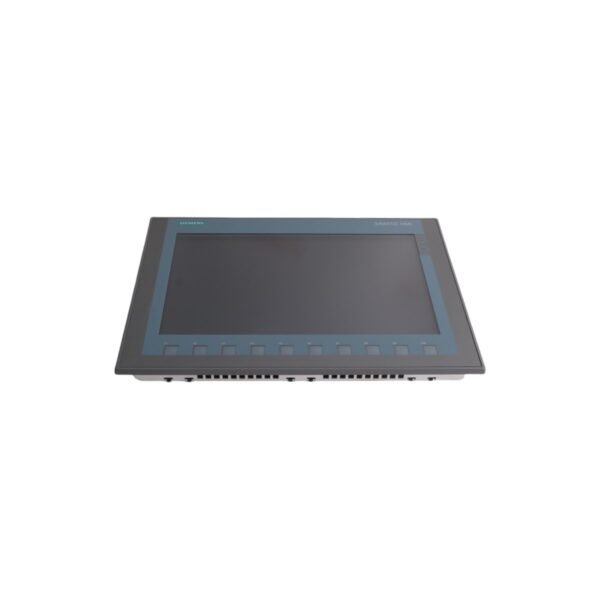

The Siemens 6AV2123-2MB03-0AX0 is a high-performance 12-inch widescreen TFT display designed for the SIMATIC Basic HMI series. It combines a high-resolution touch interface with programmable tactile keys to deliver flexible machine-level control and visualization.

​Product Description

High-Resolution Industrial Visualization

The Siemens 6AV2123-2MB03-0AX0 (KTP1200 Basic) provides an expansive 12-inch widescreen display that supports up to 65,536 colors. This hardware allows for the creation of clear, detailed process screens that significantly improve operator situational awareness. By utilizing a resolution of 1280 x 800 pixels, the panel ensures that complex trend graphs and detailed plant mimics remain sharp and legible. Users interact with the system through a combination of a precision resistive touch screen and 10 programmable tactile function keys, providing both modern gesture control and traditional physical feedback for critical commands.

Seamless Automation System Networking

This operator interface facilitates rapid integration into the TIA (Totally Integrated Automation) Portal environment. The unit features an integrated PROFINET interface, which enables high-speed communication with SIMATIC S7 controllers and other industrial Ethernet devices. Consequently, engineers can manage visualization, PLC logic, and networking within a single software framework (WinCC Basic). The panel’s 10MB of integrated user memory provides ample space for complex project data, extensive alarm logging, and recipe management, ensuring stable performance even as system demands grow.

Rugged Reliability for Challenging Environments

Engineered for longevity, the 6AV2123-2MB03-0AX0 features an IP65-rated front panel that protects against dust and moisture ingress. This makes it an ideal solution for deployment on factory floors, in food processing areas, and within compact control cabinets. The device operates reliably in temperatures ranging from 0°C to +50°C, maintaining consistent touch sensitivity and display brightness throughout its service life. Because it utilizes energy-efficient LED backlighting with a dimmable range, the panel reduces power consumption while extending the operational lifespan of the backlight unit.

Technical Specification Overview
