Description

Brief Product Description

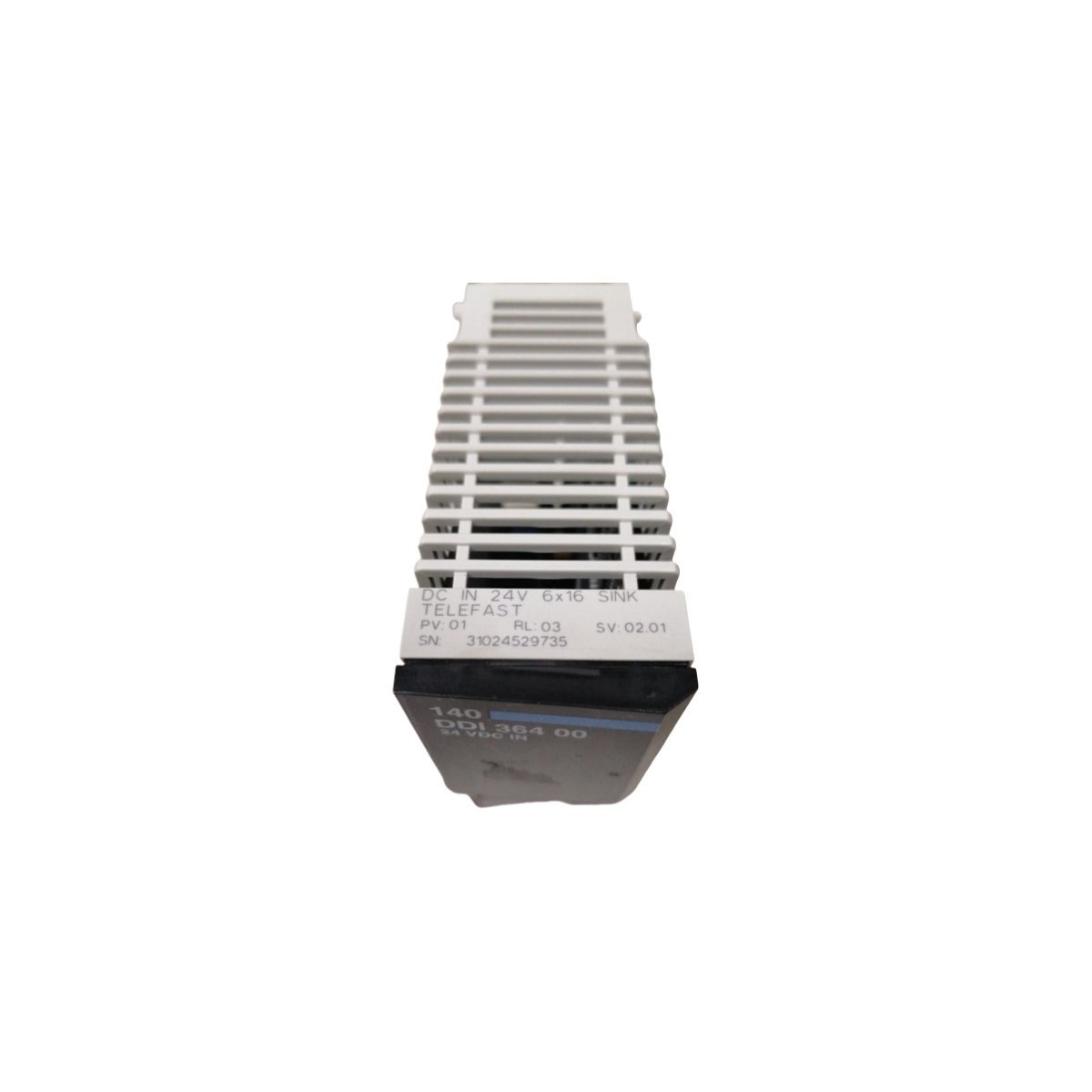

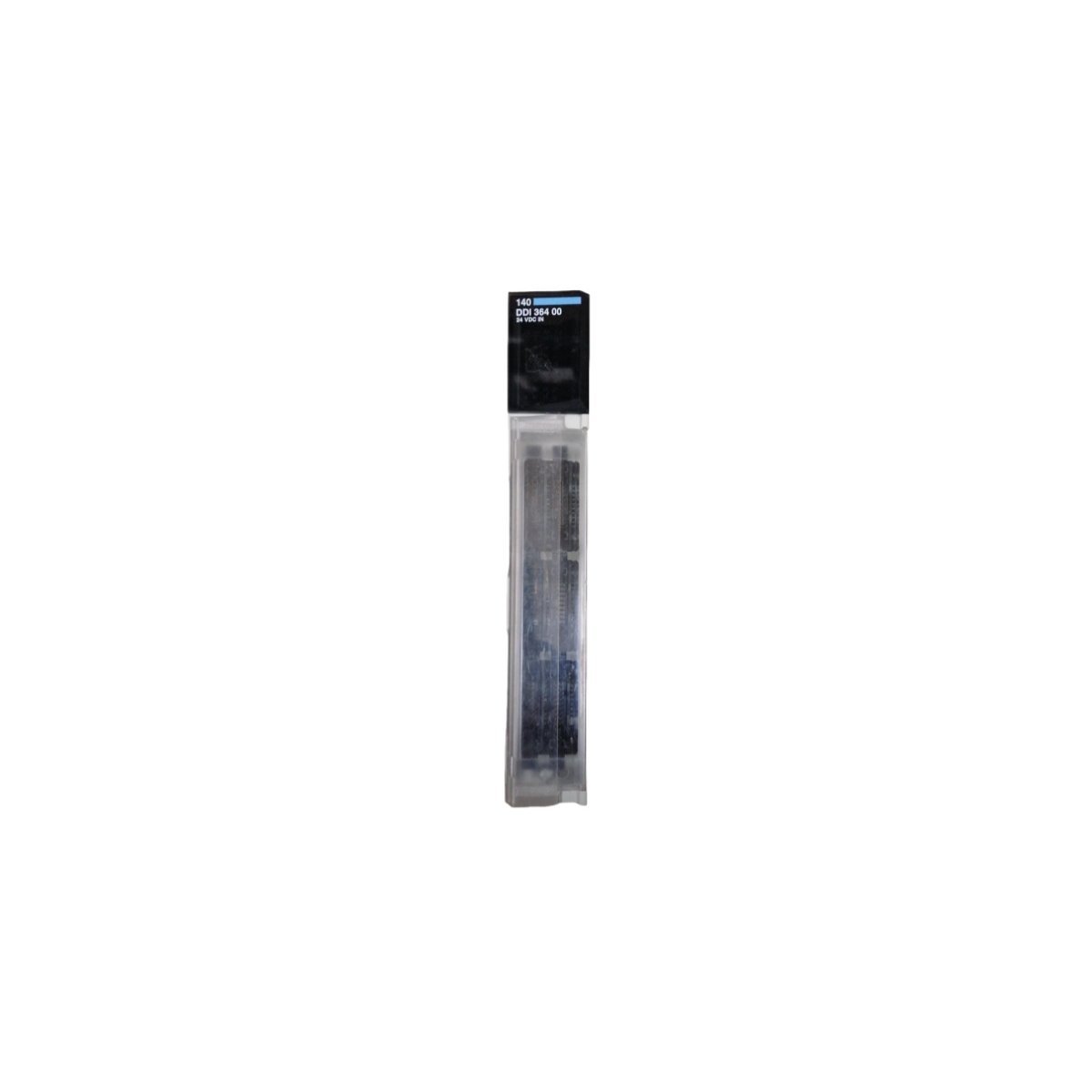

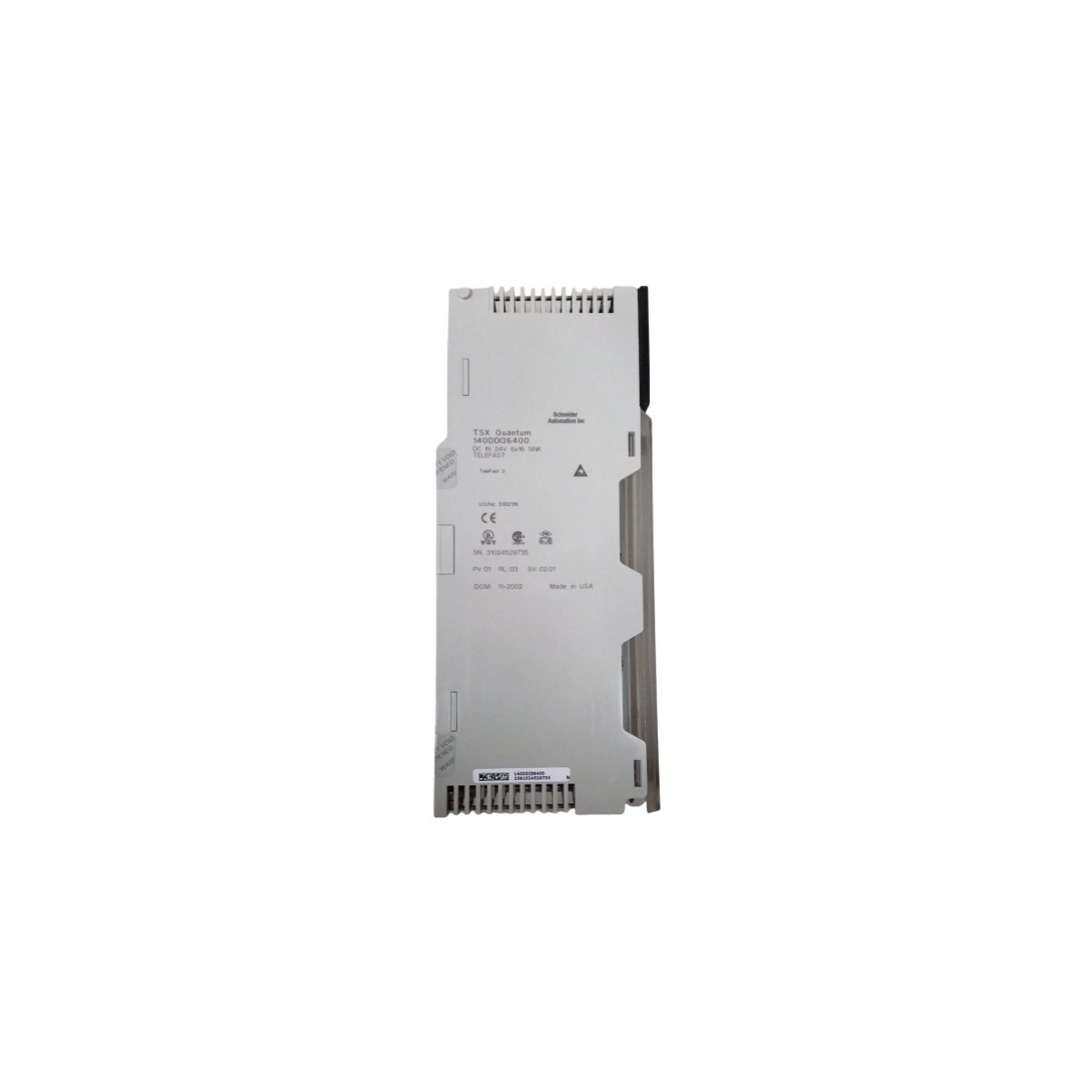

The Schneider Electric 140DDI36400 is a high-density discrete input module for the Modicon Quantum PLC platform, featuring 96 channels for 24V DC signal processing. This sinking input module provides rapid response times and robust electrical isolation, making it essential for large-scale industrial data acquisition.

High-Density Discrete Signal Acquisition

The Schneider Electric 140DDI36400 functions as a critical interface for large-scale automation, providing 96 discrete input channels within a single Modicon Quantum slot. This high-density architecture allows engineers to consolidate extensive field wiring, which significantly reduces the physical footprint of the control cabinet. The module processes 24V DC signals using a sinking (positive logic) configuration, effectively translating mechanical switch states or sensor outputs into digital data for the PLC processor. Consequently, this module serves as a backbone for complex manufacturing lines and infrastructure projects that require simultaneous monitoring of numerous digital points.

Precision Timing and Electrical Protection

Operational speed and system safety remain central to the 140DDI36400 design. The module achieves a hardware response time of less than 2 ms for signal activation and under 3 ms for deactivation, ensuring that the control system reacts instantly to field changes. To protect the sensitive backplane electronics, Schneider Electric integrates 500 Vrms of electrical isolation between input groups. Furthermore, the unit manages voltage fluctuations with ease, sustaining continuous 30V DC loads and surviving transient spikes up to 50V. These protective measures prevent localized electrical faults from cascading through the entire PLC rack, thereby increasing overall plant uptime.

Thermal Management and Diagnostic Feedback

Efficient energy usage and clear diagnostics simplify both the operation and maintenance of the 140DDI36400 module. The hardware generates minimal heat, utilizing only 1.35 W of base power plus a marginal 0.13 W per energized input, which prevents overheating in densely packed enclosures. For immediate troubleshooting, the front panel features an extensive LED array: 96 green indicators provide real-time status for every individual channel, while a dedicated red fault LED alerts technicians to internal errors. Additionally, a bus communication LED confirms that the module is actively exchanging data with the Quantum CPU, allowing for rapid verification of system integrity during commissioning.

Key Technical Characteristics

• High-Point Density: 96 individual channels permit extensive I/O expansion in a compact form factor.
• Sinking Configuration: Designed for positive logic 24V DC digital inputs with a 6700-ohm resistance.
• Rapid Signal Processing: Switching speeds of ≤ 2ms (Off to On) and ≤ 3ms (On to Off) for high-speed applications.
• Enhanced Safety: Group-to-group electrical isolation rated at 500 Vrms protects against ground loops.
• Diagnostic Clarity: Comprehensive LED matrix for individual channel status and global module health.
• Modicon Quantum Compatibility: Seamlessly integrates with the standard Quantum backplane and programming software.
