Description

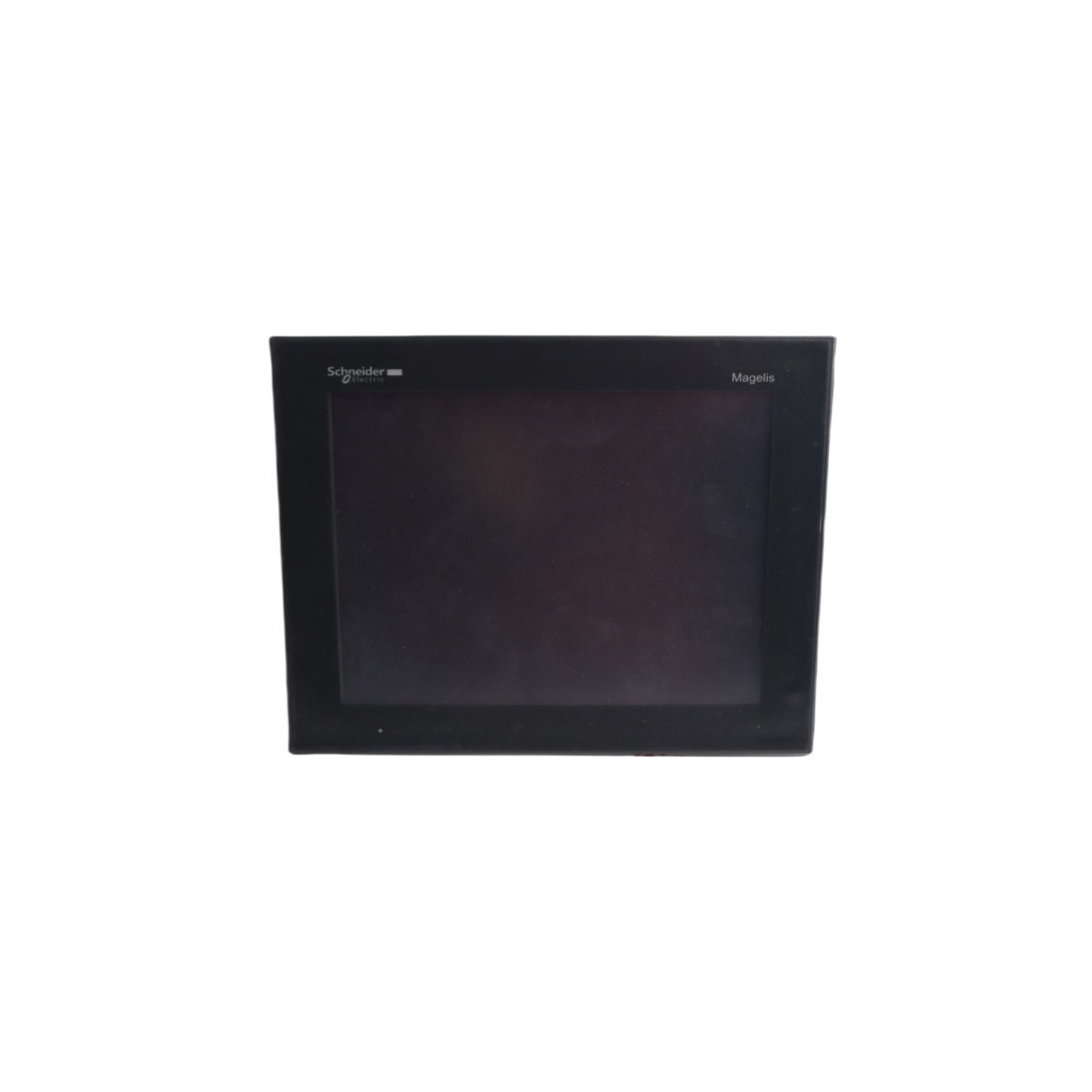

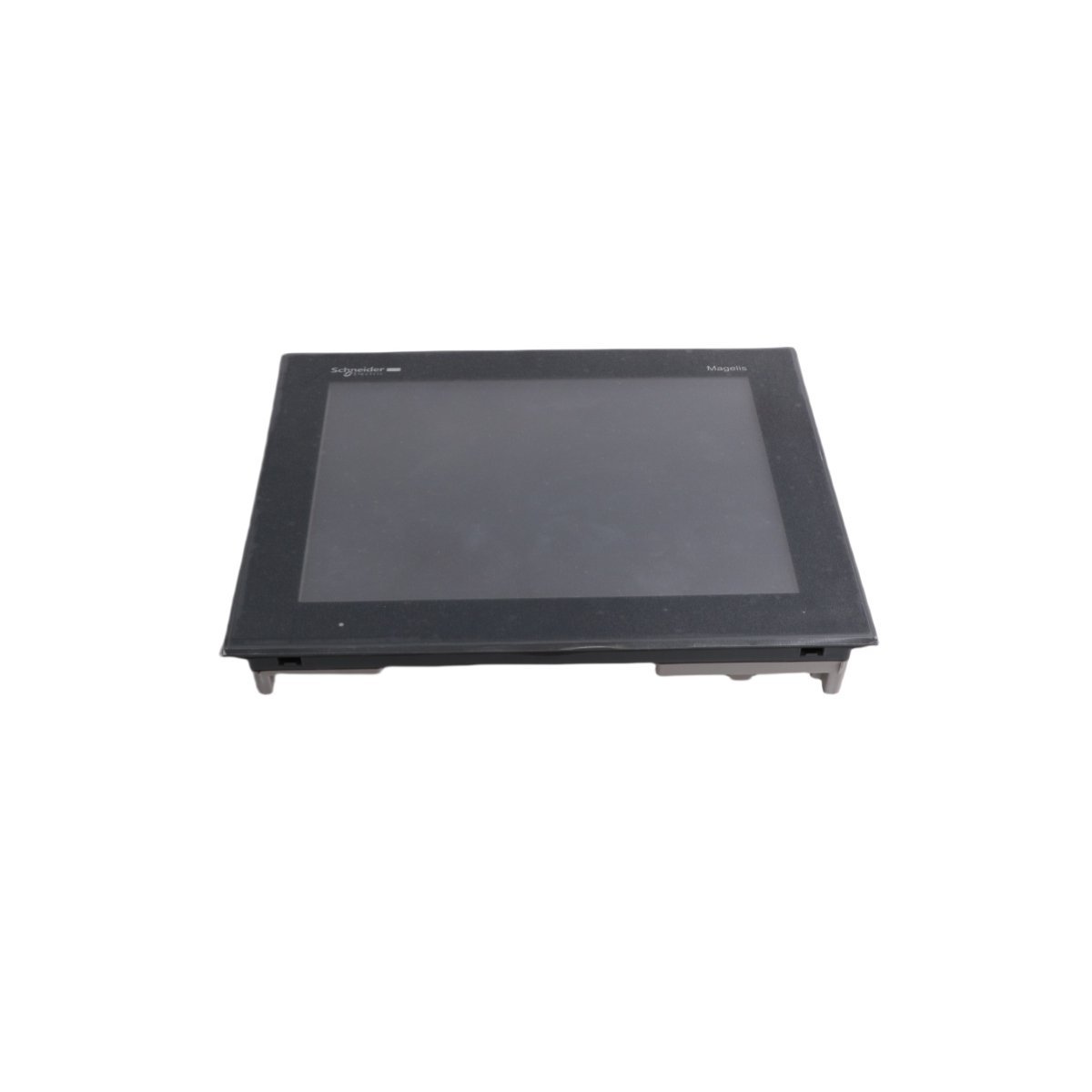

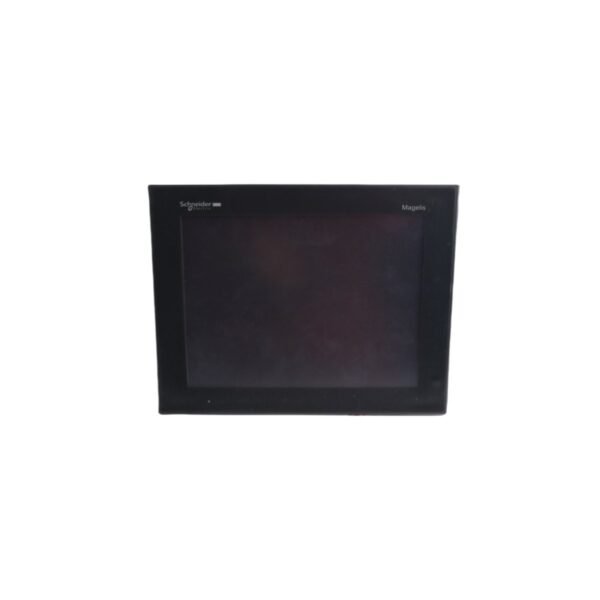

The HMIGTO5310 serves as a premium human-machine interface within the Schneider Electric Magelis GTO range. This 10.4-inch color terminal facilitates optimized machine monitoring through high-resolution visualization. It features a high-quality TFT display that ensures clarity in various industrial lighting conditions. This panel specifically supports complex automation tasks by providing a responsive user interface. Furthermore, the robust construction suits rigorous factory environments. Operators can manage manufacturing processes with greater accuracy using this advanced touch interface.

Connectivity and Protocol Support

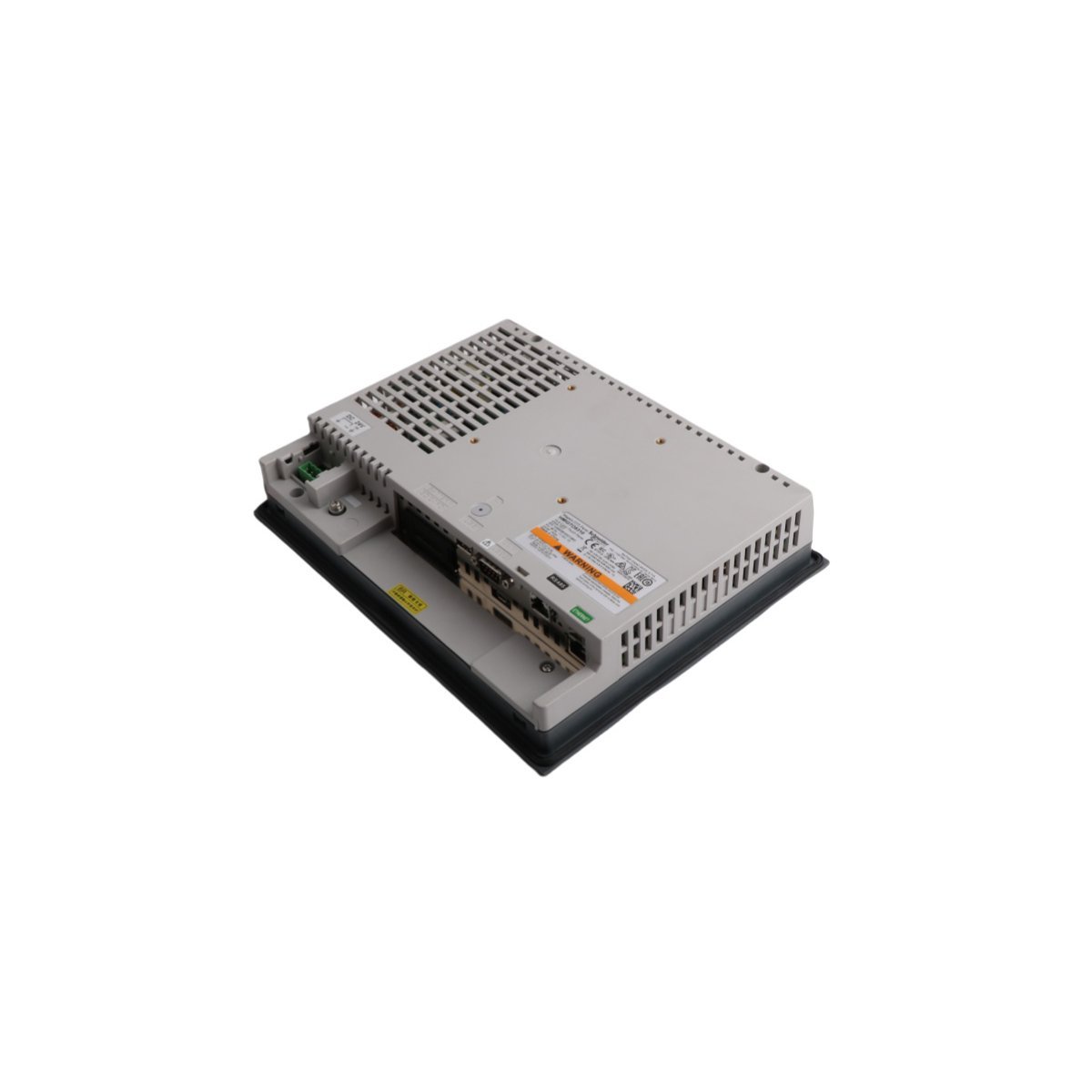

The HMIGTO5310 offers versatile communication ports for seamless plant-floor integration. It includes an Ethernet 10/100BASE-TX port for high-speed networking. Dual serial links via RS232C and RS485 enable connection to legacy hardware. Additionally, two USB 2.0 ports facilitate peripheral connections and data logging. The system natively supports Modbus and Modbus TCP protocols. It also maintains compatibility with major third-party controllers from Siemens, Mitsubishi, and Rockwell. These features allow the HMI to act as a central communication hub.

Software and Environmental Standards

Programming this HMI requires Vijeo Designer software version 6.1 or higher. The software offers a rich library of graphical objects for rapid application development. Regarding physical protection, the front panel carries an IP65 rating against water and dust. The unit operates reliably in temperatures ranging from 0 to 55°C. Moreover, its energy-efficient design consumes only 12W of power during standard operation. This terminal effectively bridges the gap between complex PLC logic and human supervision.

Dimensions and Installation

The panel weighs approximately 2.0 kg and features a compact depth for shallow enclosures. Its design allows for simple mounting using standard spring clips. The unit accepts a 24V DC power supply, which is standard for most industrial control cabinets. Because of its broad certifications, including CE and UL, it meets global safety requirements. This HMI remains an ideal choice for OEMs and system integrators worldwide.

Display and Core Processing Power

• Screen Size: 10.4-inch diagonal display
• Panel Type: 65k color TFT LCD
• Native Resolution: 640 x 480 pixels (VGA)
• Onboard Flash Memory: 96 MB for project storage
• Internal RAM: 512 kB backed up by battery
• Expansion Slot: Supports SD and SDHC cards up to 32 GB
• Backlight Lifespan: 50,000 hours at 25°C
