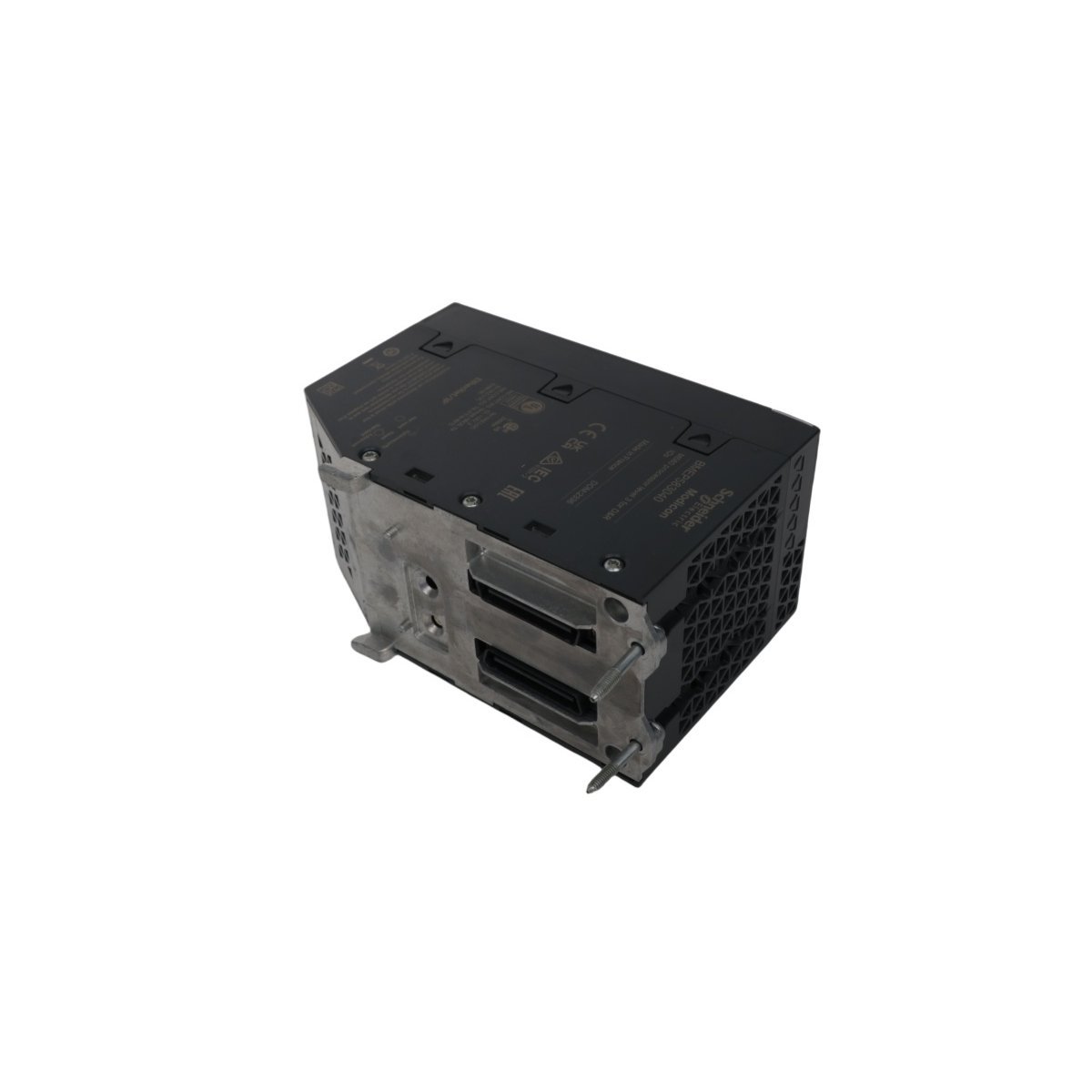

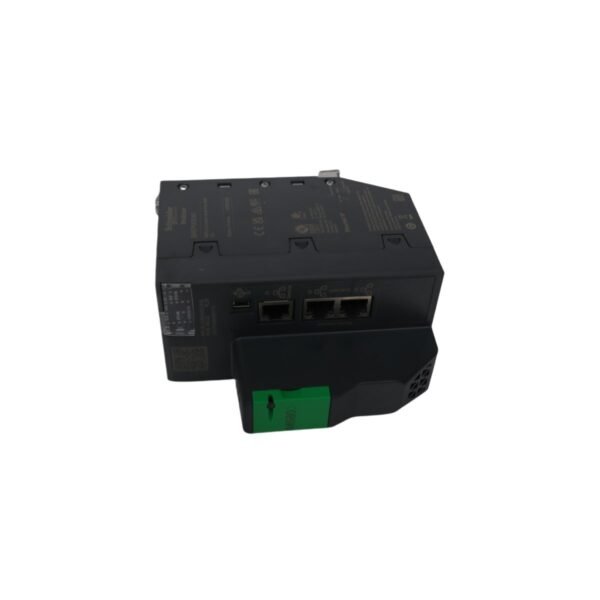

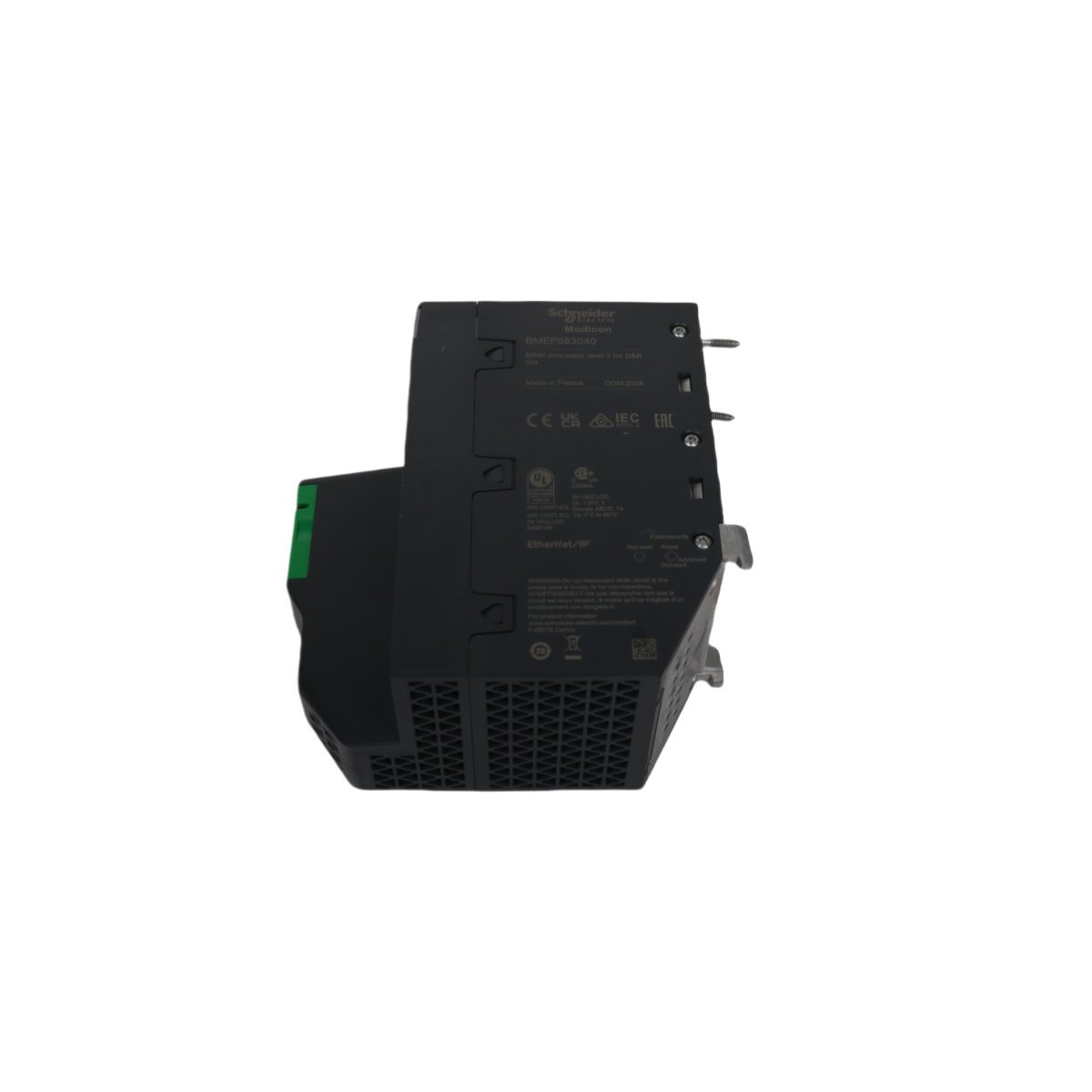

Schneider Electric BMEP583040 Modicon M580 Processor Module
Description
Brief Product Description
The Schneider Electric BMEP583040 is a high-performance ePAC processor from the Modicon M580 series, designed to manage medium to large automation architectures with native Ethernet connectivity.2 It offers 12MB of program memory and extensive I/O capacity to support complex process control and high-availability applications.3
Product Description
The BMEP583040 represents the core of Schneider Electric’s Modicon M580 ePAC (Ethernet Programmable Automation Controller) platform.4 As an industrial-grade processor, it provides the computational power necessary for demanding process applications, supporting up to 8 racks and a massive 768 analog I/O channels.5 The module leverages “Ethernet in the backbone” technology, which allows for transparent data flow across the entire automation architecture. This native integration significantly improves data accessibility and system diagnostics, enabling operators to optimize plant performance in real-time.
Advanced Communication and Memory Architecture
Schneider Electric equipped the BMEP583040 with a sophisticated memory management system and versatile communication interfaces. The CPU features 12MB of program RAM and 1024KB of dedicated data memory, ensuring smooth execution of large logic programs.6 For long-term data logging and application storage, the module supports expandable flash storage up to 4GB. Communication is handled through dual Ethernet TCP/IP ports, which facilitate device network integration and High-Availability (HSBY) configurations. A dedicated USB mini-B port provides a reliable service interface for local programming and maintenance tasks.7
Industrial Durability and Global Compliance
Designed for continuous operation in harsh environments, the BMEP583040 delivers a high Mean Time Between Failures (MTBF) of 600,000 hours. The hardware operates efficiently across a broad temperature range of 0°C to 60°C and features an IP20-rated enclosure to protect sensitive internal components.8 The module complies with international standards such as EN 61131-2 and EN 61000-6-4, guaranteeing electromagnetic compatibility and mechanical resilience. Furthermore, certifications from UL, CSA, CE, and marine agencies make this processor a globally trusted choice for critical infrastructure and process industries.9
Technical Specification Table
| Attribute | Details |
| Manufacturer | Schneider Electric |
| Range | Modicon M580 |
| Model Number | BMEP583040 |
| Processor Type | ePAC CPU Module |
| Program Memory | 12 MB RAM |
| Data Memory | 1024 KB |
| Analog I/O Capacity | Up to 768 Channels |
| Rack Support | Up to 8 Racks |
| Network Ports | 2 x Ethernet TCP/IP, 1 x USB Mini-B |
| Current Consumption | 295 mA at 24 V DC |
| MTBF | 600,000 Hours |
| Operating Temperature | 0 °C to 60 °C |
| Dimensions | 31 mm x 97 mm x 102 mm |
| Weight | 0.16 kg |
Additional information
| Weight | 0.16 kg |
|---|---|
| Country of Origin | France |
| Dimension | 3.1 x 9.7 x 10.2 cm |
