Description

Brief Product Description

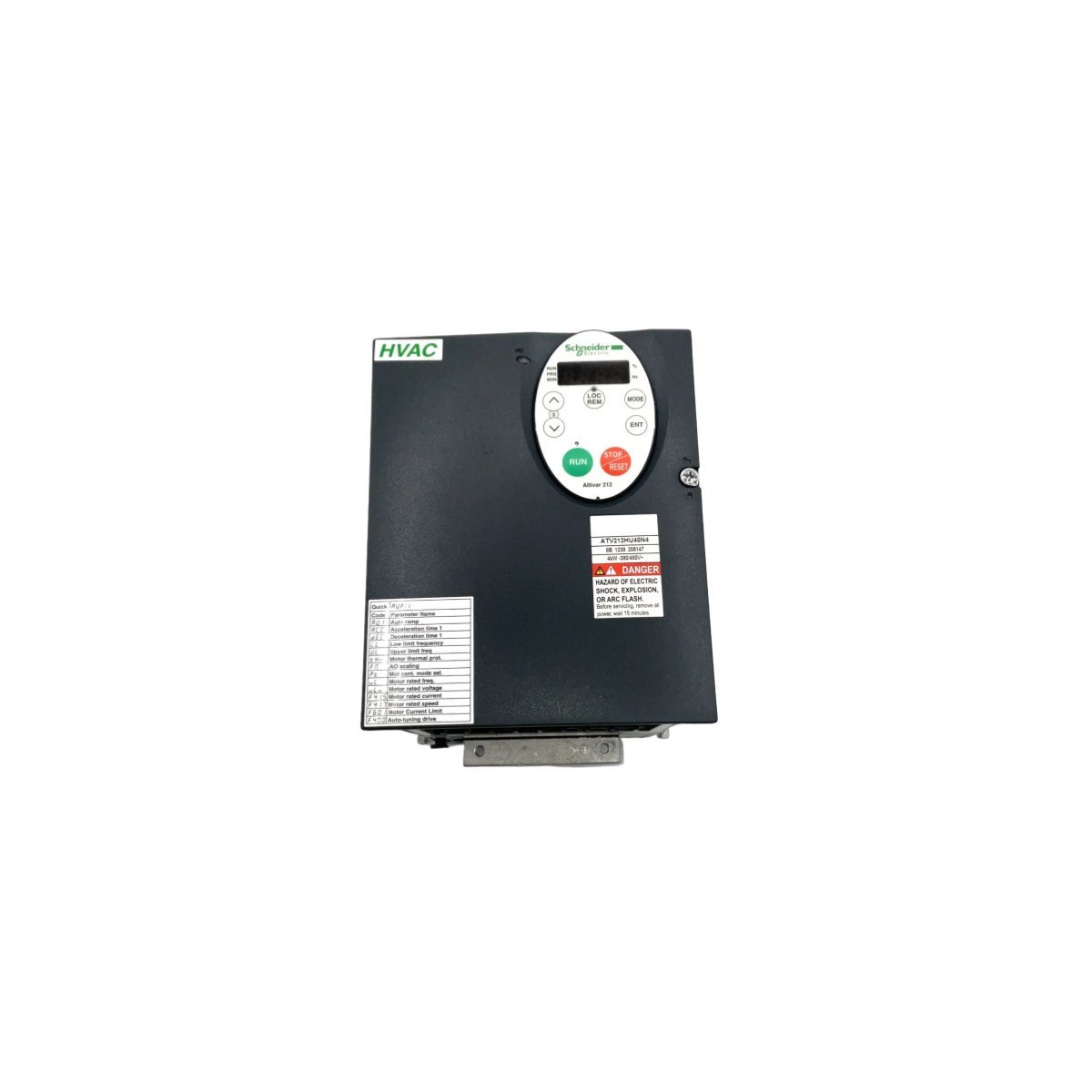

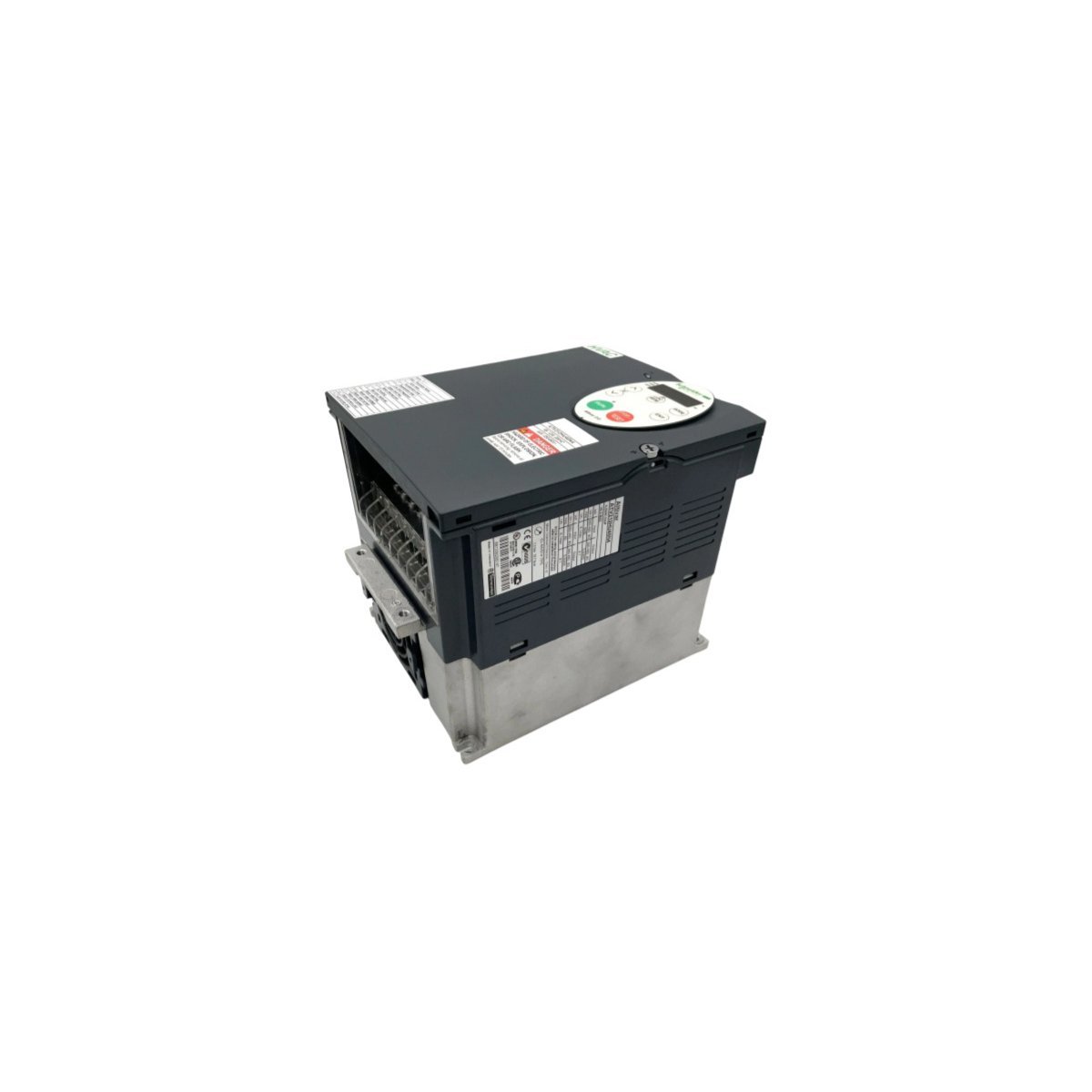

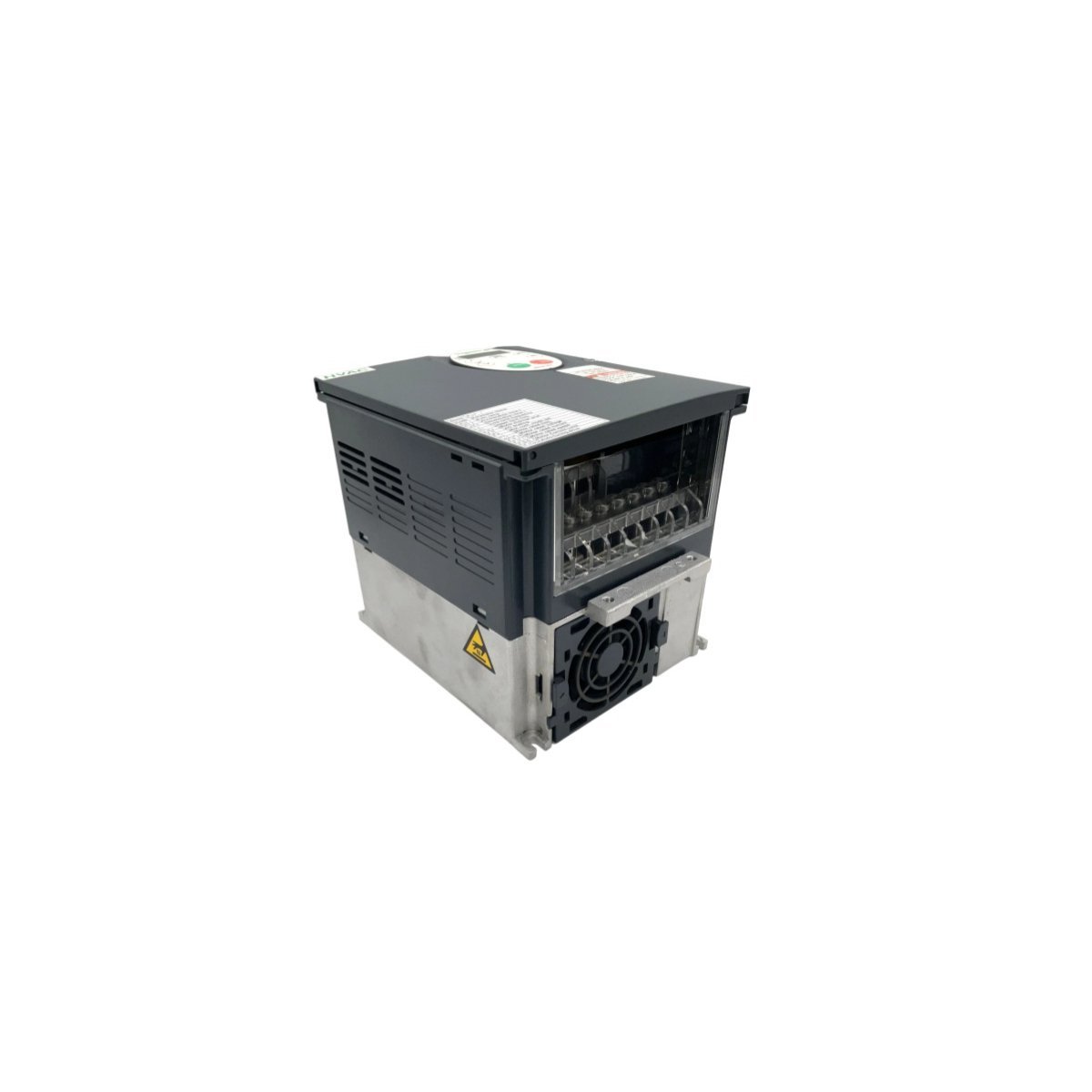

The Schneider Electric ATV212HU40N4 is a high-efficiency Altivar 212 variable speed drive specifically optimized for 4kW (5HP) asynchronous motors in HVAC applications. This 3-phase inverter maximizes energy savings and streamlines building management through integrated communication protocols and eco-friendly design.

Product Description

Optimized Fluid Management and HVAC Control

The Schneider Electric ATV212HU40N4 belongs to the Altivar 212 family, a range of variable frequency drives (VFD) dedicated to building automation. This model excels in controlling 3-phase asynchronous motors for fans, pumps, and air conditioning units. By adjusting motor speed to match actual demand, the drive significantly reduces energy overhead—often reaching up to 70% savings compared to traditional fixed-speed solutions. This targeted functionality makes the ATV212HU40N4 an essential component for modern tertiary sector infrastructure and smart building projects.

Advanced Engineering and Simplified Installation

Engineered with a focus on ease of deployment, the ATV212HU40N4 inverter features a design that minimizes harmonic distortion without the immediate need for line chokes. This innovative internal architecture limits cable temperature rise and ensures a disturbance-free startup sequence. Furthermore, the unit includes an integrated Class C2 EMC filter and carries an IP21 protection rating, which allows for reliable performance in standard mechanical rooms. Although the unit is compact, it maintains a robust power density, providing 4kW of output while requiring minimal panel footprint.

Intelligent Integration and Global Compliance

The Altivar 212 ATV212HU40N4 simplifies connectivity by offering Modbus, BACnet, METASYS N2, and APOGEE FLN P1 protocols as standard features. Consequently, engineers can integrate the drive into existing Building Management Systems (BMS) with minimal configuration effort. The drive also meets rigorous international safety and quality benchmarks, including IEC/EN 61800-5-1 and 61800-3. With a full suite of certifications such as UL, CSA, and CE, this drive provides a globally recognized solution for high-performance motor control and operational longevity.

Technical Specifications
