Description

Product Overview

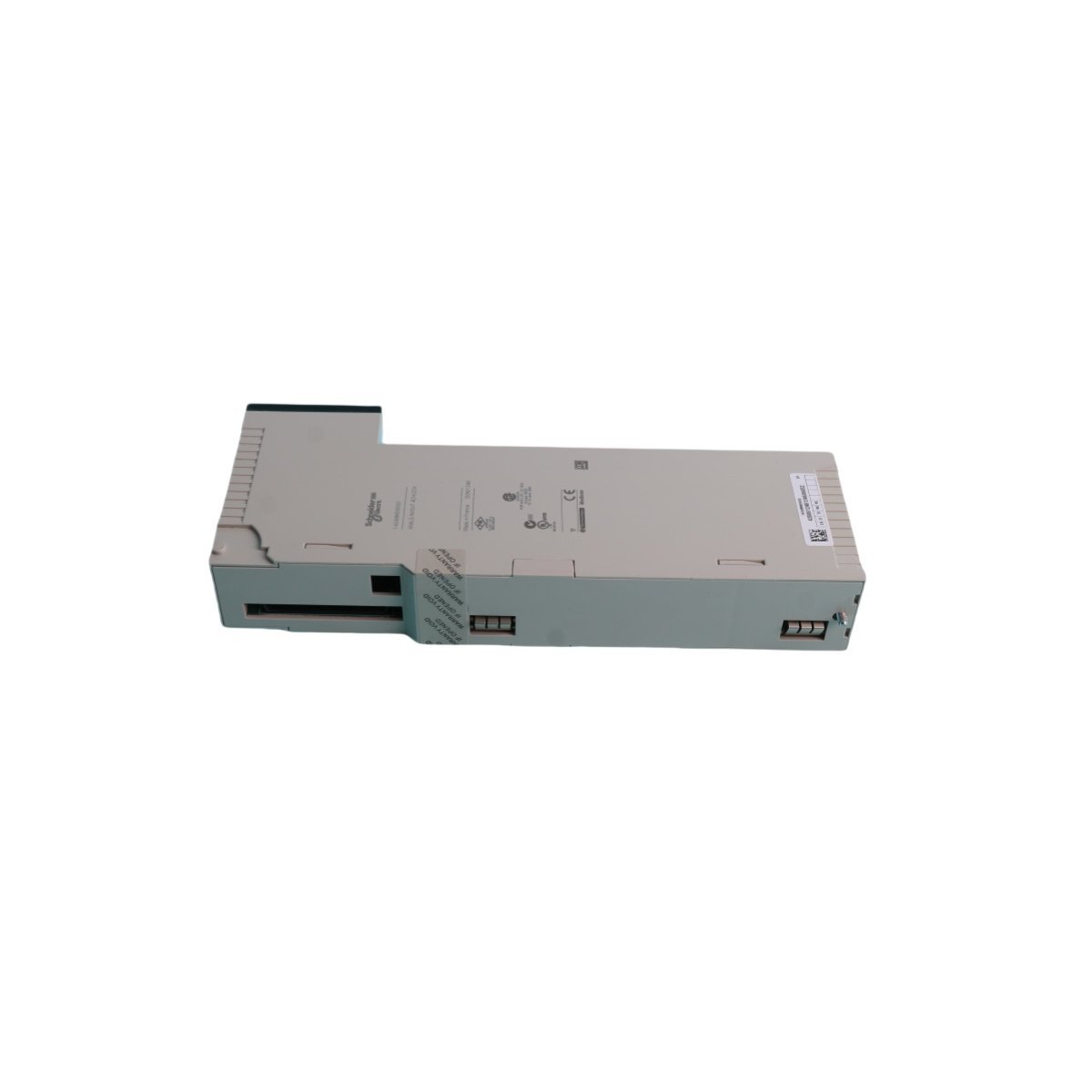

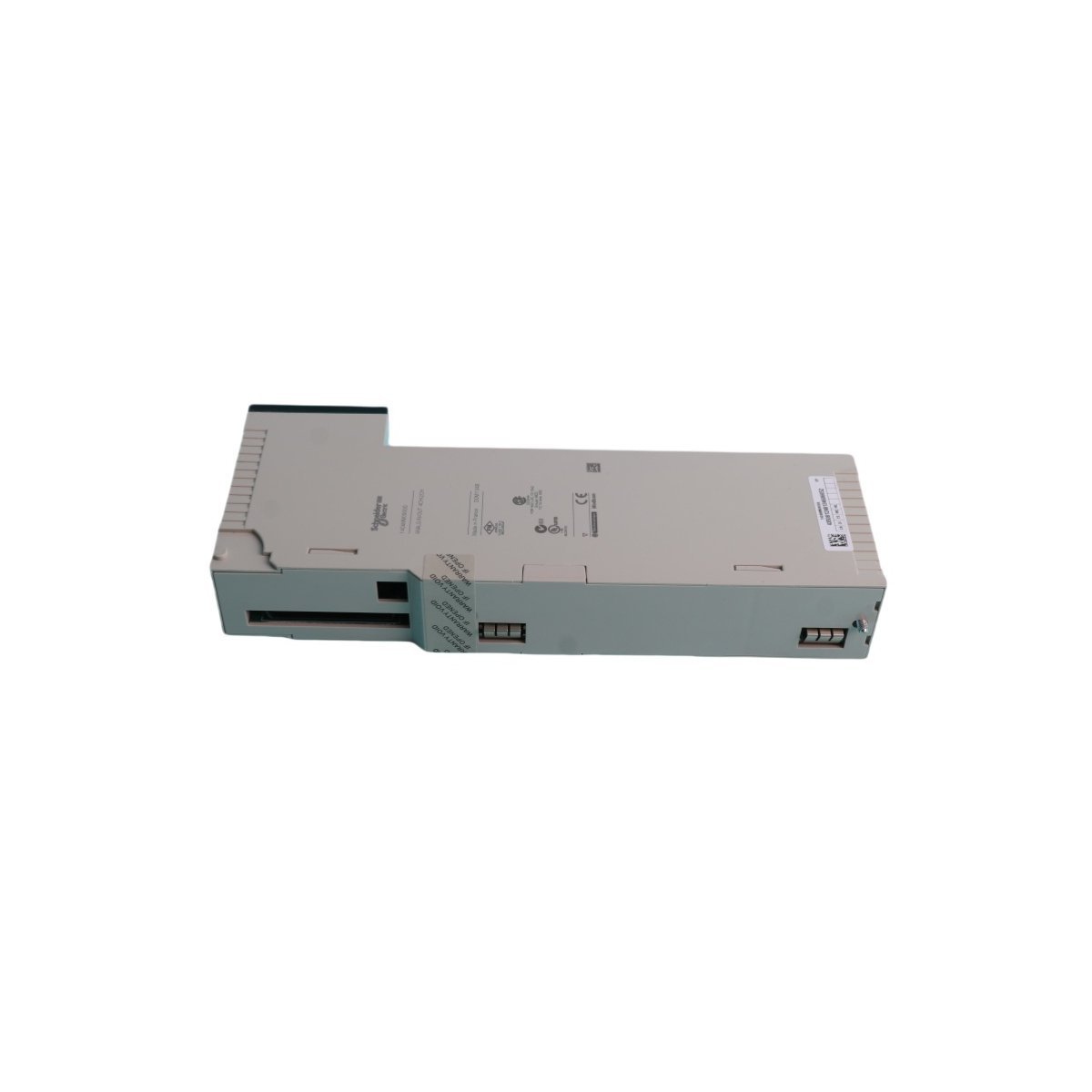

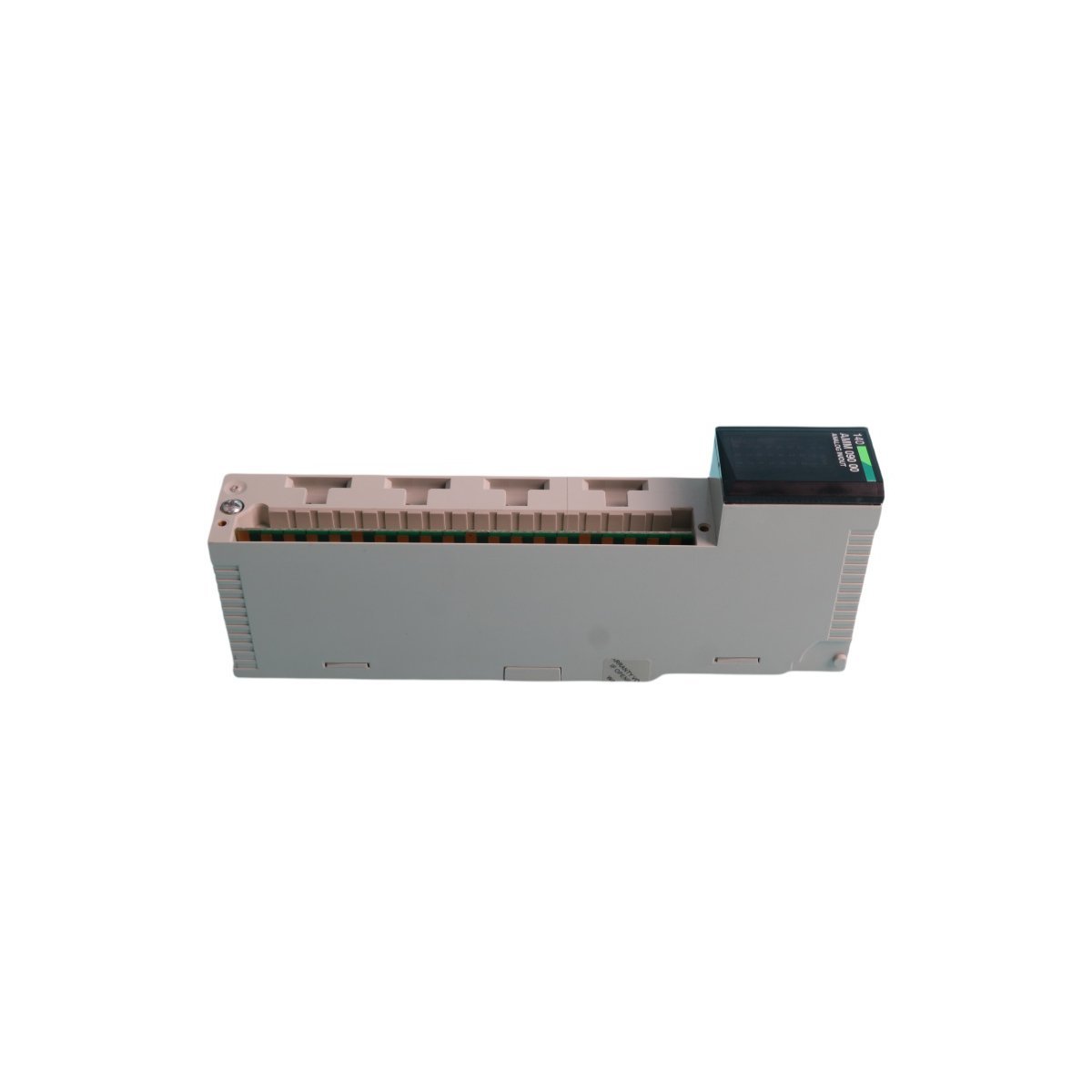

The Schneider Electric ABE7H16R11 serves as a high-performance interface module within the Advantys Telefast ABE7 range. This sub-base facilitates the connection between industrial PLC I/O cards and field devices by providing a centralized termination point. Engineered for 24V DC systems, the unit optimizes wiring density while ensuring signal integrity across 16 discrete channels. This module streamlines the integration of sensors and actuators into automated control architectures, significantly reducing the complexity of traditional point-to-point wiring.

Technical Functionality and Design

Each of the 16 available channels on the ABE7H16R11 utilizes a single terminal layout for efficient space management. The module connects to the primary controller via a standard 20-pin HE-10 connector, which supports rapid deployment and secure signal transmission. For circuit protection, the device incorporates an internal 2A fuse, safeguarding both the interface and the connected PLC inputs or outputs against overcurrent conditions. Real-time diagnostics are provided through dedicated LED indicators for each channel, supplemented by a green power-on LED to confirm the presence of the 24V DC supply voltage.

Installation and Operational Characteristics

The mechanical design of the ABE7H16R11 allows for versatile mounting on standard 35mm symmetrical DIN rails or direct installation onto a mounting plate using a specialized fixing kit. Its compact footprint is specifically tailored for high-density electrical cabinets where space is a critical constraint. The screw-type terminals accommodate both solid and flexible conductors up to 2.5 mm², ensuring compatibility with various industrial wiring standards. Furthermore, with a 2000V insulation rating and compliance with IEC 61131-2 standards, the module maintains high operational reliability even in environments prone to electrical noise.

Technical Specifications

• Brand: Schneider Electric
• Model Reference: ABE7H16R11
• Product Category: Passive Discrete I/O Sub-base
• Number of Channels: 16
• Rated Supply Voltage: 24V DC (Range: 19V to 30V)
• Connection Type: 1 terminal per channel
• Control Connector: 20-pin HE-10
• Terminal Capacity: Up to 2.5 mm²
• Maximum Current per Channel: 0.5A
• Total Current Capacity: 1.8A
• Protection: 2A internal fuse
• Status Visualization: 1 LED per channel + 1 Power LED
• Mounting Support: 35mm DIN Rail / Plate Mounting
• Dimensions: 125mm (Width) x 70mm (Height) x 58mm (Depth)
• Net Weight: 0.274 kg
• Operating Temperature: -5°C to 60°C

Application Domains

This interface module is widely deployed across diverse industrial sectors, including automated manufacturing, energy management, and building automation systems. It specifically enhances the connectivity of Modicon PLC systems and other controllers utilizing HE-10 cable standards. By simplifying terminal block arrangements, the ABE7H16R11 improves maintenance efficiency and reduces potential wiring errors in complex control loops.
