Description

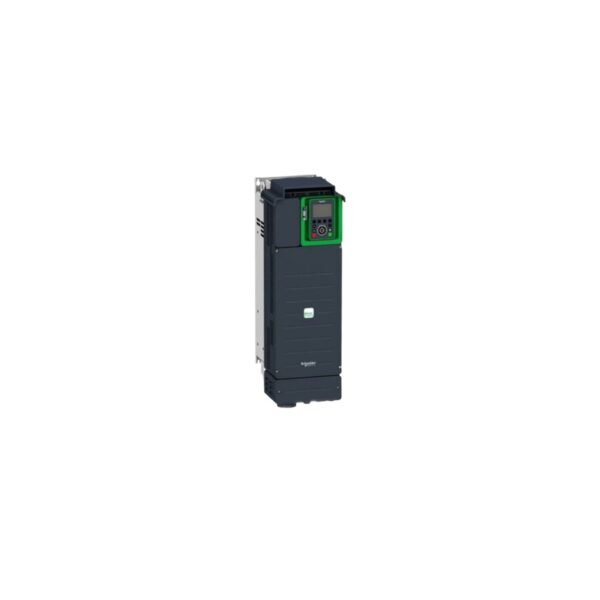

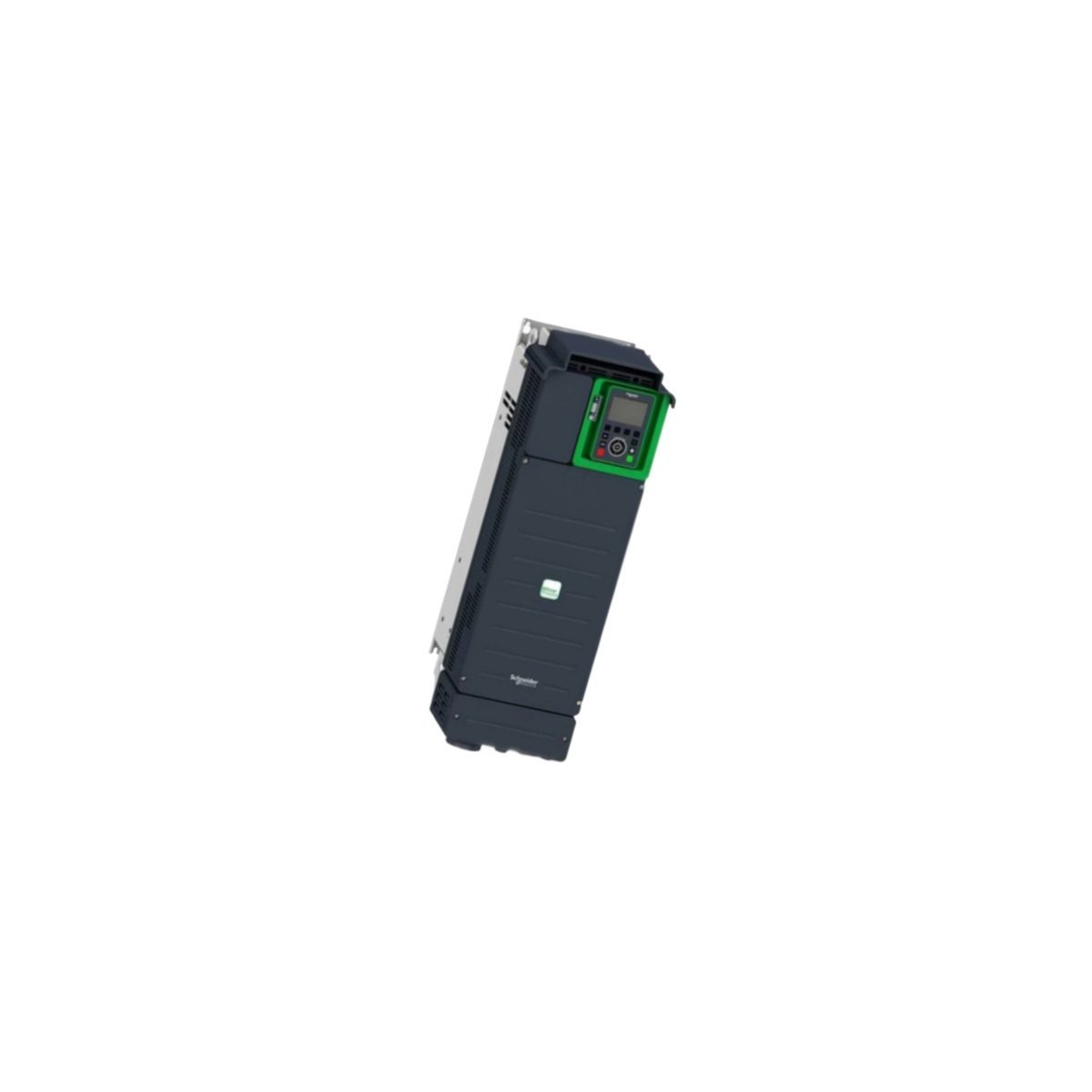

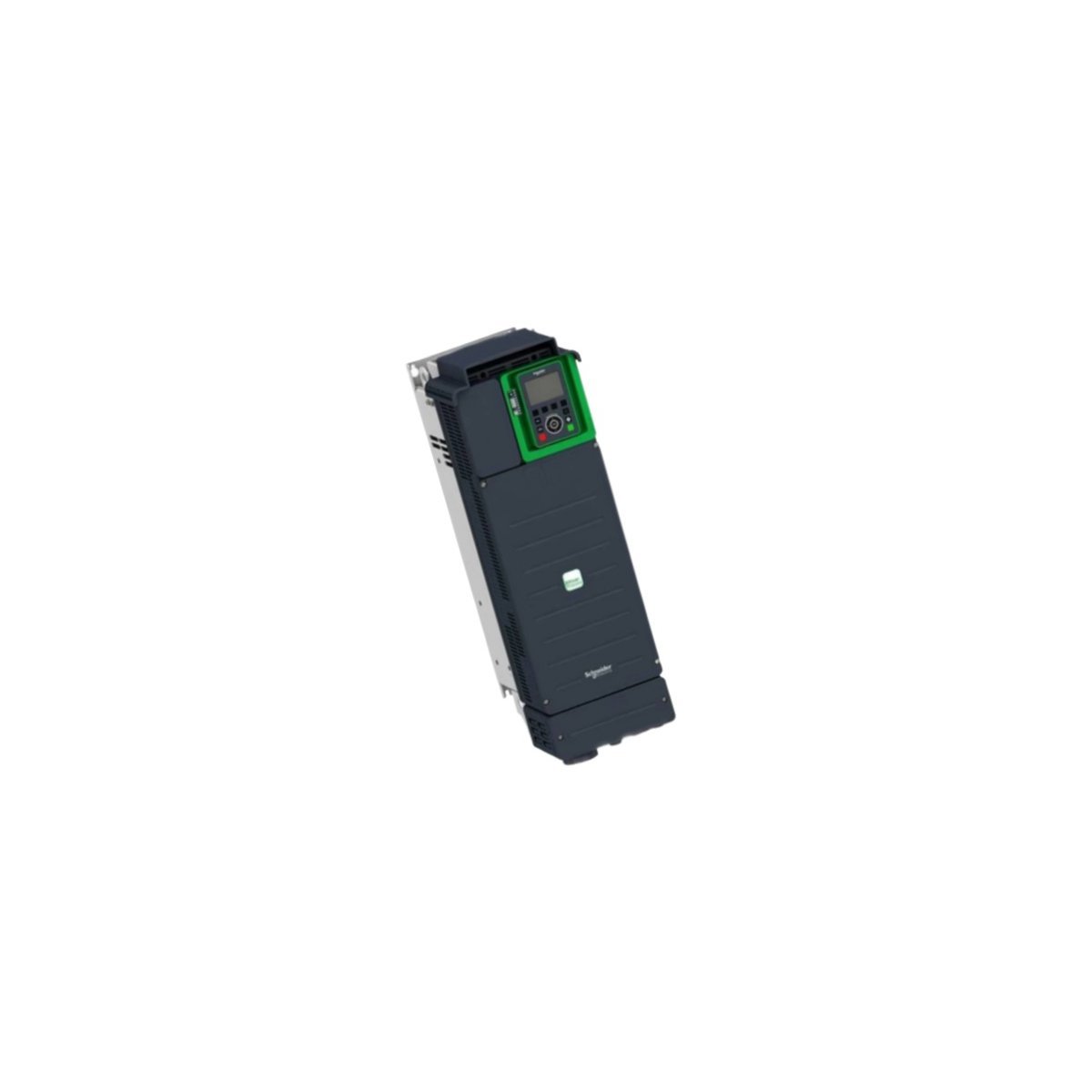

The Schneider Electric ATV930D22N4 serves as a high-performance solution within the Altivar Process 900 series. This 22kW variable speed drive provides exceptional control for both synchronous and asynchronous three-phase motors. It operates efficiently on a 400/480V supply for heavy-duty industrial tasks. Furthermore, the unit features an integrated braking transistor to handle regenerative energy during deceleration. This capability ensures stable motor performance in applications requiring frequent speed changes.

Technical Specifications

Advanced Control Interface

This drive supports the VW3A1101 graphic display terminal for enhanced local interaction. Using this optional module allows technicians to access detailed parameter text and diagnostic data. The interface includes dedicated command keys such as RUN and STOP for immediate local control. Additionally, a high-precision jog dial facilitates rapid value adjustments and menu navigation. Operators must use only series-specific display modules to ensure safe and reliable communication with the hardware.

Operational Safety and Reliability

The ATV930D22N4 prioritizes industrial safety through advanced firmware and protective circuitry. It carries an IP21 rating to defend against solid objects and vertical water droplets. Because the drive incorporates a built-in EMC filter, it reduces electromagnetic interference in the workplace. The French-engineered design ensures long-term durability in rigorous manufacturing environments. Moreover, the systematic cooling architecture maintains optimal internal temperatures during continuous 24/7 operations.
