Description

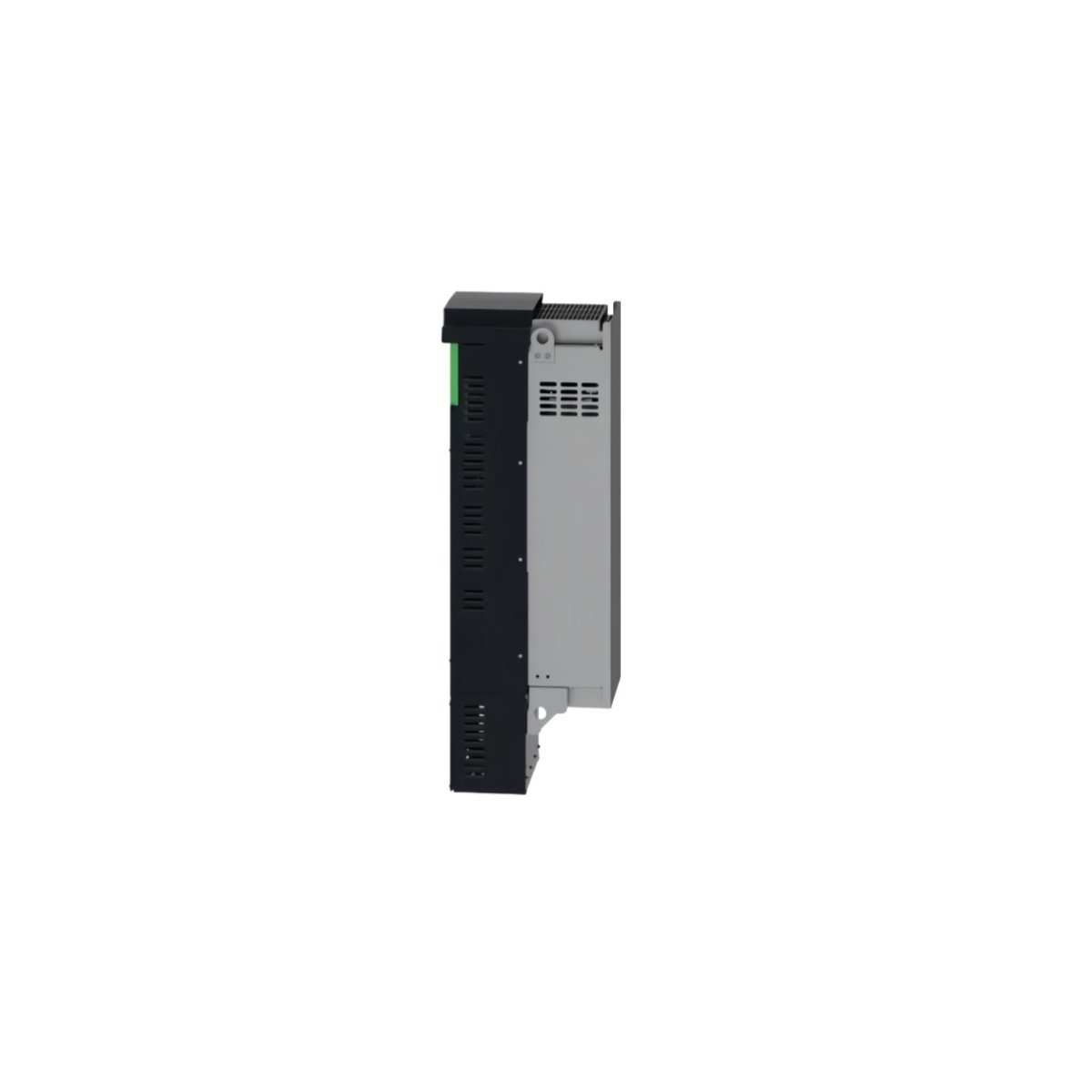

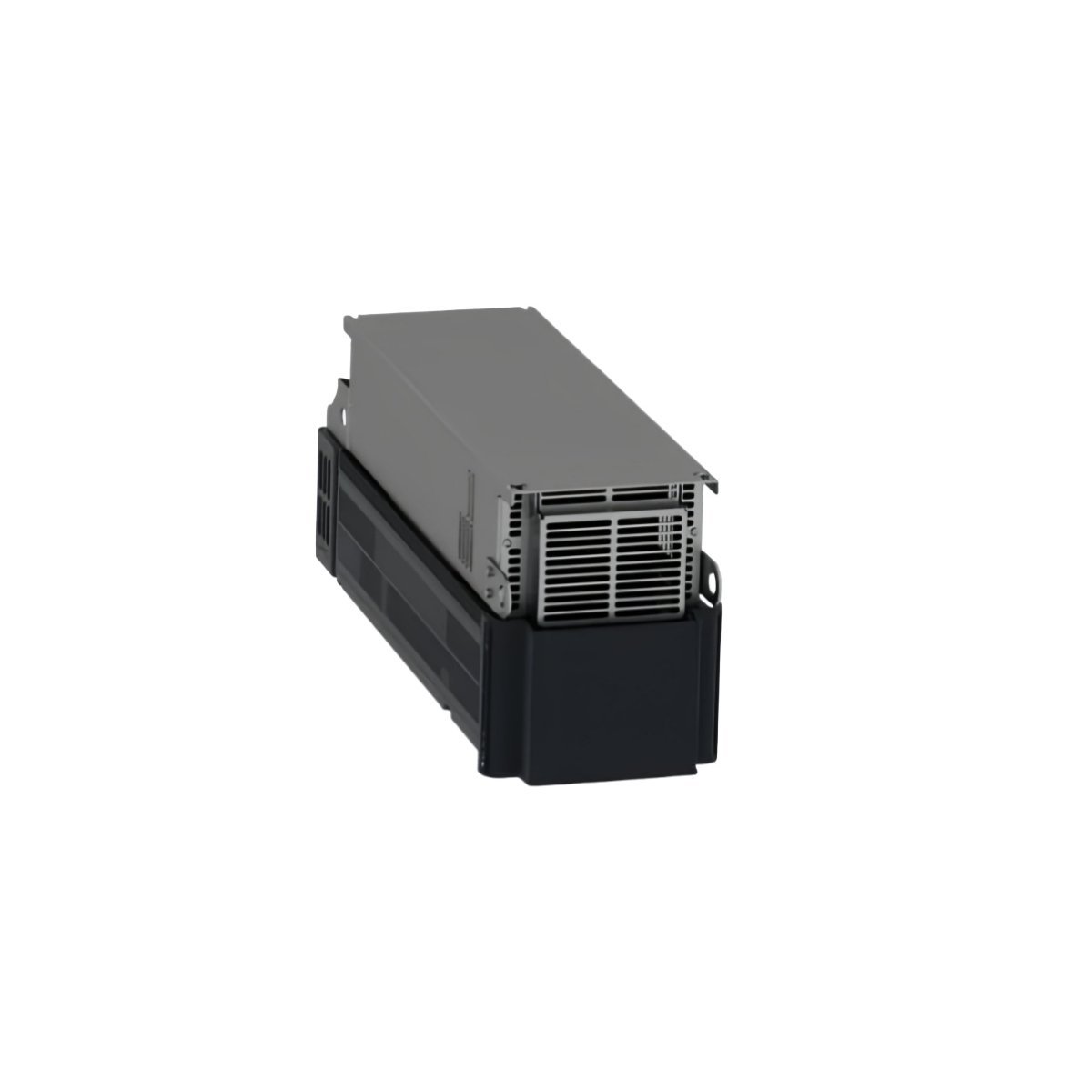

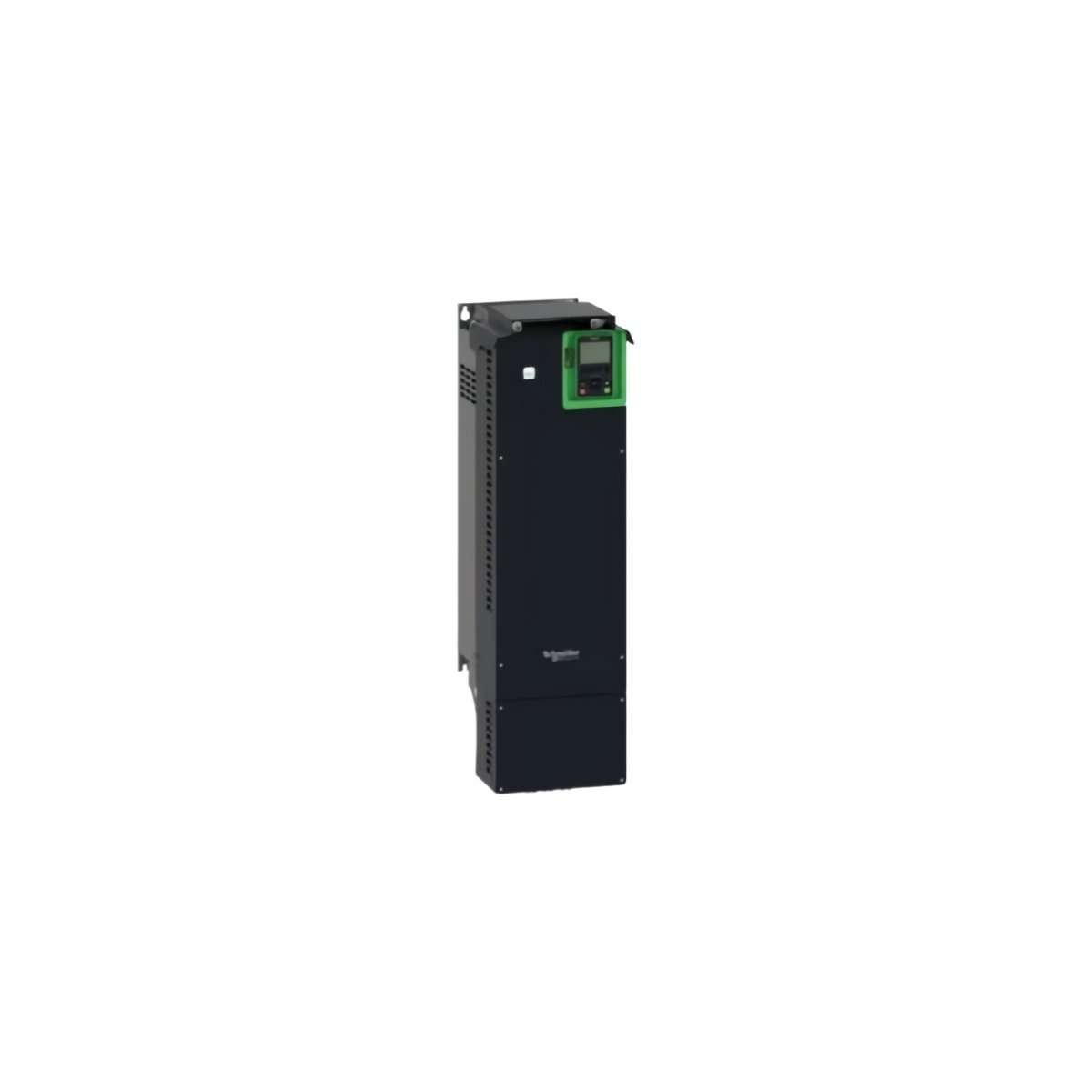

The Schneider Electric ATV630D90N4 serves as a high-capacity frequency inverter within the Altivar Process 600 family. This 90 kW (125 HP) system optimizes motor performance for large-scale industrial fluid management. It bridges the gap between power delivery and intelligent process control. The drive operates within a 380V to 480V three-phase electrical environment.

Advanced Energy Management and Connectivity

This drive introduces significant energy savings through proprietary “Stop and Go” technology. This innovation reduces standby power consumption by nearly 30% during idle periods. Furthermore, the unit features three integrated RJ45 ports to support Ethernet and serial communication. This connectivity ensures seamless data exchange with modern industrial control networks and PLC systems.

Schneider Electric integrates EcoStruxure compatibility into the hardware for real-time energy monitoring. Consequently, operators can track efficiency metrics and implement predictive maintenance schedules easily. The modular design also allows for future expansion using various I/O and communication modules.

Mechanical Design and Motor Support

The ATV630D90N4 supports both synchronous and asynchronous motor types across various load profiles. It handles 120% overload for 90 kW motors during normal duty cycles. For heavy-duty 75 kW applications, the drive manages overloads up to 150%. The vertical mounting configuration provides engineers with greater flexibility in crowded electrical rooms.

• Power Capacity: 90 kW (Normal Duty) / 75 kW (Heavy Duty)
• Input Voltage: 380…480 V AC, 3-Phase
• Enclosure Rating: IP21 / UL Type 1
• Safety Features: STO (Safe Torque Off) SIL 3
• Communication: Modbus TCP, Modbus Serial
• Weight: 58.5 kg
• Dimensions: 290 x 922 x 323 mm
