Description

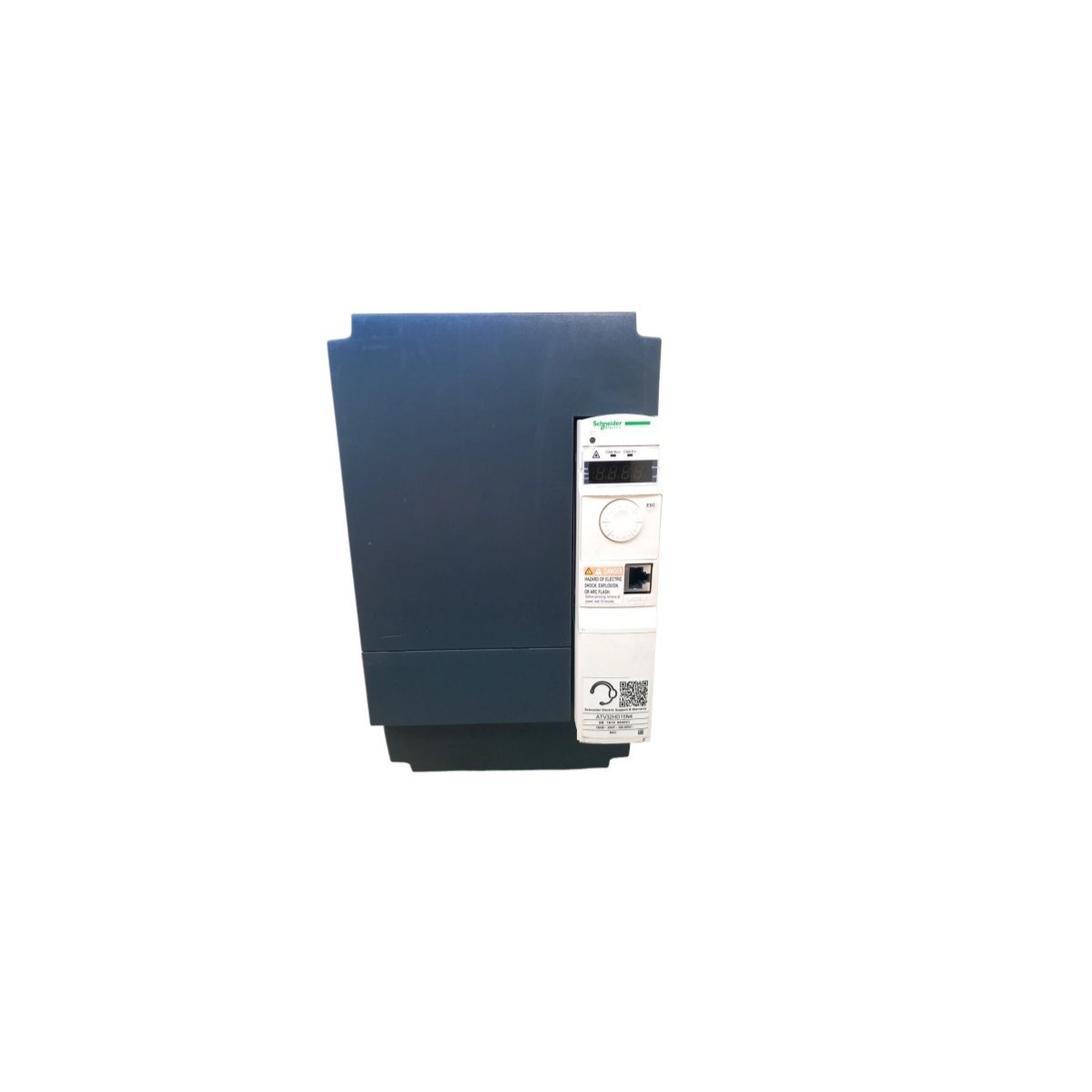

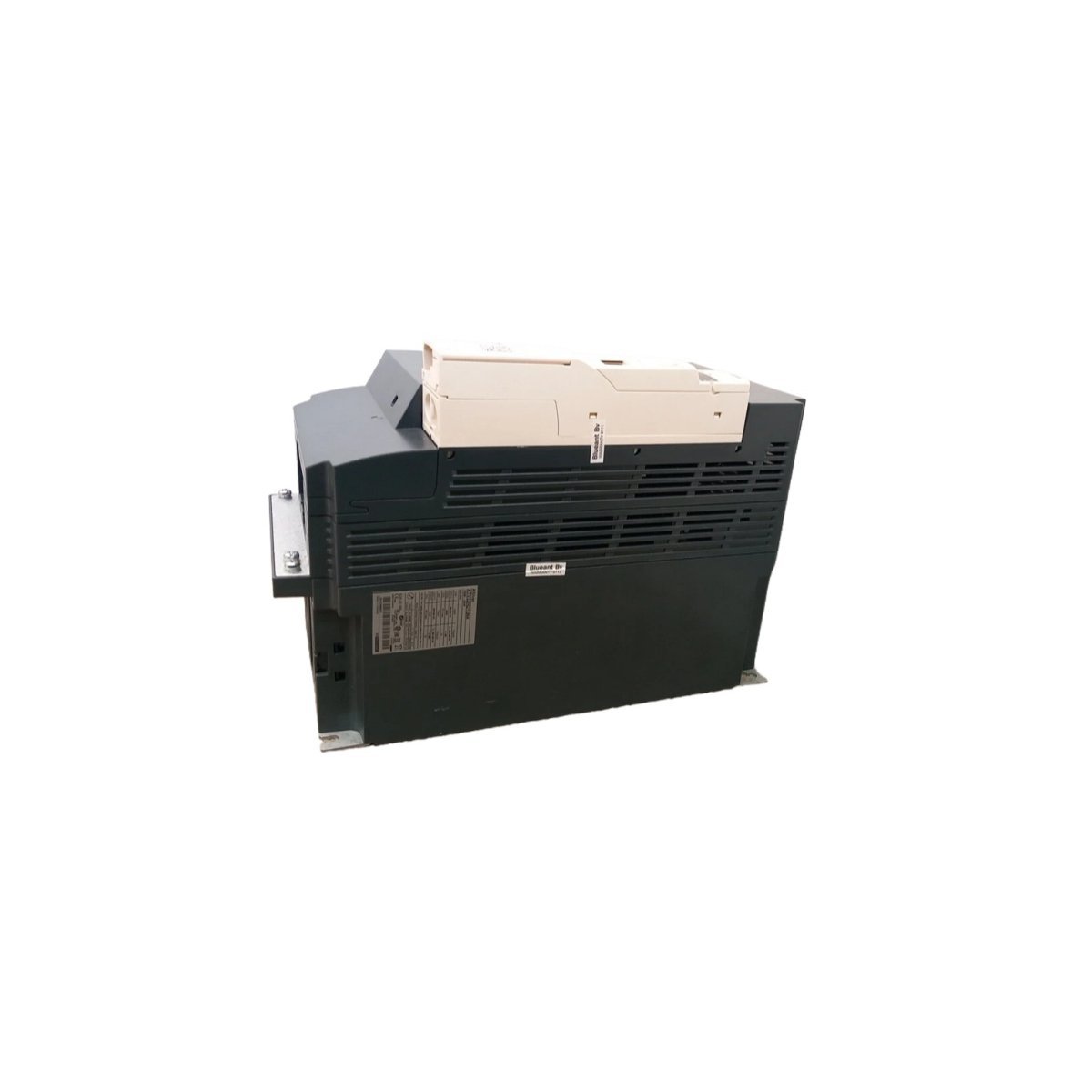

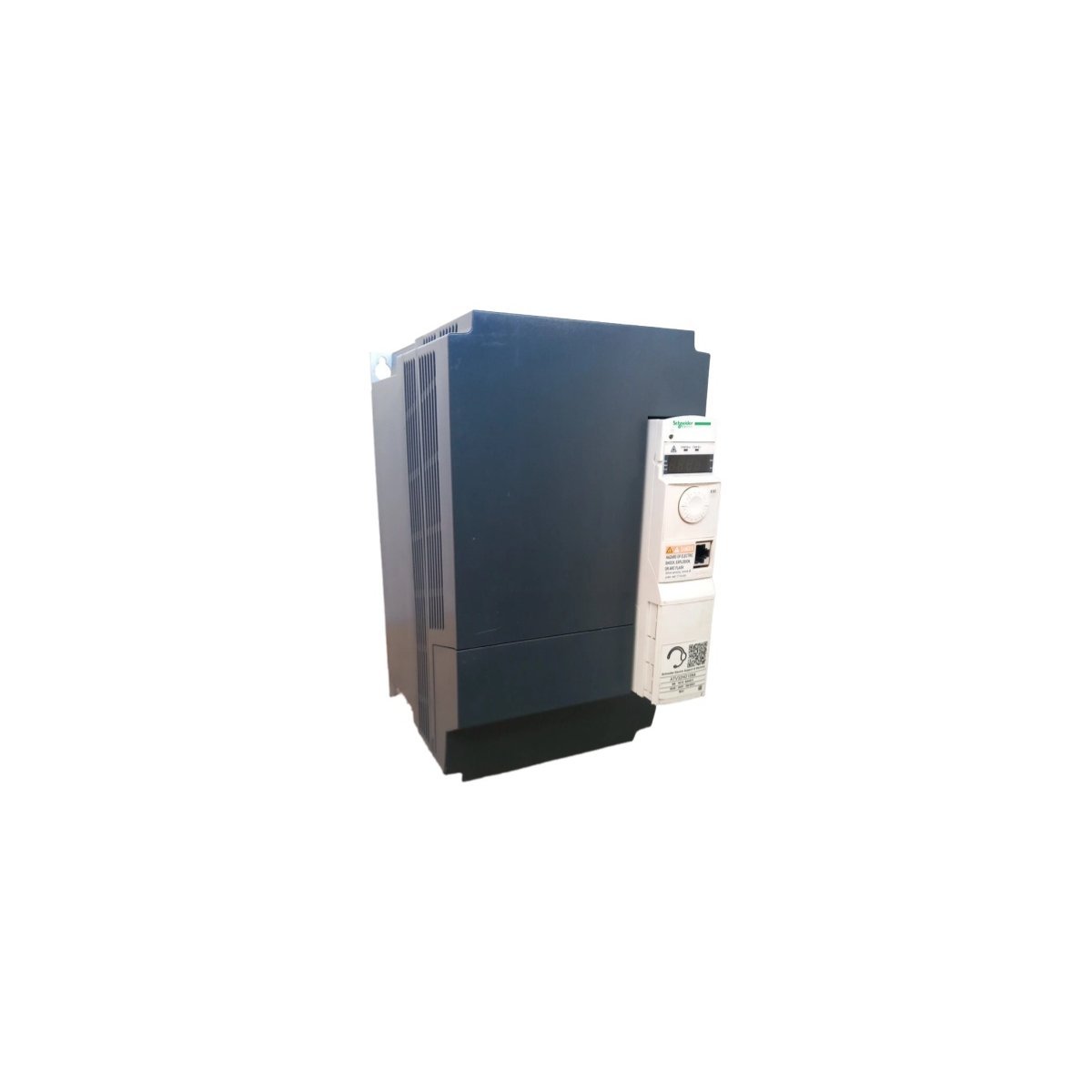

The Schneider Electric ATV32HD15N4 offers high-performance speed regulation for three-phase asynchronous and synchronous motors. This 15 kW (20 hp) drive belongs to the slim Altivar 32 series. It features a space-saving 180mm width to optimize control cabinet density. Furthermore, the unit operates on a 380V to 500V AC power supply. It manages demanding tasks in woodworking, metal processing, and textile manufacturing. This drive combines a small footprint with powerful torque capabilities. Consequently, it facilitates the design of more compact and efficient industrial machines.

Technical Specifications

• Brand: Schneider Electric
• Model Number: ATV32HD15N4
• Product Series: Altivar 32 (ATV32)
• Rated Power: 15 kW / 20 hp
• Input Voltage: 380V to 500V AC (Three-Phase)
• Continuous Output Current: 33A at 4 kHz
• Maximum Transient Current: 49.5A for 60 seconds
• EMC Filter: Integrated Class C2 filter
• Control Profiles: Flux vector control, Voltage/Frequency ratio (2 or 5 points)
• Safety Functions: STO, SLS, SS1, SMS, and GDL embedded
• Communication: Bluetooth, CANopen, and Modbus Serial integrated
• Protection Rating: IP20

Enhanced User Interface and Configuration

This Altivar 32 module supports several advanced interface options for streamlined operation. It includes a standard 4-digit LED display for quick status monitoring. Additionally, users can install an optional VW3A1101 graphic terminal for detailed text diagnostics. This external terminal provides dedicated navigation keys and a multi-function jog dial. Furthermore, the drive remains fully compatible with Schneider SoMove commissioning software. Technicians can easily back up, transfer, and duplicate parameter sets across multiple units. These digital tools significantly reduce the time required for system maintenance and troubleshooting.

Operational Safety and Environmental Resilience

The ATV32HD15N4 prioritizes machine safety with multiple embedded functional safety features. It includes Safe Torque Off (STO) and Safe Limited Speed (SLS) as standard. Moreover, the integrated heat sink ensures efficient thermal management during continuous heavy-duty cycles. The drive also features a snap-lock seal to protect internal settings from unauthorized access. An integrated EMC filter prevents electrical noise from disrupting nearby sensitive control circuits. Because of its robust French engineering, the hardware maintains high reliability in electrically noisy environments. This drive provides a dependable solution for complex automation and material handling applications.
