Description

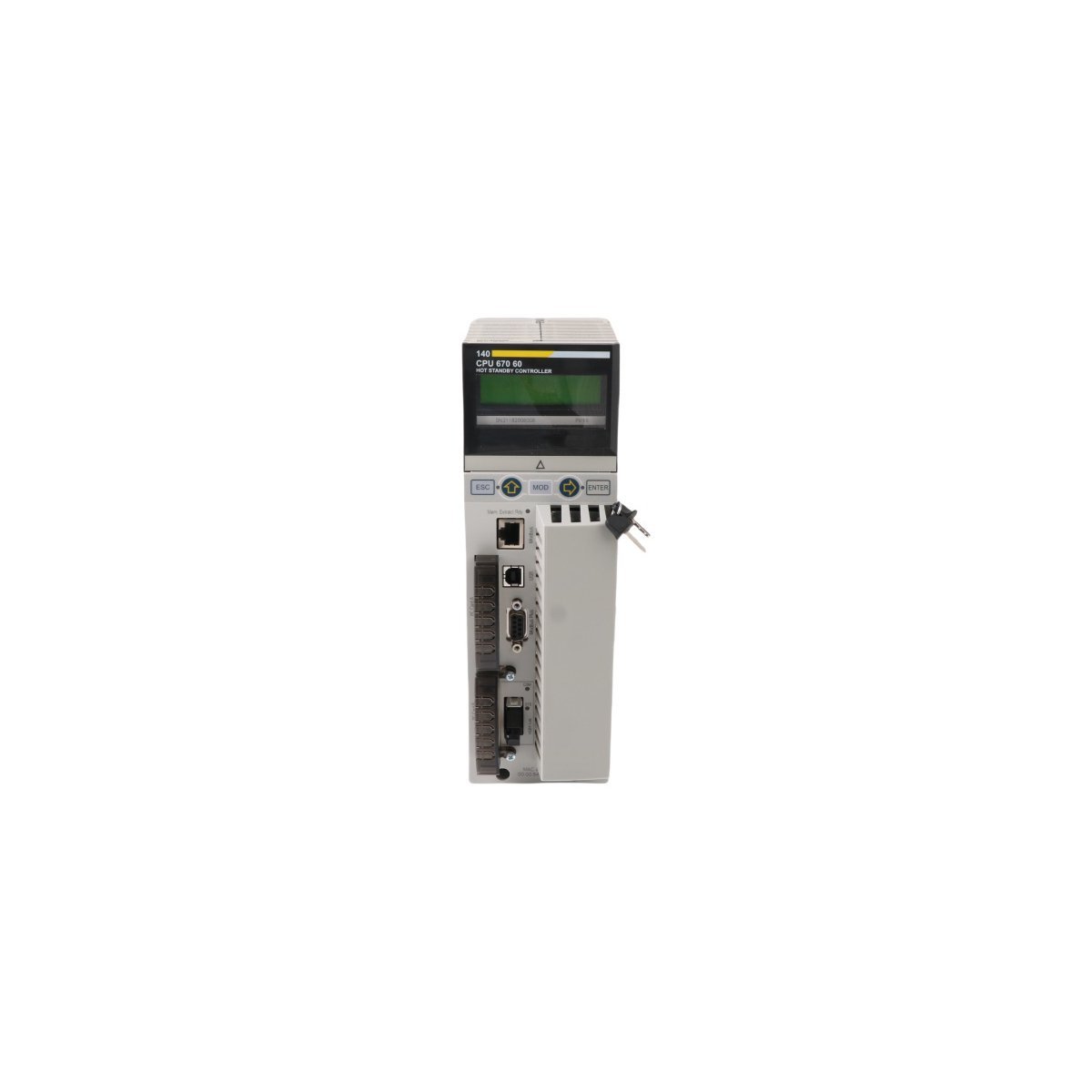

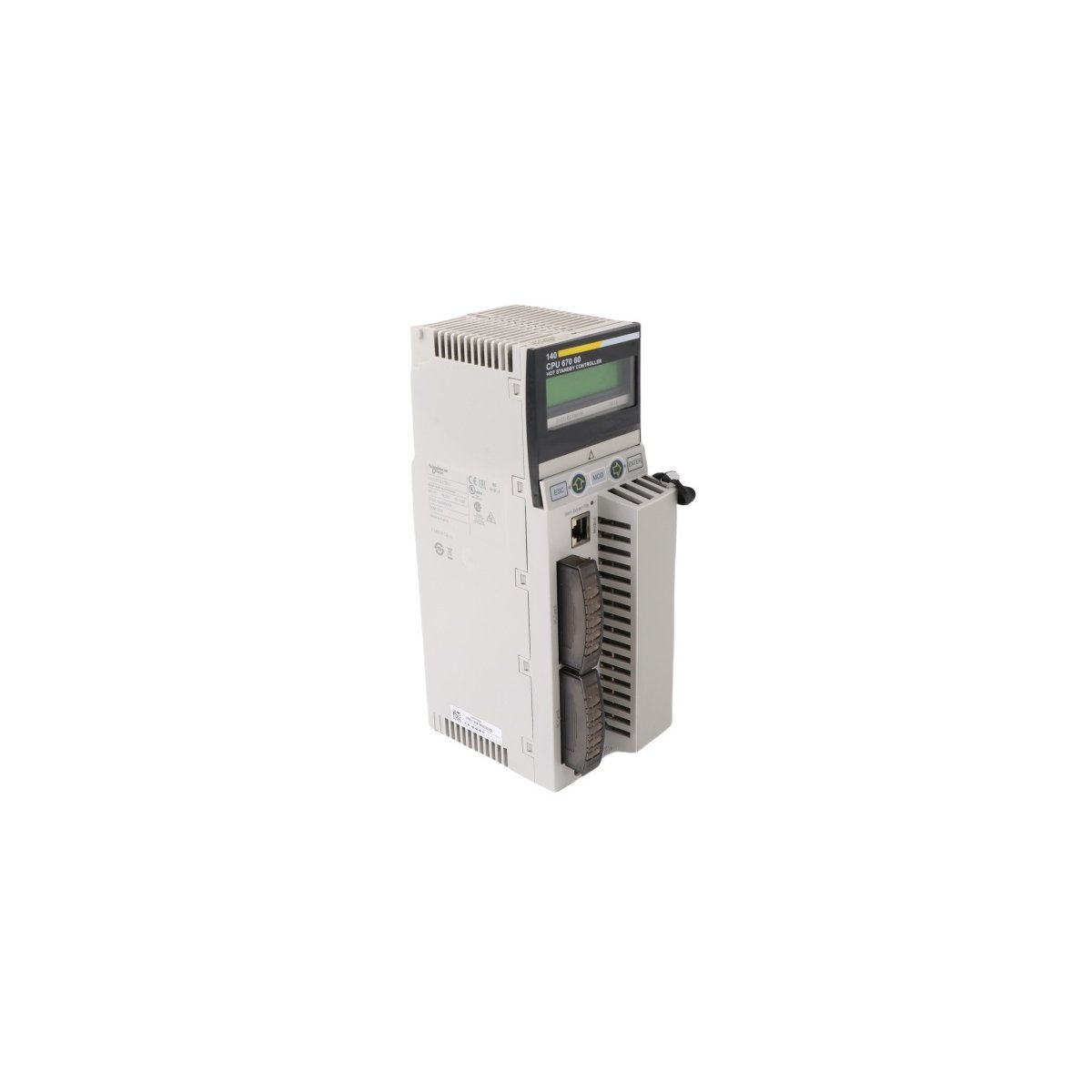

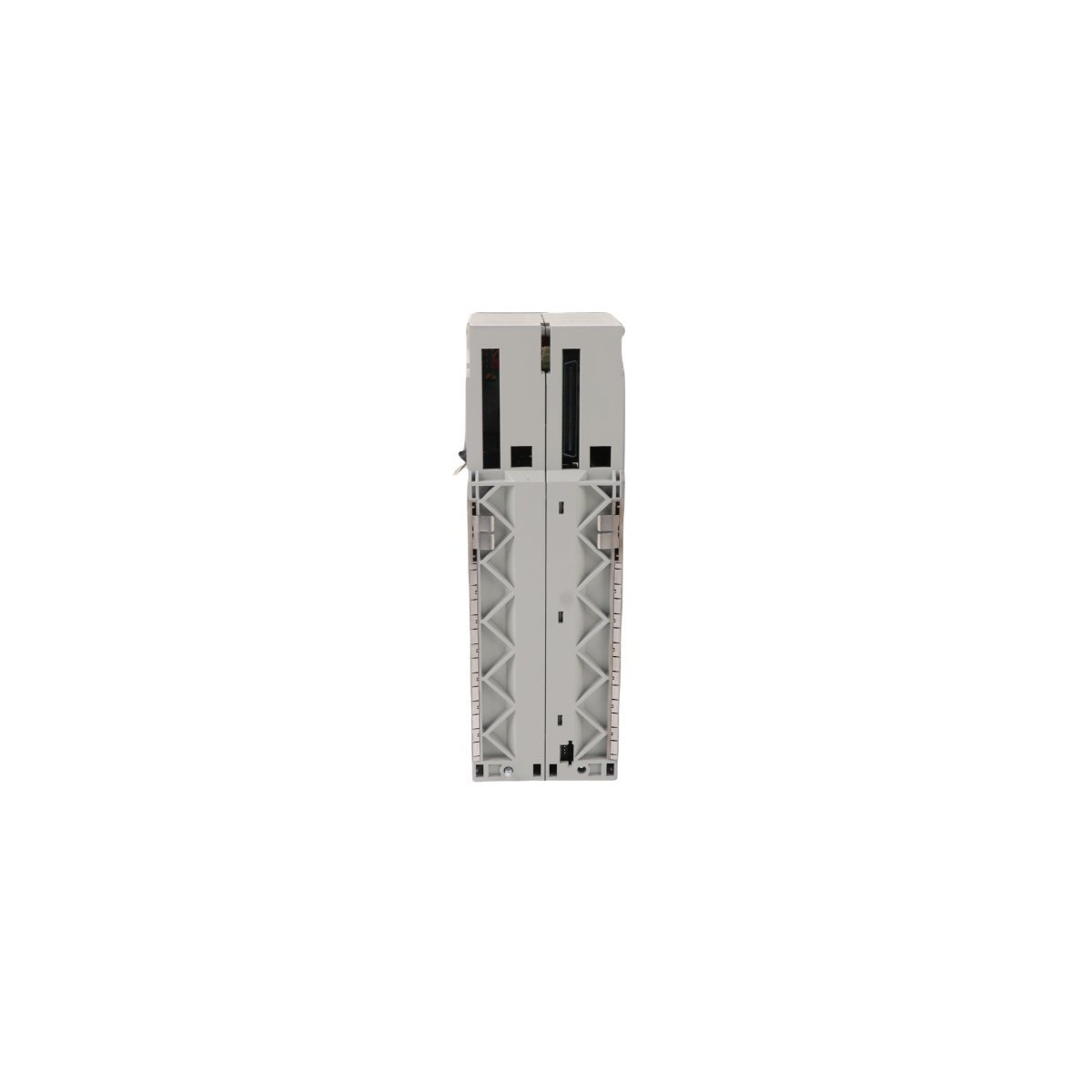

The Schneider Electric 140CPU67060 serves as a high-performance central processing unit within the Modicon Quantum automation platform. This Unity processor specifically handles mission-critical applications where system downtime is unacceptable. It operates at a clock speed of 266 MHz and features 1 MB of internal memory for program execution.

The module excels in high-availability environments by utilizing Hot Standby technology. This architecture maintains two synchronized processors. If the primary unit fails, the standby processor assumes control instantly without disrupting the process. This seamless transition protects industrial operations from costly interruptions.

Technical Specifications and Capabilities

Connectivity and Networking

Engineers benefit from integrated Ethernet capabilities that support diverse network topologies. The 140CPU67060 includes built-in ports for peer-to-peer communication and I/O scanning. The multimode fiber optic connection provides the high-speed data synchronization required for redundancy. This link ensures both processors share identical state data at every scan cycle.

Implementation Constraints in Redundant Systems

Redundant configurations impose specific software restrictions to maintain synchronization. Users must adhere to the following task limitations:

• System supports one cyclic or periodic master task.
• Fast tasks are prohibited in Hot Standby mode.
• The system restricts all I/O and timer interrupt tasks.
• Auxiliary tasks cannot run during redundant operation.
