Description

Brief Product Description

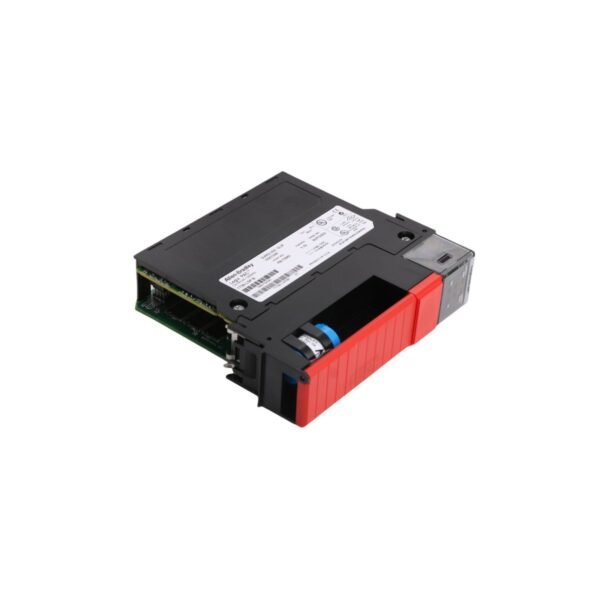

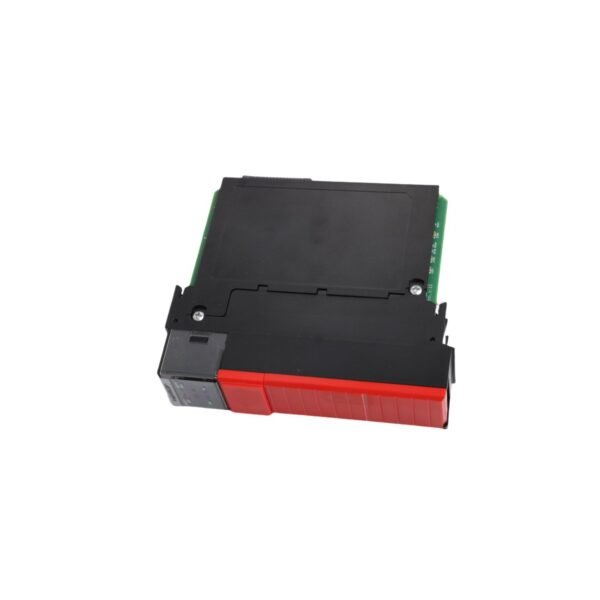

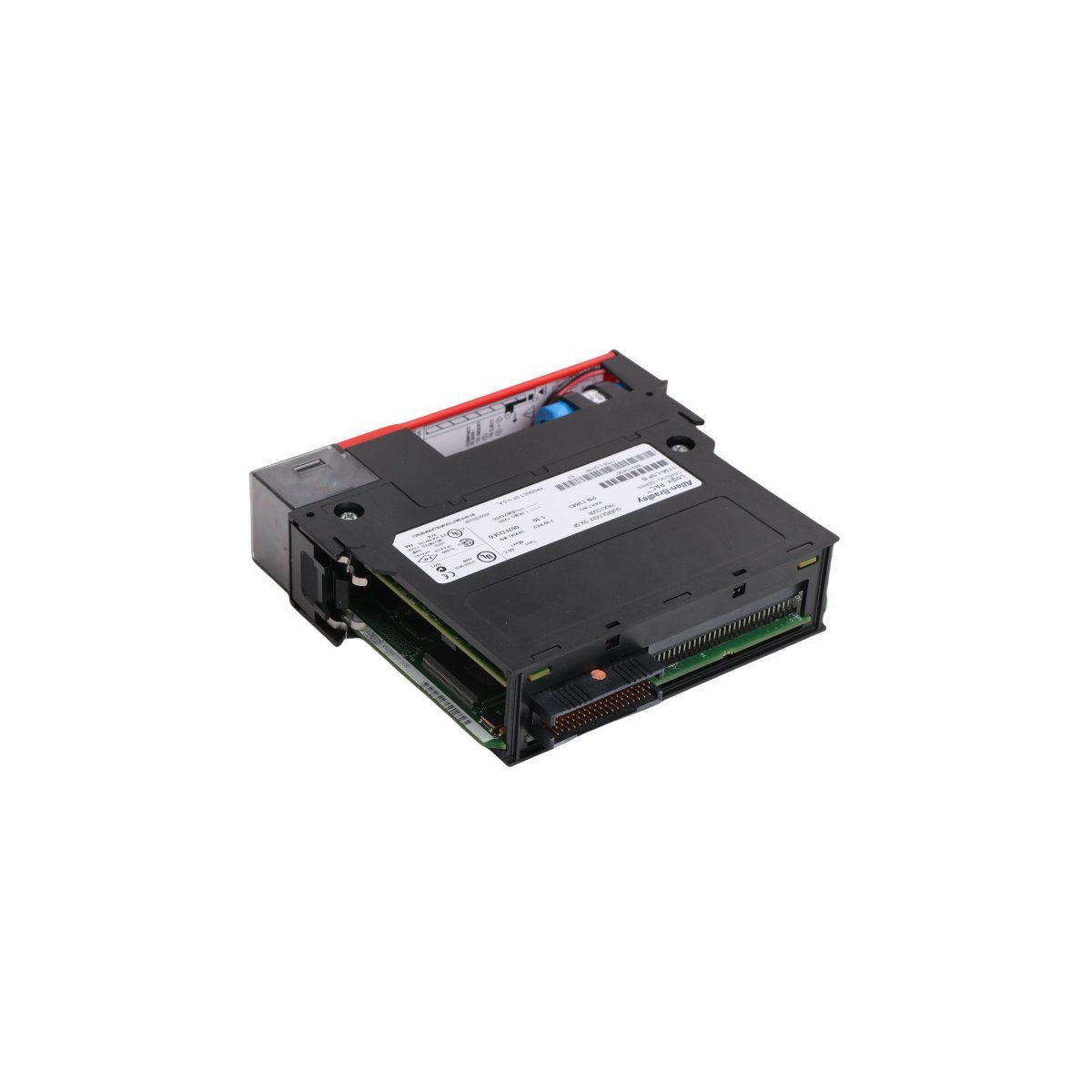

The Allen-Bradley 1756-LSP is a dedicated GuardLogix safety partner module that provides redundancy and secondary processing for 1756-L6xS primary controllers. This partnership enables the ControlLogix system to achieve high-integrity safety ratings, including SIL 3 and PLe, for mission-critical industrial applications.

​Product Description

High-Integrity Safety Architecture

The Allen-Bradley 1756-LSP functions as a vital safety co-processor within the Rockwell Automation GuardLogix ecosystem. By pairing directly with primary safety controllers like the 1756-L61S, 1756-L62S, or 1756-L63S, this module creates an isolated safety channel that verifies all logic execution. This 1-out-of-2 (1oo2) architecture ensures that the system satisfies the rigorous requirements of Safety Integrity Level 3 (SIL 3) and Performance Level e (PLe). To function correctly, the 1756-LSP must reside in the slot immediately adjacent to the primary controller, effectively consuming two chassis slots as a synchronized safety pair.

Memory Integration and Processing Dynamics

Unlike standard standalone controllers, the 1756-LSP does not host independent user memory for standard tasks. Instead, it mirrors and manages a portion of the primary controller’s safety memory, supporting up to 1MB for L61S/L62S models or 3.75MB for the L63S. This synchronization allows the partner module to perform cross-checks on safety instructions in real-time. While the primary controller handles key switching and external communications, the 1756-LSP maintains internal system reliability by providing the necessary redundancy for fail-safe operations. Furthermore, the inclusion of a CompactFlash slot offers non-volatile storage options for critical system data and firmware.

Electrical Performance and Environmental Durability

The 1756-LSP exhibits robust electrical characteristics, drawing 1200mA at 5.1V DC to support its high-speed processing logic. Its thermal management system limits power dissipation to 3.5 Watts, minimizing the heat load within the ControlLogix chassis. Built for harsh industrial environments, the module sustains reliable operation in temperatures ranging from 0°C to 60°C and features a high vibration and shock resistance rating of 30g. These specifications ensure that the safety partner maintains system integrity even in heavy manufacturing or high-vibration power generation settings.
