Product Overview

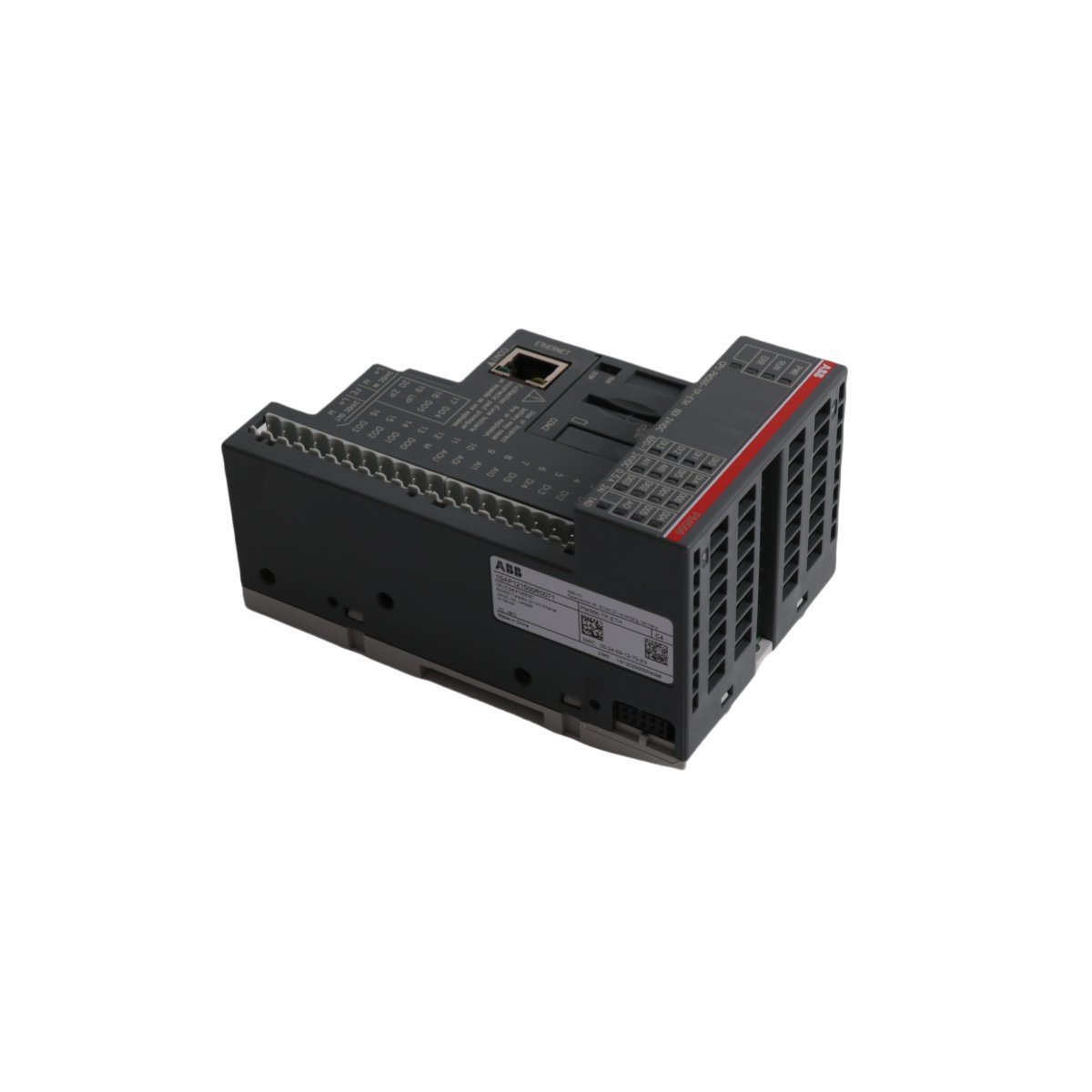

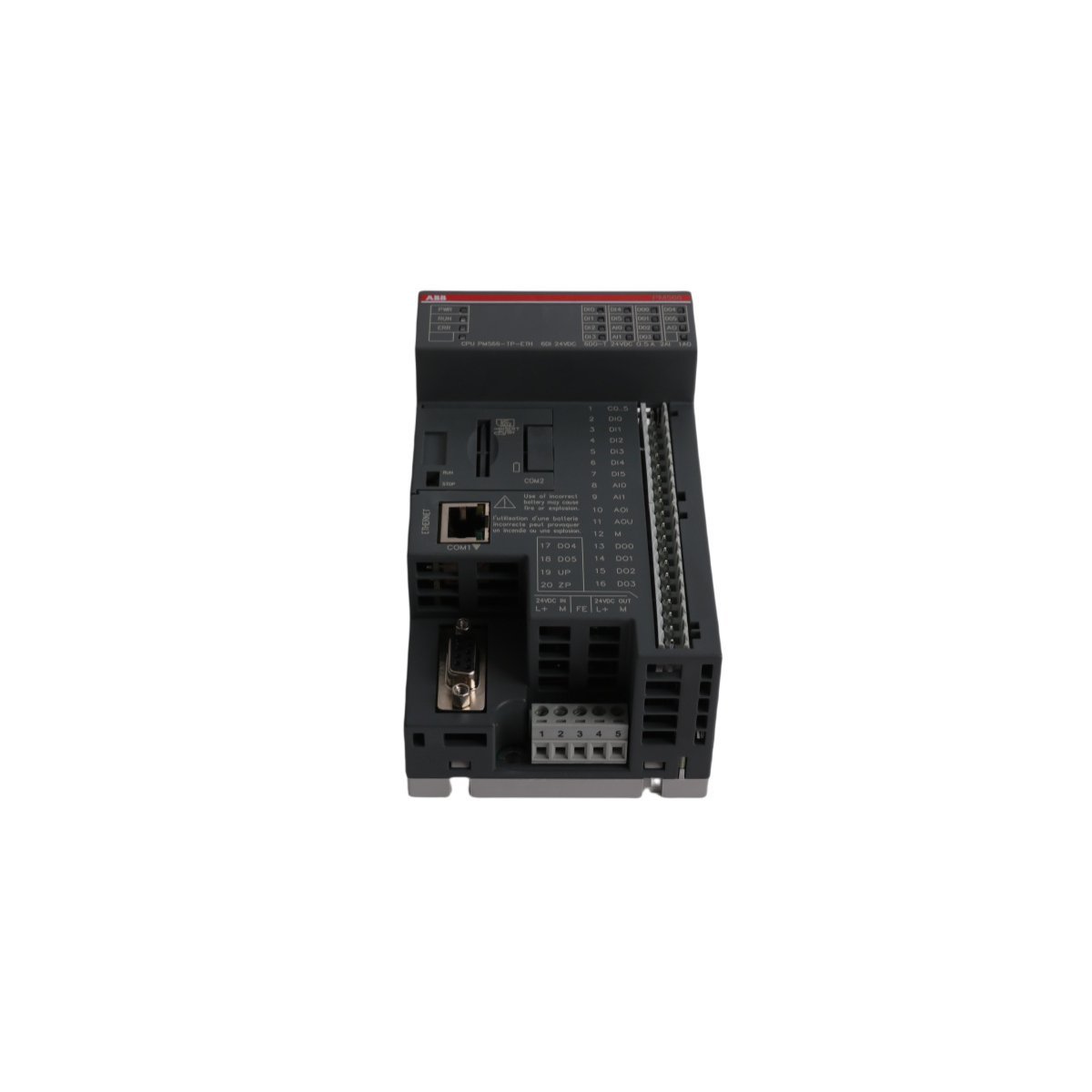

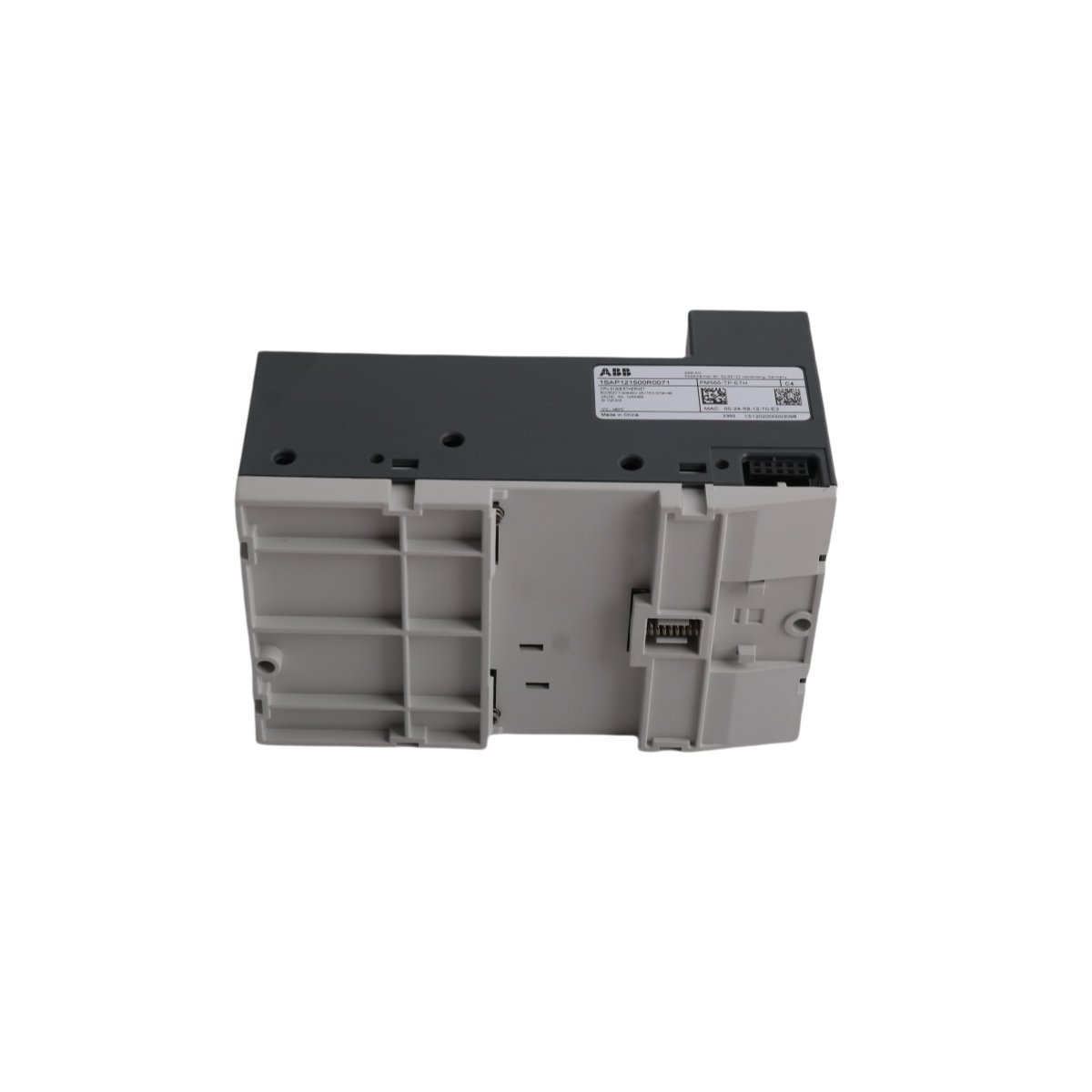

The ABB PM566-TP-EYH is a high-performance central processing unit designed for the AC500-eCo PLC range, delivering rapid execution for complex automation logic. This controller features a comprehensive suite of onboard digital and analog I/O, making it an all-in-one solution for localized machine control and distributed DCS applications.

High-Speed Processing and Memory Architecture

The PM566-TP-EYH stands out in its class by offering a remarkable controller speed of $0.08 \mu s$ ($0.00008 ms$) per instruction. This ultra-fast processing capability enables the unit to handle high-frequency pulse inputs and complex PID loops without latency. To support sophisticated user programs and data logging, ABB equips this processor with 642 kB of RAM. Consequently, the module manages large data arrays and intricate control code with ease, ensuring that machine performance remains fluid and responsive under heavy logic loads.

Versatile Onboard I/O and Expansion

This PLC integrates a versatile selection of inputs and outputs to reduce the need for external hardware. The hardware configuration includes 6 digital inputs and 6 digital outputs for discrete signal management, alongside 2 analog inputs and 1 analog output for continuous variable control. Furthermore, the PM566-TP-EYH features two dedicated option slots. These slots allow engineers to customize the controller with additional communication interfaces or specialized I/O modules, providing a scalable path for future system requirements without increasing the physical footprint.

Networking and Industrial Durability

Communication remains a core strength of the PM566-TP-EYH, as it natively supports both Ethernet and RS485 interfaces. These ports facilitate seamless integration into modern Industrial Internet of Things (IIoT) frameworks and legacy serial networks. The unit operates reliably on a standard 24 V DC power supply, maintaining stability even when the input voltage fluctuates between 20.4 and 28.8 V DC. Engineered in Sweden, the module utilizes a compact vertical housing that maximizes cabinet space while providing industrial-grade protection for its internal electronics.
