Description

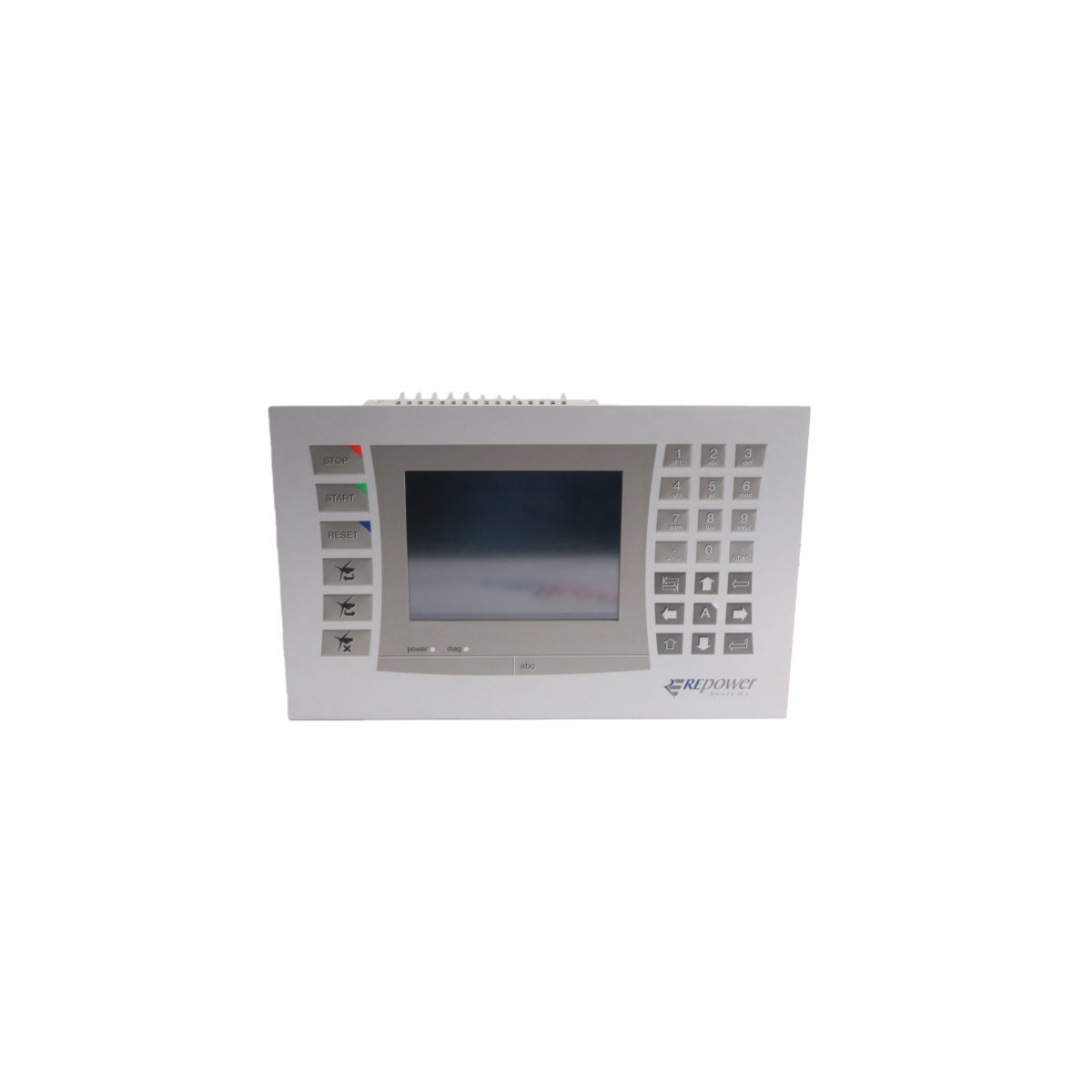

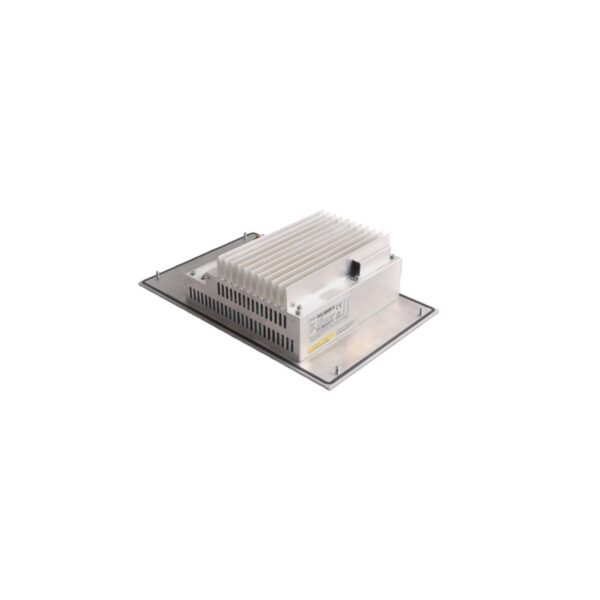

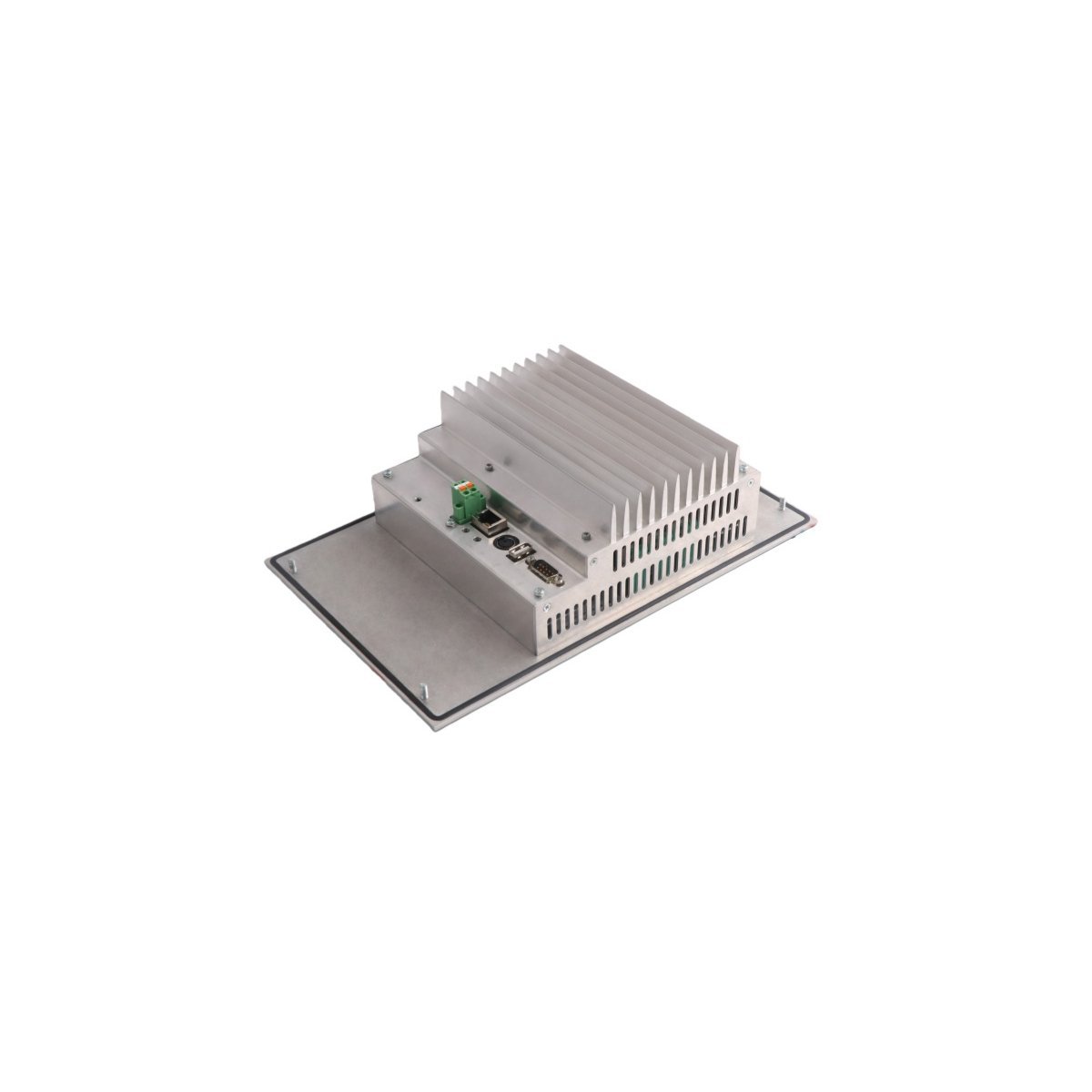

Bachmann LX700/DD256/CF512MB High-Performance Industrial Control Processor

The LX700/DD256/CF512MB is a sophisticated industrial computing module featuring 256MB of RAM and a 512MB CompactFlash memory interface, engineered to execute high-level control logic and data-intensive automation tasks.

Technical Operational Overview

The LX700/DD256/CF512MB represents a high-tier processing solution within the Bachmann M1 automation environment. This module significantly enhances computational throughput by integrating 256MB of dedicated DDR RAM with a 512MB CompactFlash (CF) storage capacity. This combination allows the controller to manage expansive application code and large local data structures without compromising cycle-time determinism. Consequently, the unit handles complex algorithmic processing and extensive data logging with superior stability compared to standard entry-level processors.

Efficiency remains a hallmark of this module’s design. It maintains high-speed 700 MHz operations while utilizing an optimized voltage architecture to minimize thermal output. This balance is critical for maintaining long-term reliability in sealed industrial cabinets where heat dissipation is a primary concern. Furthermore, the LX700/DD256/CF512MB provides seamless connectivity to the Bachmann backplane, allowing it to serve as the master coordinator for diverse I/O, communication, and safety modules. By centralizing high-capacity memory and processing power, this module reduces system latency and ensures the fluid execution of big data analytics and real-time simulations.

Key Technical Characteristics

• Enhanced Memory Architecture: Features 256MB of high-speed RAM paired with a 512MB CompactFlash card for reliable program storage and data retention.
• Optimized 700 MHz Processing: Delivers fast instruction execution times, making it suitable for high-precision motion control and complex process logic.
• Energy-Efficient Operation: Utilizes a low-voltage hardware design to reduce power consumption and extend the lifespan of internal electronic components.
• Seamless M1 Integration: Operates as a fully compatible member of the Bachmann M1 family, supporting standard configuration and diagnostic software tools.
• Ruggedized Industrial Design: Built to withstand the rigors of manufacturing environments, including high vibration and varying temperature ranges.
• Advanced Data Management: Facilitates rapid access to local variables and historical logs, accelerating the performance of integrated HMI and SCADA interfaces.

Product Specifications

Industrial Applications

The LX700/DD256/CF512MB excels in environments requiring significant data buffering and high-speed logic, such as:

• Wind Power Generation: Executing complex pitch control algorithms and logging long-term turbine performance data.
• Scientific Test Benches: Running high-frequency simulation models and managing extensive sensor feedback arrays.
• Virtualized Control Hubs: Serving as a central processor for multiple distributed I/O stations in large-scale manufacturing plants.
