Description

Brief Product Description

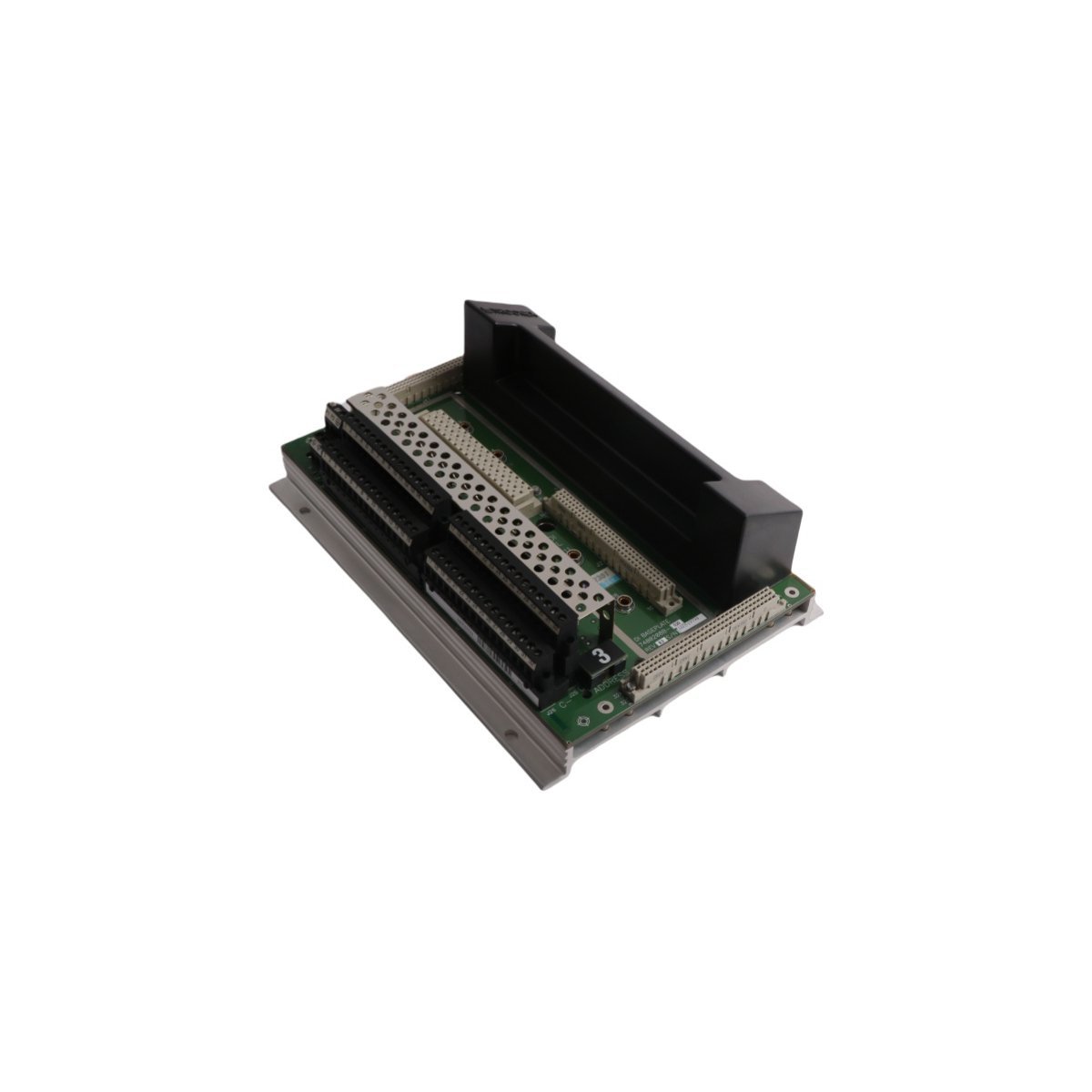

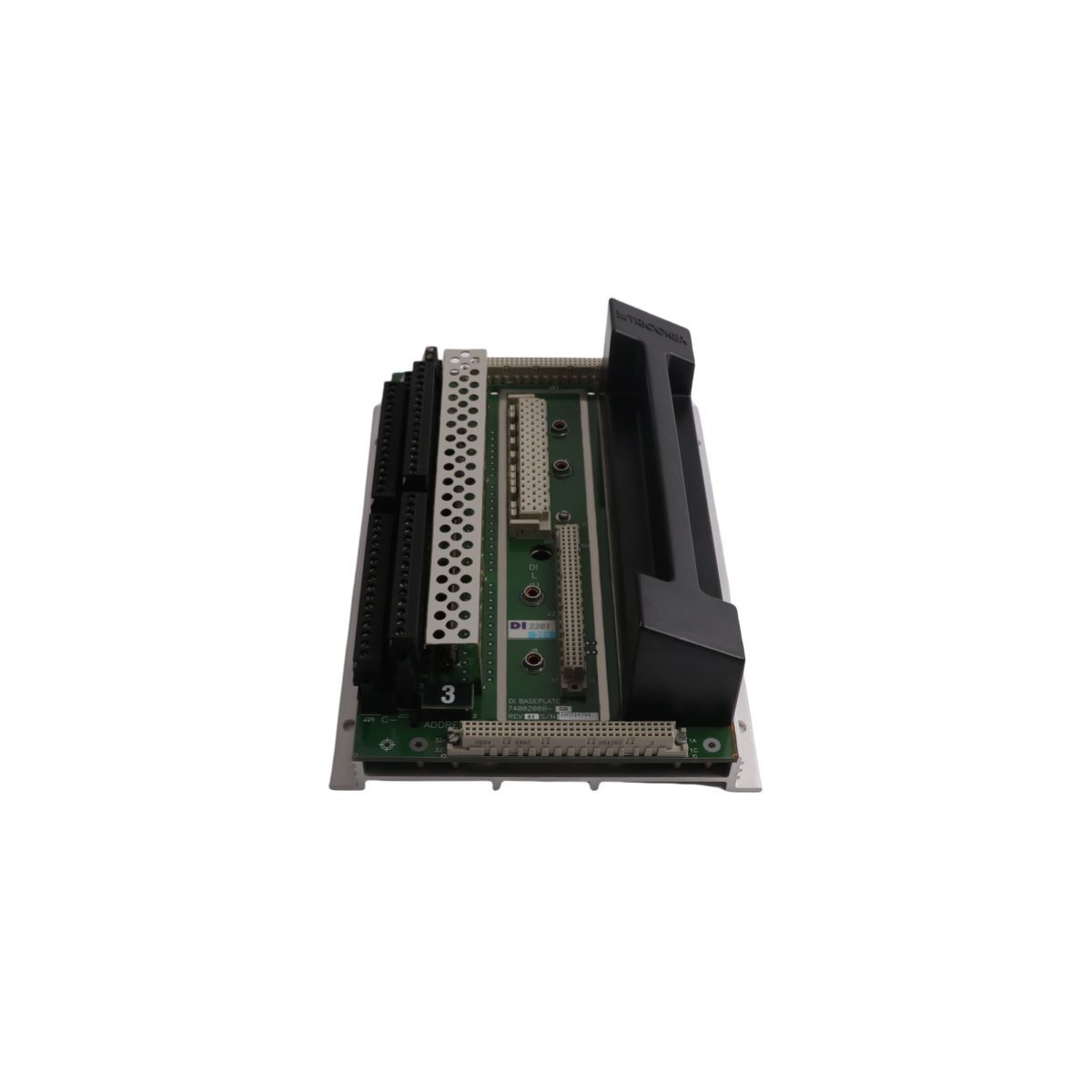

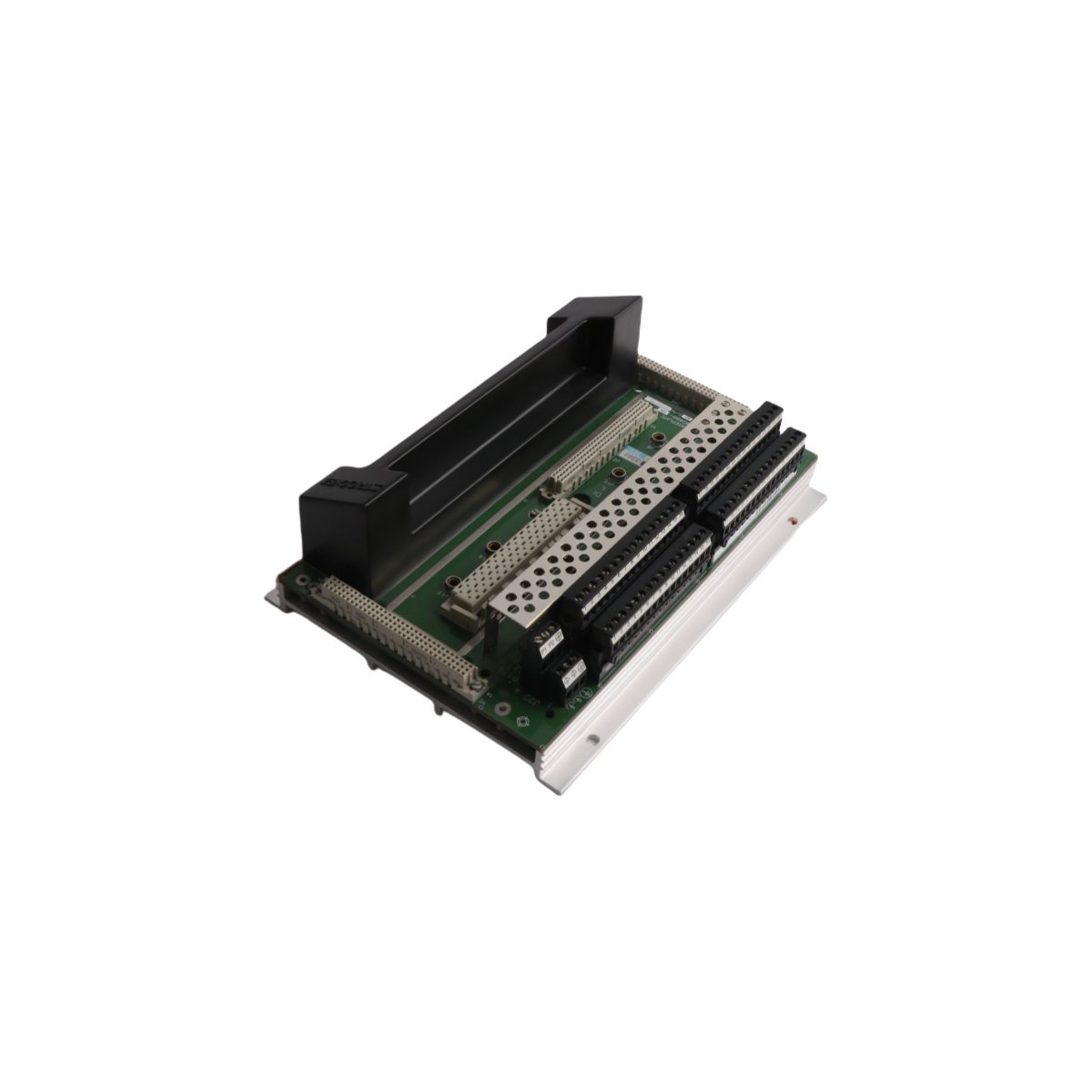

The Triconex 7400208B-020 DI2301 is a high-availability, 32-channel digital input card designed for Tricon safety-instrumented systems. It provides fast, fail-safe monitoring of 24VDC discrete field signals with SIL 3 certified reliability for mission-critical industrial processes.

Product Description

High-Integrity Discrete Signal Acquisition

The Triconex 7400208B-020 DI2301 serves as a core executive component within the Tricon v10 and v11 safety platforms. This module processes 32 independent digital input channels, converting field-side 24VDC signals into actionable data for the Triple Modular Redundant (TMR) controller. To ensure maximum signal purity, the card employs sophisticated optical isolation technology that provides 1500V AC/DC protection between channels. This level of isolation effectively prevents electrical noise or field surges from propagating through the backplane, thereby safeguarding the entire safety loop.

Real-Time Performance and Diagnostic Transparency

Modern industrial safety requires rapid intervention, and the DI2301 card delivers an ultra-fast response time of less than 10ms.¹ This speed allows the system to detect and respond to emergency shutdown (ESD) triggers or fire and gas (F&G) alarms before process conditions reach a critical state. Furthermore, the module enhances operational visibility through comprehensive channel-by-channel diagnostics. Integrated LED indicators provide immediate local status updates, while the system logic identifies potential field-side faults. This diagnostic transparency enables maintenance teams to target specific issues proactively, significantly extending the lifecycle of the safety instrumentation.

Rugged Engineering for Continuous Operation

Triconex engineered the 7400208B-020 for the uncompromising conditions found in offshore platforms, chemical refineries, and power generation facilities. The module operates reliably across a broad temperature spectrum from -40°C to +70°C and features a vibration-resistant build to withstand heavy industrial environments. Because process uptime is critical, the card supports hot-swapping functionality, which allows for live replacement without de-energizing the system. This capability ensures that the plant remains protected by the remaining redundant cards while a single unit is serviced, maintaining a strict SIL 3 safety integrity profile throughout the maintenance cycle.

Technical Specifications
