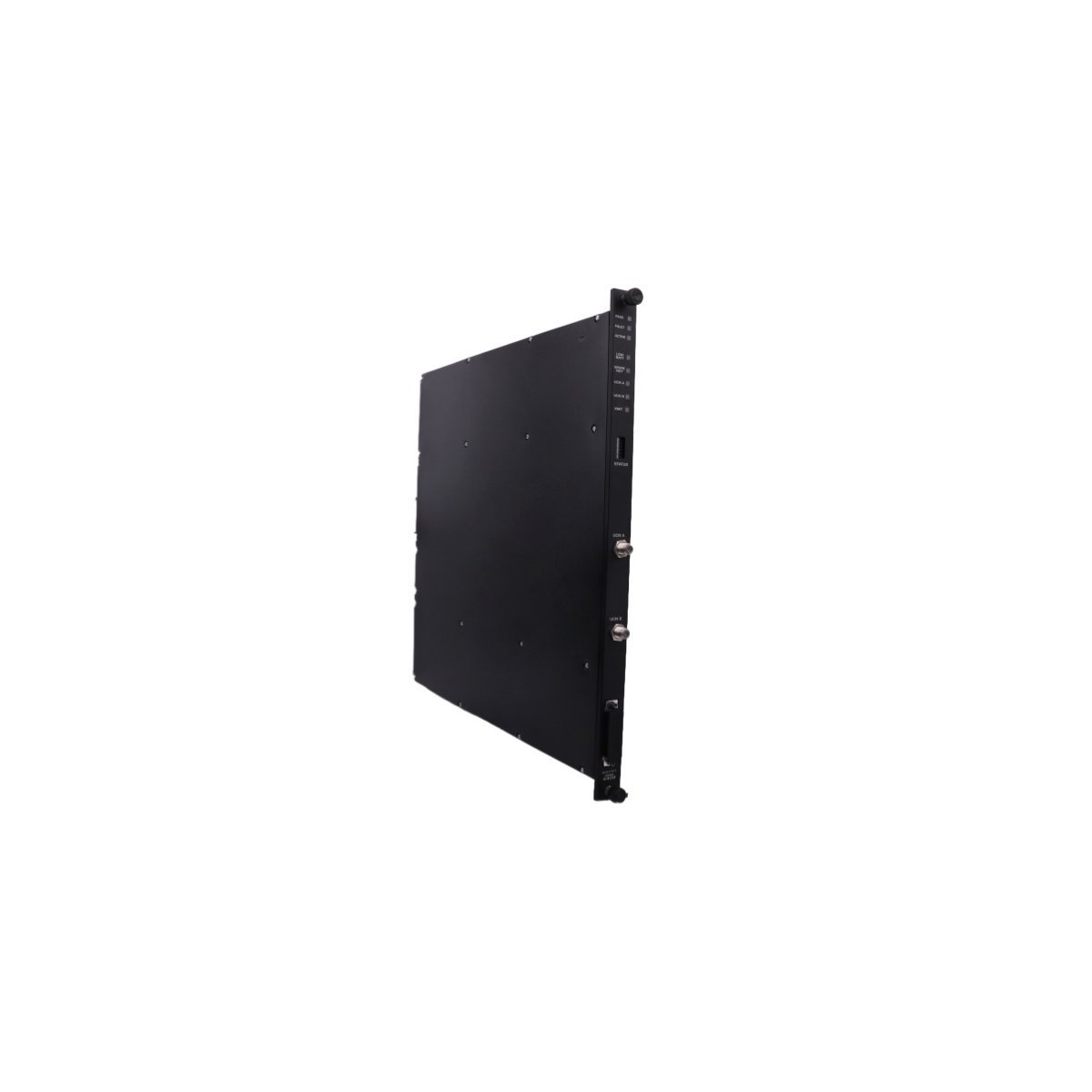

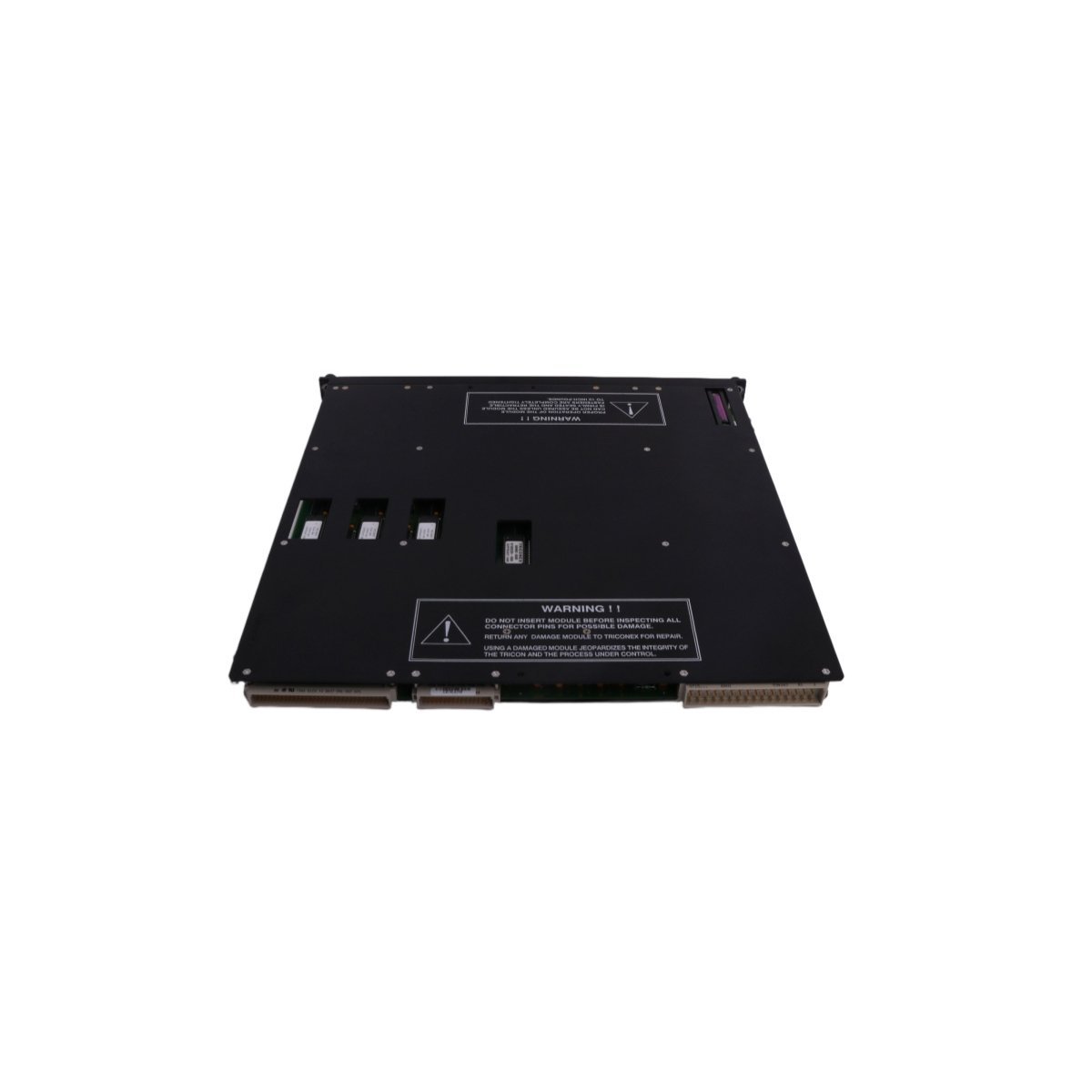

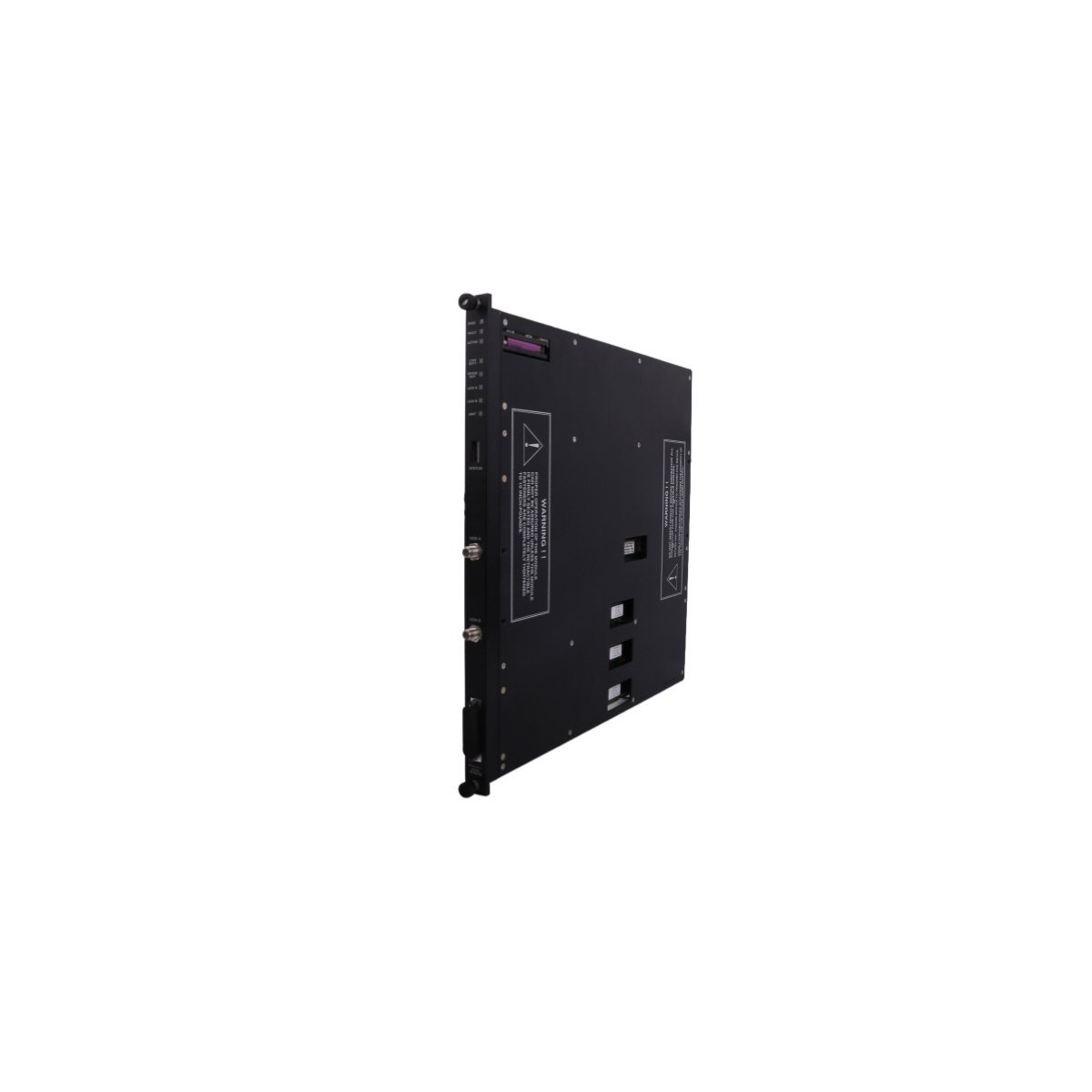

The Triconex 4409 SMM is a high-integrity safety manager module designed to execute complex safety logic within Triple Modular Redundant (TMR) architectures. It provides fault-tolerant control for mission-critical industrial processes, ensuring maximum uptime and adherence to global safety standards.

Product Description

High-Integrity Safety Logic Execution

The Triconex 4409 SMM (Safety Manager Module) serves as a primary command unit for sophisticated Safety Instrumented Systems (SIS). This module provides the computational power necessary to oversee up to 1024 safety loops, executing critical logic at an industrial-leading rate of 100,000 instructions per second. By utilizing a substantial 256 MB memory buffer, the 4409 ensures that large-scale safety configurations in chemical plants, refineries, and power generation facilities run with absolute precision and zero latency. Its design facilitates the seamless handling of complex emergency shutdown (ESD) and burner management (BMS) protocols.

Fault-Tolerant TMR Architecture

Operational continuity remains the hallmark of the 4409 SMM. The module employs a Triple Modular Redundant (TMR) architecture, incorporating three isolated processor and memory sets that operate in parallel. This hardware-based voting system allows the controller to identify, isolate, and compensate for a single point of failure without interrupting the process. Furthermore, the module performs rigorous continuous self-diagnostics. If the system detects a hardware discrepancy, it automatically transitions to a pre-defined safe state or relies on the redundant healthy processors, meeting the uncompromising reliability requirements of SIL 3 and SIL 4 certifications.

Versatile Integration and Connectivity

The Invensys Triconex 4409 offers extensive communication flexibility to ensure compatibility with modern Distributed Control Systems (DCS). It features integrated Ethernet, RS-232, and RS-485 ports, enabling high-speed data exchange and remote monitoring. Engineers can configure the unit to accept either 24 VDC or 120 VAC power inputs, allowing for easy integration into various global electrical infrastructures. Despite its powerful processing capabilities, the module maintains a manageable physical profile, making it a space-efficient yet indispensable component for any high-availability safety environment where failure is not an option.
