Description

Brief Product Description

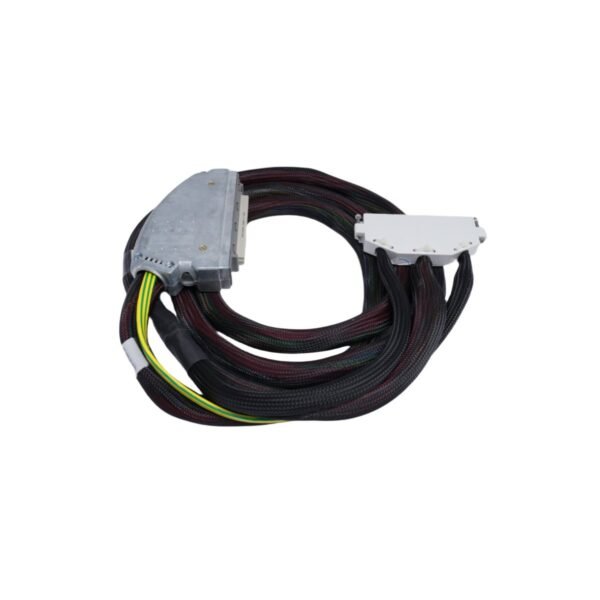

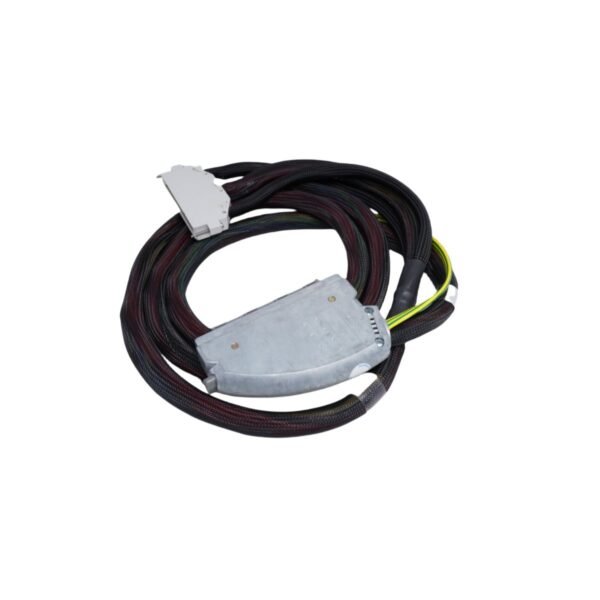

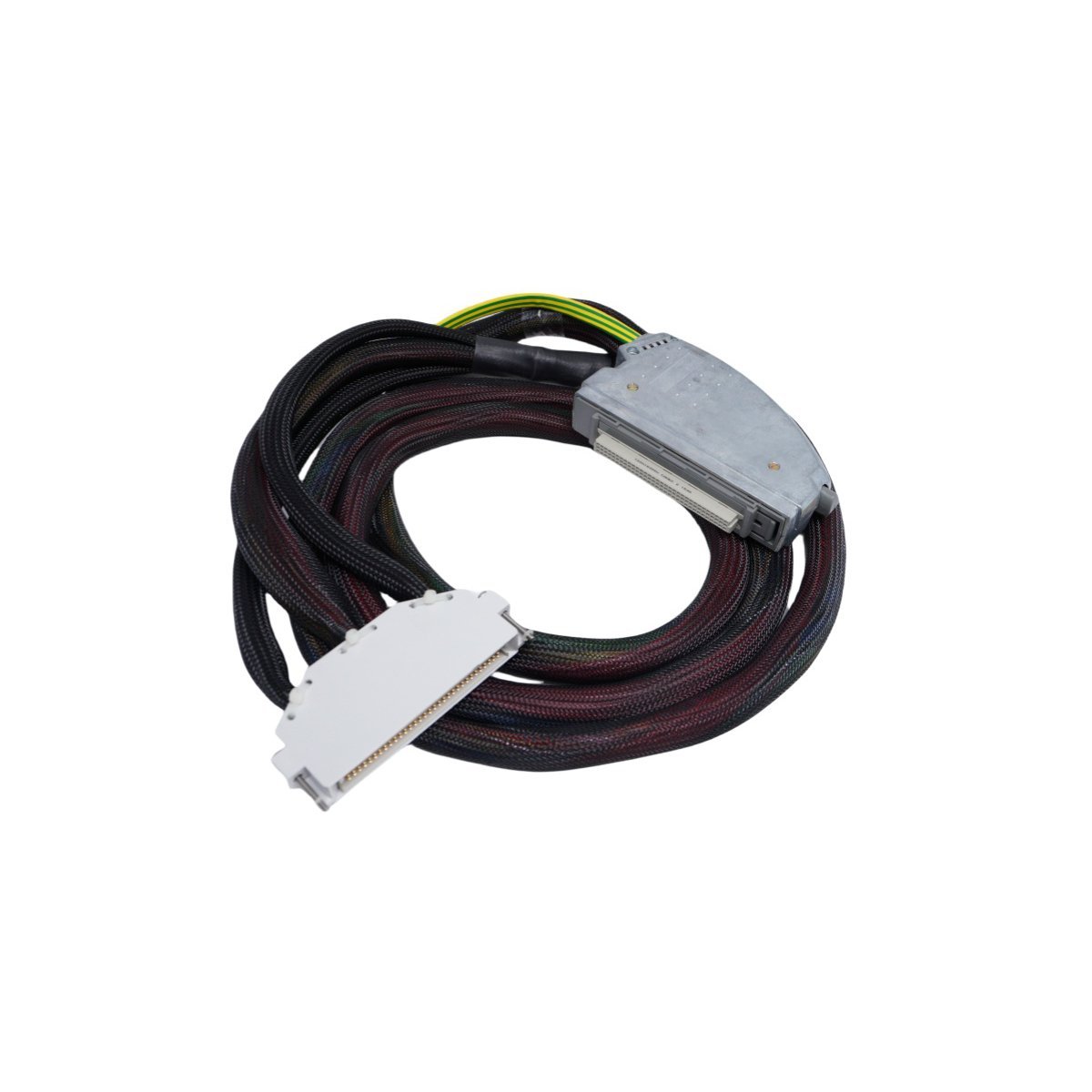

The ICS Triplex TC-501-02-6M5 is a high-integrity 6.5-meter SmartSlot cable designed to provide secure interconnectivity between Trusted I/O modules and Field Termination Assemblies (FTAs). This shielded assembly ensures reliable multi-channel signal transmission for Triple Modular Redundant (TMR) safety systems in critical industrial environments.

High-Integrity Signal Connectivity for Trusted Systems

The ICS Triplex TC-501-02-6M5 serves as a fundamental communication link within the Trusted TMR architecture. Specifically engineered to bridge the gap between chassis-mounted I/O modules and remote Field Termination Assemblies, this cable facilitates the seamless transfer of up to 40 analog or digital channels. Because it utilizes 96-way type ‘C’ and type ‘R’ connectors, the assembly guarantees a high-density, secure mechanical fit. Consequently, the TC-501-02-6M5 maintains strict signal fidelity, which is paramount for safety instrumented systems (SIS) where data accuracy directly impacts plant safety.

Advanced Shielding and Industrial Durability

Reliability in electrically noisy environments is a core requirement; therefore, the TC-501-02-6M5 incorporates comprehensive electromagnetic compatibility (EMC) features. The cable utilizes a braided shield connected at both ends to provide a continuous earth path, effectively neutralizing external interference. Furthermore, the external sheath consists of durable Rilgain nylon, which protects the internal conductors from mechanical wear and chemical exposure. Transitioning to the remote end, the cable features a dedicated green wire for screen earth termination, allowing technicians to establish a clean grounding point and prevent signal corruption in complex control loops.

Robust Mechanical Design for Demanding Sites

ICS Triplex engineered the TC-501-02-6M5 to thrive in the harsh conditions found in nuclear facilities and offshore oil platforms. The 1.5-meter stripped ends are heat-sealed to prevent fraying and moisture ingress, significantly extending the lifecycle of the termination. Moreover, the rugged connector housings withstand high levels of vibration, ensuring that the critical interface between the PLC and the field equipment remains intact during seismic events or heavy machinery operation. This attention to mechanical detail reduces maintenance requirements and prevents the intermittent signal loss often associated with standard industrial cabling.

Key Technical Characteristics

• 6.5-Meter Length: Provides ample reach for connecting centralized chassis to distributed termination cabinets.
• 96-Way Connector Configuration: Features industry-standard type ‘C’ and ‘R’ connectors for TMR module compatibility.
• Multi-Channel Support: Efficiently manages up to 40 individual signal channels within a single assembly.
• Enhanced Noise Immunity: Employs specialized braided shielding and earth conductors to minimize EMI/RFI.
• Protective Nylon Sheathing: Utilizes Rilgain material for superior resistance to abrasion and industrial chemicals.
• Heat-Sealed Terminations: Protects individual wire ends to ensure long-term connectivity and prevent conductor degradation.

Technical Specifications
