Description

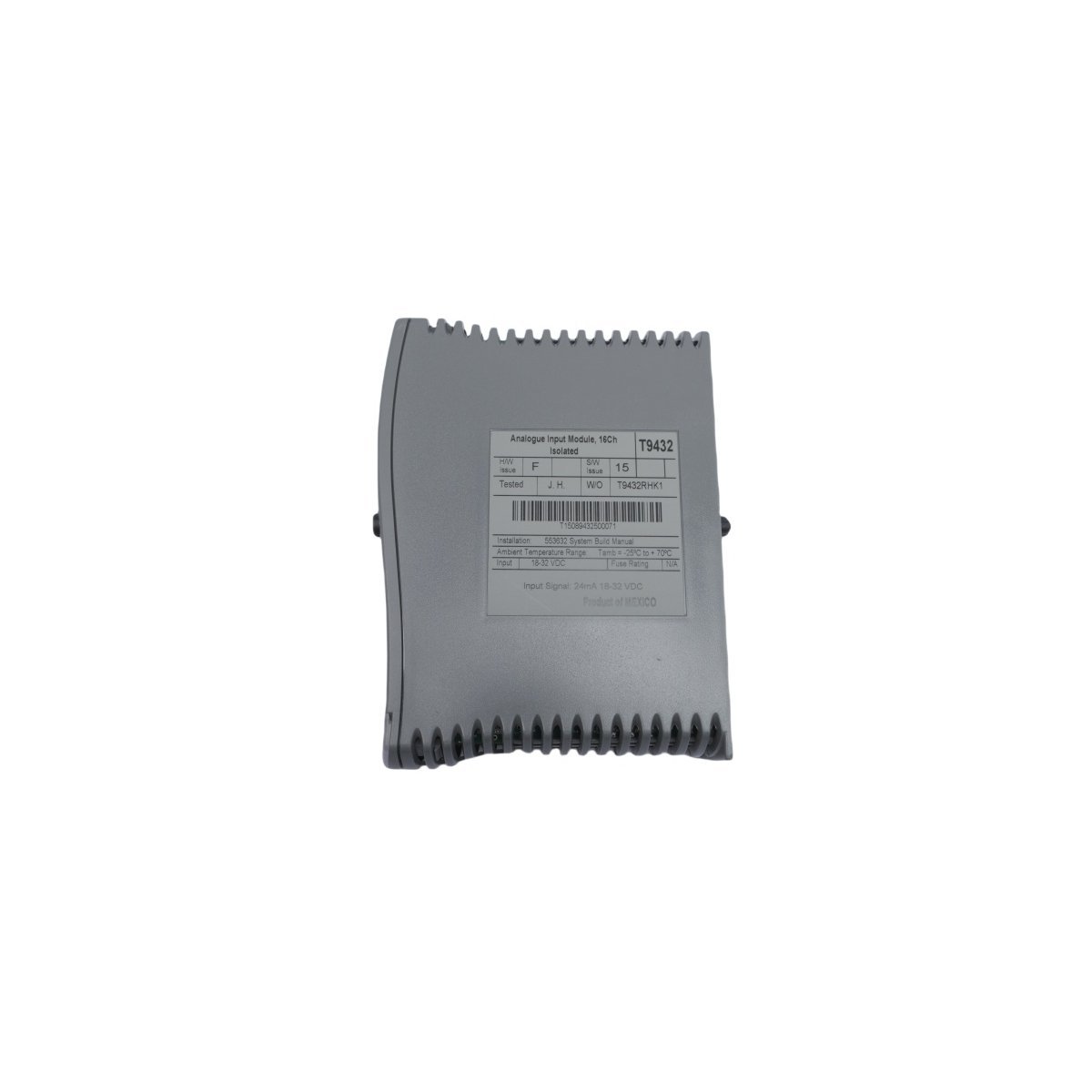

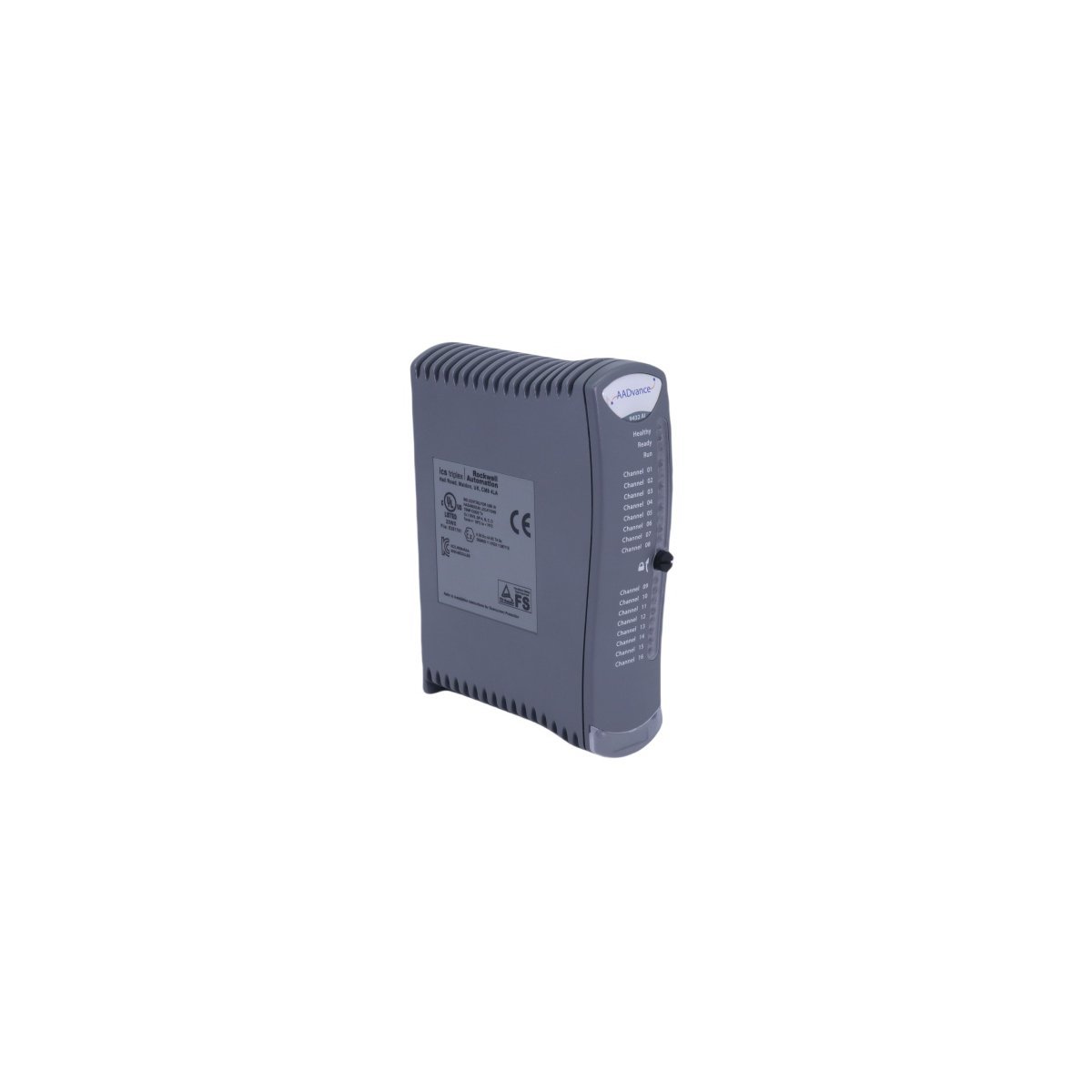

The ICS Triplex T9432 functions as a specialized interface within the AADvance safety controller platform. This module features 16 isolated channels designed for high-accuracy current measurement. Because it supports a broad input range from 0 mA to 24 mA, it integrates easily with standard industrial transmitters. The T9432 delivers both real-time analog values and discrete digital status data to the central processor. Consequently, it provides a comprehensive overview of field device performance and health. This hardware remains critical for facilities requiring SIL-rated monitoring and fault-tolerant architecture.

Technical Specifications and Hardware Profile

Configurable Monitoring and Diagnostics

Engineers can customize each of the 16 inputs via the AADvance Workbench software. Every channel supports five distinct voltage bands to define operational zones. Furthermore, the module includes eight adjustable switching thresholds with built-in hysteresis. This high level of configurability enables advanced line monitoring and fault detection. The system can distinguish between normal operation, open circuits, and short-circuit conditions. Therefore, maintenance teams can identify field wiring issues before they cause process trips.

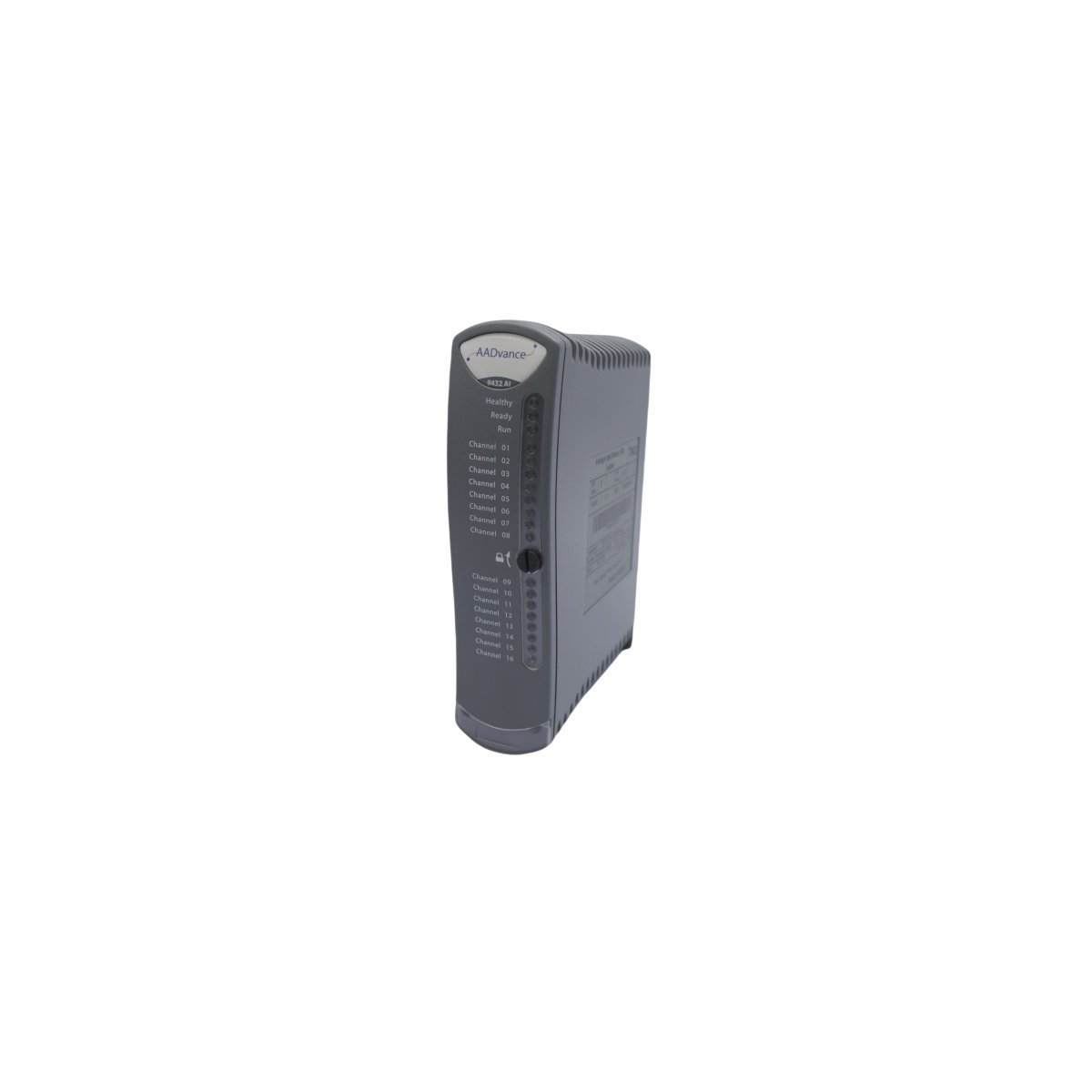

Comprehensive diagnostics operate at both the system and individual channel levels. The front panel features dedicated LEDs for immediate local status verification. Additionally, these status indicators map directly to application variables within the control logic. This dual-layer feedback ensures that operators have constant visibility into the module’s integrity. The compact 0.36 kg design also facilitates high-density installation in modern control cabinets.

Industrial Applications and Strategic Use

The ICS Triplex T9432 performs reliably in the most demanding safety-critical sectors. Typical deployments include:

• Fuel and air flow monitoring in burner management systems
• Pressure sensing for high-integrity protection loops (HIPPS)
• Gas concentration analysis in hazardous environments
• Temperature monitoring for critical chemical reactors
• Liquid level tracking in emergency shutdown (ESD) applications

Because the module uses isolated channels, it prevents ground loops from affecting signal accuracy. This isolation also protects the internal system logic from field-side electrical surges. Moreover, the hardware supports hot-swapping to ensure continuous system availability during repairs. By utilizing the T9432, industrial facilities maintain peak safety standards while optimizing process uptime. This module represents a versatile and robust solution for modern industrial automation.
