Description

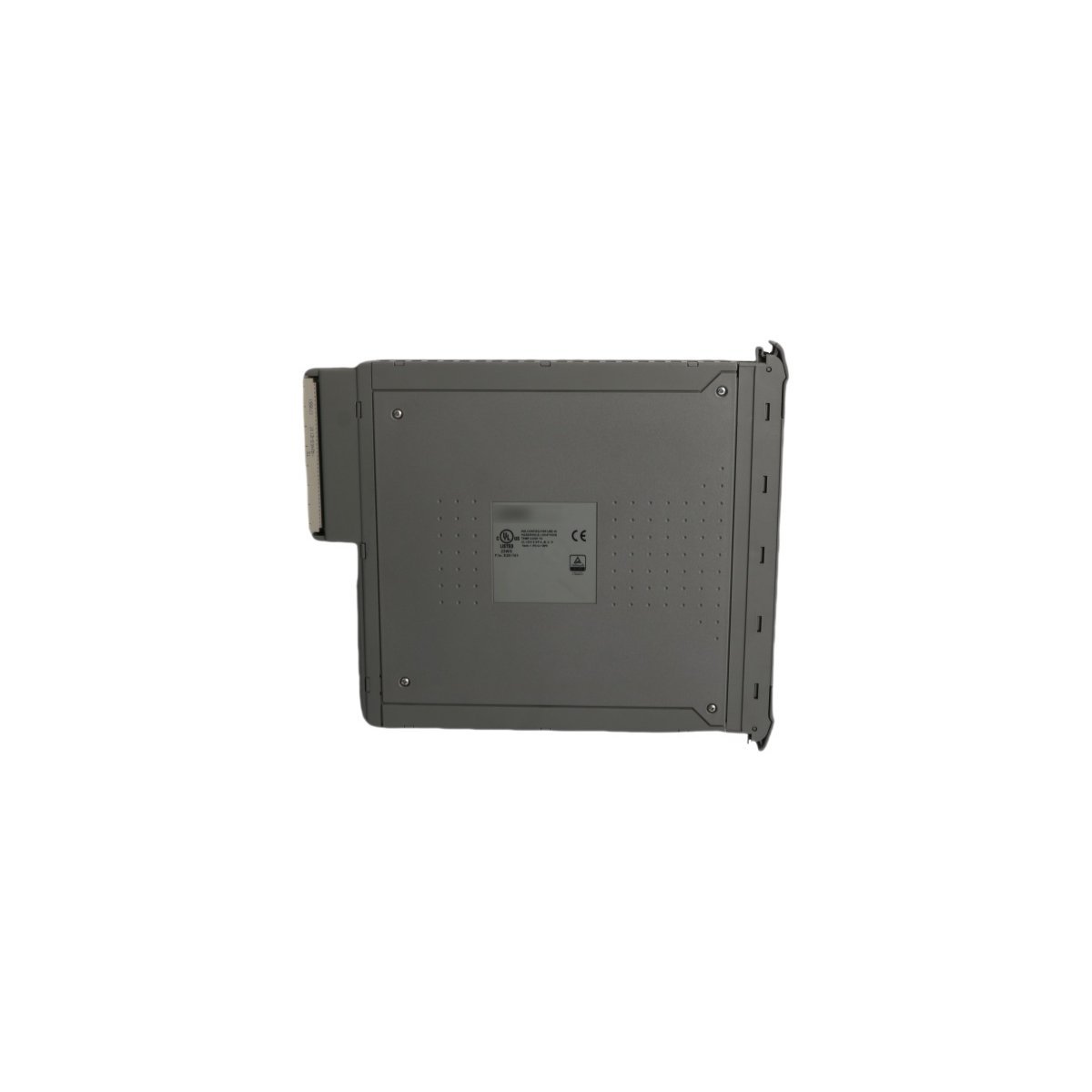

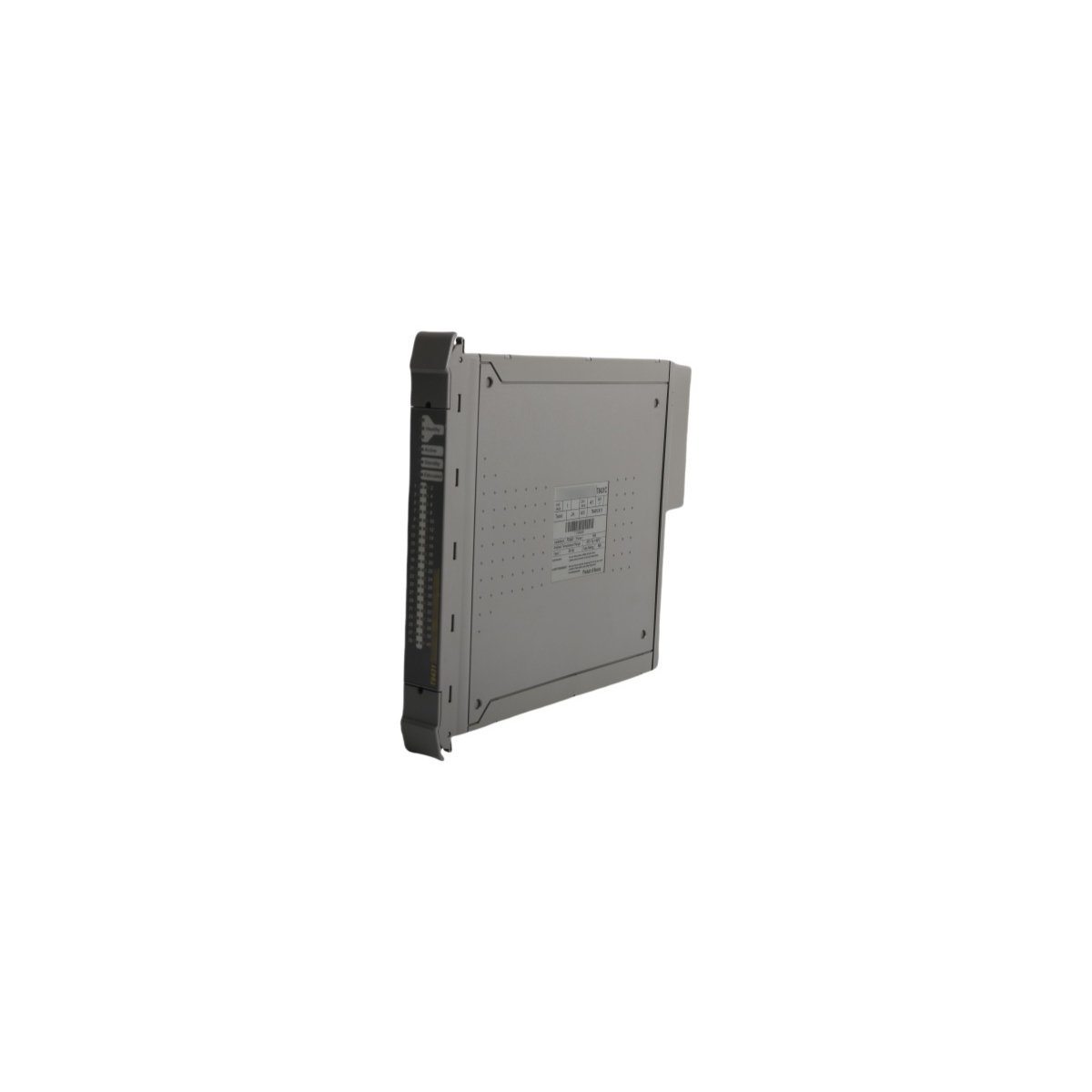

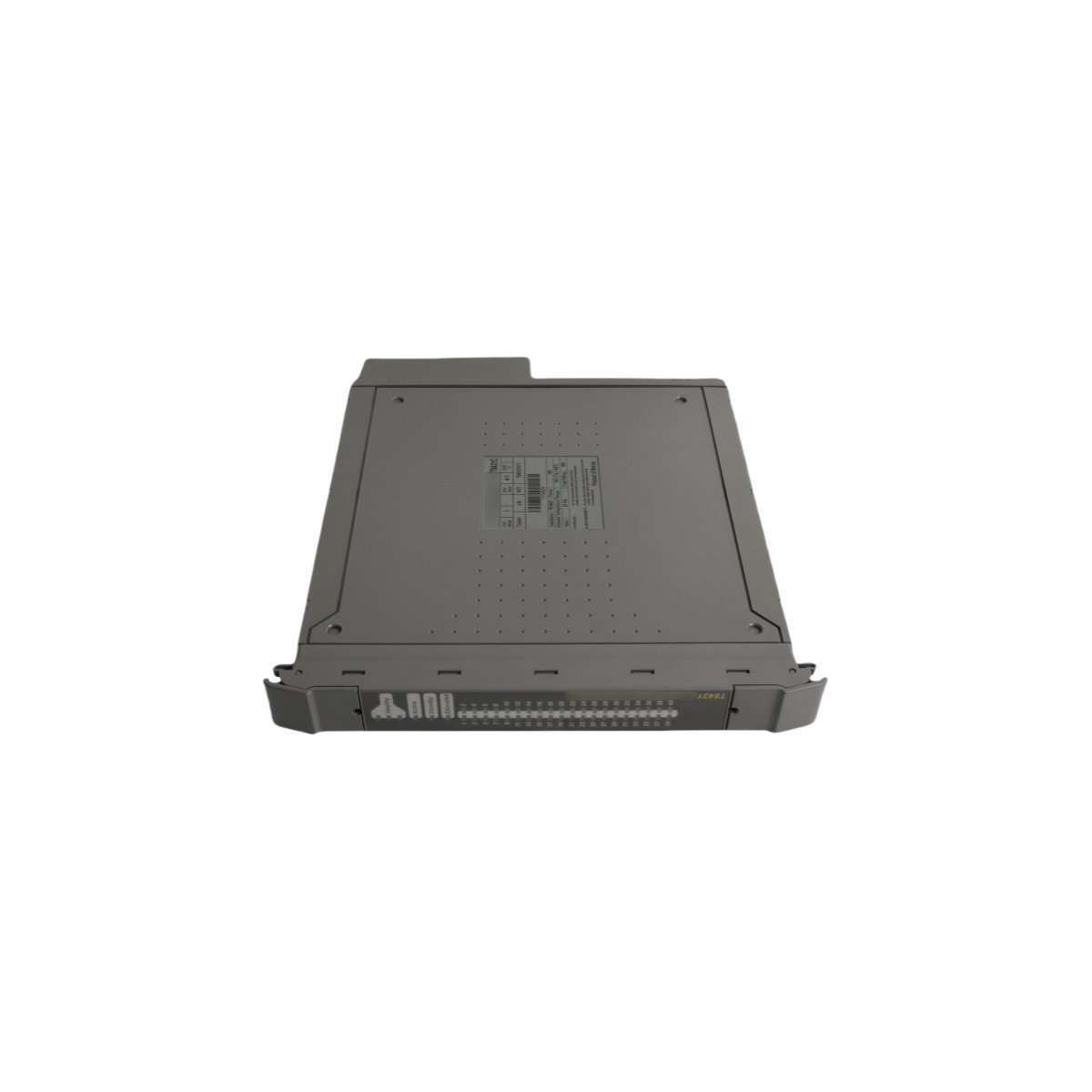

The ICS Triplex T8431C serves as a high-integrity interface for the Trusted Triple Modular Redundant (TMR) system. This 24Vdc analog input module provides 40 independent channels for critical industrial monitoring. Because it utilizes a fault-tolerant architecture, the module ensures continuous operation in SIL3 safety applications. It manages signals from diverse field sensors with extreme precision. This hardware remains a cornerstone for high-availability process control within the Rockwell Automation ecosystem.

Technical Specifications and Hardware Profile

Functional Characteristics and Safety Features

The T8431C module employs a Triple Modular Redundant voting mechanism to eliminate single points of failure. Three parallel signal paths cross-validate every input before the controller processes the data. This design significantly enhances system reliability in hazardous environments. Furthermore, the module features advanced opto-galvanic isolation to protect internal logic from external electrical surges.

Integrated line monitoring tools detect open circuits and short circuits on each individual channel. Consequently, maintenance teams can identify field wiring issues before they cause system trips. The module also supports 1ms resolution for Sequence of Events (SOE) recording. This capability allows for precise forensic analysis during process disturbances.

Strategic Industrial Applications

The T8431C excels in sectors where system downtime carries significant safety or financial risks. Typical deployments include:

• Emergency Shutdown Systems (ESD) in petrochemical refineries
• Burner Management Systems (BMS) for utility boilers
• Fire and Gas (F&G) detection networks in chemical plants
• Critical process monitoring in offshore oil platforms
• Turbine and compressor control in power generation
