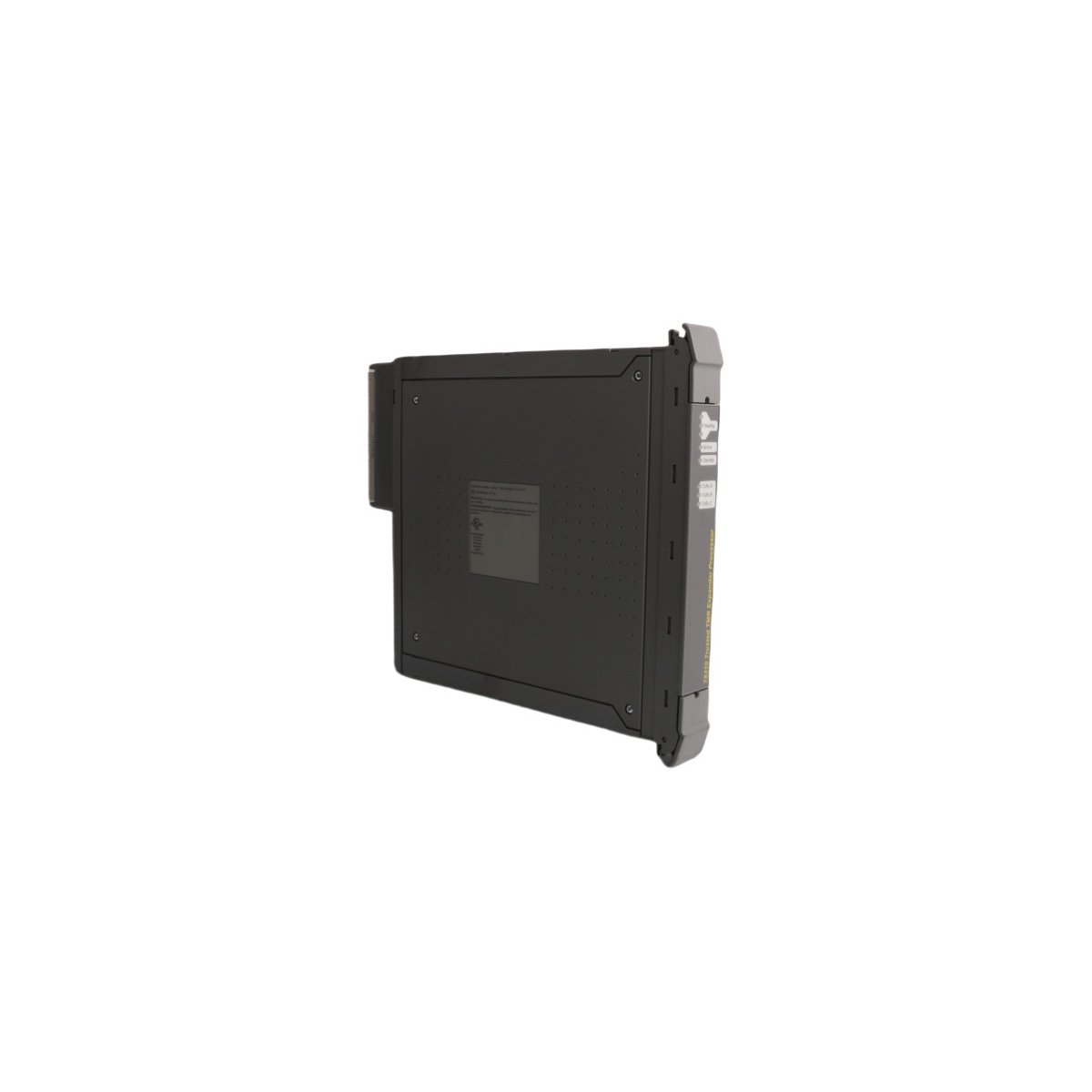

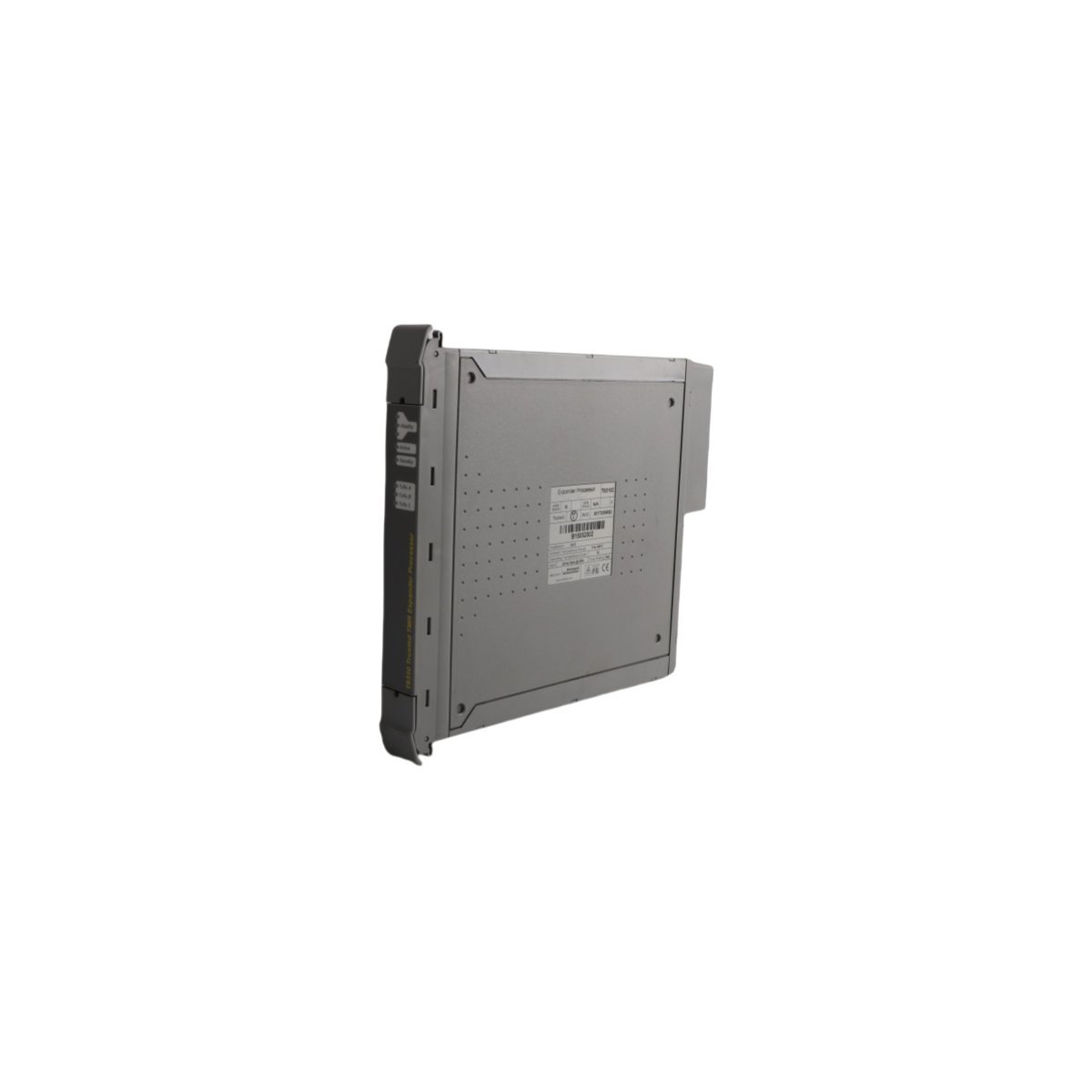

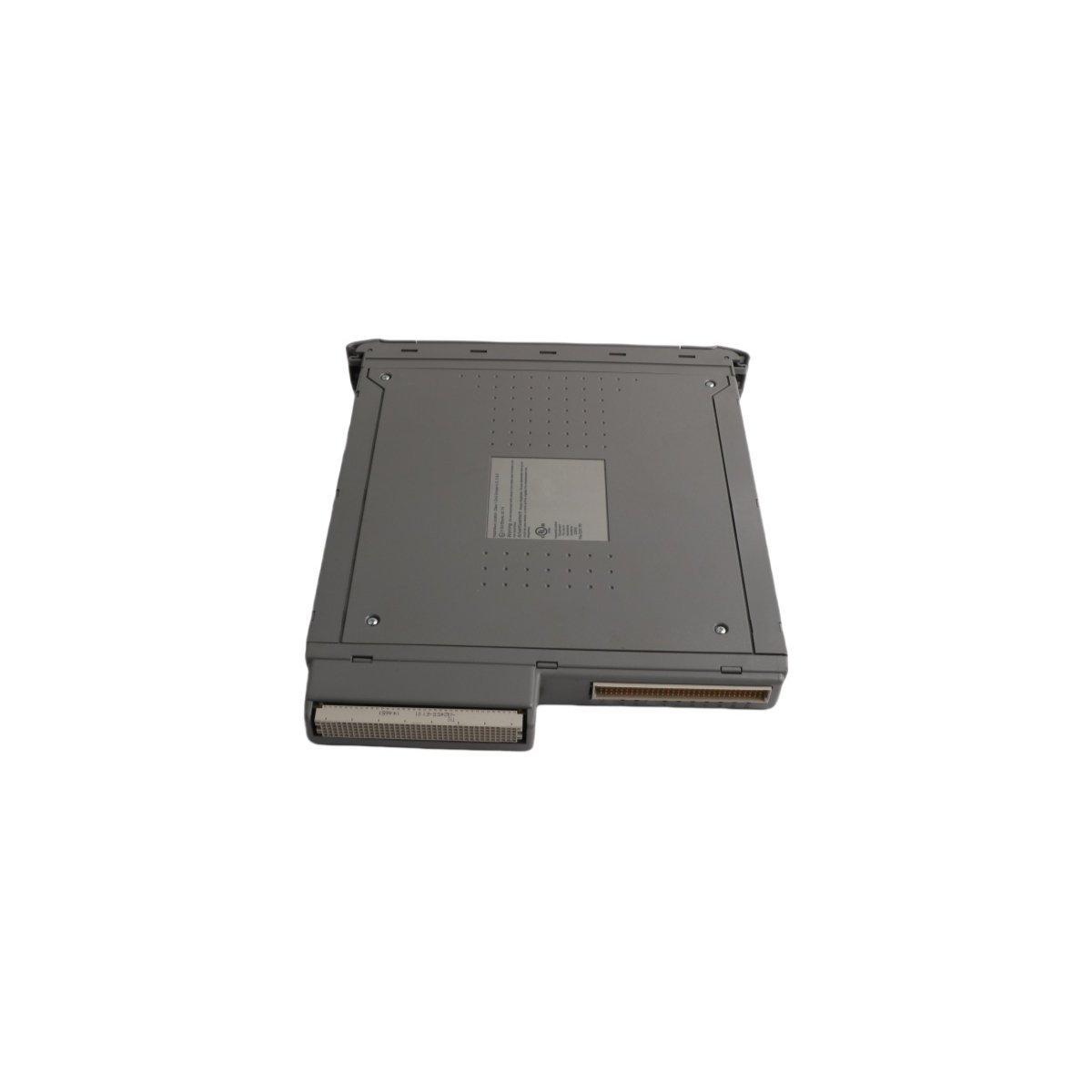

The ICS Triplex T8310C is a high-integrity Trusted Expander Module designed to facilitate secure, high-speed communication between a main Trusted controller chassis and remote expansion racks. Utilizing Triple Modular Redundant (TMR) architecture, it ensures fault-tolerant data distribution for safety-critical industrial automation.

Fault-Tolerant System Expansion and Connectivity

The T8310C Trusted Expander Module acts as the primary bridge for extending the Triple Modular Redundant (TMR) bus across multiple chassis. By facilitating transparent communication between the main processor and remote I/O modules, this unit allows engineers to scale their safety systems without compromising speed or reliability. Because the module supports high-frequency data processing, it maintains the strict timing requirements necessary for emergency shutdown (ESD) and fire and gas (F&G) applications. Consequently, the T8310C serves as a critical link in distributed architectures where I/O density exceeds the capacity of a single rack.

TMR Architecture and Industrial Resilience

Engineered to operate within the ICS Triplex Trusted environment, the T8310C leverages a robust voting mechanism to eliminate single points of failure. The module utilizes specialized internal logic to verify data integrity across three independent processing paths. Furthermore, the hardware features a rugged metallic enclosure that protects sensitive electronics from electromagnetic interference (EMI) and harsh atmospheric conditions typical of offshore platforms and refineries. This durable construction ensures that the remote I/O communication remains uninterrupted, even in environments prone to high vibration or thermal fluctuations.

Efficient Integration and Maintenance

The T8310C module simplifies the management of large-scale automation projects through its intuitive interface and diagnostic capabilities. Maintenance teams can monitor the status of the expansion bus in real-time, allowing for rapid identification of cable faults or signal attenuation. Since the module supports hot-swapping, technicians can replace a unit without powering down the system, thereby maximizing plant availability. Transitioning to this expander module allows for a decentralized control strategy, reducing the total volume of field wiring while enhancing the overall safety posture of the facility.

Key Technical Characteristics

• Triple Modular Redundancy (TMR): Incorporates three isolated paths to ensure maximum fault tolerance and system safety.
• High-Speed Bus Expansion: Extends the Trusted system backplane to remote chassis with minimal signal latency.
• Advanced Diagnostics: Integrated LED indicators and software reporting provide immediate feedback on module health.
• Ruggedized Enclosure: Constructed from high-grade alloys to resist corrosion and electrical noise.
• Secure Communication: Employs proprietary protocols to protect data transfer between expansion racks.
• Hot-Swap Capability: Supports online replacement to prevent process interruptions during maintenance.

Technical Specifications
