Product Description

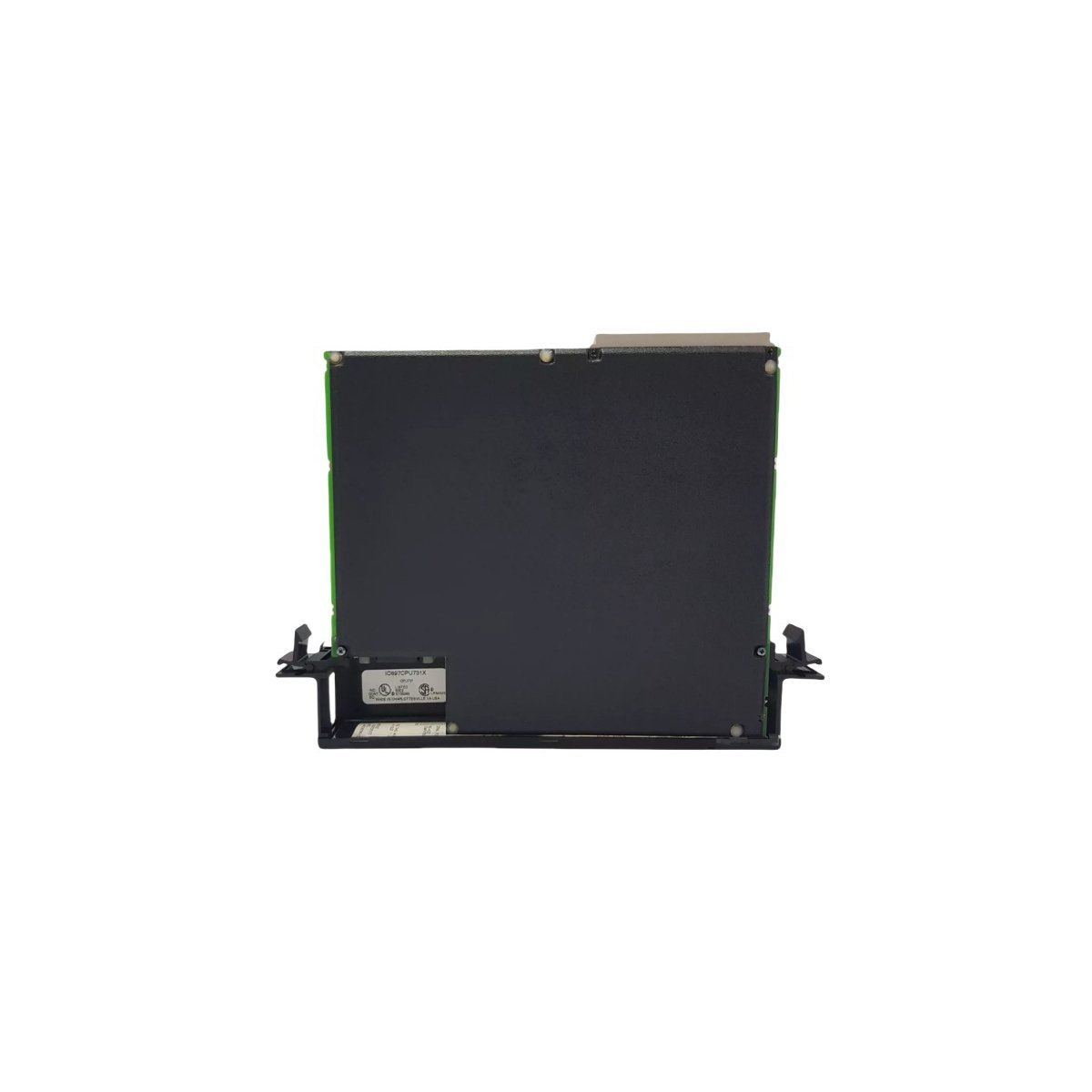

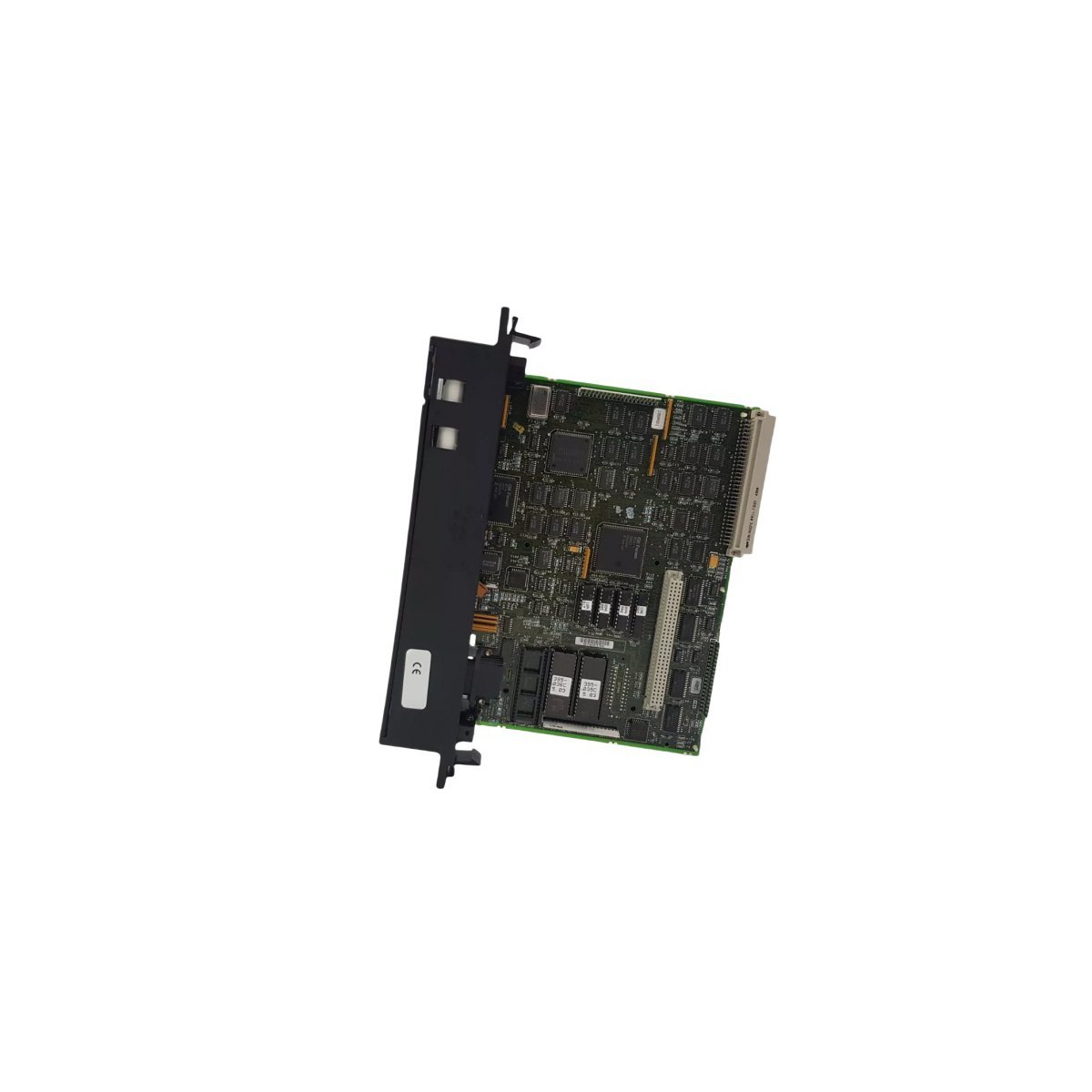

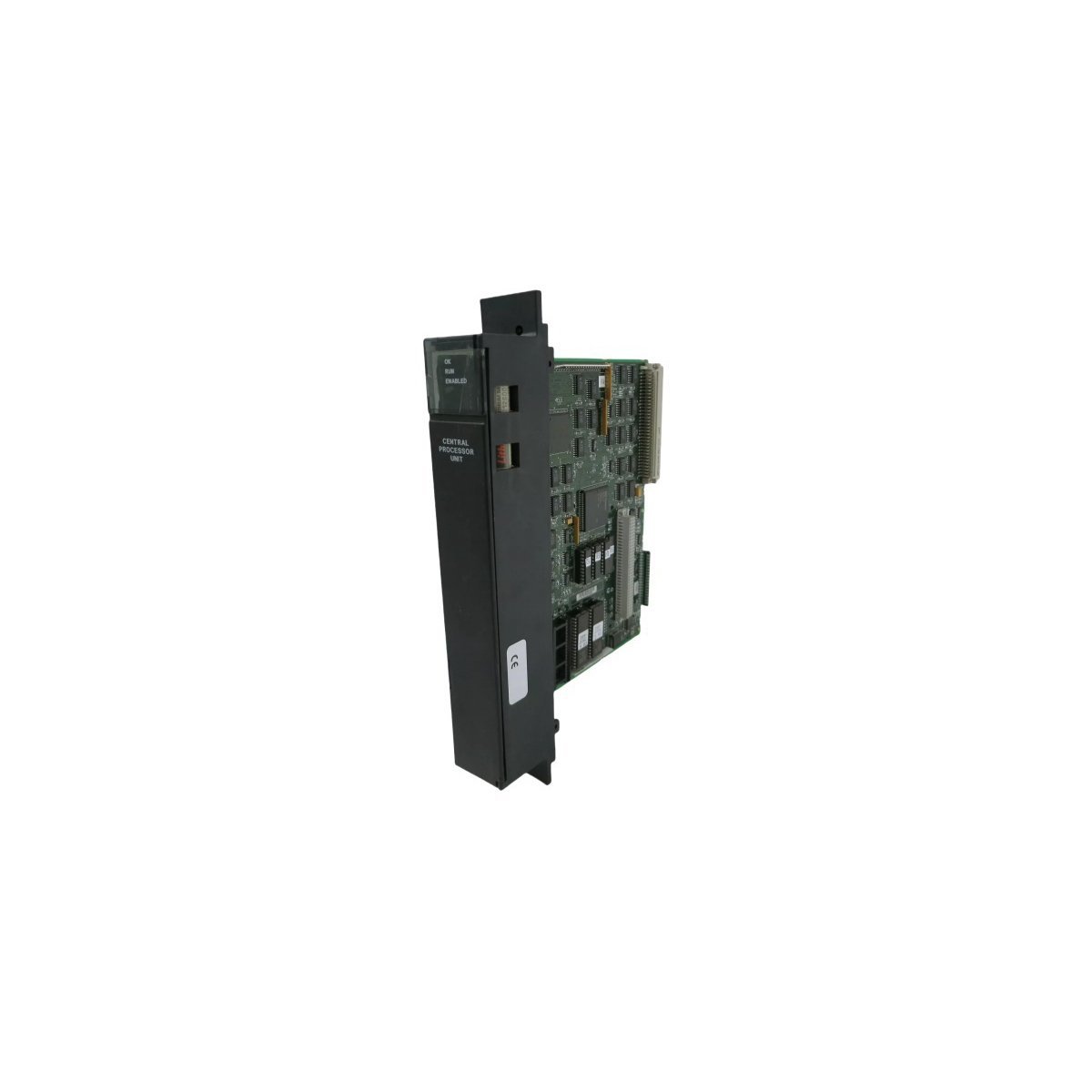

The GE Fanuc IC697CPU711 serves as the primary intelligence for the Series 90-70 Programmable Logic Controller platform. It orchestrates high-speed logic execution and complex automation tasks, providing a stable foundation for industrial control systems.

Computational Performance and Architecture

At the heart of the IC697CPU711 lies an 80C186 microprocessor operating at a 12 MHz clock speed. This hardware configuration enables a rapid Boolean execution rate of 0.4 microseconds per instruction. Consequently, the module delivers the real-time responsiveness required for high-speed manufacturing and process control. The CPU integrates seamlessly with the VME C.1 standard backplane, ensuring high-speed data transfer between the processor, I/O modules, and specialized communication interfaces.

Memory and Signal Management

To accommodate sophisticated user programs, the IC697CPU711 supports up to 512 Kbytes of expansion memory. It effectively manages a broad I/O map, including 2K of discrete inputs/outputs and up to 8K of analog data points. Furthermore, the module incorporates a 15-pin D-type serial port that facilitates RS-485 communication. When paired with external converters, this port also supports RS-232 and RS-422 protocols for peripheral device integration.

• Logic Execution: Fast 0.4 µs Boolean processing via 80C186 12 MHz processor.
• Development Compatibility: Supports legacy Logicmaster 90-70 as well as modern Proficy Machine Edition.
• Security Features: Employs multi-level password protection to safeguard proprietary automation logic.
• Expandability: Compatible with various LAN interface modules and VME-based smart option cards.
