Description

Product Overview

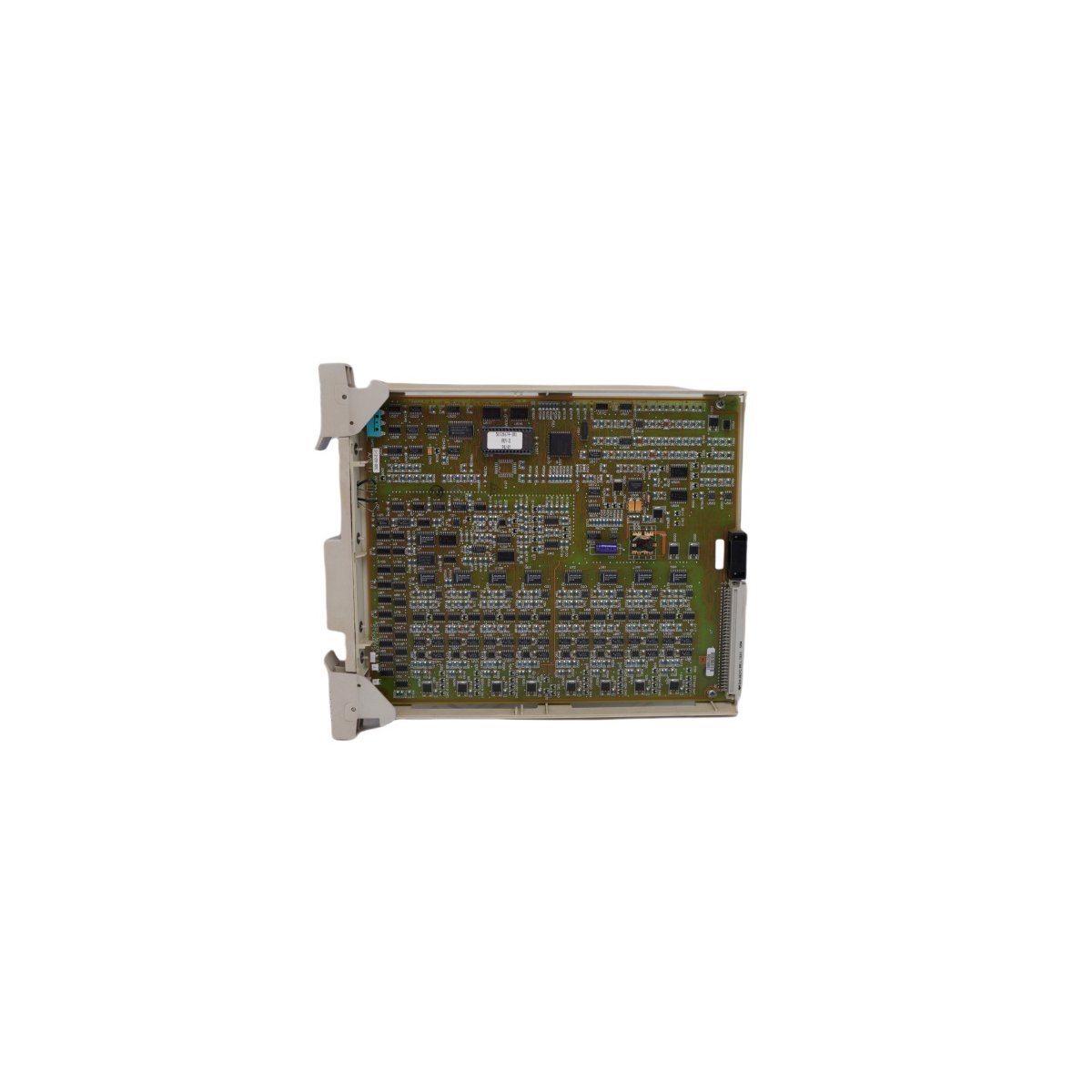

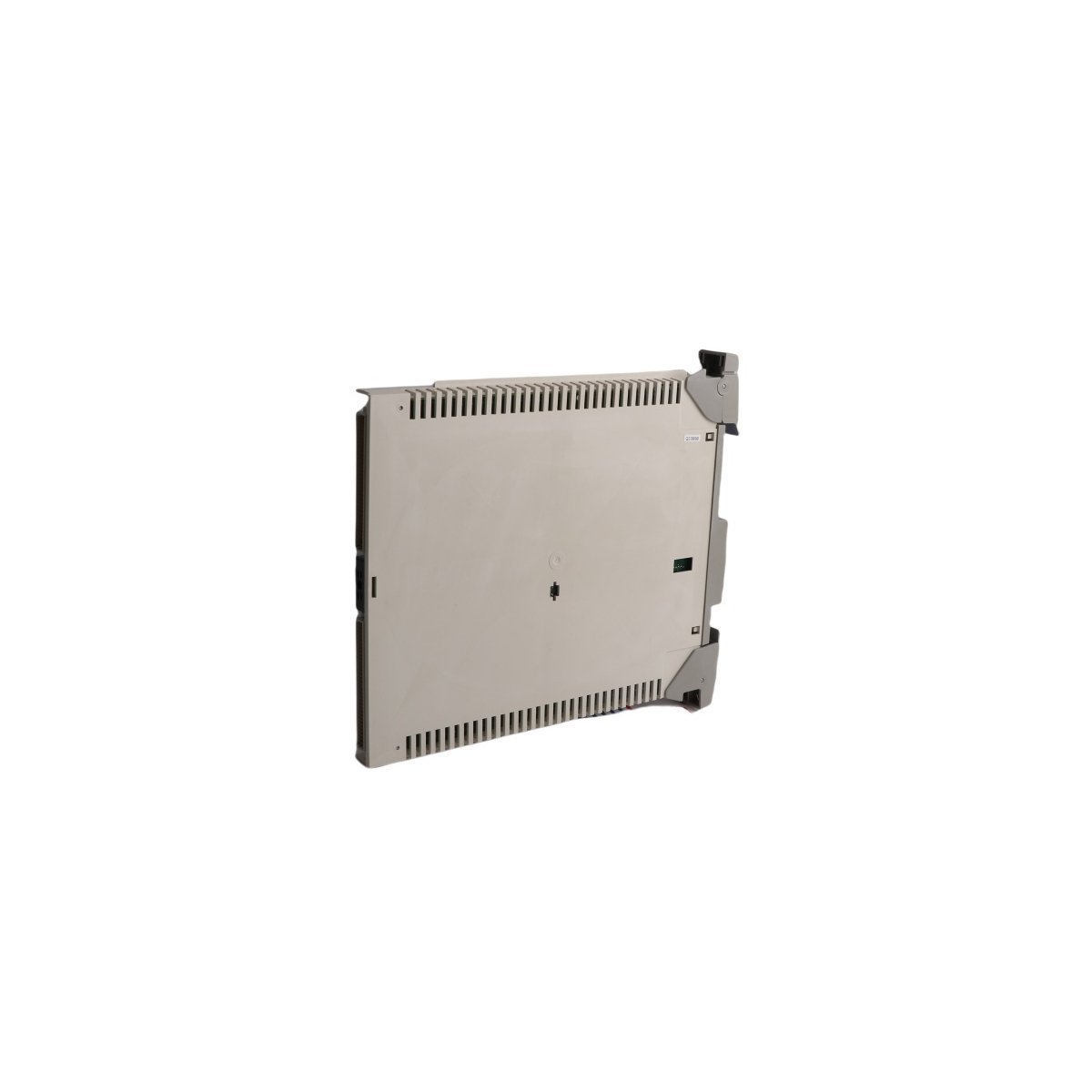

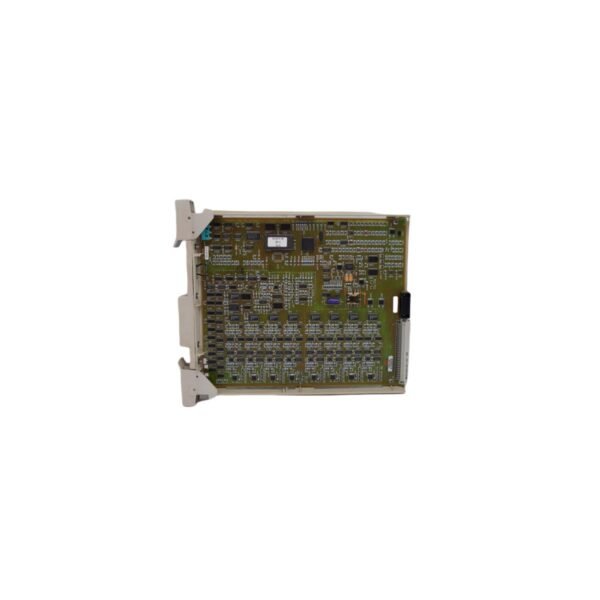

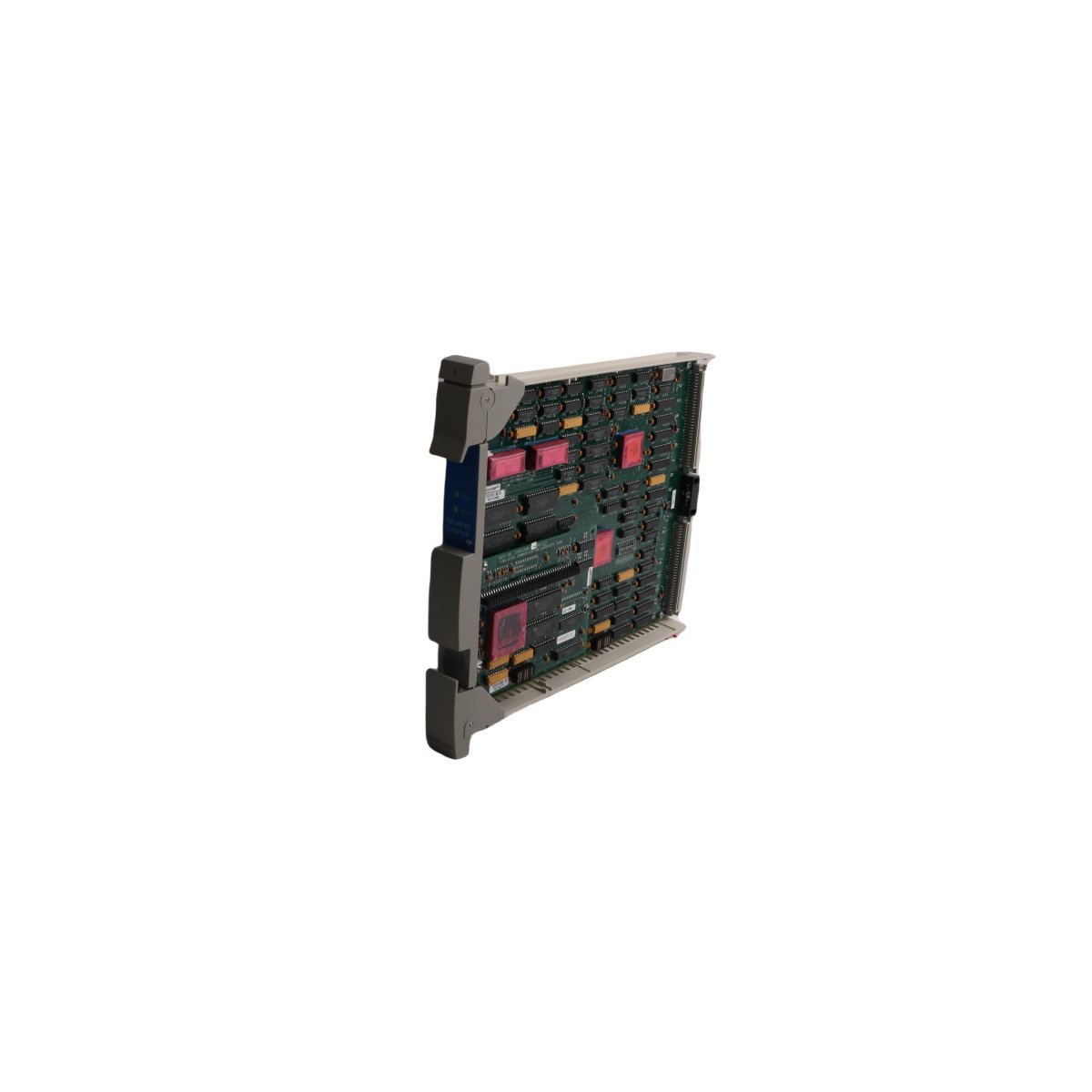

The Honeywell 51304672-150 serves as the primary Analog Output Main Board for the legacy TDC 3000 Distributed Control System (DCS). This essential hardware interface translates digital control commands from the system processors into precise analog signals to drive field-side actuators, valves, and positioners.

Precision Control and Signal Conversion

The 51304672-150 board facilitates critical command execution by providing a stable bridge between the DCS logic and mechanical field devices. By converting digital control values into high-accuracy analog currents or voltages, this board ensures that final control elements respond exactly as programmed. This level of precision is vital for maintaining tight tolerances in process loops, such as pressure regulation and flow control. Furthermore, the board’s design incorporates high-grade digital-to-analog conversion (DAC) components to minimize signal drift and ensure long-term calibration stability.

Legacy Integration and System Reliability

Specifically engineered for the TDC 3000 ecosystem, the 51304672-150 integrates seamlessly with existing I/O processors and termination assemblies. Although it belongs to a mature product line, it remains a cornerstone for facilities looking to maintain or extend the life of their established automation infrastructure. The board features a robust circuit layout designed to mitigate the effects of industrial electrical noise and power fluctuations. Additionally, the assembly undergoes rigorous quality screening to meet the high availability requirements of continuous process industries like petroleum refining and power generation.

Durability in Industrial Environments

Honeywell built the 51304672-150 to survive the demanding conditions of industrial control rooms and satellite instrument houses. The board utilizes industrial-grade substrates and protective coatings to resist degradation from temperature cycling and vibration. Because it is a “Main Board” configuration, it provides the necessary mounting points and bus connections for secondary daughtercards if required by specific system architectures. This heavy-duty construction minimizes hardware failure rates and reduces the total cost of ownership by extending the interval between required maintenance cycles.
