Description

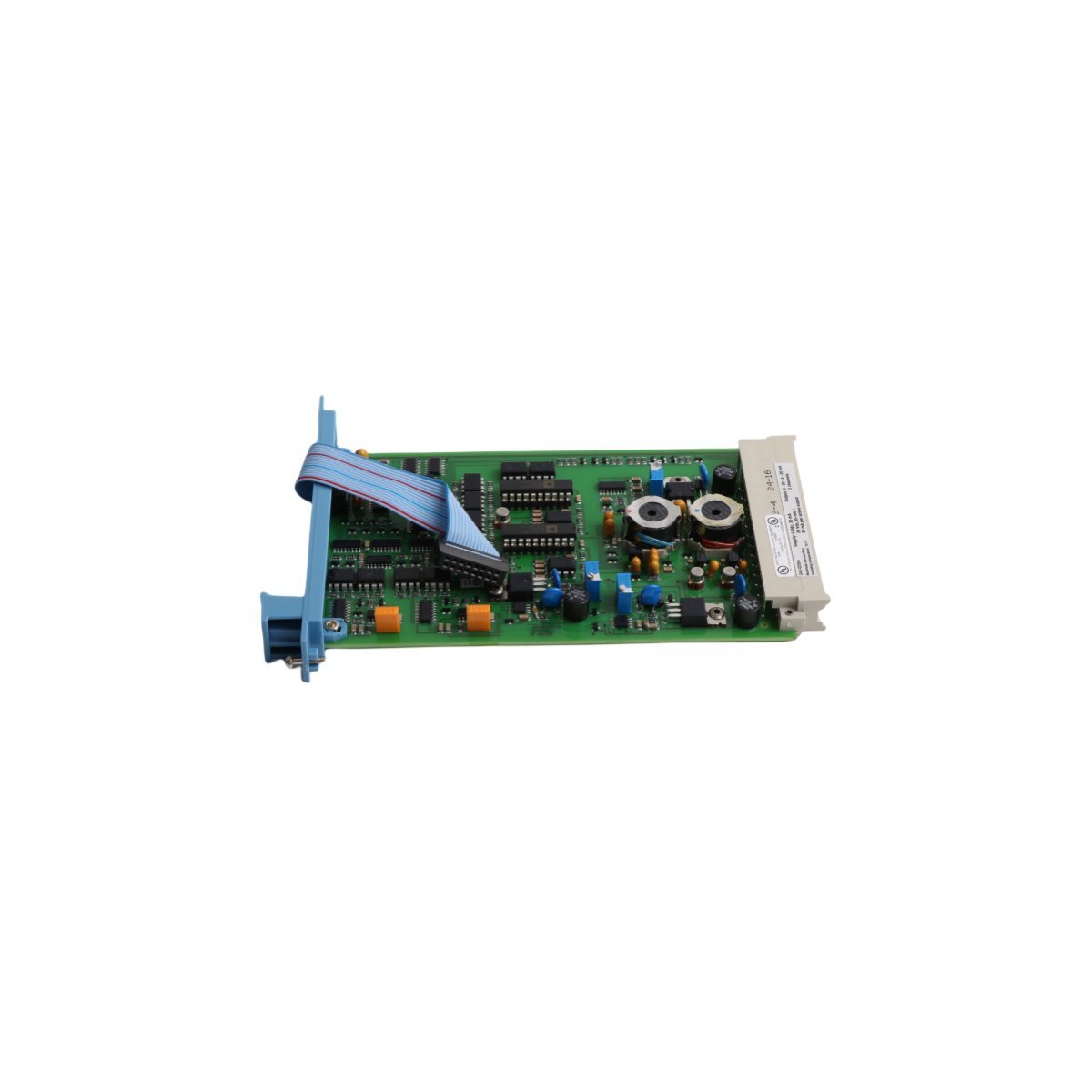

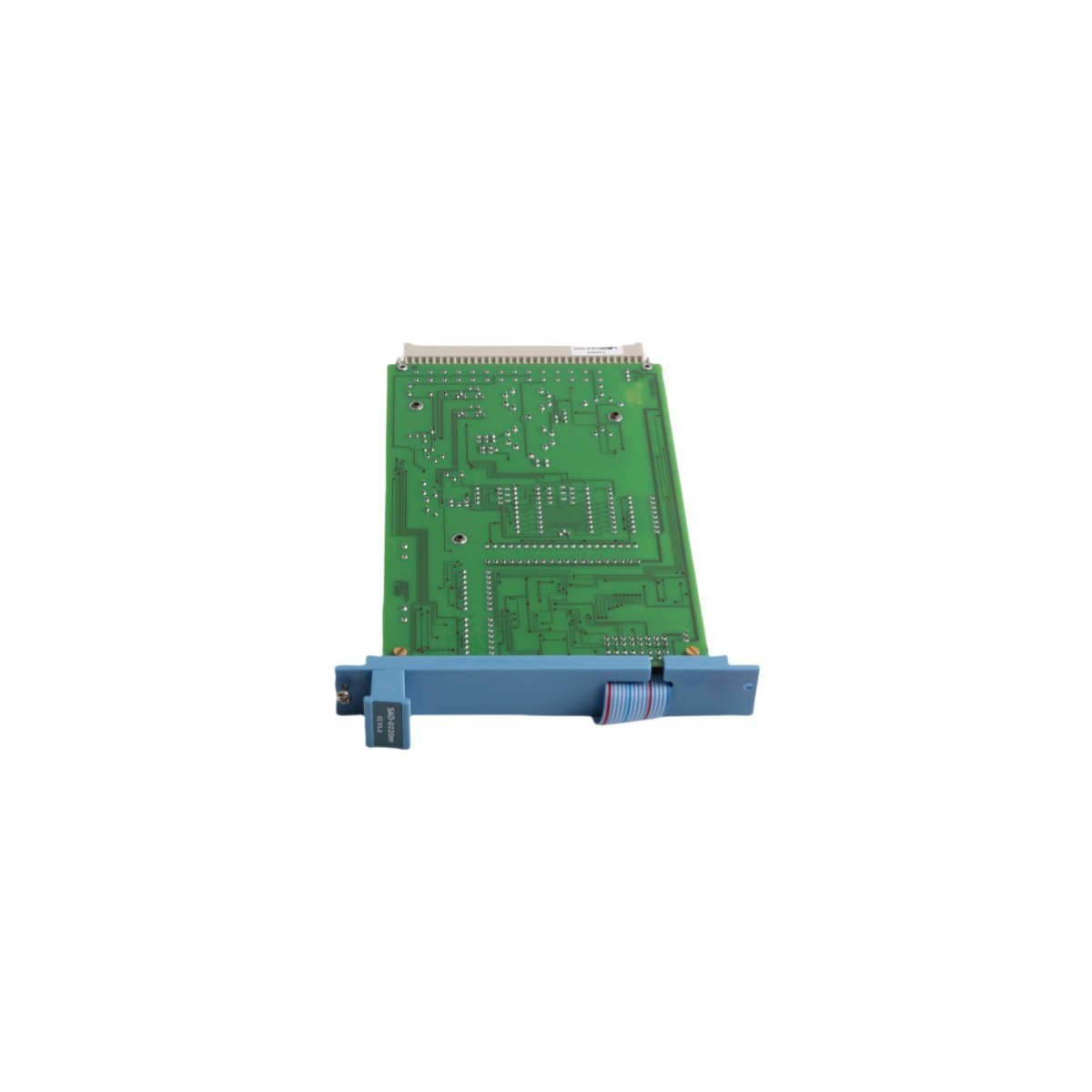

The Honeywell FC-SAO-022M functions as a high-integrity analog interface for the Safety Manager (SM) controller line. This module converts digital control commands into regulated 4-20mA current signals for field equipment. It primarily manages final control elements like variable position valves and dampers. Because the module utilizes a fail-safe architecture, it ensures predictable behavior during signal interruptions. The internal circuitry continuously monitors the output loop for continuity and accuracy. Consequently, the system maintains strict control over critical process variables.

Operational Safety and Diagnostics

This module belongs to a safety-certified family designed for high-availability environments. The FC-SAO-022M features comprehensive self-diagnostics to detect internal hardware failures immediately. It also identifies external load issues such as open loops or short circuits. If a fault occurs, the module transitions the output to a safe, predefined state. This capability significantly reduces the risk of process upsets in hazardous zones. Furthermore, the unit supports redundant configurations to maximize plant uptime and reliability.

Key Technical Characteristics

• High Output Precision: Delivers stable analog current signals with minimal drift over time.
• Safety Integrity: Meets rigorous SIL standards for use in Safety Instrumented Systems (SIS).
• Real-time Monitoring: Tracks output loop health and reports faults to the central logic solver.
• Redundancy Options: Integrates into dual-redundant safety architectures for mission-critical tasks.
• Rugged Construction: Withstands electrical noise and thermal stress in demanding industrial settings.

Technical Specifications

Industrial Applications

The FC-SAO-022M excels in sectors requiring functional safety and precise modulation. Typical deployments include offshore oil platforms, gas processing plants, and chemical refineries. It manages proportional control in emergency shutdown (ESD) systems effectively. Since the module offers rapid signal response, it handles dynamic process adjustments with ease. It provides a reliable link between digital safety logic and physical field actuators.
