Product Overview

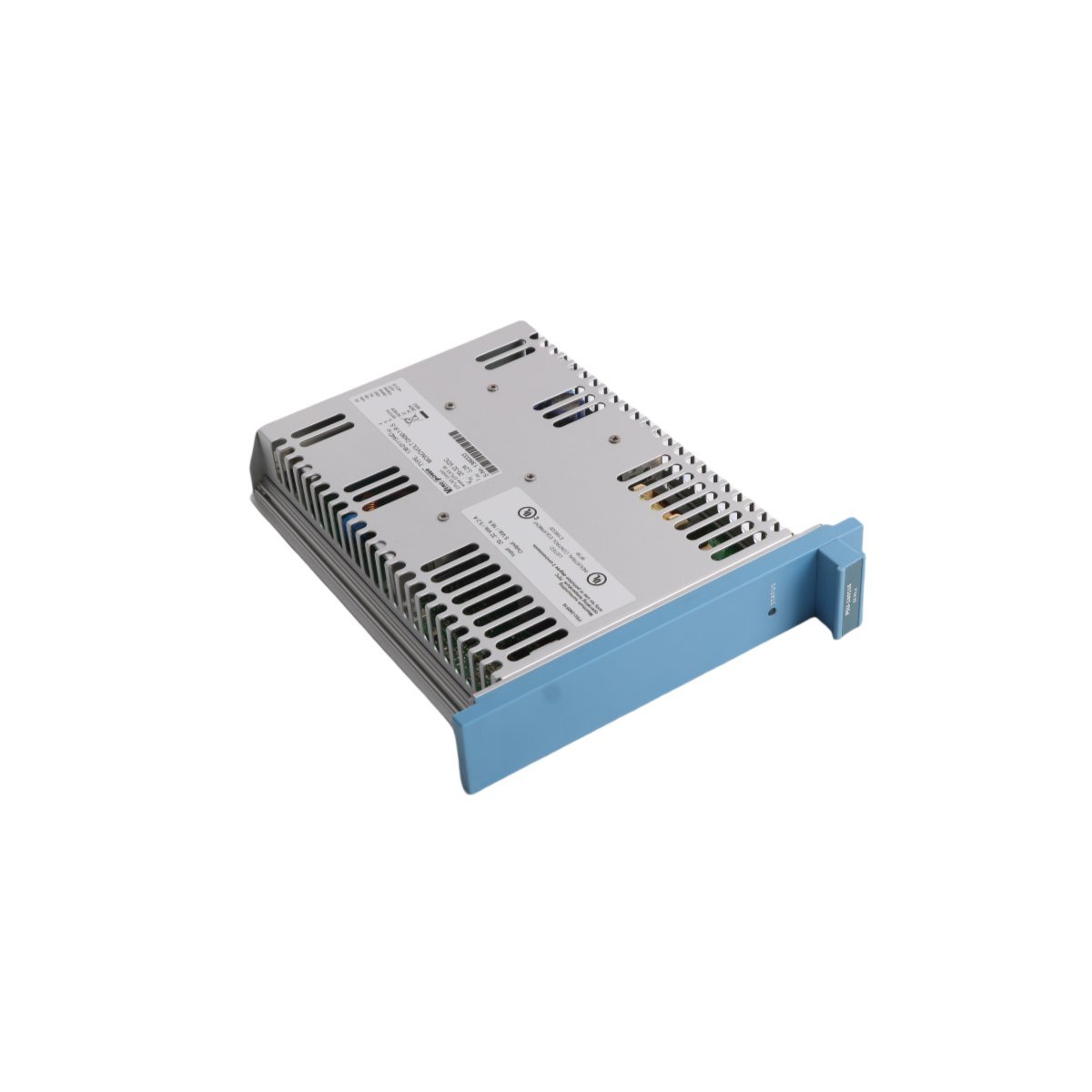

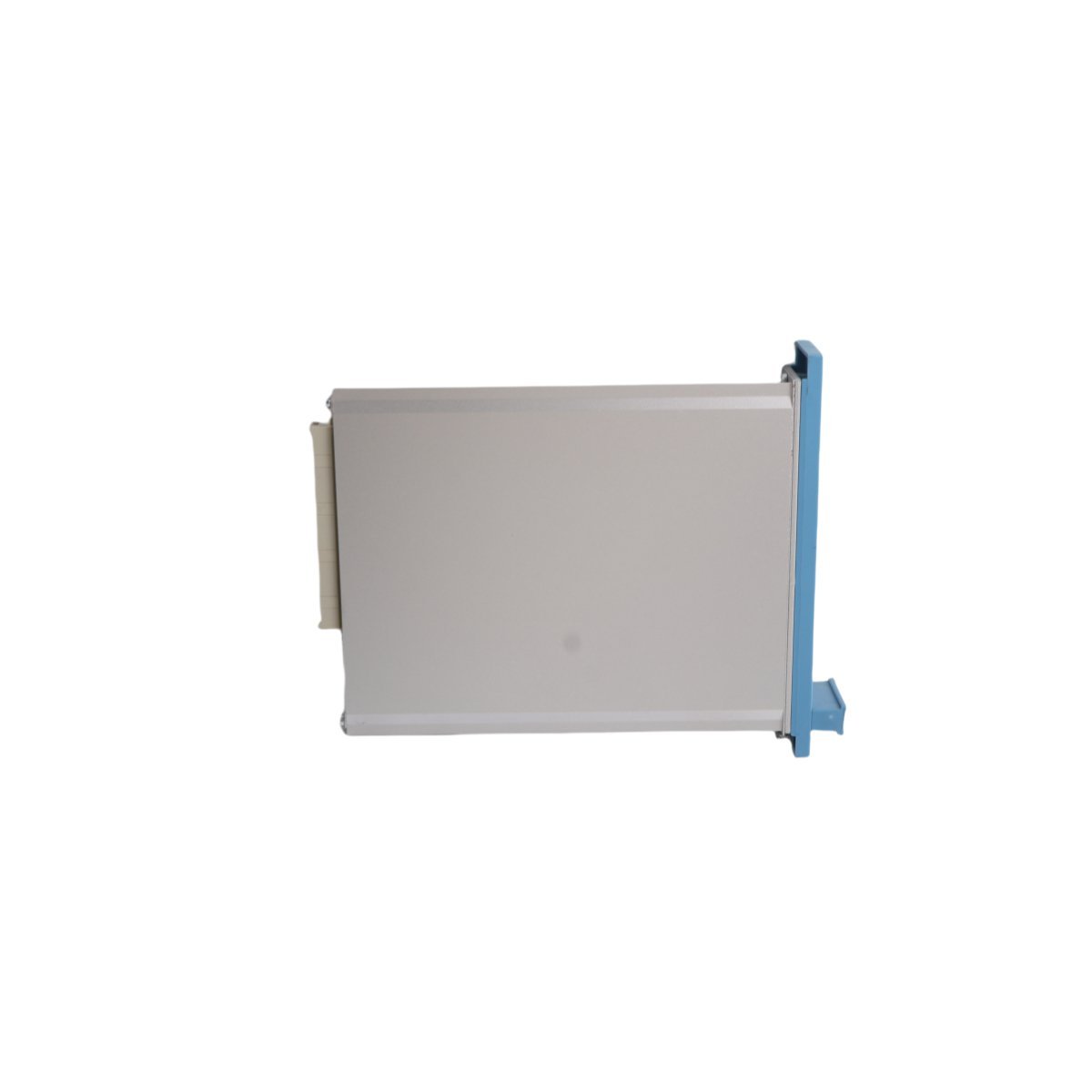

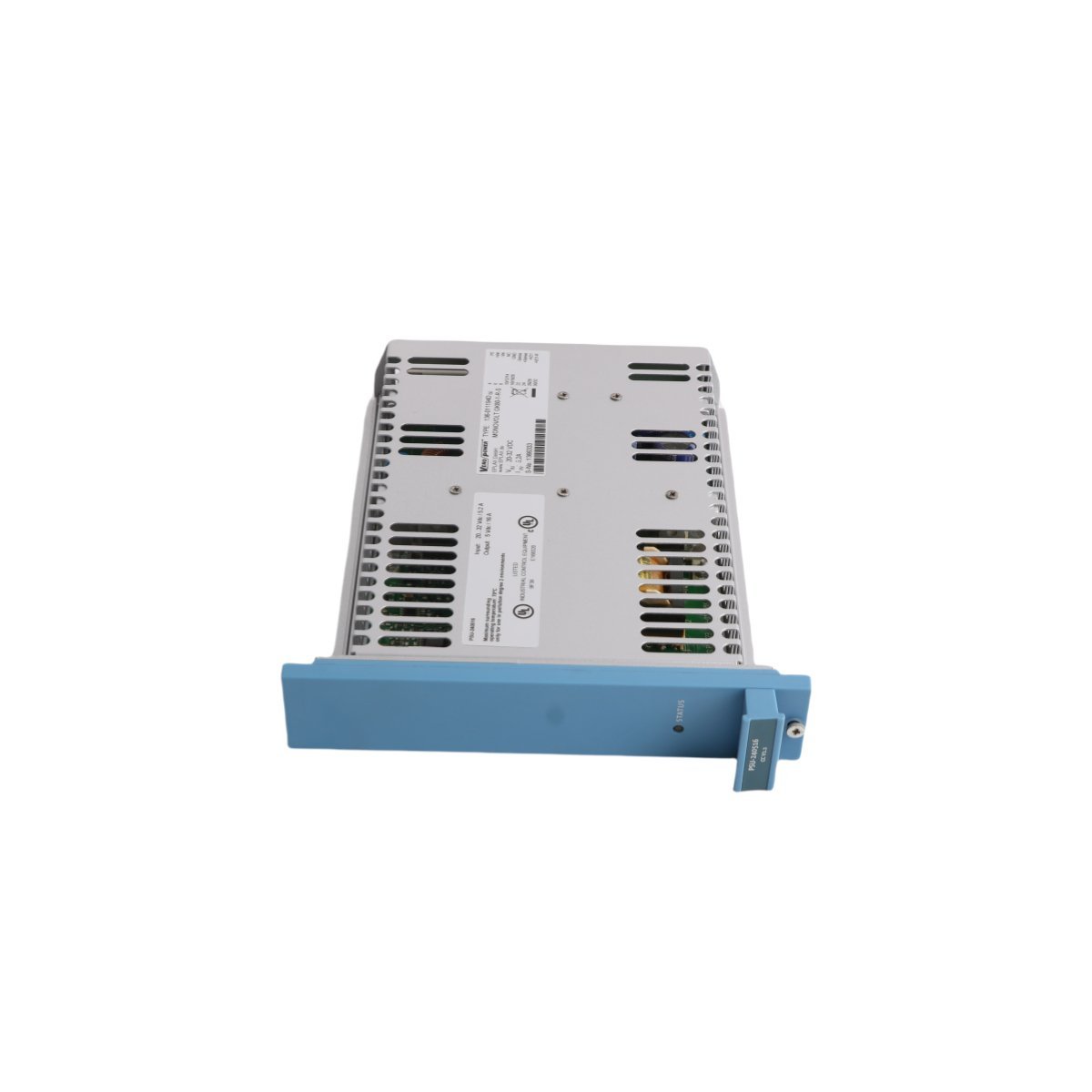

The Honeywell FC-PSU-240516 V1.0 is a specialized dual-output power supply unit engineered to provide highly stable 24V and 5V DC power to critical safety systems and distributed control architectures. This 16-ampere rated module ensures that sensitive logic circuits and field devices receive consistent, filtered energy to prevent process interruptions.

High-Integrity Power Conversion

The FC-PSU-240516 V1.0 functions as a primary energy regulator for Honeywell safety-related hardware. By converting input power into precise 24VDC and 5VDC rails, the unit supports both the high-level signaling required for field actuators and the low-voltage requirements of microprocessor-based logic cards. This dual-voltage capability eliminates the need for multiple independent power sources, thereby reducing cabinet clutter and simplifying the overall power distribution architecture. Furthermore, the unit utilizes advanced switching technology to maintain a high efficiency rating, which minimizes thermal output and protects the longevity of surrounding electronic components.

Safety System Integration and Resilience

Honeywell designed this power unit specifically for mission-critical applications where system downtime can lead to significant operational risks. The FC-PSU-240516 V1.0 features robust internal protection mechanisms, including over-voltage, over-current, and short-circuit safeguards. These features ensure that even if a field-side fault occurs, the power unit isolates the problem to protect the integrity of the central DCS or Safety Manager. Consequently, the module is a standard choice for Emergency Shutdown (ESD) and Fire and Gas (F&G) systems where absolute power reliability is a prerequisite for site safety.

Maintenance and Diagnostic Features

The compact form factor of the V1.0 revision allows for easy installation into standard Honeywell racks. Front-facing indicators provide immediate visual feedback regarding the health of each output rail, enabling maintenance personnel to perform quick status checks during routine rounds. Because the module adheres to strict industrial compliance standards, it offers long-term stability in electrically noisy environments. This durability significantly lowers the total cost of ownership by extending service intervals and reducing the frequency of hardware replacements.
