Description

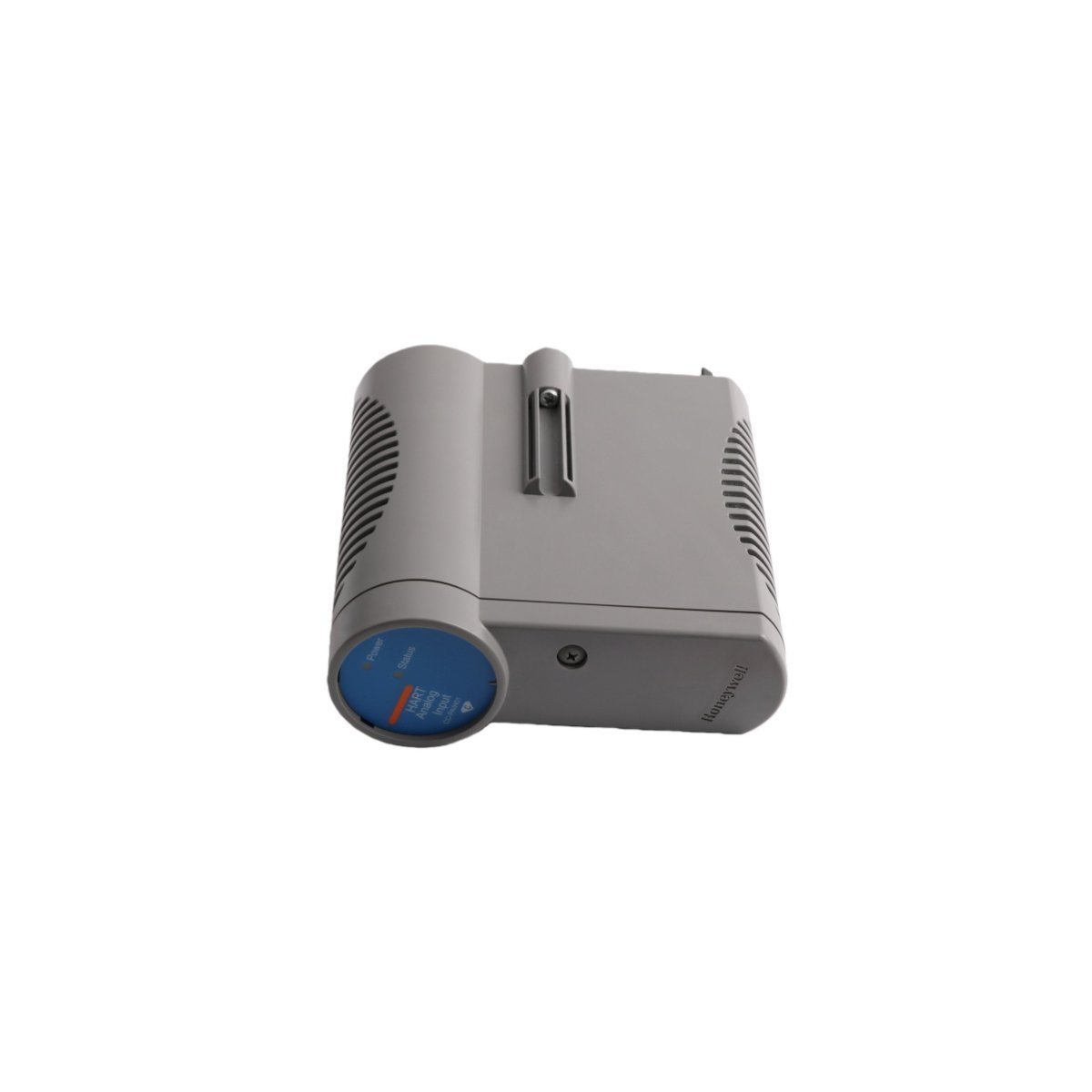

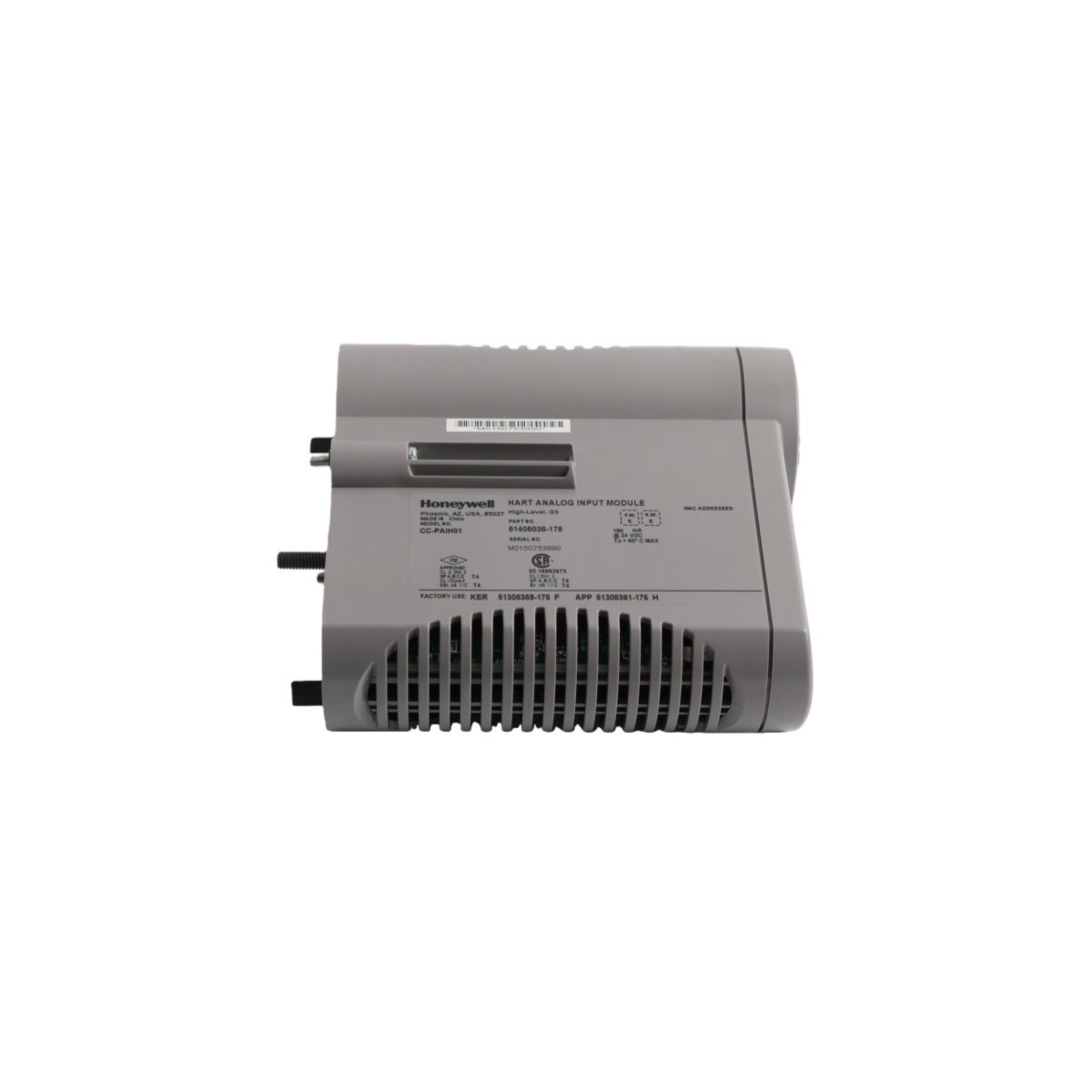

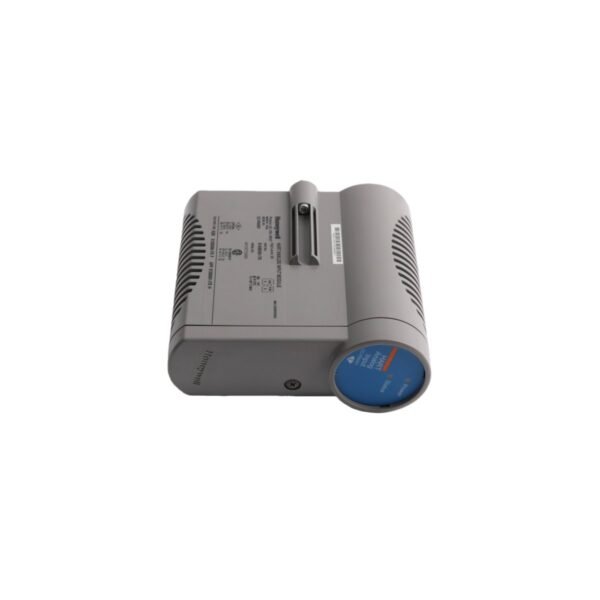

The Honeywell CC-PAIH01 51405038-175 serves as a high-level analog input interface for the Experion Series C platform. This module converts field signals into digital data for the C300 controller. It specifically supports HART-enabled devices to facilitate advanced instrument diagnostics.

Technical Specifications

Functional Overview

The CC-PAIH01 module facilitates the integration of smart field transmitters into the DCS environment. It accepts standard current and voltage signals from various industrial sensors. Furthermore, the built-in HART functionality allows engineers to access secondary device variables. This capability simplifies maintenance by providing deep insights into instrument health.

Safety and signal integrity remain top priorities for this hardware. The module features integrated open-wire detection to alert operators of circuit failures. Additionally, it provides non-incendive field power to ensure safe operation in hazardous areas. These diagnostic layers prevent process upsets and improve overall plant availability.

System Integration and Compatibility

This module connects to the C300 controller via the high-speed IOLINK interface. This architecture allows for seamless firmware management and rapid data updates. Although newer models like the CC-PAIH02 exist, the CC-PAIH01 remains a critical component for many existing Series C installations.

The hardware mounts directly onto the Input Output Termination Assembly (IOTA). This design reduces cabinet wiring complexity and saves physical space. It also supports redundant configurations to eliminate single points of failure. Consequently, the CC-PAIH01 delivers the stability required for continuous process industries.

Primary Applications

Chemical processing plants utilize these modules for precise pressure and flow monitoring. Oil and gas facilities rely on them for high-accuracy temperature measurements. Power generation utilities implement the CC-PAIH01 to maintain strict control over steam cycles. The module’s versatility makes it a standard choice for complex automation tasks.
