Description

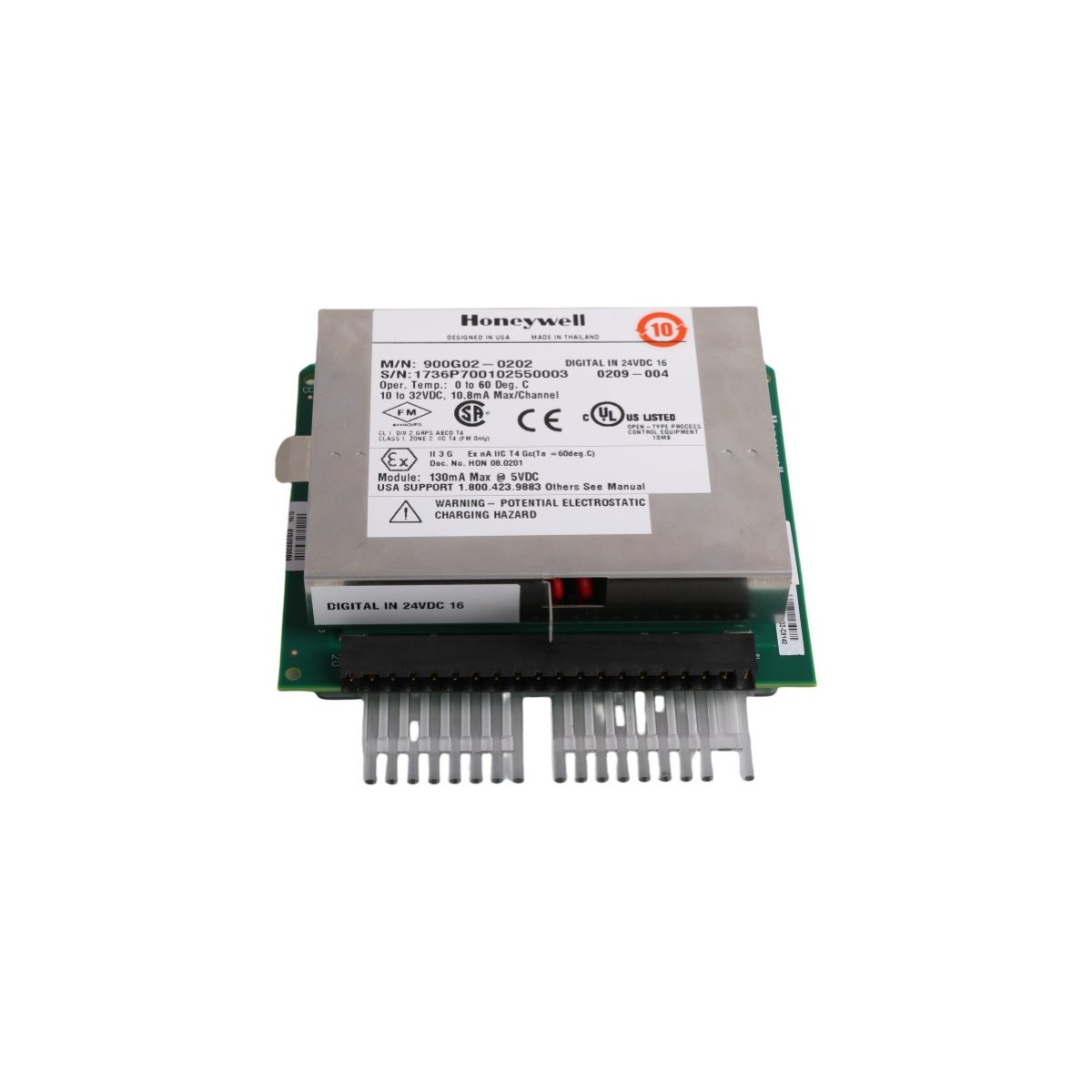

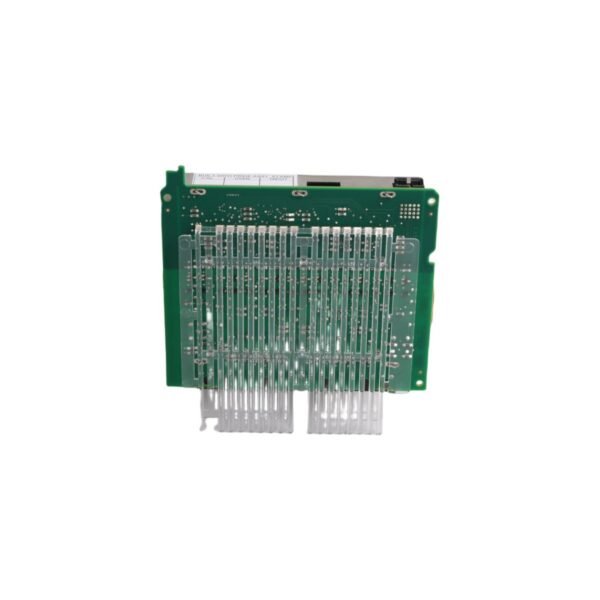

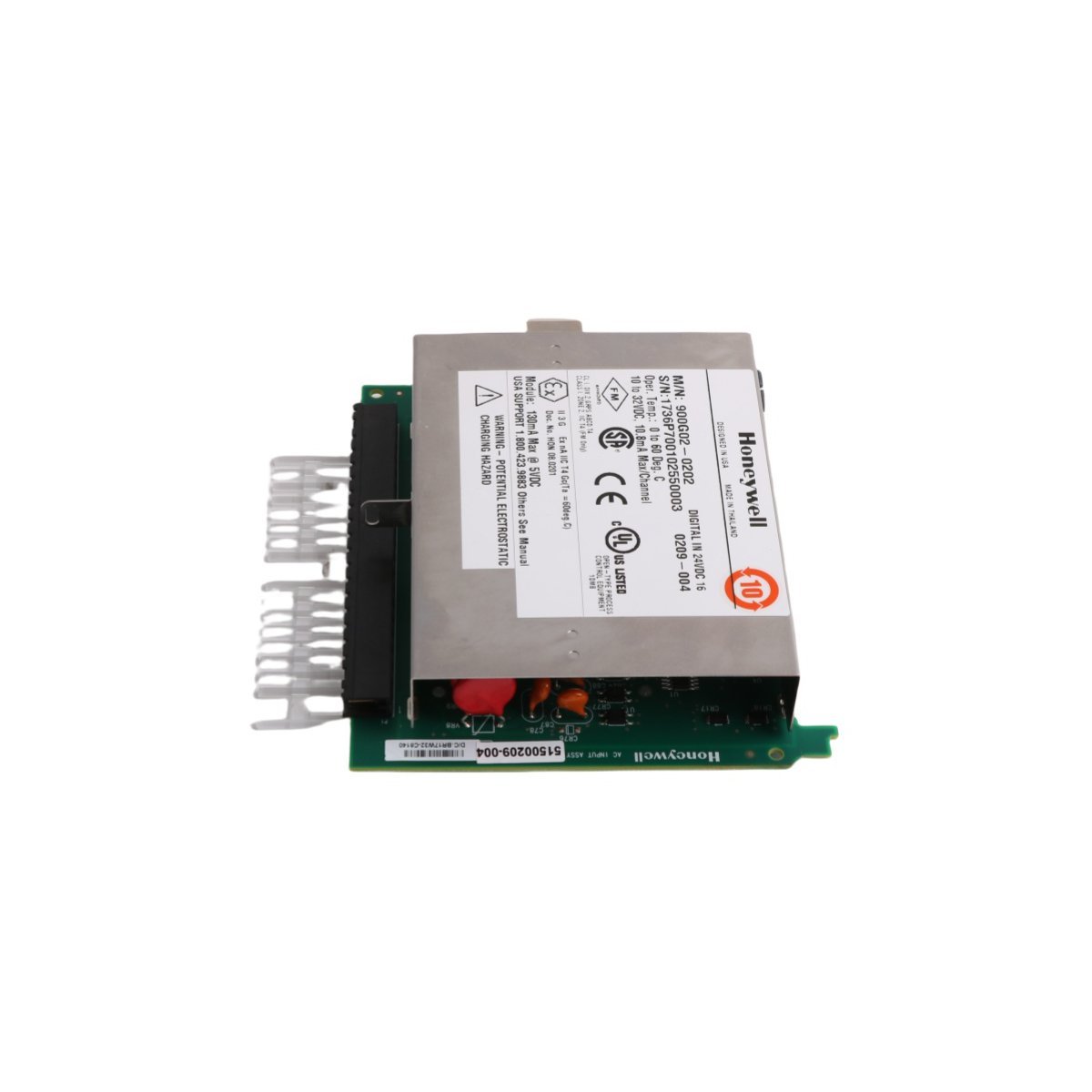

The Honeywell 900G02-0202 functions as a high-density discrete input interface. It operates within the Experion PKS and ControlEdge 900 Platform. This module specifically monitors the status of field switches and sensors. It converts incoming electrical signals into digital data for the controller. Each unit supports 16 individual input channels for maximum rack efficiency. Consequently, users can monitor multiple field devices using a single hardware slot.

Hardware Specifications

• Manufacturer: Honeywell
• Model Code: 900G02-0202
• I/O Type: Digital Input (DI)
• Channel Count: 16 Channels
• System Integration: Experion PKS / ControlEdge HC900
• Input Voltage: 120/240 V AC (Typical for G02 series)
• Module Weight: 0.2 kg
• Unit Dimensions: 13.5 x 14.1 x 3.3 cm
• Origin: USA

Advanced Performance Characteristics

This digital input module provides exceptional signal isolation for process safety. The internal circuitry filters electrical noise to ensure data accuracy. Furthermore, the 900G02-0202 features robust protection against high-voltage transients. It maintains stable performance during significant temperature fluctuations. The hardware supports hot-swapping to minimize system maintenance time. Operators can replace the module without powering down the entire rack. This capability prevents unnecessary interruptions in continuous industrial processes.

Practical Industrial Applications

Engineers typically deploy this module in heavy industrial environments. It excels in chemical processing plants and power generation facilities. The unit frequently monitors motor starters and limit switches. Additionally, it tracks the status of circuit breakers and safety interlocks. The compact form factor suits high-density control cabinets. Because of its rugged build, it performs reliably in vibration-prone settings.
